LED Flat Panel Light Dimmable 40W Ultra Slim

LED Flat Panel Light Dimmable 40W Ultra Slim
LED Flat Panel Light Dimmable 40W Ultra Slim LED Flat Panel Light Dimmable 40W Ultra Slim LED Flat Panel Light Dimmable 40W Ultra Slim

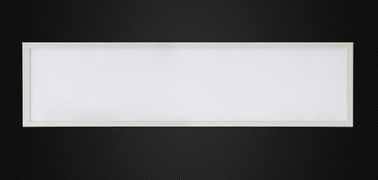

Large Image :  LED Flat Panel Light Dimmable 40W Ultra Slim

Product Details:
Place of Origin: China
Brand Name: MF
Certification: GS,TUV,CE, RoHS,CB,SAA
Model Number: MF-PL-3012-40W
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Factory Price
Packaging Details: 2pcs/inner packing, 6pcs/outer packing
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal,L/C
Supply Ability: 10,000pcs/Month

LED Flat Panel Light Dimmable 40W Ultra Slim

Dimension: 295mm*1195mm Power: 36Watt
Lumen: 3600LM Efficiency: 100LM/W,130LM/W To Options
Input: 100-240Vac,50/60Hz Dimmable: Yes, 1-10V Dimming
Material: AL Frame+ PMMA LGP+PS Diffuser IP Rating: IP40
Beam Angle: 120° CCT: 3000K±300K, 4000K±300K, 5000K±300K
CRI: >80RA Lifespan: >=35,000 Hrs
High Light:

led frame lights


led frame panel lights


LED Flat Panel Light Dimmable 40W Ultra Slim



Quick Detail:


Input Luminous CRI Beam Angel Lifespan Dimmable
AC 100V-240V, 50/60Hz 4000LM >80 RA 1200 ≧35000Hrs Yes,1-10V Dimming





As a professional  LED light bulb manufacturer,  MingFeng are specializing in providing flat panel light for customer from all over the world.


The 40W LED dimmable panel light, using the newest LED technology. It has the excellent design, our product can be 30% heavier than common product, at the same time we can get a better heat dissipation.we use Mitsubishi LGP, it has 90% light transmittance and good light distrition. We choice Epistar or LumenMax chip to make sure our prouducts has high lumen, high CRI, and long life span. Whats more, our unique design, constant IC driver and stable make it getting perfect.





Optical parameters


 Light Source: SMD 4014

 CCT: 3000K/4000K/5000K

 CRI: >80RA

 Beam Angle: 120°

 SDCM: <5

 Lifespan: >=3500 Hrs


Electrical parameters


Power Input/frequency: AC 100-240V, 50/60Hz

Dimmable:Yes,1-10V Dimming

Power Factor(PF): >0.9

Start Time: =0.5 S


Mechanical parameters


Material: AL frame + PMMA LGP + PS Diffuser

IP Rating: IP 40




Working Temperature & Humidity: -25℃~50℃, 10%~90% R.H.

Storage temperature & Humidity: -40℃~85℃, 40%~80% R.H.

Certificate: GS, TUV, CE, RoHS, CB, SAA




LED Flat Panel Light Dimmable 40W Ultra Slim 0





Alu body: Excellent design, thinkness Alu body, better heat dissipation.

Alu PCB board: Longer lifespan and better dissipation than FPC PCB.

Chip: Epistar or LumenMax Chip, high lumen, high CRI, long lifespan.

Light Guide Plate: Mitsubishi LGP, 90% Light Transmittance,good light distribution.

PMMA Diffusion Plate: MITSUBISHI PMMA Plate, high light transmittance, light is more soft and no glare.

Reflective: Highly bright reflective film.





2 PCS / INNER PACKING                      6 PCS / OUTER PACKING


LED Flat Panel Light Dimmable 40W Ultra Slim 1





Commercial, Decorative, Residential.
