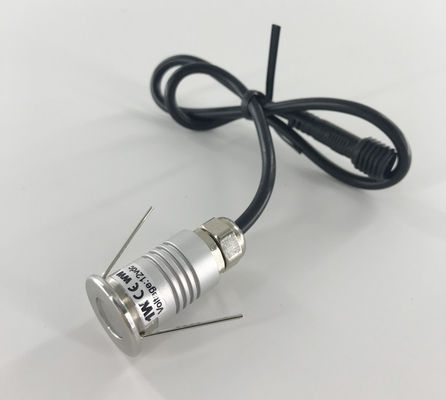

Stainless steel mini outdoor led underground lights, 1W / IP67 / DC12V/Cutout 18mm

Product Description



Stainless steel mini outdoor led underground lights, 1W / IP67 / DC12V/Cutout18mm


Description:

Outdoor underground lights can be defined as lighting that is done in the ground. It is also referred to as in-floor lighting especially when it refers to similar lighting done indoors. LED underground lights are such lights with the difference being they use LED technology instead of standard lighting technology.

The installation of floor recessed and ground lights aims to create guide lights which highlight the paths in outdoor building and garden areas. They also make the most of architectures and greenery defining private and public spaces, reducing the size of illumination products whose light is only visible because their technical components disappear below the surface.

Not all in-ground lights are designed to use the best lamps. LED in-ground lights are therefore the best types of these lighting fixtures as they are able to produce the best light for use of the space with regards to tone and color rendering. They also have optimum light efficiency that guarantees a substantial reduction in energy consumption. The introduction of LED technology to in-ground lighting is in response to the need to combine energy efficiency and light quality. To guarantee top performance in terms of energy efficiency, unaltered color and lifetime, LEDs are selected from the best in the world.

Parameters:

Product Name: Outdoor led underground lights
Product Code: MF-01WC-15
Power:1W
Luminous flux:87Lm
CRI : >80Ra
LED Brand:Epistar Chip LED
Input voltage: DC12V
Beam angle is optional:120°
Color temperature options: warm white (2700-3000K), neutral white (4000-4500K), cool white (6000-6500K) Other light color options: red, green, blue
Ingress Protection:IP67
Light body material: surface ring (stainless steel), the main (6063 aluminum)
Service life: 35000 hours

Item No.	Picture	Size	Led Brand	IP	Material	Color temperature	Power(W)	Luminous Flux	Input	Beam Angle
MF-01WA		Product Size: Ф35×H38mm Cut out: Ф28mm	CREE-XBD LED	IP67	Stainless steel + Aluminium	2700-3000K/4000-4500K/6000-6500K/ R/G/B	1W	95lm	12-24Vdc	15°/45°/60°
MF-03WA		Product Size: Ф35×H48mm Cut out: Ф28mm	CREE-XBD LED	IP67	Stainless steel + Aluminium	2700-3000K/4000-4500K/6000-6500K/ R/G/B	3W	280lm	12-24Vdc	15°/45°/60°
MF-03WB		Product Size: Ф48×H46mm Cut out: Ф34mm	Epistar COB	IP67	Stainless steel + Aluminium	2700-3000K/4000-4500K/6000-6500K/ R/G/B	3W	280lm	12-24Vdc	90°
MF-01WC		Product Size: Ф20×H38mm Cut out: Ф18mm	Epistar COB	IP67	Stainless steel + Aluminium	2700-3000K/4000-4500K/6000-6500K/ R/G/B	1W	87lm	12Vdc	120°
MF-01WD		Product Size: Ф24×H48mm Cut out: Ф22mm	CREE-XBD LED	IP67	Stainless steel + Aluminium	2700-3000K/4000-4500K/6000-6500K/ R/G/B	3W	280lm	12-24Vdc	15°
MF-03WS		Product Size: 45×45xH40mm Cut out: Ф35-38mm	CREE-XBD LED	IP67	Stainless steel + Aluminium	2700-3000K/4000-4500K/6000-6500K/ R/G/B	3W	280lm	12-24Vdc	15°/45°/60°

Special Notes:

#1 This LED underground Light can be made in R/G/B color, if need, please contact us.
#2 This LED Inground Light is with wide flood beam (120°) pattern. 120 degree wide flood beam pattern for close but wide range illumination. If you need other beam angle options like 15°, please contact us.

#3 We have raw materials in stock, so the lead time for samples 3 days, for order quantity 300pcs, 10 days.

Product Features:

◆ Self-developed, private mold products, elaborately carved, light body compact, flexible and extensive application;

◆ The light color is rich and optional, with amber light, warm white light, white light, cold white light, red, green, blue and so on;

◆ A single tonal light;

◆ The protection grade IP67 can be used under one meter of water;

◆ The surface of the main body can bear the pressure above 300KG;

◆ The lamp body adopts 304 stainless steel surface ring, which has anti-corrosion, high temperature resistance, never discolored, and is really durable.


Product Dimensions:

Product Installations :

1.  Inground

2. Recessed in the ceiling/the fence wall
