100W 150W 200W LED High Bay Lights, IP65, 0-10V/Dali dimmer , Sensor, Emergency kit
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | EX-WORK, FOB |
---|---|---|---|
Packaging Details : | 66*15*51cm/1pcs, N.W: 7.2KG, G.W: 10.5Kg | Delivery Time : | 2 weeks for bulk order |
Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS | Model Number: | MF-LH-100W |
Detail Information |
|||
Power: | 100W | Input: | 100-277Vac |
---|---|---|---|
Lumen: | 13000LM | CRI: | >80 |
Dimensions: | 600*420*76mm | Light Source: | Samsung Leds |
LED Driver: | Meanwell | CCT: | 4000K 4500K 5000K 5700K |
High Light: | led industrial high bay lights,ufo high bay lights |
Product Description
Product Description:

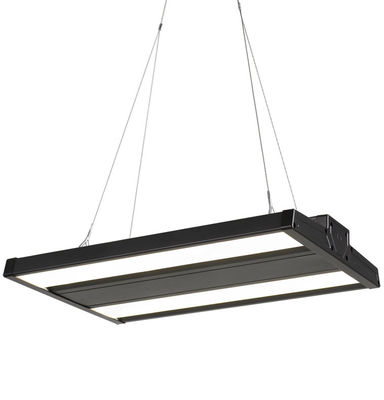

Ming Feng commercial linear high bay led fixtures are designed for 12 foot and higher ceiling applications in warehouses,gymnasiums, manufacturing, and other general task areas. With an enclosed power supply housing and covered optics, these units are designed for durability in difficult installation locations. This is an excellent option for converting conventional metal halide highbay fixtures, or fluorescent fixtures with LED. This product accepts 100-277Volt input and comes with aircraft cable hangers.
This 100Watt LED linear high bayenergy effcient operation of 130lm/wdelivers significant light output at the lowest power use. Compact design with maximum heat dissipation allows for versatility in installation locations. Meanwell driver with samsung 2835 led chipsets provides quality and reliability. Dimmable driver for use with daylight harvesting/ motion ssensors/ Advanced lighting controls.
Applications:
This 100Watt LED linear high bay is most often used in Warehouse, Cold storage, Manufacturing, Transportation, Sports facilities, Agriculture, Retail and other areas where a focused lighting application is required at heights greater than 10 to 14 feet.
Technical Parameter: MF Linear LED High Bay data sheet.pdf
Item | MF-LH-100W |
Input voltage | 100-277Vac 50Hz/60Hz |
Power | 100W |
Delivered Flux | 13000lm |
IP Rating | IP40 |
Beam Angle | 120° |
Color temperature | 4000K 4500K 5000K 5700K |
LED Chip | Samsung 2835 SMD |
LED Driver | Meanwell |
Color Rendering Index | Ra>80 |
Power Factor | >0.95 |
Lifespan | ≥50,000hrs |
Mounting height | 25-35cm |
Material | Aluminum Alloy |
Dimmable | 1-10V dimmable |
Certificate | CE/RoHS/DLC |
Warranty Period | 7 years |
Features:

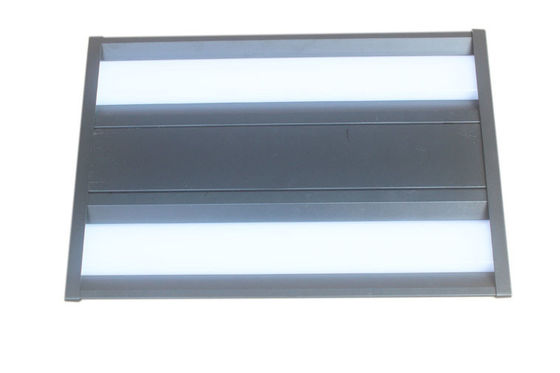

1. Full polycarbonate lenscover

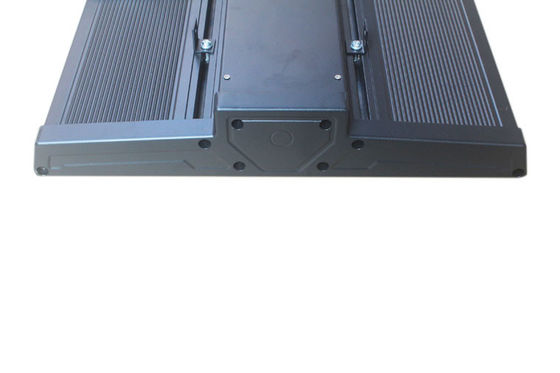

2. Aluminum housing and heat sink fins
3. Extremely light weight
4.1-10V dimmable
5. Enclosedwiring and driver compartment

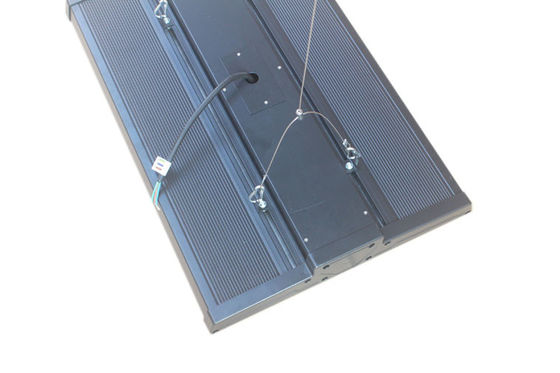

6. Aircraft cable hangers provided
7. Indoor/outdoorrated(IP40)
8. 7 years warranty
Radiator Processing:
Packaging Method:
Model NO | Pack Qty | Net Weight | Gross Weight | Volume Weight | CTN Size |
MF-LH-100W | 1PCS | 7.2KG | 8.5KG | 10.5KG | 66*15*51cm |
