1W CREE - XBD Integrated LED Step Lamp DC12-24V Anti - Glare Design

Minimum Order Quantity : 100PCS Price : Ex-work price
Packaging Details : 23*23*13cm/18pcs/inner box 1.8KG/inner box 51*51*43cm/12 inner box/carton 21.6KG/carton Delivery Time : 2 weeks
Payment Terms : T/T, Western Union, Paypal,L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-1WSA1

Detail Information

Color Temperature: 2700K/K/6000K/ Red/Green/Blue CRI: ≥80
Mount Type: Recessed Compatible Bulb Type: Integrated Led
Product Type: Step And Stair Lighting Fixture Color/Finish: Silver
Fixture Material: 6063 Aluminum Glass/lens Type: Clear
Application: Deck & Stair Lighting Warranty: 2 Years
High Light:

led deck lights


outdoor led floor lights

Product Description


1W LED Step lights and wall light, IP67,DC12-24V, CREE-XBD LED, Anti-glare design


The performance 1W LED step light is designed to provide 50,000-hours of life and rated for use in outdoor or indoor wall mount applications, including concrete pour, brick masonry, or drywall. The fixture may be used as an LED retrofit for existing outdoor rated step lights installed flexible wide range of applications.Light color rich optional, amber light, warm white, sun white, cold white, red, green, blue and other light; Beam angle can be selected according to different applications, there A1 A2 A3 options Protection class IP67, can be used in the 1 meter underwater.



General Information

Lamp family code  MF-1WSA
Light source color  Warm white/Pure white/Cool White
Light source replaceable  No
Number of gear units  1 unit
Driver included  NO
Optical cover/lens type  Tempered glass
Connection  Screw connection block
Cable  Cable with waterproof connector  2-pole


Protection class IEC  safety class I
Flammability mark  For mounting on normally flammable surfaces
CE mark  CE mark
Warranty period  2 years
RAL color  Silver aluminum
Constant light output  No
Light source engine type  LED



Operating and Electrical

Input Voltage DC12 to 24V


Controls and Dimming

Dimmable No


Mechanical and Housing

Housing Material  6063 Aluminum
Optical cover/lens material Tempered glass
Mounting device  Allen screw fixation
Optical cover/lens finish  Matte
Cutout  29-32mm
Overall width  Dia35 mm
Overall height  34 mm
Color  Aluminum Silver


Approval and Application

Ingress protection code IP67 [ Dust penetration-protected, watertight]
Mech. impact protection code IK08 [ 5 J vandal-protected]


Application Conditions

Ambient temperature range -20 to +40 °C

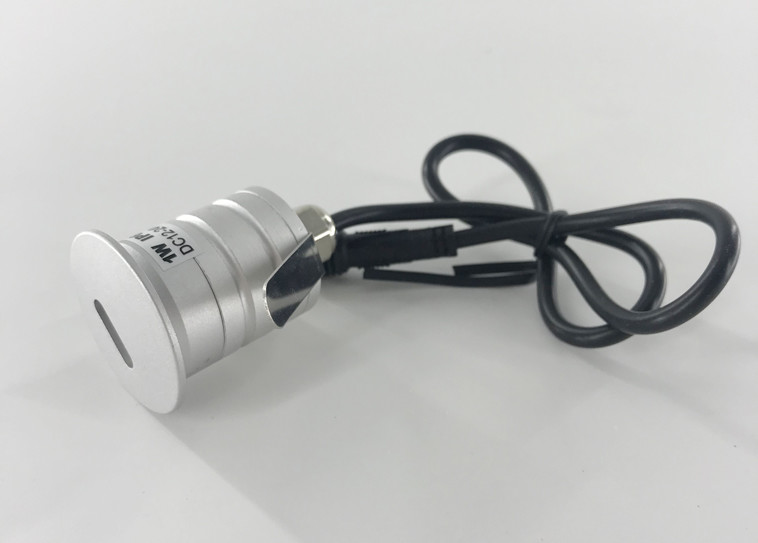

1W CREE - XBD Integrated LED Step Lamp DC12-24V Anti - Glare Design 0
1W CREE - XBD Integrated LED Step Lamp DC12-24V Anti - Glare Design 1
