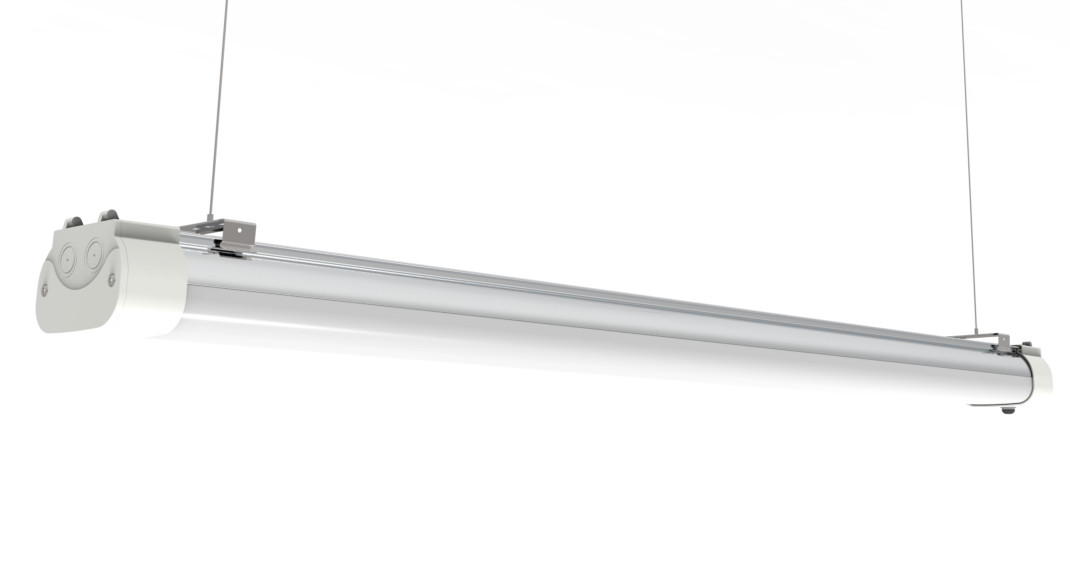

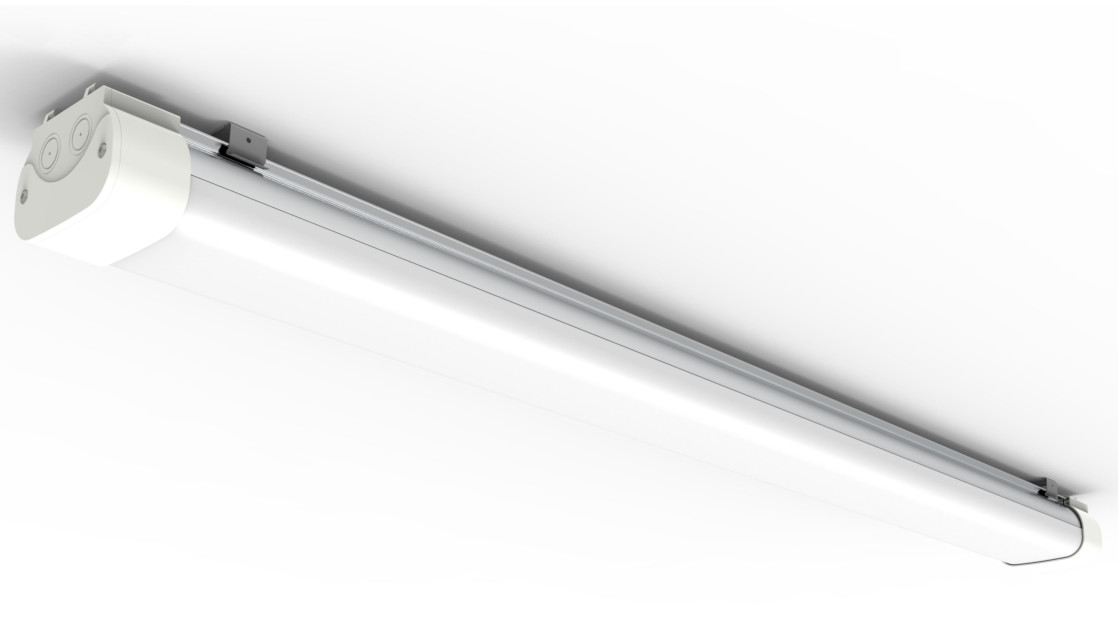

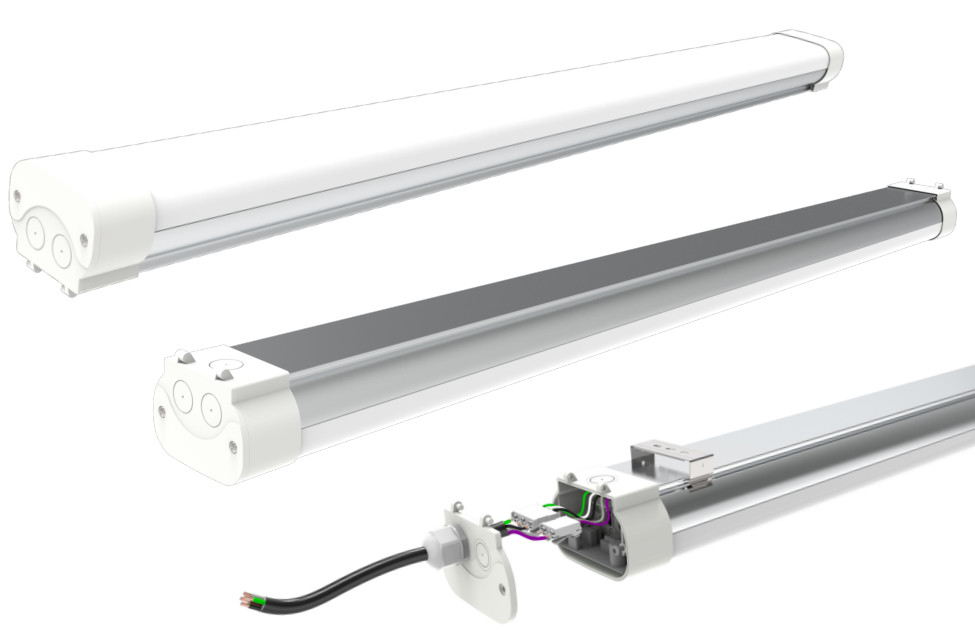

130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light

Minimum Order Quantity : 10PCS Price : USD28.5-39.5/PCS
Packaging Details : Standard brown carton box packing, 66*35*33cm/6pcs, N.W:7.2KG, G.W:8.0KG Delivery Time : 2 weeks
Payment Terms : L/C, T/T Supply Ability : 5000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-LTP20S-2FT

Detail Information

Power: 20Watt/40Watt/50Watt/60Watt Length: 2ft/4ft
Input Voltage: AC100-277V, 50/60Hz PF: >0.9
CRI: 80Ra+ Beam Anle: 120 Deg
IP Rating: IP65 Warranty: 3 Years
Lumen Efficiency: 130LM/W Dimmable: 0-10V
Remark: No Flicker
High Light:

Flicker Free LED Triproof Light

,

Dimmable LED Triproof Light

,

130LM/W LED Tri Proof Lights

Product Description

0 - 10V Dimmable Sensor Dimming Flicker Free LED Tri Proof Lights

Optical Details:

Light Efficiency: 130LPW

CCT: 30K, 40K, 50K

Beam Angle: 120°

CRI: 80Ra+



Electrial Details:

Input Voltage; 100-277Vac

PF: ≧0.95

Dimmable: 0-10V

Power Efficancy: ≧92%



Other Details:

Ingress Protection:IP65

Lifespan: 50,000Hrs+

Storage Temperature: -40℃∽80℃

Operating Temperature: -40℃∽45℃


CCT & Watt Selectable -Standard  Technical:

Model No Power Length Lumens CCT Remark Size
MF-LTP20S-2FT  20W 2ft 130lm/w 3000k/4000K/5000K


No Flicker

0-10V Dimming

600*100.7*77mm
MF-LTP40S-4FT

25W

30W

40W

4ft 130lm/w 1200*100.7*77mm
MF-LTP60S-4FT

40W

50W

60W

4ft 130lm/w 1200*100.7*77mm



Radiation Pattern:



* Only 100% detection sensitivity is workable when installed at 4m mounting height. 25% / 50% sensitivity

   is not able to detect motion signal.



                                              Ceiling mounting                                                          Wall mounting130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light 0130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light 1 130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light 2

                                                Ceiling mounting                                                           Wall mounting

130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light 3130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light 4130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light 5

Application:

Factory lighting: Workshop, warehouse, storage rack.

Sports Center:Gymnasium,swimming pool, locker room.

Service Area: Subway, kitchen, bathroom, canteen, walkways,garage, airport service area.

130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light 6 130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light 7
