Home ProductsLED Tri Proof LightsIP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted
IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted
IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted
IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted
Contact Now

IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted

Minimum Order Quantity : 10PCS Price : 18.5-46USD/PCS
Packaging Details : L127×W24×H24cm /15pcs/CTN, G.W: 17Kg Delivery Time : 2 weeks delivery time
Payment Terms : T/T, Western Union, Paypal,, L/C Supply Ability : 20,00pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, SAA,CB Model Number: MF-LL060024-XBF

Detail Information
Size: Dia48/70/100*600mm Material:: Alumimum + PC Cover
Power: 12W/20W/24W IP Rating :: IP67/IP68
Input Voltage :: AC 100V-277V IK Rating :: IK09/IK10
CRI: >80Ra PF: >0.9
CCT: 3000K,4000K, 5000K Electrial Protection Rating: Class I
High Light:

IP67 LED Tri Proof Lamp

,

60cm LED Tri Proof Lamp

,

NSF LED Tri Proof Lights

Product Description

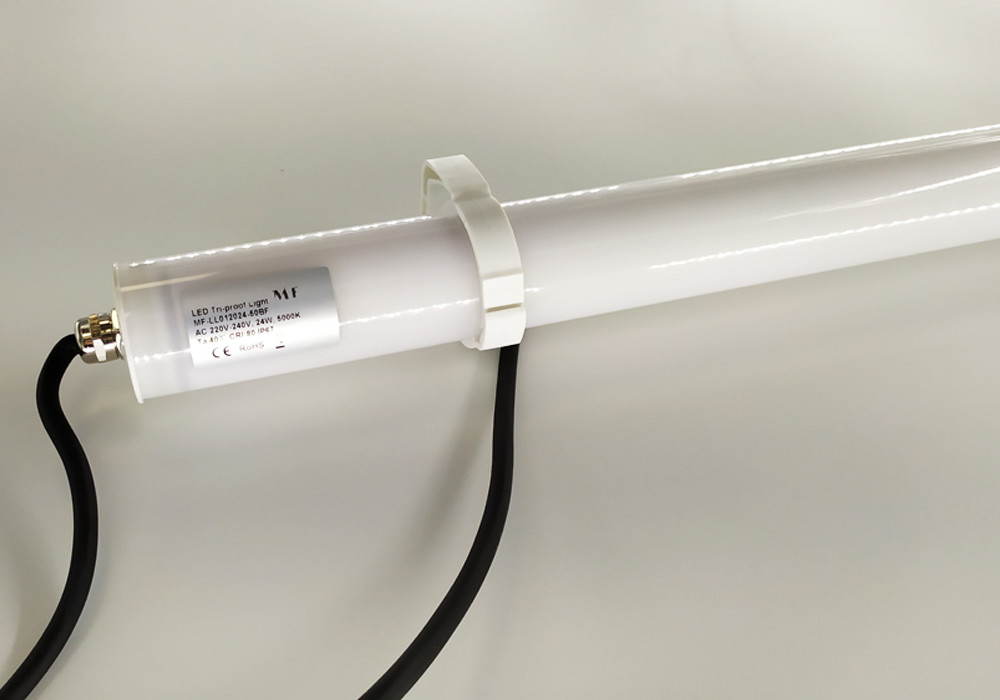

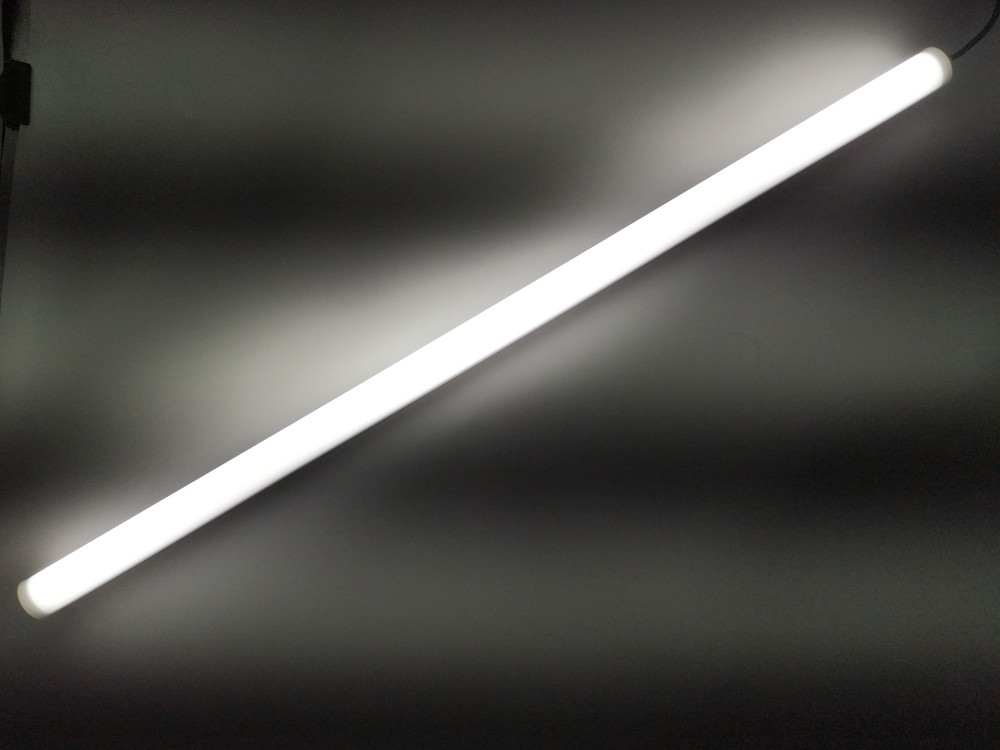

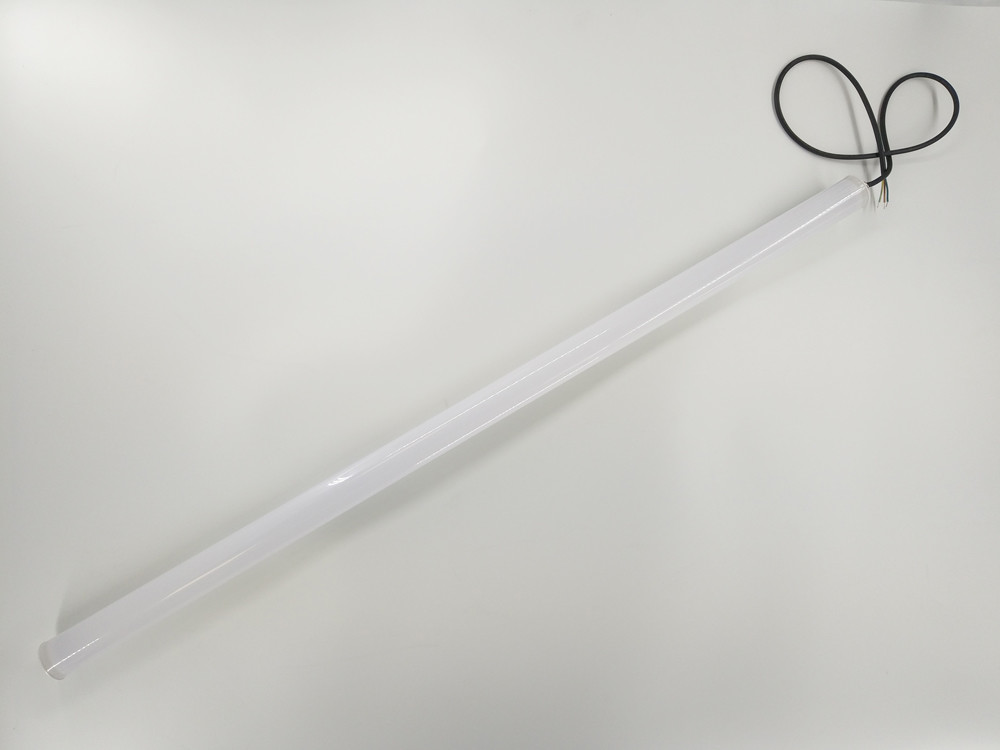

IP67 LED Tri proof Light, 60cm 12W/20W/24W Wall ceiling mounted Tri proof fixture



60cm LED Tri proof light Dimensions:

IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted 0



60cm LED Tri proof light Parameters:



IP67 60CM LEDTri-proof Light
Item Code : MF-LL060012-XBF MF-LL060020-XBF MF-LL060024-XBF
Power(W): 12W 20W 24W
Size(mm) : D48*L600 D70*L600 D100*L600
Lumen Efficiency
(Lm/w) :		 130W/LM
CRI : >80
CCT 3000K, 4000K,5000K
Input Voltage: AC100-277V
IP rate : IP67/IP68
Beam Angle : 120 degree
IK rate : IK09-IK10
Power Factor 0.9
Electriacal protection rating Class I
Design Life  50000Hrs
Design Standards CE/CB/SAA/Rohs/IFS/NSF



Description:



Main Features:



Ingress protection: High protection grade IP67/IP68

Applicable for washing by hot water IP69K

Mechanical strength: Impact Resistance grade IK08-10 in case of deliberately sabotage.Glass parts excluded
UV resistance, anti-UV
Ammonia resistance
Corrosion resistance
High Color rendering index :CRI≥80,CRI 90 is optional



IP68 Waterproof design



IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted 1



IP69K

high protection rating IP69K and resistance against cleaning agents. The high protection rating of the luminaires allows cleaningat high pressure up to 100 bar and with up to 80 °C hot water and a variety of cleaning agents, alongside good chemical resistance.



IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted 2

> Diagram of protection rating testing IP 69K

IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted 3
> High-pressure cleaning of housing cover with 100 bar



Applications:



Car washing yard; Parking Lot ; Meat processing ; Farm ; Food processing yard; Low temperature storage room ; Department store.......



IP67 60cm LED Tri Proof Lamp 12W / 20W / 24W Wall Ceiling Mounted 4
