1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted
1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted
1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted
Contact Now

1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted

Minimum Order Quantity : 10PCS Price : 31-76.5USD/PCS
Packaging Details : L127×W24×H24cm /15pcs/CTN, G.W: 17Kg Delivery Time : 2 weeks delivery time
Payment Terms : T/T, Western Union, Paypal,, L/C Supply Ability : 20,00pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, SAA,CB Model Number: MF-LL012050-XBF

Detail Information
Size: Dia48/70/100*1200mm Material:: Alumimum + PC Cover
Power: 24W/35W/50W IP Rating :: IP67/IP68
Input Voltage :: AC 100V-277V IK Rating :: IK09/IK10
CRI: >80Ra PF: >0.9
CCT: 3000K,4000K, 5000K Electrial Protection Rating: Class I
High Light:

IP68 Tri proof LED Light

,

Waterproof Tri proof LED Light

,

24W LED Tri Proof Lights

Product Description

1200mm IP68 Waterproof Tri proof LED Light 24W/35W/50W Chain /Brackt hang mounted



120cm LED Tri proof light Dimensions:

1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 0



120cm LED Tri proof light Parameters:



IP67 60CM LEDTri-proof Light
Item Code : MF-LL012024-XBF MF-LL012035-XBF MF-LL012050-XBF
Power(W): 24W 35W 50W
Size(mm) : D48*L1200 D70*L1200 D100*L1200
Lumen Efficiency
(Lm/w) :		 130W/LM
CRI : >80
CCT 3000K, 4000K,5000K
Input Voltage: AC100-277V
IP rate : IP67/IP68
Beam Angle : 120 degree
IK rate : IK09-IK10
Power Factor 0.9
Electriacal protection rating Class I
Design Life  50000Hrs
Design Standards CE/CB/SAA/Rohs/IFS/NSF





Main Parts:

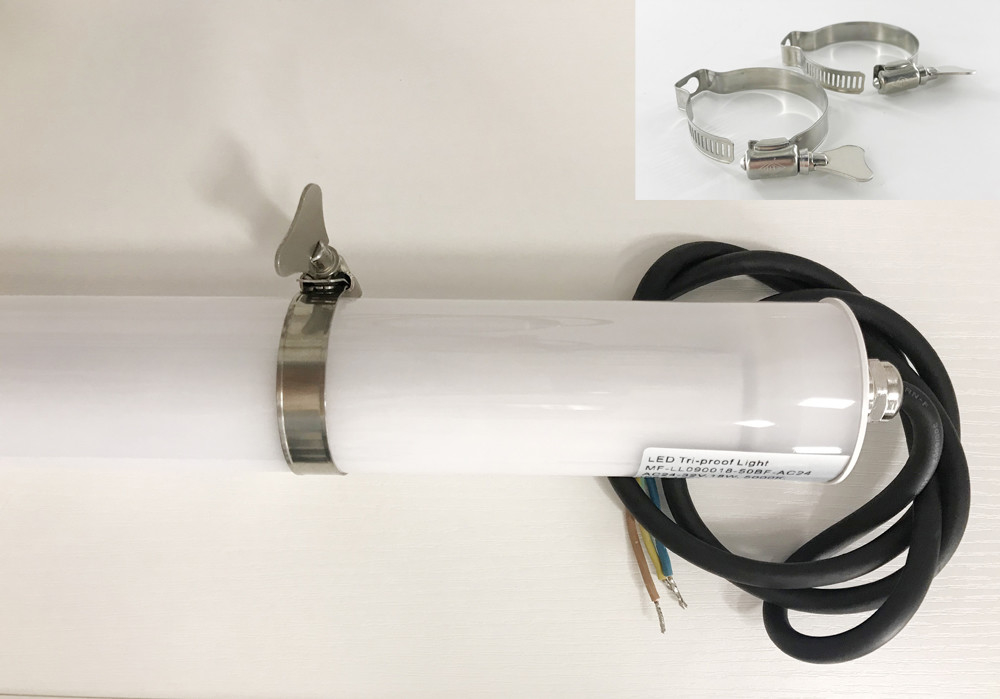

1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 1





Main Features:



Ingress protection: High protection grade IP67/IP68

Applicable for washing by hot water IP69K

Mechanical strength: Impact Resistance grade IK08-10 in case of deliberately sabotage.Glass parts excluded
UV resistance, anti-UV
Ammonia resistance
Corrosion resistance
High Color rendering index :CRI≥80,CRI 90 is optional



IP68 Waterproof design

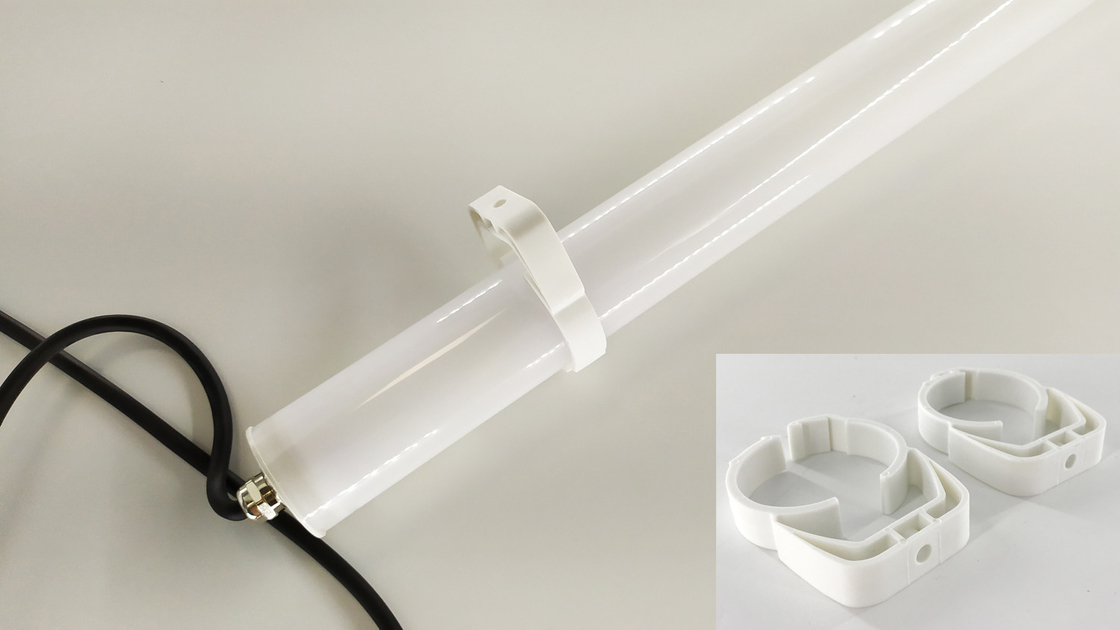

1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 2



IP69K

high protection rating IP69K and resistance against cleaning agents. The high protection rating of the luminaires allows cleaningat high pressure up to 100 bar and with up to 80 °C hot water and a variety of cleaning agents, alongside good chemical resistance.

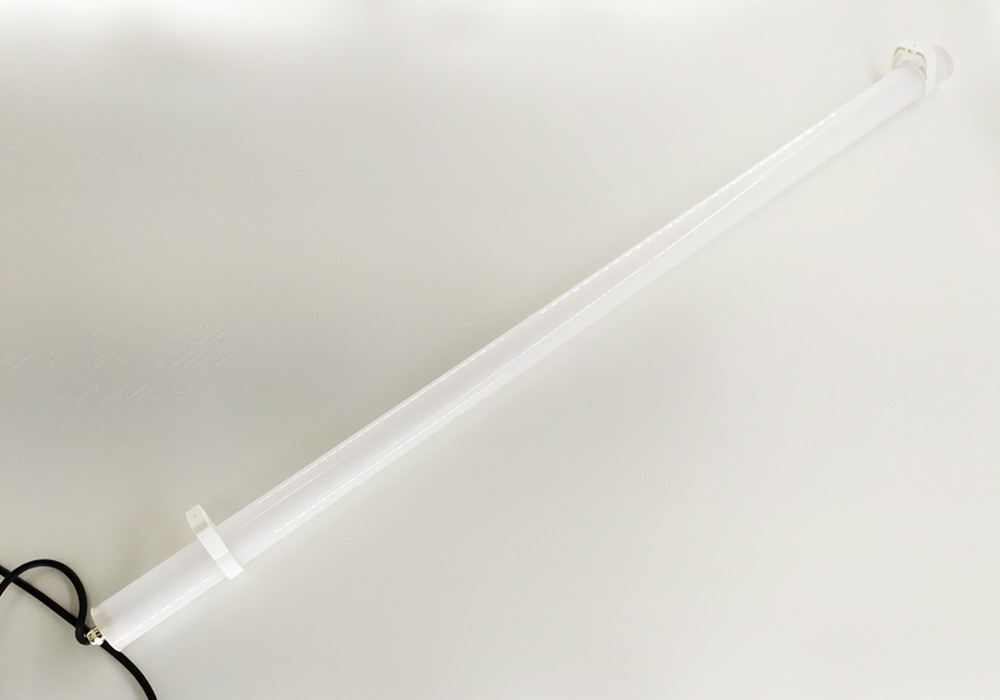

1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 3

> Diagram of protection rating testing IP 69K

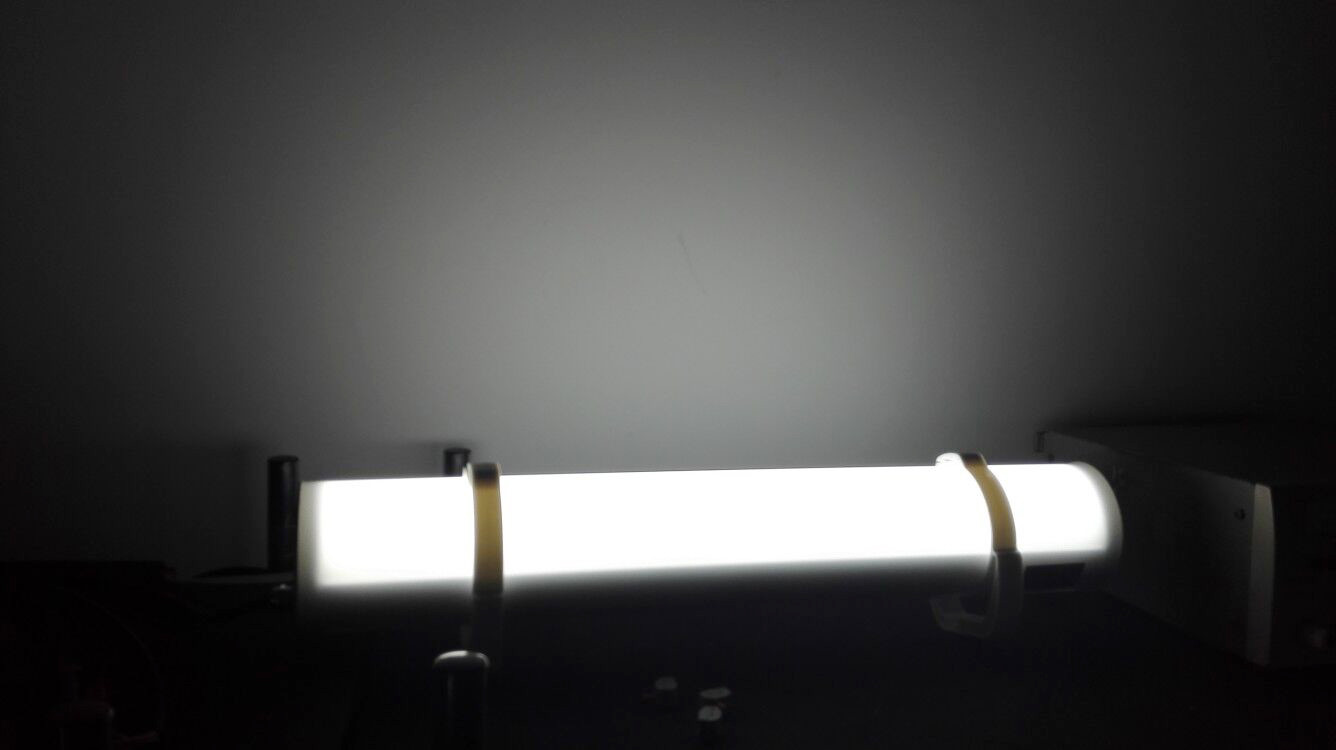

1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 4
> High-pressure cleaning of housing cover with 100 bar



Applications:



Car washes; car Parks ; Meat processing ; Poultry plants/Farm ; Food processing yard; Low temperature storage room ; Department store.......



1200mm IP68 Waterproof Tri Proof LED Light 24W / 35W / 50W Chain Bracket Mounted 5
