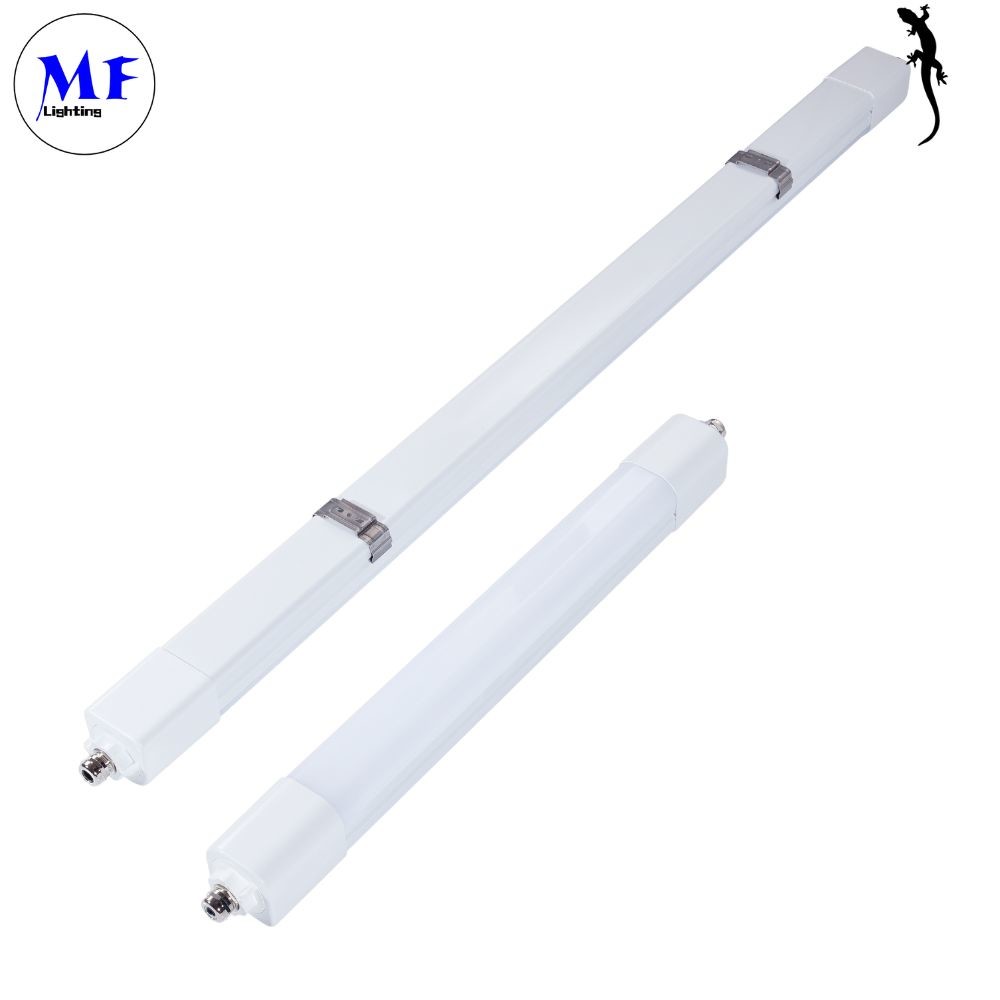

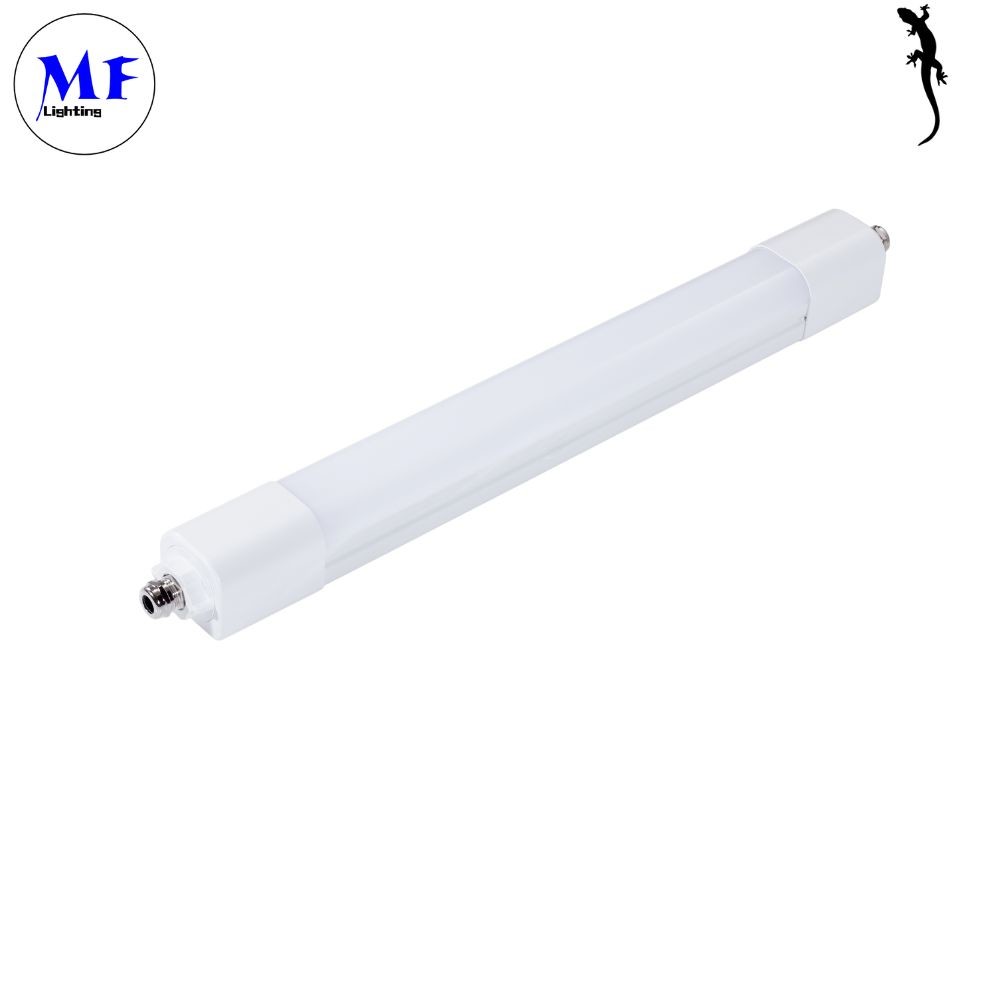

18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb

Minimum Order Quantity : 100PCS Price : Negotiable
Delivery Time : Depends on orders Payment Terms : T/T, Western Union, L/C, Paypal
Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-LI06SXXW-GC3

Detail Information

Model No:: MF-HB050 Input Voltage:: AC200-240V
LED Power: 18W/36W/50W Color: Milky White
CCT: 3000K-4000K-6000K Adjustable Lumen: 130/150/170lm
IP Rating: IP66 Beam Angle: 180°
High Light:

led industrial high bay lights

,

led highbay lights

Product Description



18W/36W/50W IP66 Beam Angle 180°LED Tri-Proof Light Industrial Grade Dustproof and Corrosion-Resistant, Perfect For Harsh Environments

18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 0







Quick Detail:



  1. IP66 18W/36W/50W LED Tri-Proof Light
  2. Input: AC200-240V 50Hz-60Hz
  3. Beam Angle: 180°
  4. CCT: 3000K-4000K-6000K Adjustable
  5. CRI: >80
  6. PF: >=0.95

PC / AL Reflector 50W Ra75 Bridgelux Chip LED High Bay Lighting With 4400LM





Description:



The Tri-Proof Light from Ming Feng Lighting is a high-performance and durable lighting solution designed for industrial and commercial applications. With an IP66 rating, this light is resistant to dust and water, making it an excellent choice for harsh environments where reliable lighting is essential.



This light operates on an input voltage range of AC200-240V at 50Hz-60Hz, ensuring compatibility with a wide range of power supply systems. The Tri-Proof Light has a wide beam angle of 180°, providing even and uniform lighting across the area.



This light has a color temperature of 3000K-4000K-6000K adjustable, providing warm and comfortable lighting. Its high power factor of >=0.9 ensures high efficiency and reduces energy consumption.



Overall, the Tri-Proof Light from Ming Feng Lighting is a durable and high-performance lighting solution that provides efficient and reliable lighting in harsh environments. Its wide beam angle, and long lifespan make it a cost-effective and versatile choice for various industrial and commercial applications.

18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 1





Specifications:



CCT Adjustable--Plastic Model
Item NO.
MF-LI06S18W-GC3
MF-LI12S36W-GC3
MF-LI15S50W-GC3
Power
18W
36W
36W
LED QTY
234PCS
468PCS
702PCS
Input Voltage
AC200-240V
Efficacy
130LM/W 150LM/W 170LM/W
Color Temperature
3000K 4000K 6000K Adjustable
Power Factor
≥0.95
Low THD
<15%@ full load
CRI
≥80
Life Span
50000H
Operating Temperature
-20 to +45°C
Warranty
5 years
Certificates
CE/RoHS/TUV







Key Features:



1.Elegant appearance and patent design(only WINSTAR have), obtained pratical patents certificate.

2. To adapt in different enviroment, we providing two models for potion, one is Plastic, another is PMMA+Aluminum.

3. The Plastic model comply with IP69K,IK10,IP66; PMMA+ALU mode is IK08,IP66.

4.Using diamond-shaped optical design, so the overall light is uniform and no dark areas.

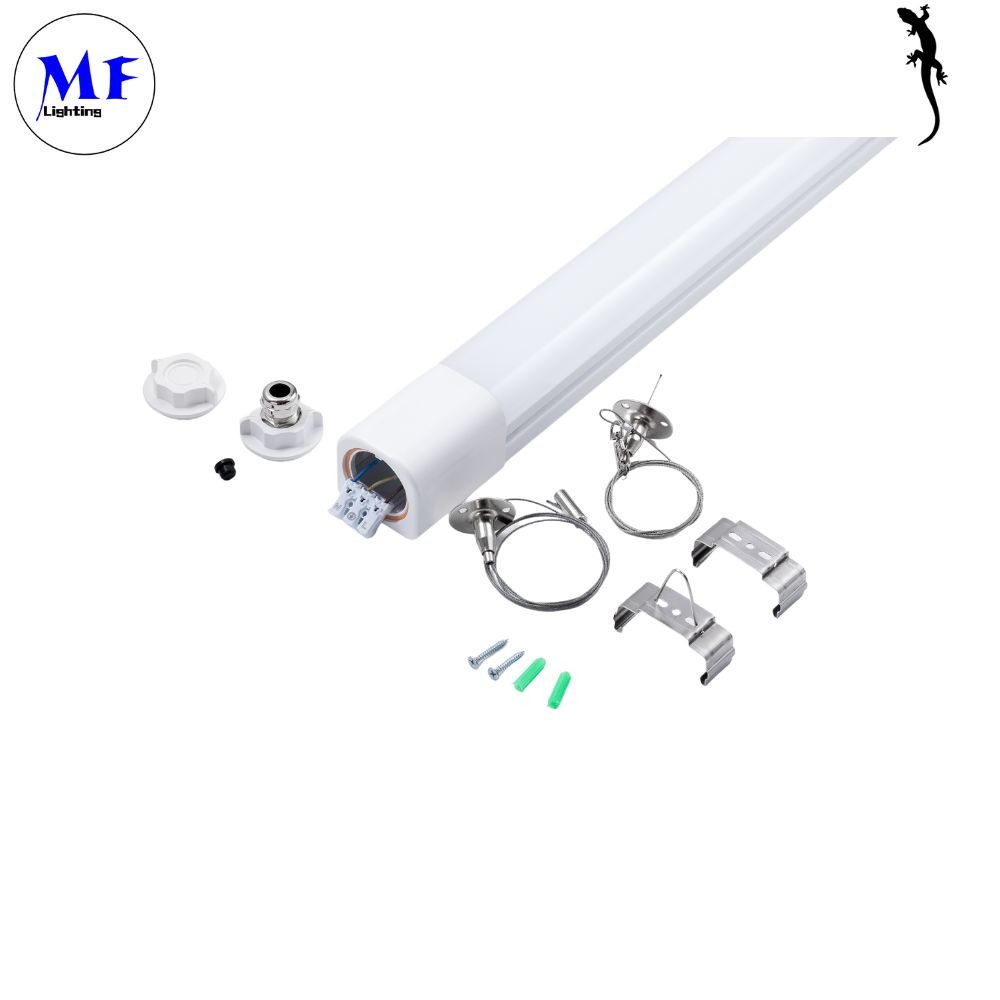

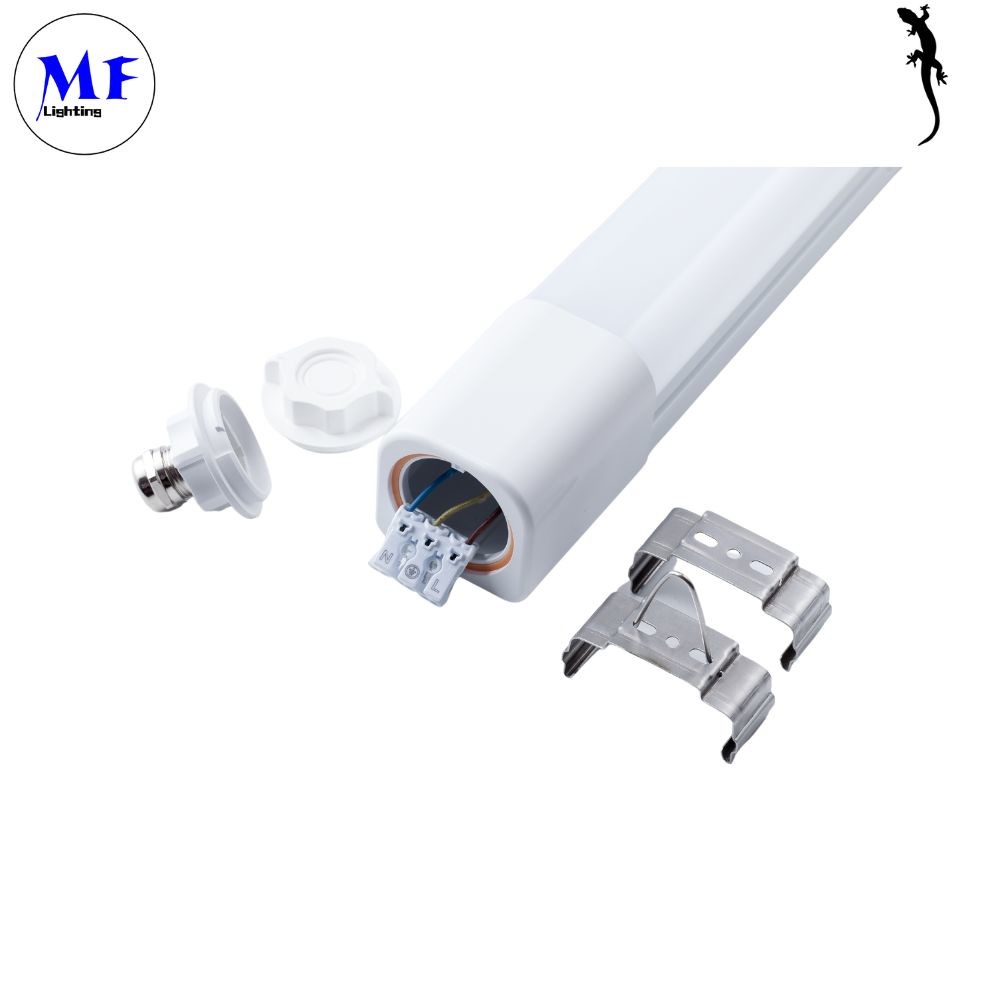

5.Rotating end cover + terminal design, easy to wiring, convenient and time-saving.

6.The installation clip is reversed hook design. Product can easily directly lock into the clip (without any screws). Fast easy installation to save cost and time.

7.Multi-functions : built-in microwave sensor, 1-10V/DALI dimmable, Emergency battery,CCT adjustbale and other function is available.

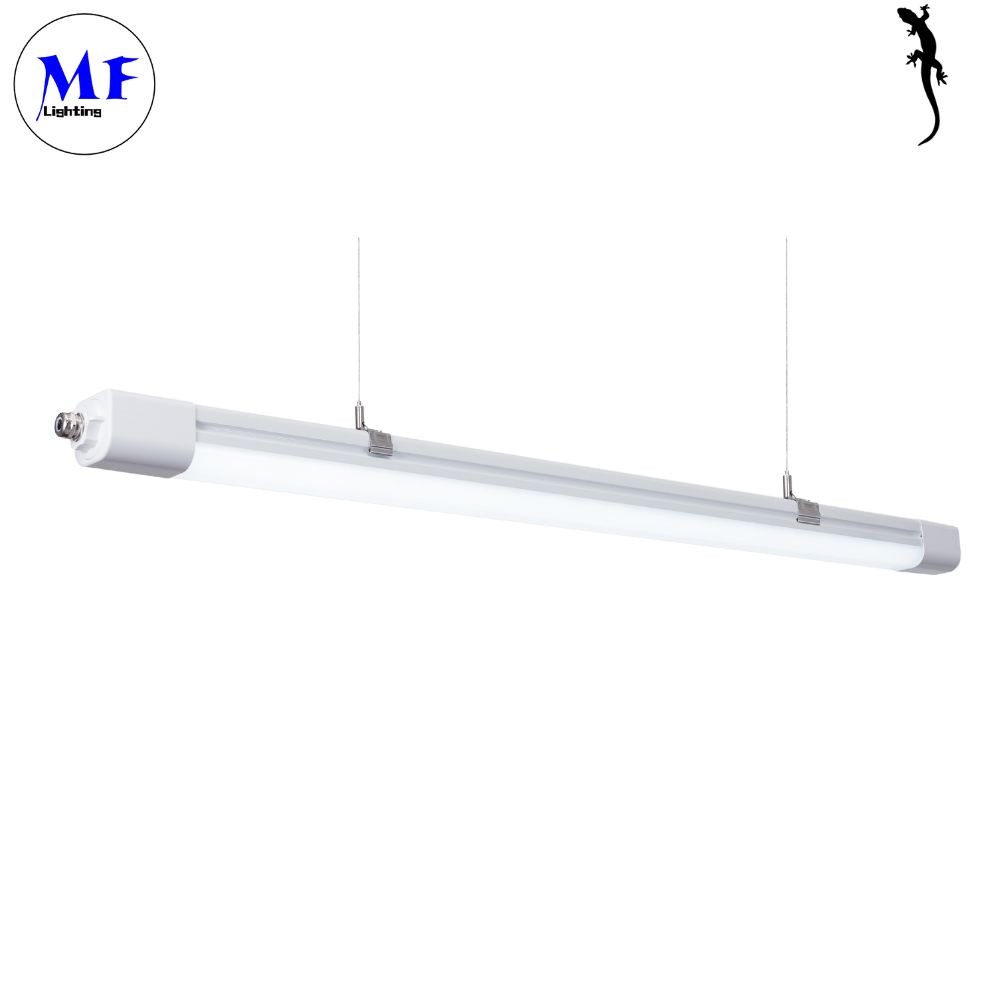

8.Suspended installation,Empended installation, Surface Celling installation for options. Linkable and Non-Linkable can be provided.

9.Plastic models can be used in other harsh environments such as food plants, aluminum+PMMA models can be used in farms and other occasions containing ammonia.
18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 2



Life Curve:



18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 3









Dimension:





Product Code A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) Tolerance
MF-LI06S18W-GC3
65.2
61.2 65.6 664 644 600
±3
MF-LI12S36W-GC3
1264 1244 1200
±3
MF-LI15S50W-GC3
1564 1544 1500
±3



18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 4



Packing & Shipping:



Model Inner Box Size(mm) Carton Size(mm) QTY/CTN G.W/CTN N.W
MF-LI06S18W-GC3
670*80*70
700*355*240
12piece/Carton
10kg
0.58kg
MF-LI12S36W-GC3
1270*80*70
1300*355*240
12piece/Carton
15.7kg
0.92kg
MF-LI15S50W-GC3
1570*80*70
1600*355*240
12piece/Carton
18.5kg

1.04kg



18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 5

18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 6

Installation:



Installation Steps:


1. Drill Ø4mm holes on the surface

2. Put the expansion tube into the drilled hole

3. Using screws to lock the hook into the expansion tube

4. Align the lamp with the hook and lock it

18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 7

Tips:

When disassembly, you can insert a screw driver into the groove of the buckle, and then pry it out.
18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 8
Installation Steps:

1. According to the three holes of the sling fixing, drill Ø4mm holes on the surface, then put the expansion tube into the drilled hole, lastly use screws to lock the sling fixings.

2.According to the last picture use a screwdriver to lock the hook into the end of the sling.

18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 9
18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 10
Power 18W 40W 60W
The Qty of lamps can be Linkable
73PCS 33PCS 22PCS




Warming reminds: This product is equipped with 16AWG wire as standard. Do not overload it when linking. The input wire of the above linking quantity must be thicker than 16AWG wire.


Applications:



The IP66 tri-proof light is a tough and energy-efficient lighting solution that can be used in many different applications, such as factories, outdoor areas, retail stores, food processing facilities, and sports facilities. It's waterproof, dustproof, and impact-resistant, making it durable and reliable in harsh environments.

18W 36W 50W LED Explosion Proof Light IP66 Waterproof CCT Adjustable Tri Proof Fixture Linear Led Tube Light Bulb 11



FAQ:



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.







 Wildly use for factory, warehouse, exhibition hall, airport, shopping mall, train station, lobby and so on.
