40Watt Tri Proof LED Tri-proof Light Fixture 40W Triproof IP65 Tri-proof LED Light

Minimum Order Quantity : 10PCS Price : Negotiation
Packaging Details : 127*24*20cm/4pcs, G.W: 13KG/CTN Delivery Time : 2 weeks
Payment Terms : L/C, T/T Supply Ability : 5000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-626-40W

Detail Information

Power: 40Watt Dimensions: Dia68mm*L1200mm
Input Voltage: AC220-240V, 50/60Hz PF: >0.95
LED Brand: TAIWAN EPISTAR Power Supply: Meanwell/ CE Driver
CRI: 80-90 Beam Anle: 120 Deg
Main Material: Aluminum Housing+ PC Milky/Stripped Cover IP Rating: IP65
Warranty: 5 Years Approval: CE RoHS
Life Span: 50,000 Hours Operating Temperature: -20°C ~ + 50°C
Storage Temperature: -40°C ~ + 85°C

Product Description

40Watt Tri Proof LED Tri-proof Light Fixture 40W Triproof IP65 Tri-proof LED Light

40Watt Tri Proof LED Tri-proof Light Fixture 40W Triproof IP65 Tri-proof LED Light 0

Technical Spec:



Model No  MF-626-25W MF-626-40W MF-626-60W
Dimesnion  Dia68*600mm Dia68*1200mm Dia68*1500mm
Wattage 25W 40W 60W
Input Voltage  AC220-240V, 50/60Hz
PF  >0.95
Led Driver   Meanwell or CE Driver
LED Brand   Epistar 2835
Luminous efficiency  100lm/w+
CCT  3000K/4000K/5000K/6000K
CRI  80-90Ra
Beam Angle  120°
IP Rating    IP65
Main Material   Aluminum Housing + PC Milky/Stripped Cover
Operationg Temperature   -20℃~+50℃
Storage Temperature -40℃~+85℃
Approval    CE, RoHS
Warranty  5 years



Core Features:



1. Can Parallel connection and series connection.

2. Suspending or Surface mounted according to your application option.

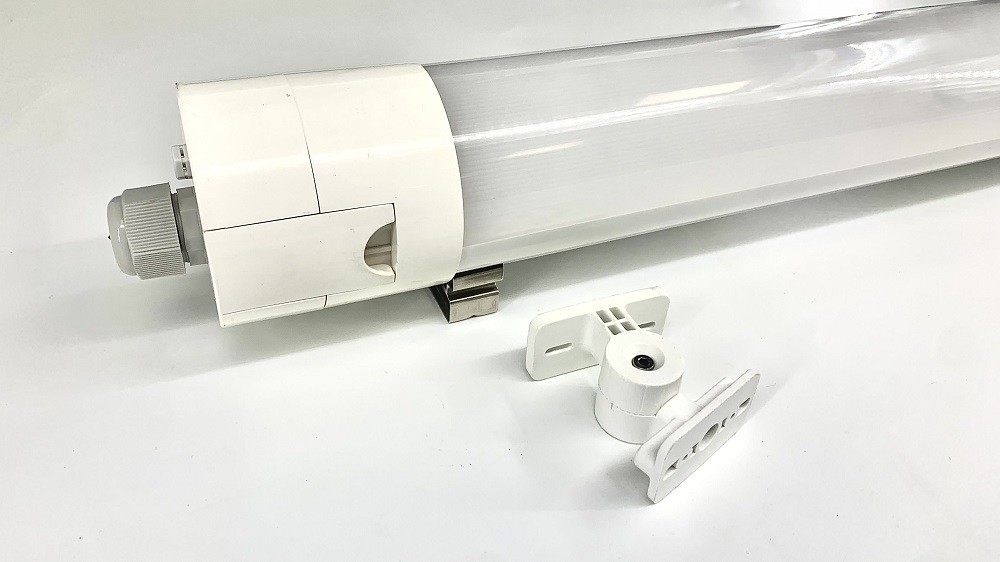

3. Also can adjust the installation angle with the extra bracket.

4. PC milky cover and stripped cover for your options.

5. 600mm, 1200mm, 1500m dimensions for your differenct application.



A: Suspending Mounted



600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted 0



B: Surface Mounted



600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted 1

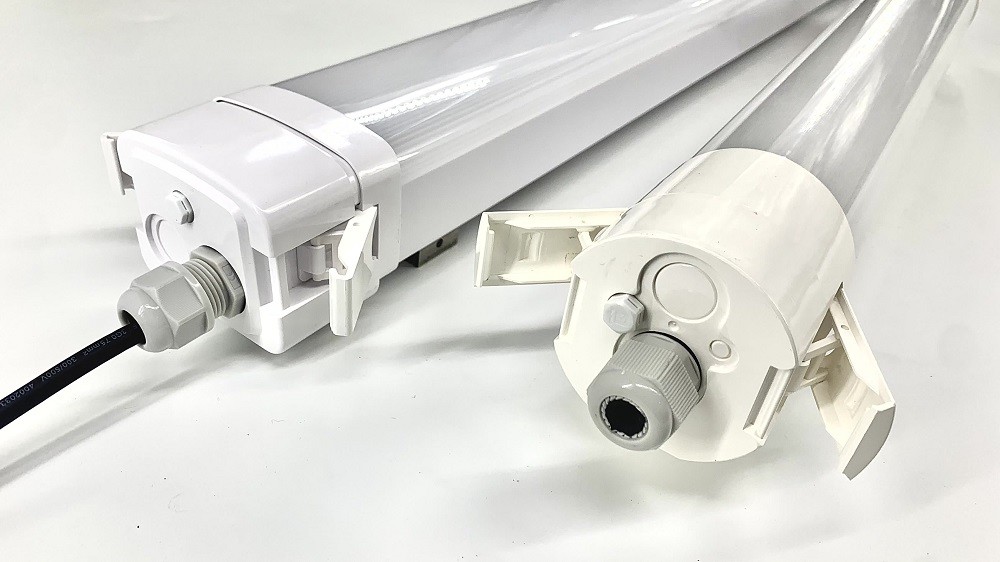

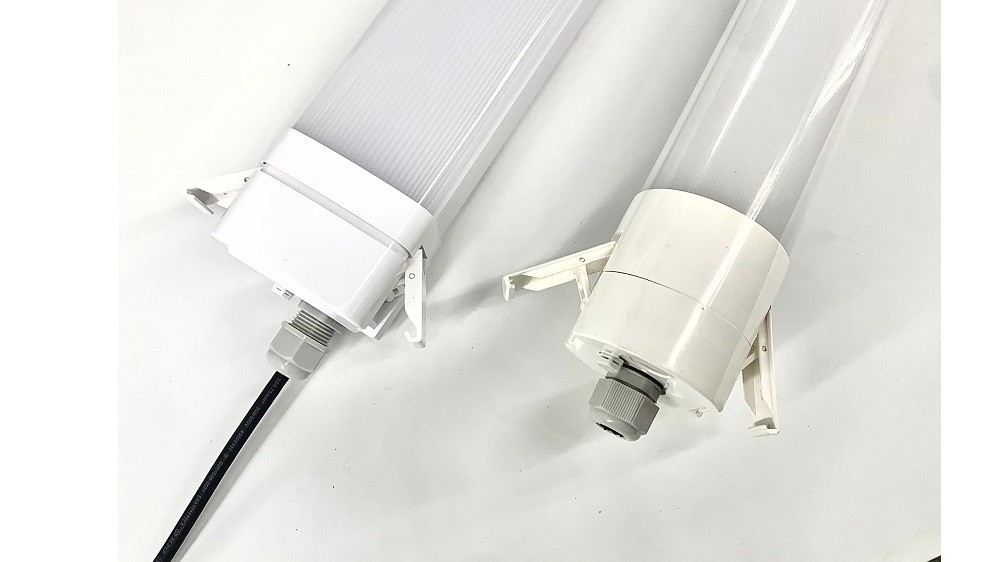

 LED Tri proof Light view:



40Watt Tri Proof LED Tri-proof Light Fixture 40W Triproof IP65 Tri-proof LED Light 3



Light Distribution:

40Watt Tri Proof LED Tri-proof Light Fixture 40W Triproof IP65 Tri-proof LED Light 4

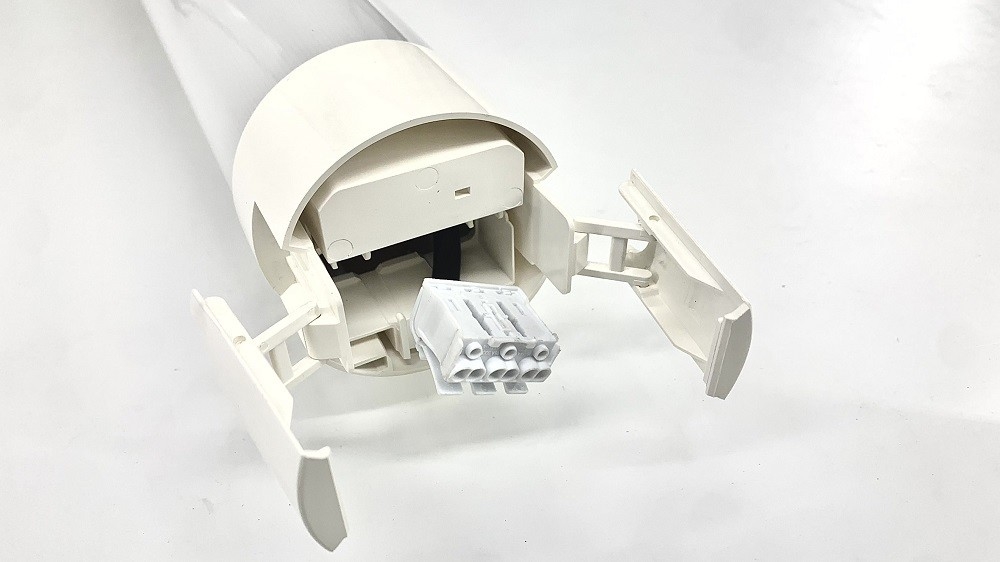

Connection Type:



1. Parallel Connection( With one side cable)   2. Series Connection (With Two Sides cable or faster connector)

600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted 2    600mm 25 Watt IP65 LED Triproof Light With Suspending / Surface Mounted 3





Application Area:



Car washes, car parks, meat process, poultry plants/Farm, Grocary stores, Dairies, food process, food workshop,low temperature storage.

40Watt Tri Proof LED Tri-proof Light Fixture 40W Triproof IP65 Tri-proof LED Light 7

40Watt Tri Proof LED Tri-proof Light Fixture 40W Triproof IP65 Tri-proof LED Light 8





FAQ:

Q1: Are you a manufacturer?

MF: Yes,we have our own factory with over 14 years R&D and manufacture experience base on ISO quality management since 2009.


Q2. Can I have a sample order for UFO LED High Bay Light ?
MF: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.


Q3. How about the lead time of UFO LED High Bay Light ?
MF: 3-7 days for sample order, 15-25 days for mass production order base on order quantities.


Q4: How do you ship the finished production ?
MF:By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc) are optional.


Q5: Is it OK to print my logo on UFO LED High Bay Light ?
MF:We provide OEM service to our customers, we can help to make the label and color box according to your requirements.


Q6: How to proceed an order for UFO LED High Bay Light ?
MF:Firstly, please let us know your detail requirement and application environment. secondly we will recommend some suitable products and solutions to you according to your request. Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, then we start for the production and arrange the shipment.


Q7: How to deal with the defective?
MF: AlI of our product are produced in strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
