2ft 4ft 5ft Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF-stainless steel tri proof

Detail Information

Application: Parking Lot/Tunnal/Commercial/Warehouse Feature: Anti-corrosion/Dust Proof/Waterproof/explosion Proof
Material: Auminum Stainless Steel PC Power: 25W 35W 50W 45W 65W
Voltage: AC220-240V 50/60Hz Installation: Easyand Quick To Installunder Cellingor On Surface
Housing/Diffuser: 304 Stainless Steel Housing,Tempered Glassdiffuser Driver: OSram / PHilip / Tridonic / Chinese Localbrand
LED Brand: SMD2835 / SMD3030 CCT: 2700-6500K (ANSI C78.377)
CRI: > 80 Powerfactor: >0.9
Beam Angel: 90°/120° Warranty: 5 Year
High Light:

25w Tri Proof Light 5ft

,

Ik08 Led Tri Proof Light

,

Aluminum Led Tri Proof Light

Product Description

2ft 4ft 5ft Ip65 Stainless Steel Aluminum 25w Ip66 Ik08 Led Tri Proof Light For Swimming Pool Farm Tunnels Warehouse

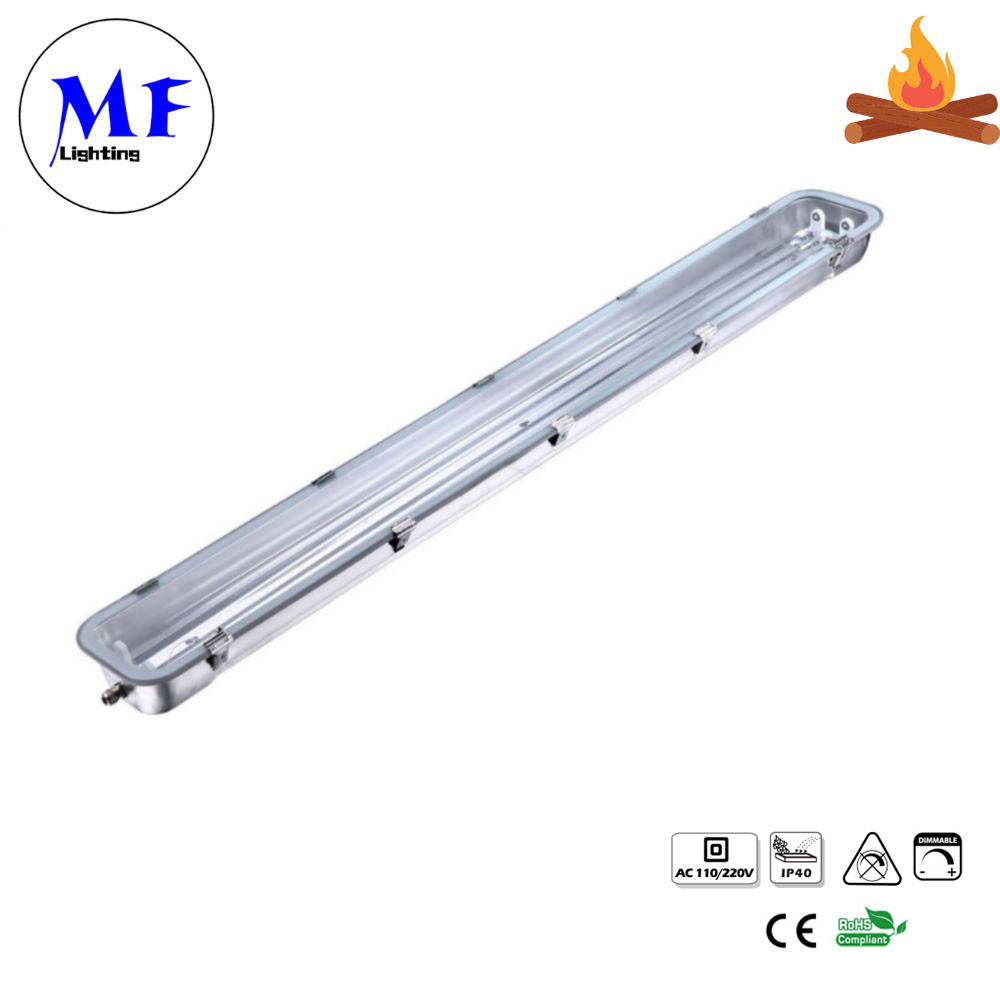

2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 0

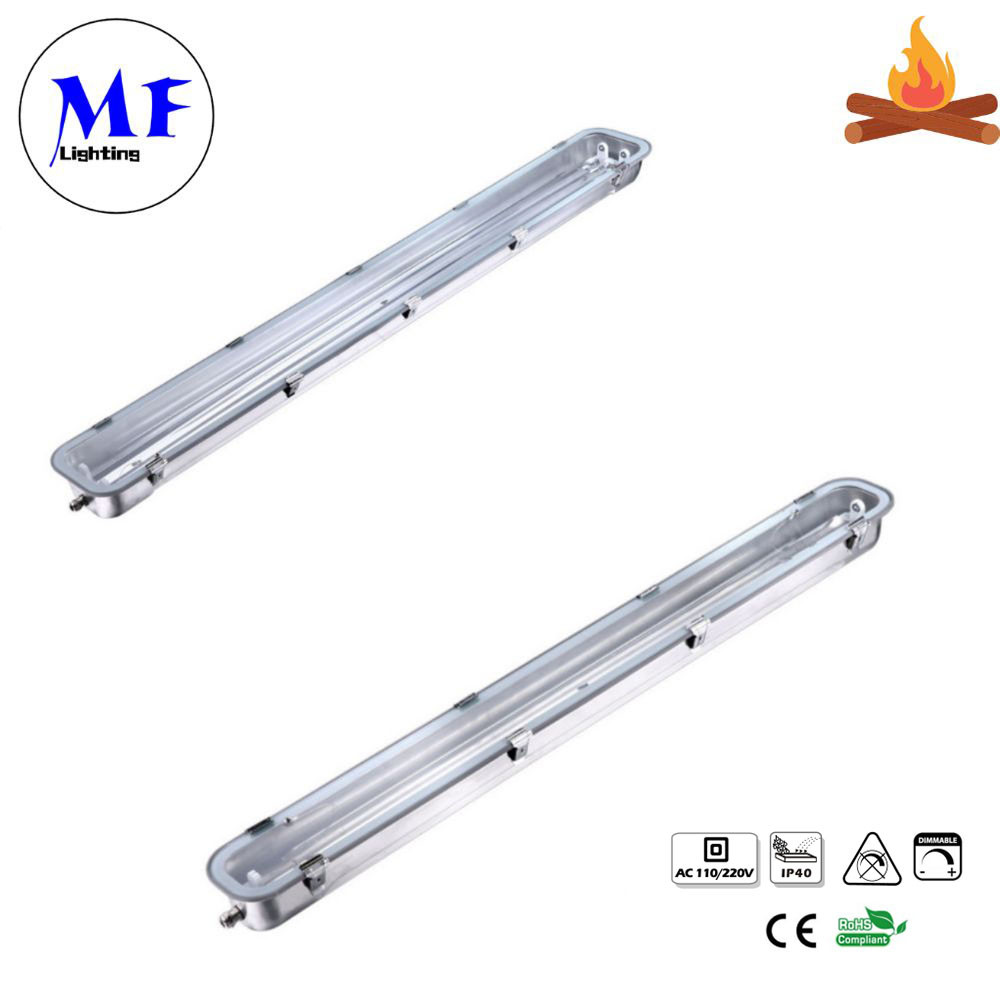

2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 1

  1. Suitable for extreme temperatures & high humidity outdoor environments;
  2. Resistance to impact, seismic activities, and strong ultraviolet & infrared radiation;
  3. Over 70% energy savings compared to conventional lights with similar lumen output;
  4. Provides 50.000 hours lifetime & 5 years warranty
  5. Housing:Stainless steel Diffuser
  6. Temperedglass (clear orfrosted) 60 90 120 Beam Angle
  7. Other characteristics: pollution free, low power consumption, high luminous efficiency & IP65
  8. High-low impact, high humidity environmental tests

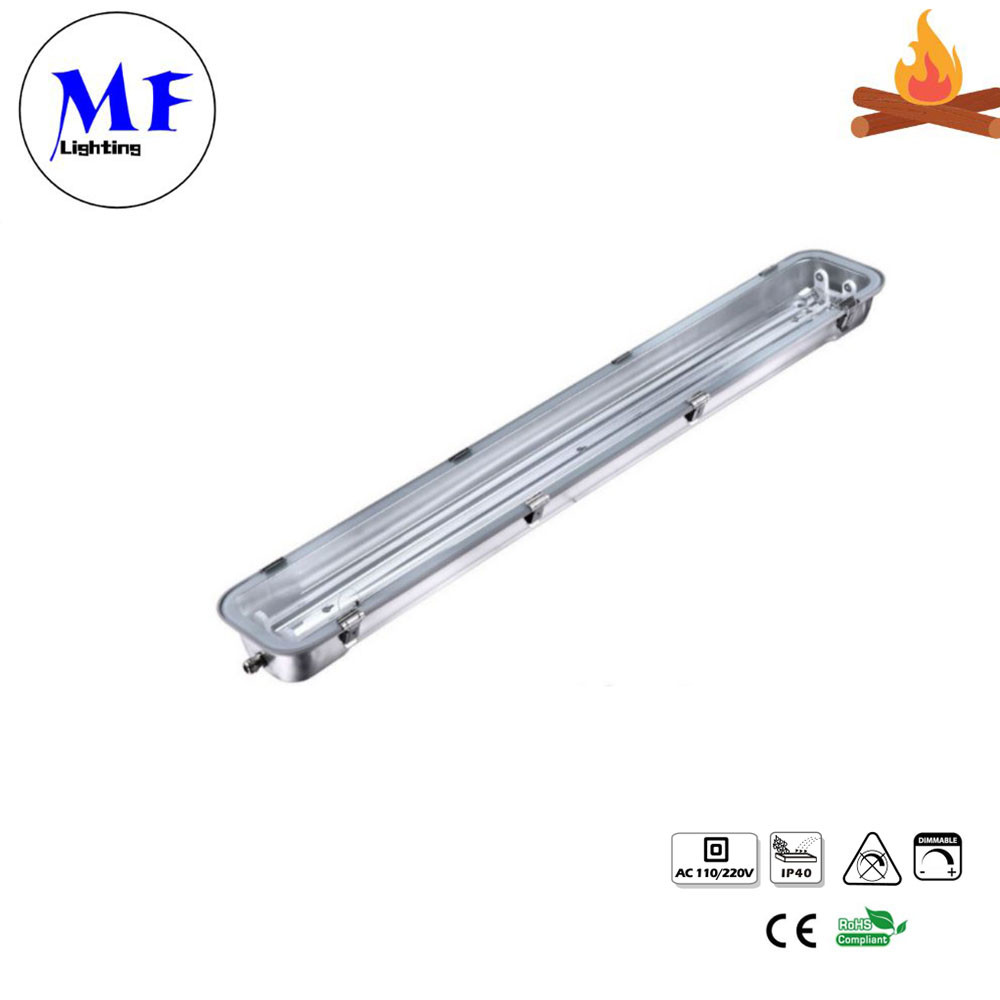

2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 2



1.Technical Paramenters (Test Conditions:25C/55-%60%Humidity)
ltem Code MF-SS-25W-600 MF-SS-35W-1300 MF-SS-50W-1300 MF-SS-45W-1600 MF-SS-65W-1600
Power(W)+/-10% 25w 35w 50w 45w 65w
Input Voltage/Frequency AC 220-240V50/60Hz
lnstallation Easyand quick to installunder cellingor on surface
Housing/Diffuser 304 stainless steel housingTemperedglass diffuser.
Driver Osram/ Philip/Tridonic/Chinese localbrand
LED Brand SMD2835/ SMD3030
CCT 2700-6500K(ANSIC78.377)
CRI >80
5000K/Opal Diffuser 3,500 lm 4,900lm 7,000 lm 6,300 lm 8,680 Im
Light output(+/-3%)
Power factor PF>0.9
Beam Angel 90°/120°
IP Rating IP65
Warranty 5Year
Operating temp range -20ºC~40ºC
Clips Qty(pcs) 6 10 10 12 12
Product Size(mm) 670*110*65 1280*110*65 1590*110*65

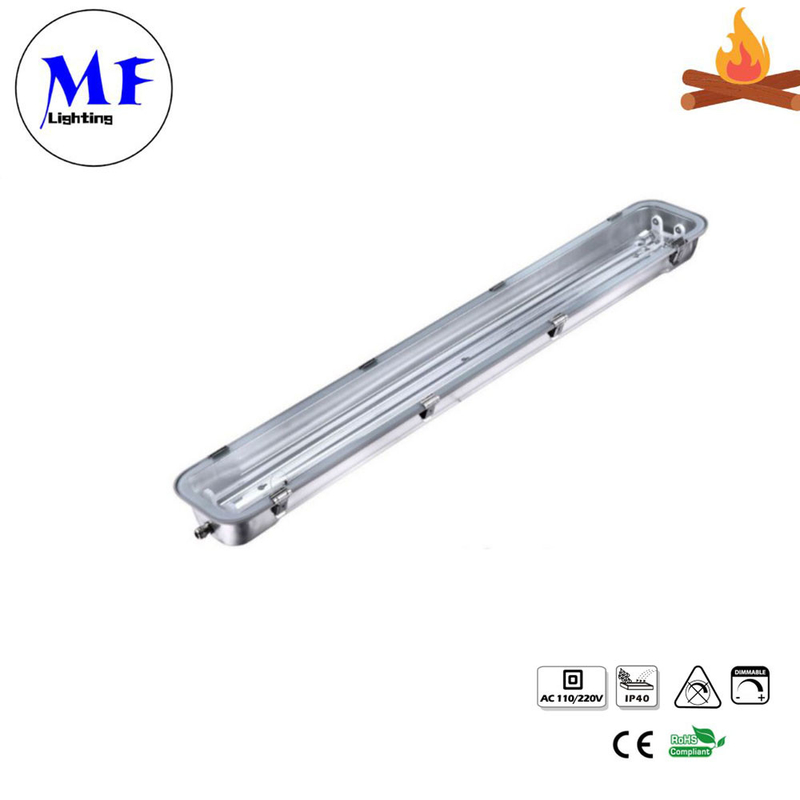

2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 3

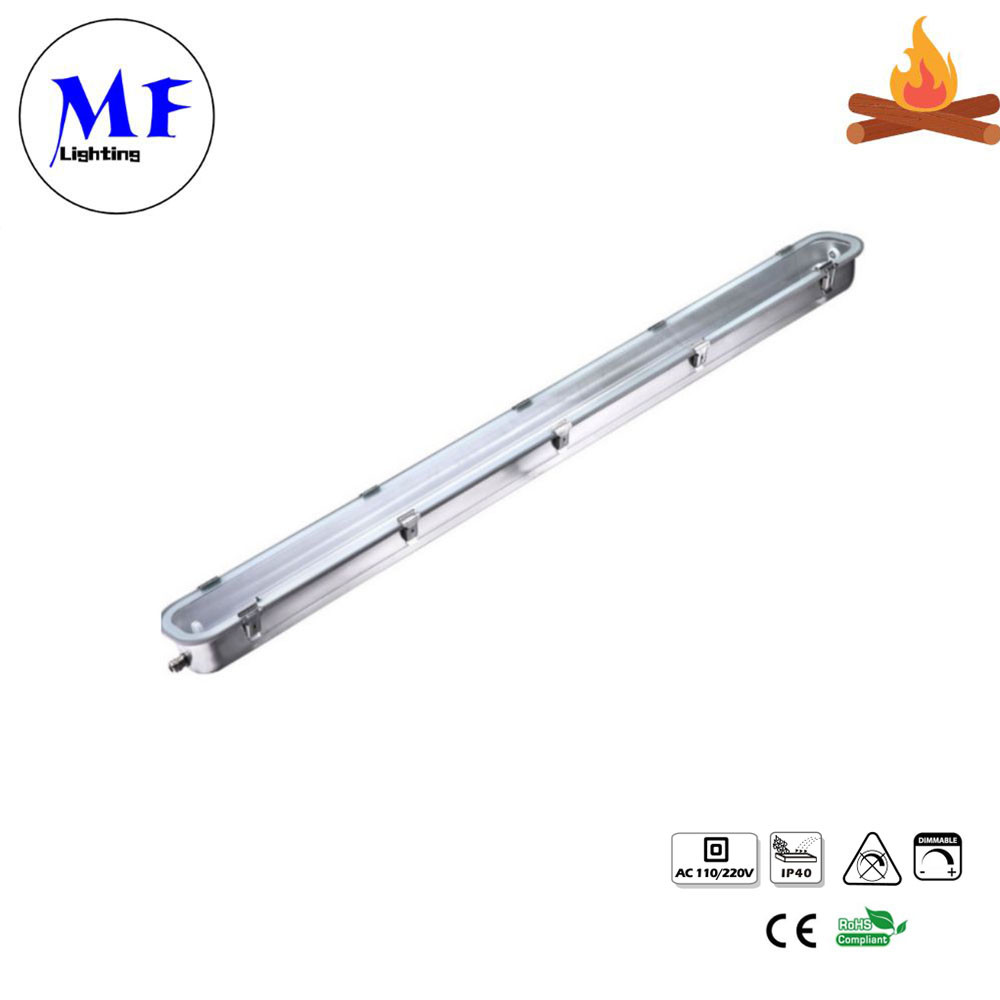

2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 4



2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 5



Detail:


Suitable for Zone 1&2 (Gas), Zone 21&22 (Dust)

High luminous efficacy - Up to 120-140 lumens per watt

0-10V dimming

Waterproof and dust-proof, without internal cleaning and
maintenance

Simple structure for easy and quick installation

Stainless steel fasteners, ADC12 aluminum housing, good corrosion resistance

Tempered glass, high light transmittance and impact resistan

2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 6



Luminaire:

2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 7

2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 8



2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 92ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 102ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 11





Packing



2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 12



2ft 4ft 5ft  Ik08 Led Tri Proof Light Aluminum 25w Ip66 For Swimming Pool 13

FAQ



FAQ

Q1: Are you a manufacturer ?

MF: Yes,we have our own factory with over 14 years R&D and manufacture experience base on ISO quality management since 2009.

Q2. Can I have a sample order for LED Tri-proof Light ?
MF: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.

Q3. How about the lead time of LED Tri-proof Light ?
MF: 3-7 days for sample order, 15-25 days for mass production order base on order quantities.

Q4: How do you ship the finished production ?
MF:By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc) are optional.

Q5: Is it OK to print my logo on LED Tri-proof Light ?
MF:We provide OEM service to our customers, we can help to make the label and color box according to your requirements.

Q6: How to proceed an order for LED Tri-proof Light ?
MF:Firstly, please let us know your detail requirement and application environment. secondly we will recommend some suitable products and solutions to you according to your request. Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, then we start for the production and arrange the shipment.

Q7: How to deal with the defective?
MF: AlI of our product are produced in strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
