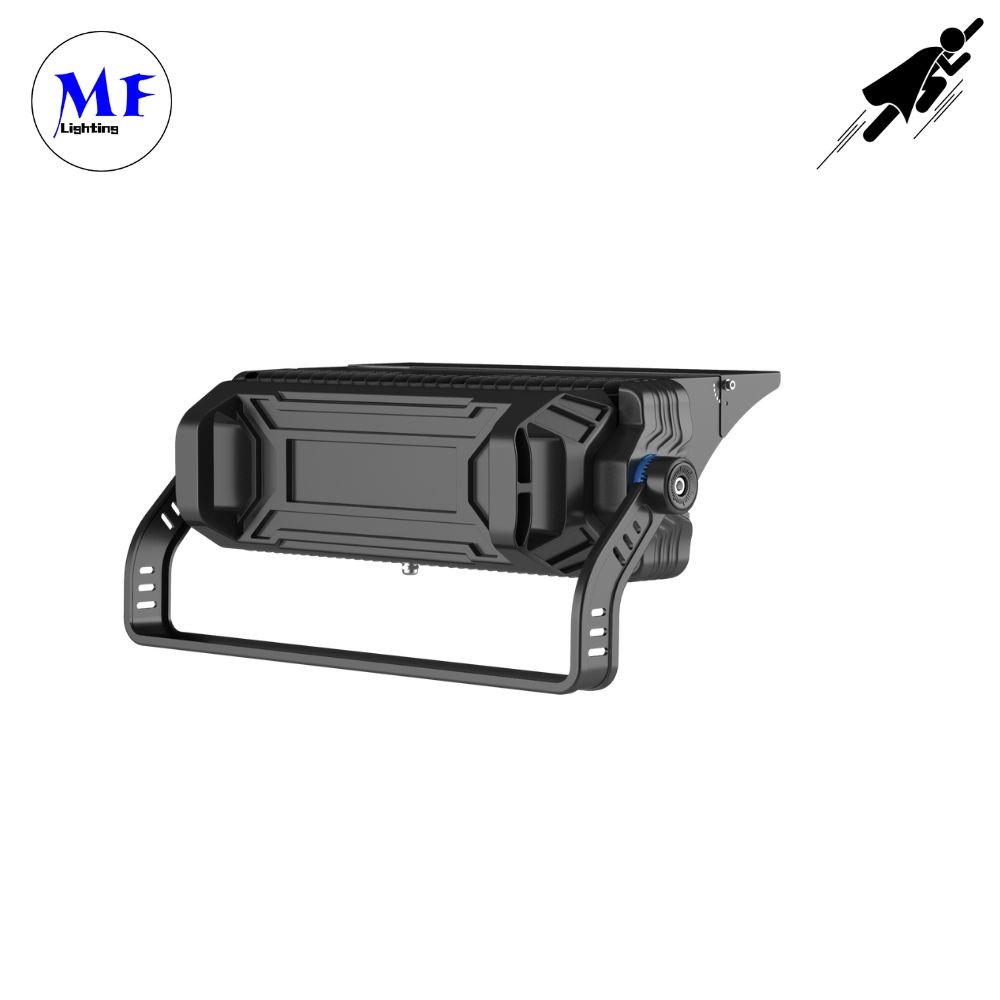

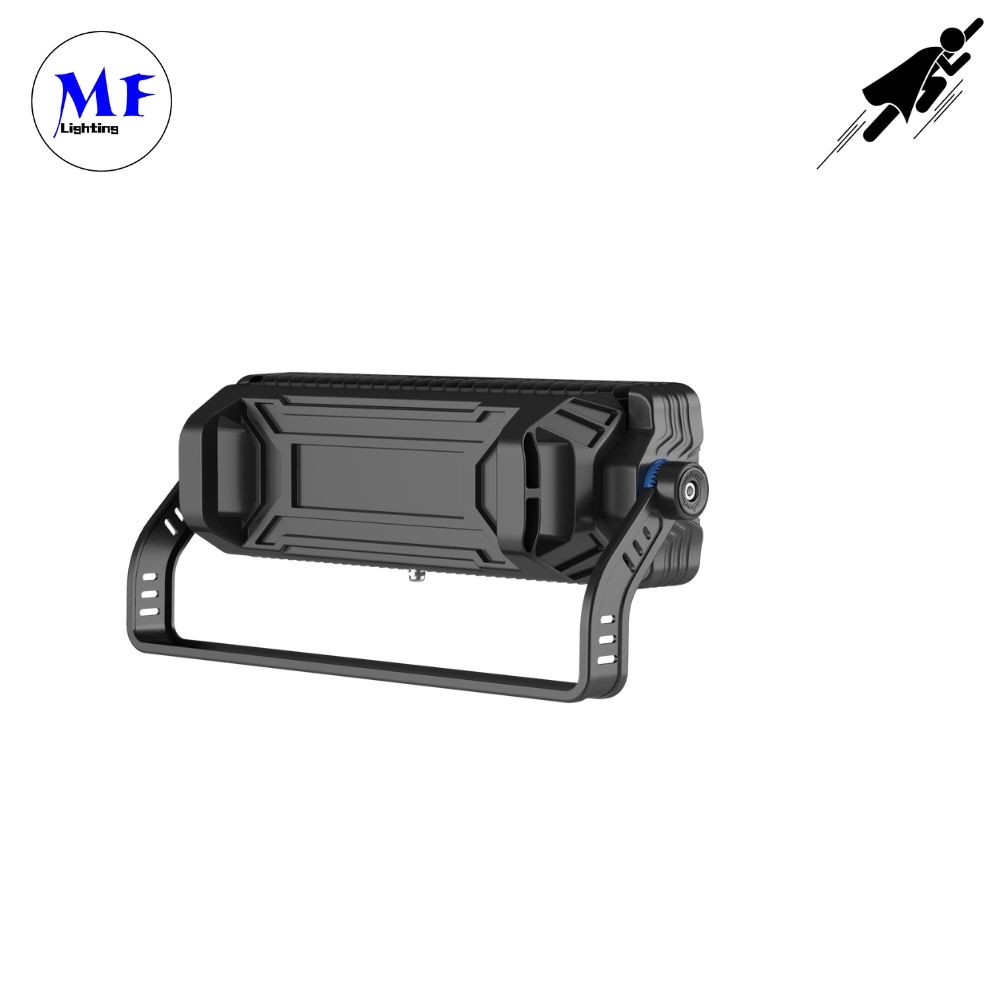

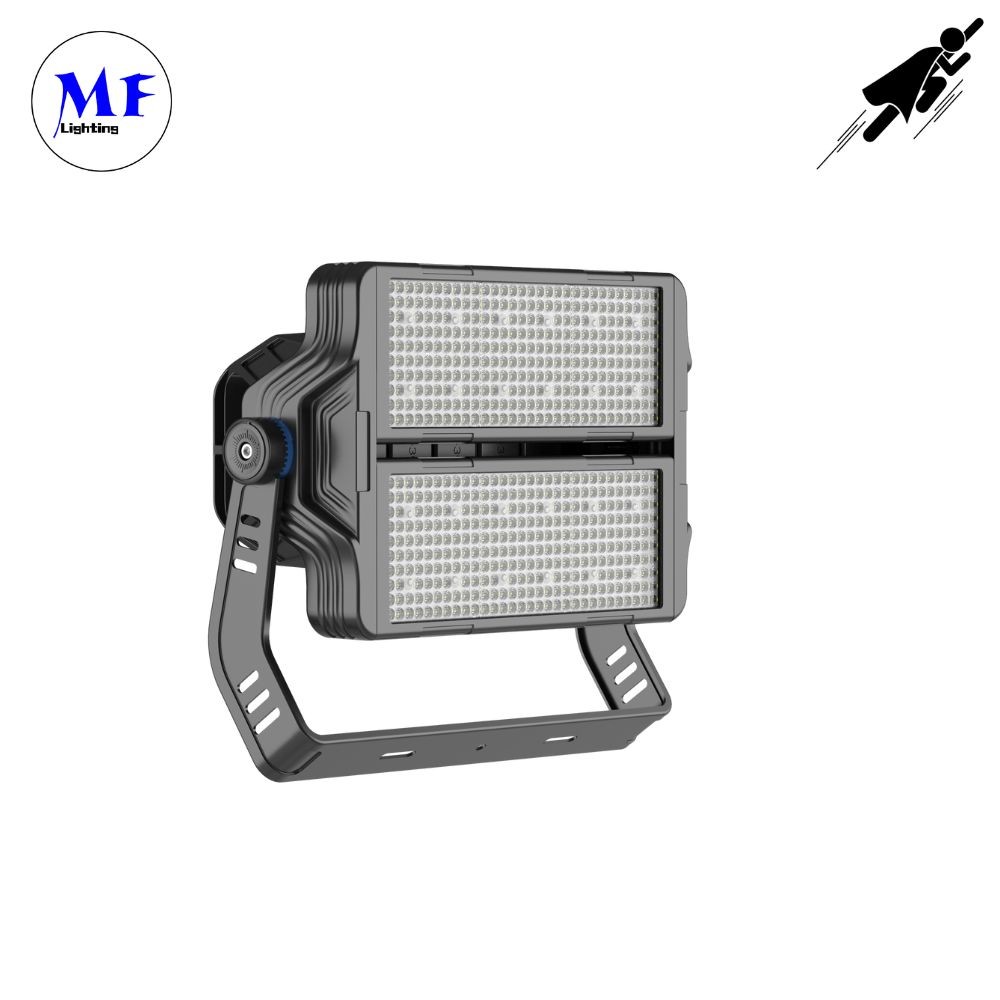

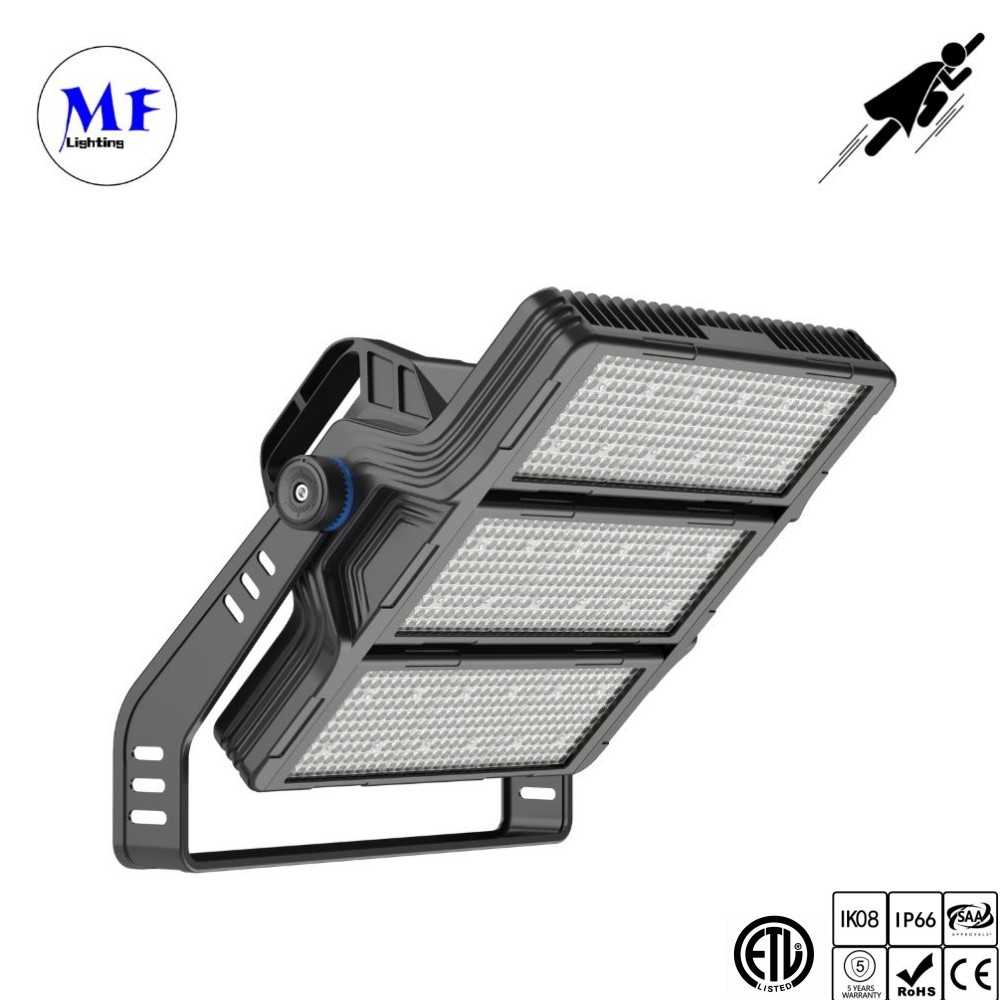

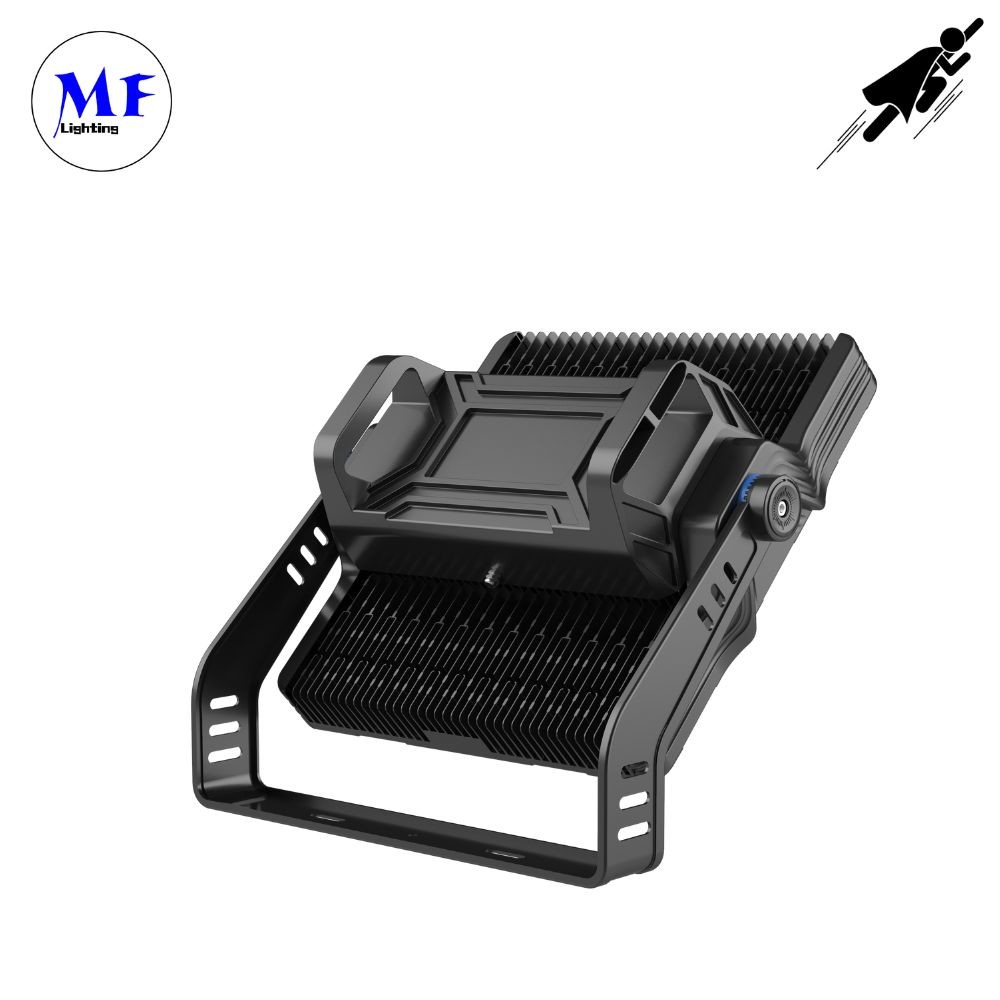

LED High Bay Light High Mast 400w/500w/ IP66 150lm/W Sports Stadiums Football Basketball Sport Field Court Projector
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS,SAA,EX,ATEX,TUV,CB/UL844/Atex/Iecex/Ex | Model Number: | MF-Superman |
Detail Information |
|||
CCT: | 3000K-6500K | Material: | ADC12 Aluminum Die-Casting Fixture Housing |
---|---|---|---|
Input: | 100-227V | Power: | 400W/500W/600W/800W/1000W/1200W/1800W |
IP Rate: | IP66 | Warranty: | 5years |
Lifespan: | >50,000hours | Luminous Flux: | 140lm/W |
Ik Rate: | Ik10 | Chip Brand: | LuMileds/OSram |
Power Frequency: | 50-60Hz | Certification: | CCC/CE/ROHS/SAA/CB/ATEX/EX/TUV |
LED Driver: | IEC Certified | Working Temp: | -20°C~+60°C |
Application: | Stadium/Wharf/Airport/Aproan/Stadium/Highway/etc | Other Application: | Basketball Soccer Volleyball Badminton Football Tennis Court Field/Stadium Concert/Music Festival Event/Sport Facility |
Highlight: | IP66 Weather Resistant LED Flood Light,High Power 400W Flood Light,6500K LED Stadium Lights |
Product Description
IP66 Weather Resistant LED Flood Light High Power 400W-1800W For Construction Site Bridge Port Dock Signage
Model N0. | 400w | 500w | 600w | 800w | 1000w | 1200w | 1500w | 1800w |
lnputVoltage | AC100-277v | AC100-277V | AC100-277V | AC100-277V | AC100-277v | AC100-277V | AC100-277V | AC100-277V |
output Voltage | DC42V | DC42V | DC42V | Dc42v | DC42v | DC42v | DC42v | DC42v |
Rated Power | 400w | 500w | 600w | 800w | 1000w | 1200w | 1500W | 1800W |
Qty of LED | 840PCS*3030 | 840PCS*3030 | 840PCS*3030 | 168CPCS*3030 | 1680PCS*3030 | 168OPCs*3030 | 2520PCS*3030 | 2520PCs*3030 |
PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | 0.95 | >0.95 |
LED Brand | Lumileds | Lumileds | Lumileds | Lumileds | Lumileds | Lumileds | Lumileds | Lumileds |
Luminous Flux | 60000lm±5% | 75000lm±5% | 90000lm±5% | 120000lm±5% | 150000lm±5% | 180000lm±5% | 225000Im5% | 270000lm5% |
CRI | Ra>80 | Ra>80 | Ra>80 | Ra>80 | Ra>80 | R80 | Ra>80 | Ra>80 |
CCT | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
Beam Angle | 10/25/45/60/90 Asymmetrical 60° | 10/25/45/60/90 Asymmetrical 60° | 10/25/45/60/90 Asymmetrical 60° | 10/25/45/60/90 Asymmetrical 60° | 10/25/45/60/90 Asymmetrical 60° | 10/25/45/60/90 Asymmetrical 60° | 10/25/45/60/90 Asymmetrical 60° | 10/25/45/60/90 Asymmetrical 60° |
Driver Brand | Meanwell/SOSEN | Meanwell/SOSEN | Meanwell/SOSEN | Meanwell/SOSEN | Meanwell/SOSEN | Meanwell/SOSEN | Meanwell/SOSEN | Meanwell/SOSEN |
THD | <10% | <10% | 10% | <10% | <10% | <10% | 10% | <10% |
lK Rating | IK08 | IK08 | IK08 | IK08 | IK08 | IK08 | IK08 | IK08 |
Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
Life Span | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs |
Size | 718*214*222mm | 718*214*222mm | 718*214.222mm | 732*439*29omm | 732.439*290mm | 732*439*290mm | 732*666*290mm | 732*666*290mm |
Nw | 19.15kg | 19.65kg | 20.05kg | 32.00kg | 33.0Okg | 34.0Okg | 46.00kg | 47.30kg |
G.w | 21.55kg | 22.05kg | 22.5skg | 35.30kg | 36.30kg | 37.30kg | 49.70kg | 51.00kg |
Light Distribution:
Installation:
LED high mast lights are extensively used in various applications that require powerful and efficient lighting solutions. Here is a paragraph describing the applications of LED high mast lights:
LED high mast lights find widespread application in large outdoor areas that demand high-intensity illumination. These lights are commonly used in sports stadiums, providing exceptional brightness and uniform lighting for sporting events and nighttime matches. They are also utilized in airports and transportation hubs to illuminate runways, taxiways, and apron areas, ensuring safe and efficient operations during low-light conditions. Additionally, LED high mast lights are employed in industrial facilities, warehouses, and logistics centers, where they provide bright and reliable lighting for loading docks, storage yards, and parking areas, enhancing safety and productivity. Furthermore, these lights are commonly used in seaports to illuminate container yards, docking areas, and cranes, enabling efficient cargo handling and enhancing overall security. Their applications also extend to large parking lots, highways, and intersections, where they provide excellent visibility, reducing the risk of accidents and ensuring smooth traffic flow. Overall, LED high mast lights serve as indispensable lighting solutions for a wide range of outdoor environments that require powerful and energy-efficient illumination.
Packing and Production:
About us:
Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.
Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.
MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
