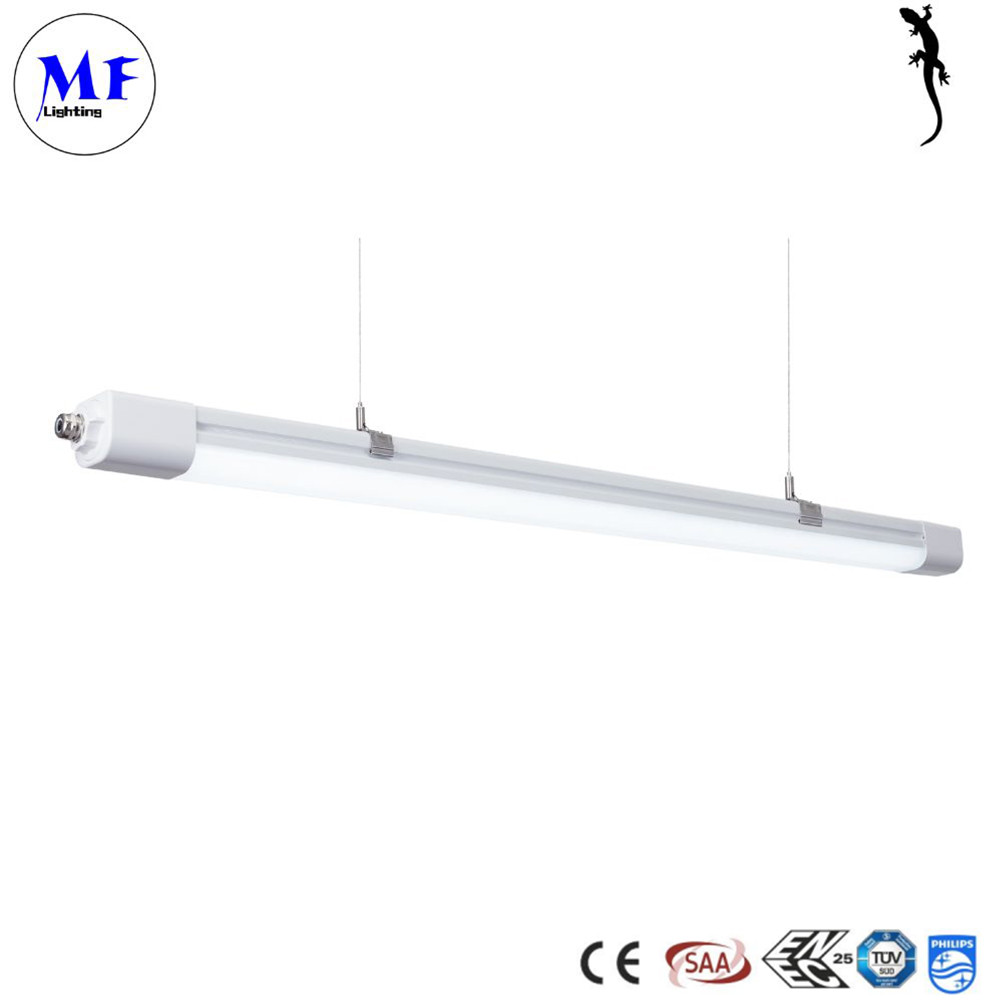

2ft 4ft 5ft 140lm/W IP66 LED Tri Proof Light 90min Emergency With Motion Sensor
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS,SAA | Model Number: | MF-Gecco 3 |
Detail Information |
|||
Lenth: | 2FT/4FT/5FT | Input: | AC100-277V |
---|---|---|---|
Power: | 18W/36W/50W | CCT: | 3000K/4000K/5000K/6000K |
Switch: | CCT&Power | Warranty: | 5years |
Operating Temperature: | -20~+40°C | Storage Temperature: | -40~+85°C |
PF: | >0.9 | Power Efficiency: | 0.9 |
Lumen Efficiency: | 180lm/W-200lm/W | Other: | IP69K |
IP RATE: | IP66 | ||
High Light: | LED Tri Proof Light 5FT,Microwave Sensor tri proof light fixture,5000K tri proof light fixture |
Product Description
5FT 35W/40W/50W/56W 4 in 1 Power LED Tri Proof Light with Microwave Sensor for Warehouse Plant and Parking Garages
Plastic model | PMMA+Aluminum model | ||||
ltem | Power | LED QTY | ltem | Power | LED QTY |
MF-LIO6S18W-GC3 | 12/14/16/18w | 153pCS | MF-LI06B18W-GC3 | 17/20/25/30w | 216PCS |
MF-LI12S36W-GC3 | 20/25/30/36w | 288PCS | MF-L112B36W-GC3 | 30/37/45/50w | 384PCS |
MF-LI15S50W-GC3 | 35/40/50/56W | 378PCS | MF-LI15B50W-GC3 | 46/52/65/70w | 504PCS |
lnput Voltage | AC200-240V | ||||
Efficacy | 130LM/W 150LM/W 170LM/W | ||||
Color Temperature | 3000K/4000K/5000K/6000K | ||||
Power Factor | ≥0.95 | ||||
Low THD | <15%@full load | ||||
CRI | ≥80 | ||||
Life Span | 50000H | ||||
operating Temperature | -20 to+45°c | ||||
Warranty | 5yeas | ||||
certificates | CE/RoHS/Tuv |
Life curve:
Item | A | B | C | D | E | F | Tolerance |
MF-LI06S18W-GC3 | 65.2 | 61.2 | 65.6 | 664 | 644 | 600 | ±3 |
MF-LI12S36W-GC3 | 1264 | 1244 | 1200 | ±3 | |||
MF-LI15S50w-Gc3 | 1564 | 1544 | 1500 | ±3 |

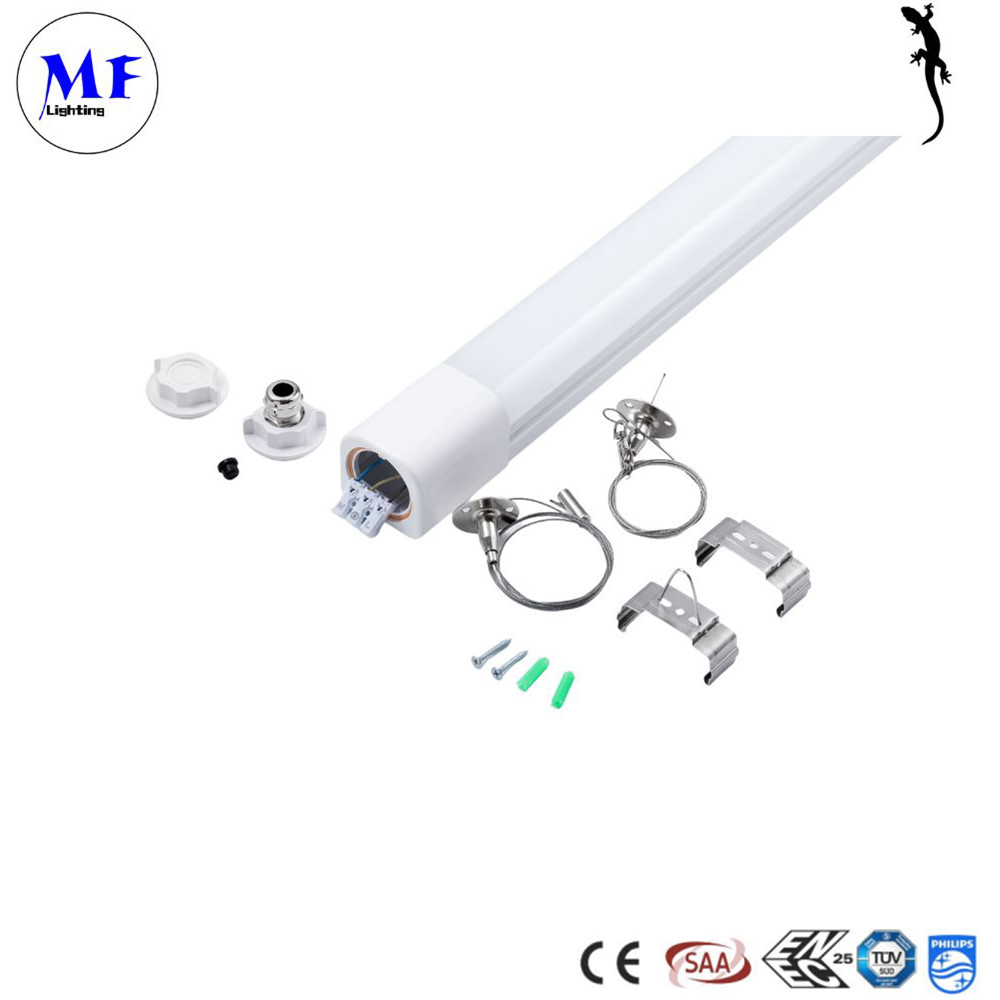

Installation:
Installation steps:
1. According to the three holes of the sling fixing, drill Ø4mm holes on the surface,then put the expansion tube into the drilled hole,lastly use screws to lock the sling fixings
2.According to the last picture use a screwdriver to lock the hook into the end of the sling
As shown picture,if you want to adjust the length of suspension wire,just press the metal tube.
Wiring diagram:
Warming reminds: This product is equipped with 16AWG wire as standard. Do not overload it when linking. The input wire of the above linking quantity must be thicker than 16AWG wire.

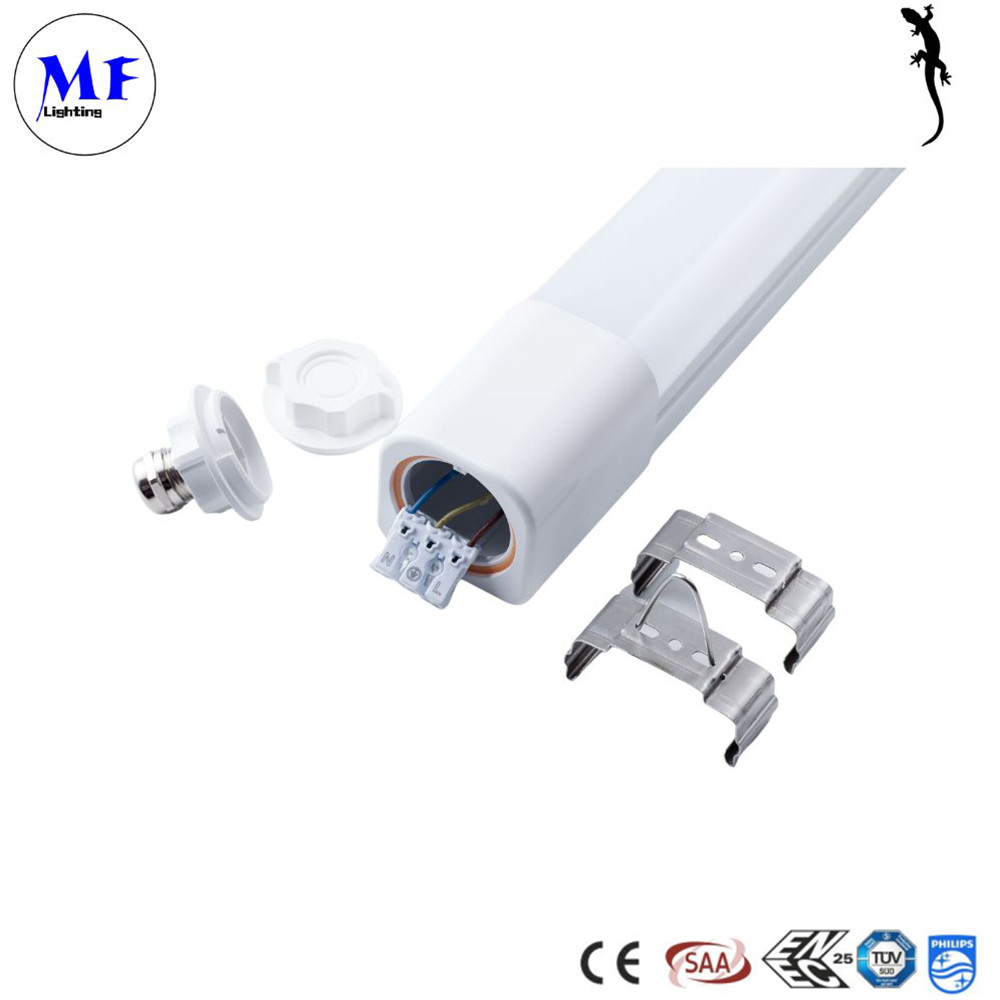

1.counterclockwise the end cap in 90 degrees to remove
2.Terminal wiring methods: brown wire connect with L (3), Connect the blue wire to the N wire (N), and the yellow-green wire to ground, Black and red connect dimmable wire or spare line
3.After finished connected, align the end cover
Power | 18W | 40W | 60W |
The Qty of lamps can be
Linkable
|
73PCS | 33PCS | 22PCS |
Packing:
Model | lnner box size(mm) |
N.W | Carton Size(mm) |
Qty/CTN | G.W/CTN |
MF-LIO6S18W-GC3 | 670*80*70 | 0.58kg. | 700*355*240 | 12piece/Carton | 10kg |
MF-LI12S36W-GC3 | 1270*80*70 | 0.92kg. | 1300*355*240 | 12piece/Carton | 15.7kg. |
MF-LI15S50W-GC3 | 1570*80*70 | 1.04kg | 1600*355*240 | 12piece/Carton | 18.5kg |
