LED Shapeable Spot Track Light Adjustable Ceiling Halogen for Mall Exhibition

Product Description

LED Shapeable Spot Track Light Adjustable Ceiling Halogen for Mall Exhibition

Technical Specification

Product Descriptions

Kingfisher Shapeable Track Lights is a high-performance track light with zoom and shaping capabilities, meeting the lighting needs of various scenes.

It utilizes a high-definition optical lens to provide high brightness, uniformity, and low distortion, offering an excellent lighting experience.

The multi-layer dry damping design ensures smooth and stable zooming and dimming, improving product stability and durability.

Moreover, Kingfisher Shapeable Track Lights supports various industrial-grade optical filters, allowing for customization to achieve unique lighting effects.

Users can adjust the color temperature according to different scene requirements, providing comfortable lighting.

The 360° unlimited rotation design offers flexible usage, while the aluminum alloy radiator effectively reduces light decay and extends the product's lifespan.

Kingfisher Shapeable Track Lights is a high-quality lighting product suitable for commercial, exhibition, and stage lighting applications.

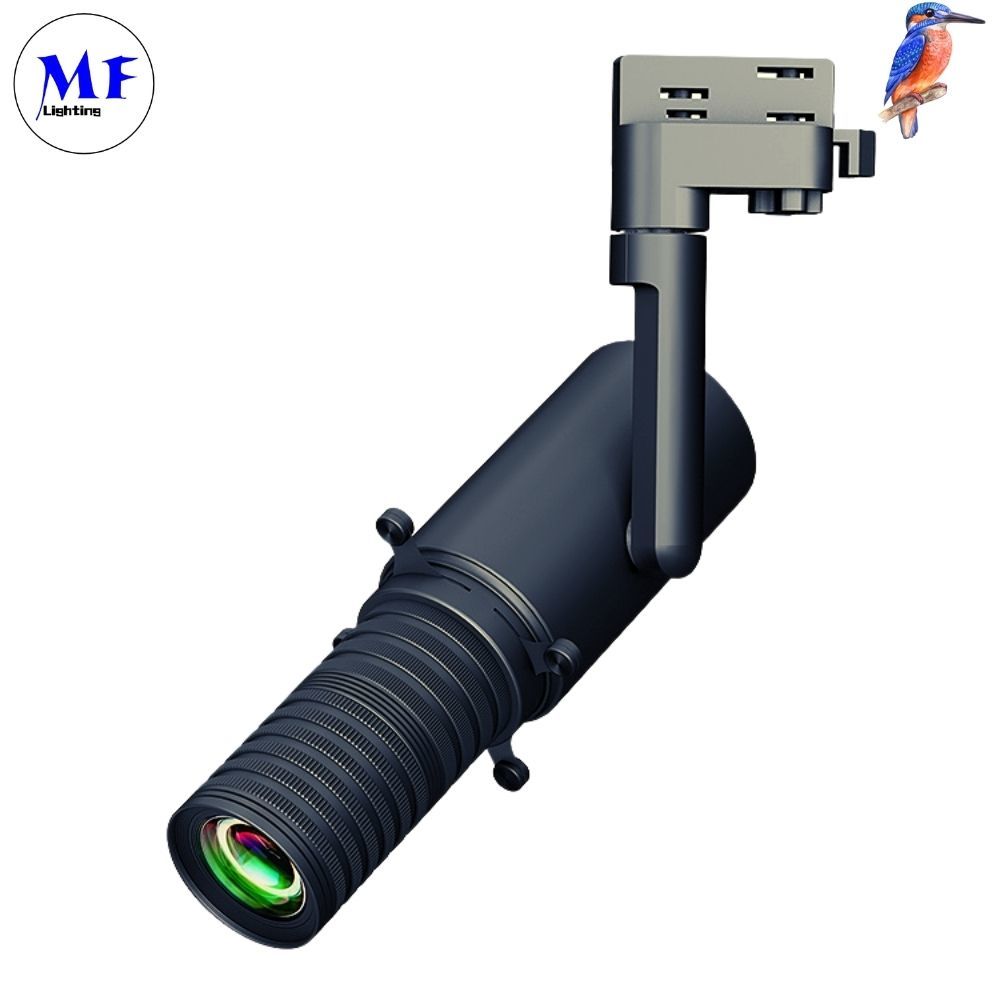

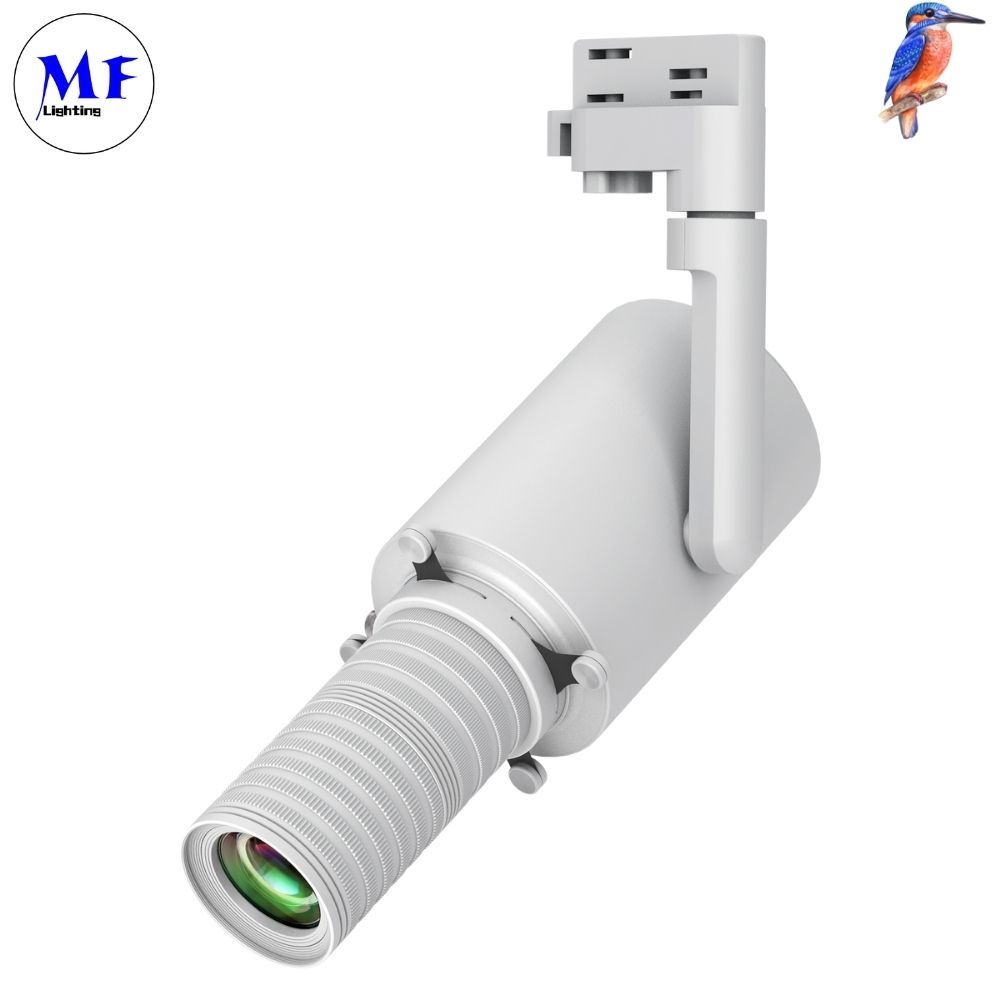

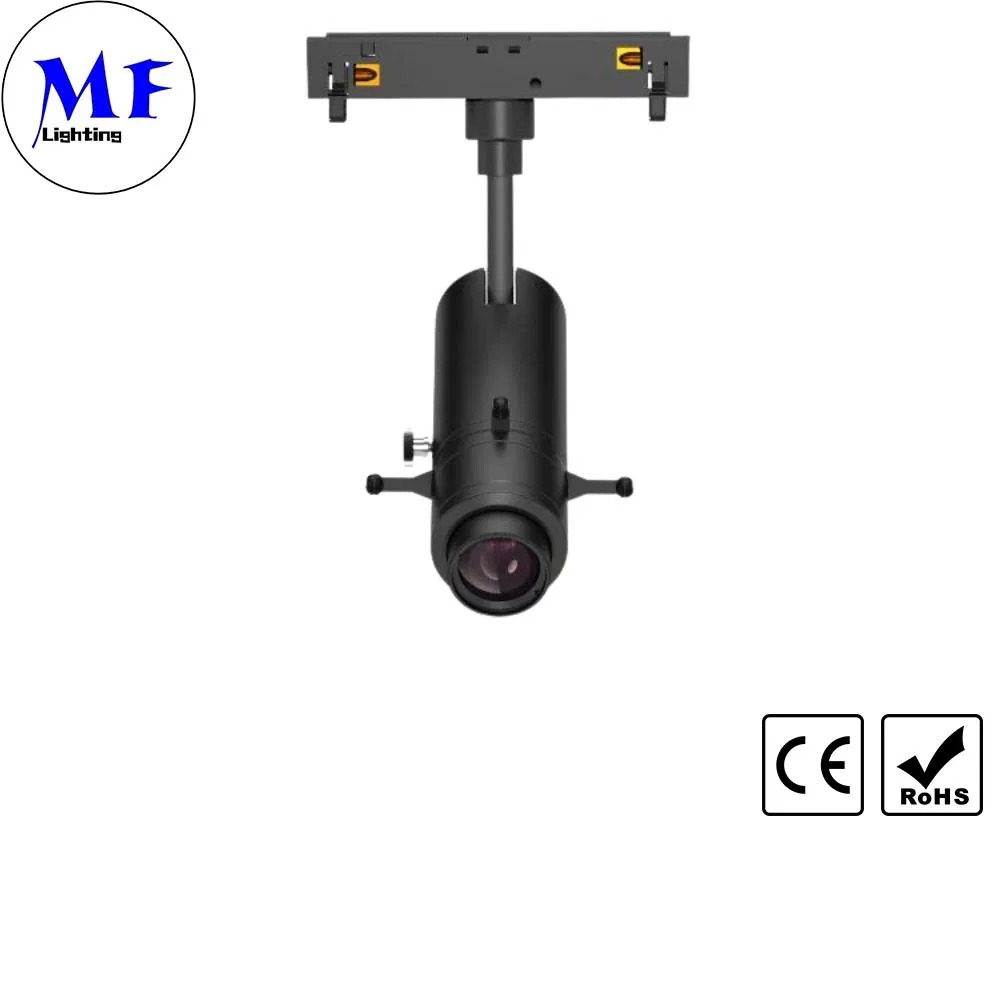

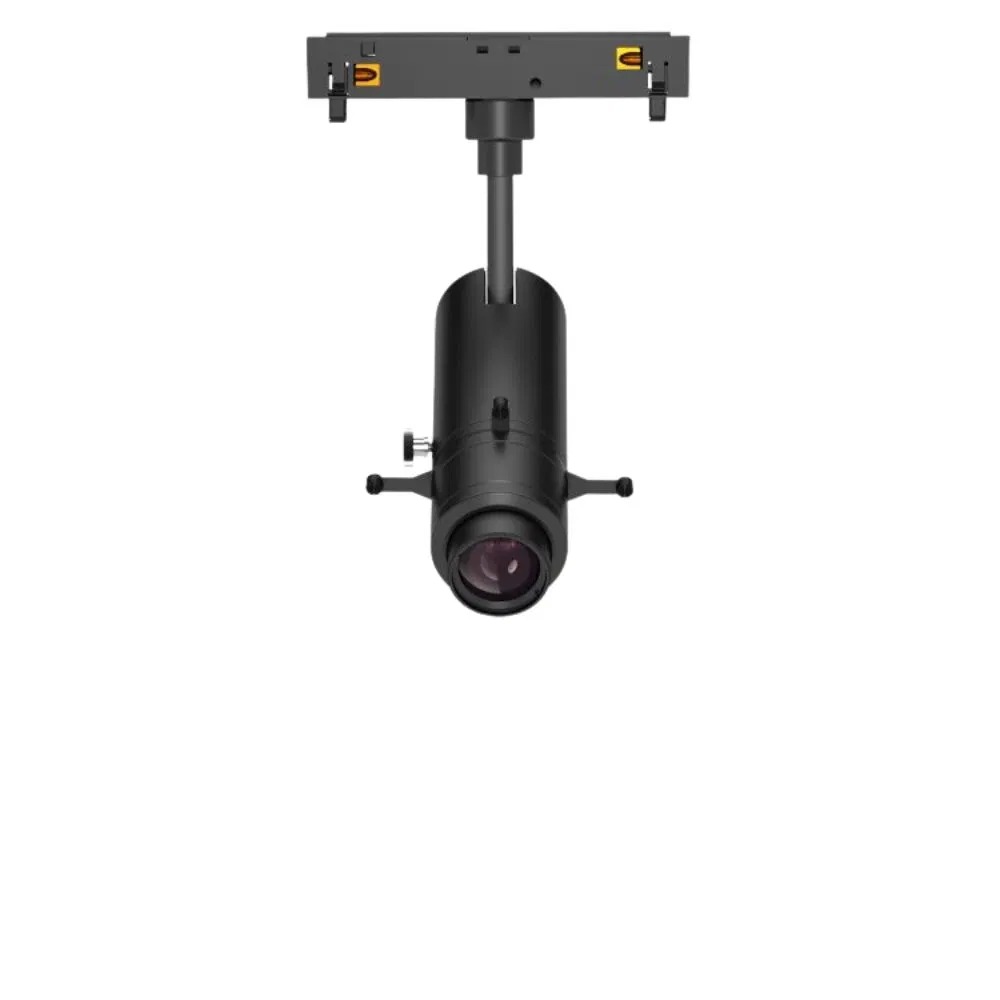

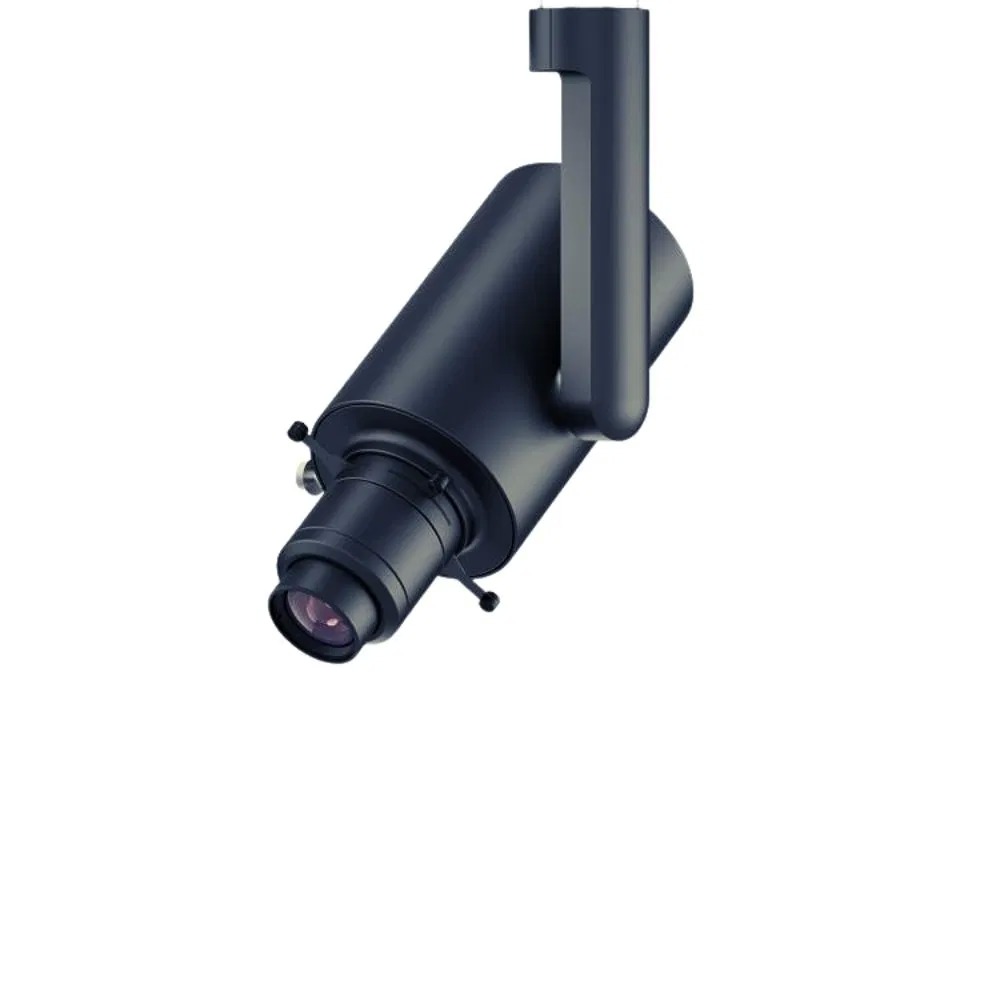

Product Show

Applications

Kingfisher-1 Shapeable Track Lights is suitable for a variety of applications, including commercial lighting, exhibition lighting, and stage lighting. In the field of commercial lighting, Kingfisher-1 Shapeable Track Lights can provide high-quality lighting for shopping malls, hotels, office buildings, and other venues, enhancing space comfort and aesthetics. In the field of exhibition lighting, it can provide precise lighting for exhibits, highlighting their features and details, attracting audience attention. In the field of stage lighting, it can offer diverse lighting effects for stage performances, enhancing visual effects and atmosphere. Whether for commercial, exhibition, or stage lighting, Kingfisher-1 Shapeable Track Lights can deliver excellent lighting performance, meeting the needs of different scenes.

Projection Functions

1.First loosen and pull out the hand screw (red part) shown in FIG. 1, and then pull out the main part of the lens (blue area) and separate it from the lamp body; Figure 2 shows the part of the optical lens after
separation, and Figure 3 shows the part of the lamp body after separation.

2.Stretch the four diaphragm sheets on the optical lens of Figure 4 outward to the maximum extent, as shown in Figure 5.

3.Unscrew the blue part of the optical compoents at the bottom of the lens in Figure 6, and separate it as shown in Figures 7 and 8.Then separate the lens face ring in FIG. 8 as shown in FIG. 9.


4.Find the gobo device delivered by the manufacturer (the red part in Figure 10), install the gobo device as shown in Figure 10, and then
reinstall the optical lens as shown in Figure 11, and then
reinstall the lens as shown in illuminated, first loosen the hand screw at the red mark, rotate the .If the shape of the spot does not match the object to be size is substantially consistent with the object, as shown in Figure Stretch the diaphragm sheet one by one outward until the spot
Figure 6, and then reinstall the lamp body as shown in Figure 1. The LOGO lamp assembly is complete.

5.You can design and make a variety of image gobo. The specifications are shown in Figure 12

FAQ

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
