2ft 4ft 5ft 140lm/W IP66 LED Tri Proof Light 90min Emergency With Motion Sensor
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS,SAA | Model Number: | MF-LI06H18W-GC2 |
Detail Information |
|||
Application: | Parking Lot/Tunnal/Commercial/Warehouse | Feature: | Anti-corrosion/Dust Proof/Waterproof/explosion Proof |
---|---|---|---|
Material: | Auminum Stainless Steel PC | Power: | 18W/36W/50W |
Voltage: | AC100~277V 50/60Hz | Installation: | Easyand Quick To Installunder Cellingor On Surface |
Housing/Diffuser: | 304 Stainless Steel Housing,Tempered Glassdiffuser | Driver: | OSram / PHilip / Tridonic / Chinese Localbrand |
LED Brand: | SMD2835 / SMD3030 | CCT: | 2700-6500K (ANSI C78.377) |
CRI: | > 80 | Powerfactor: | >0.9 |
Beam Angel: | 180° | Warranty: | 5 Year |
High Light: | 5000K 18W Lamp Fixture,Fireproof PC Material 18W Lamp Fixture,IP66 18W Lamp Fixture |
Product Description

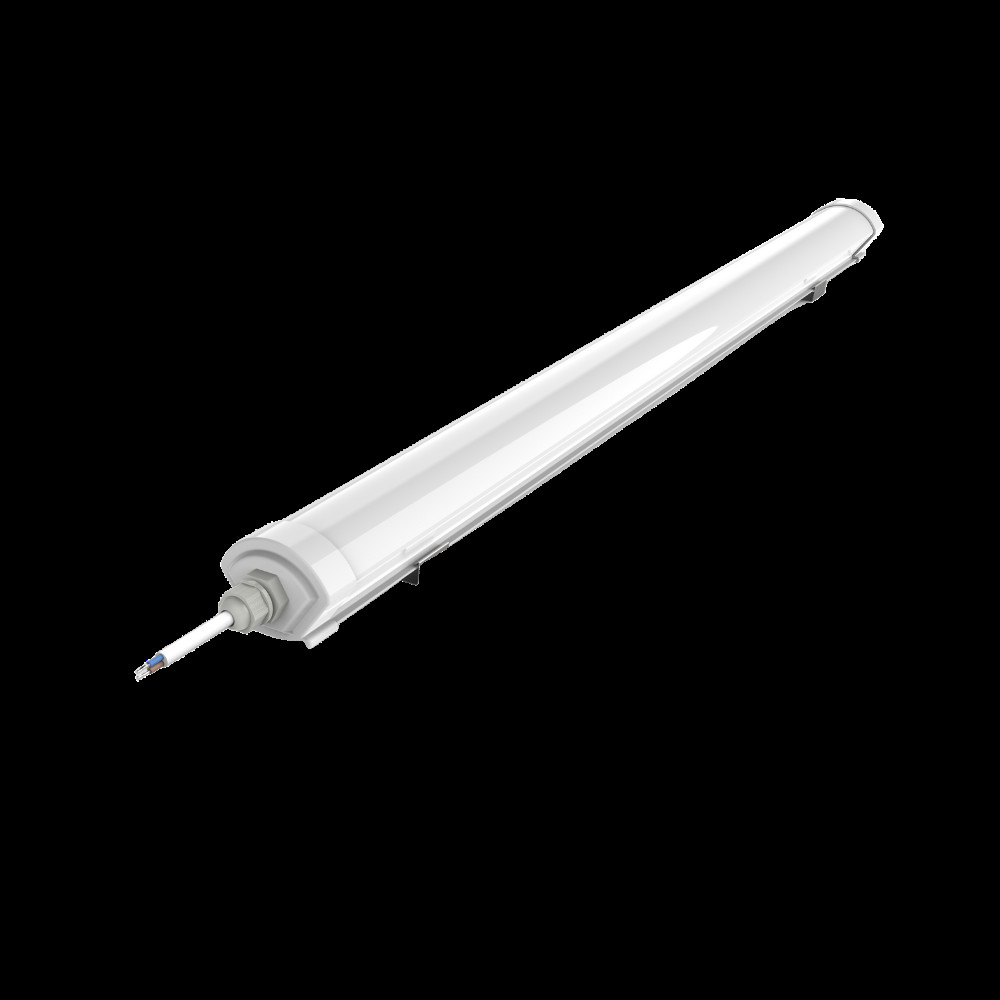

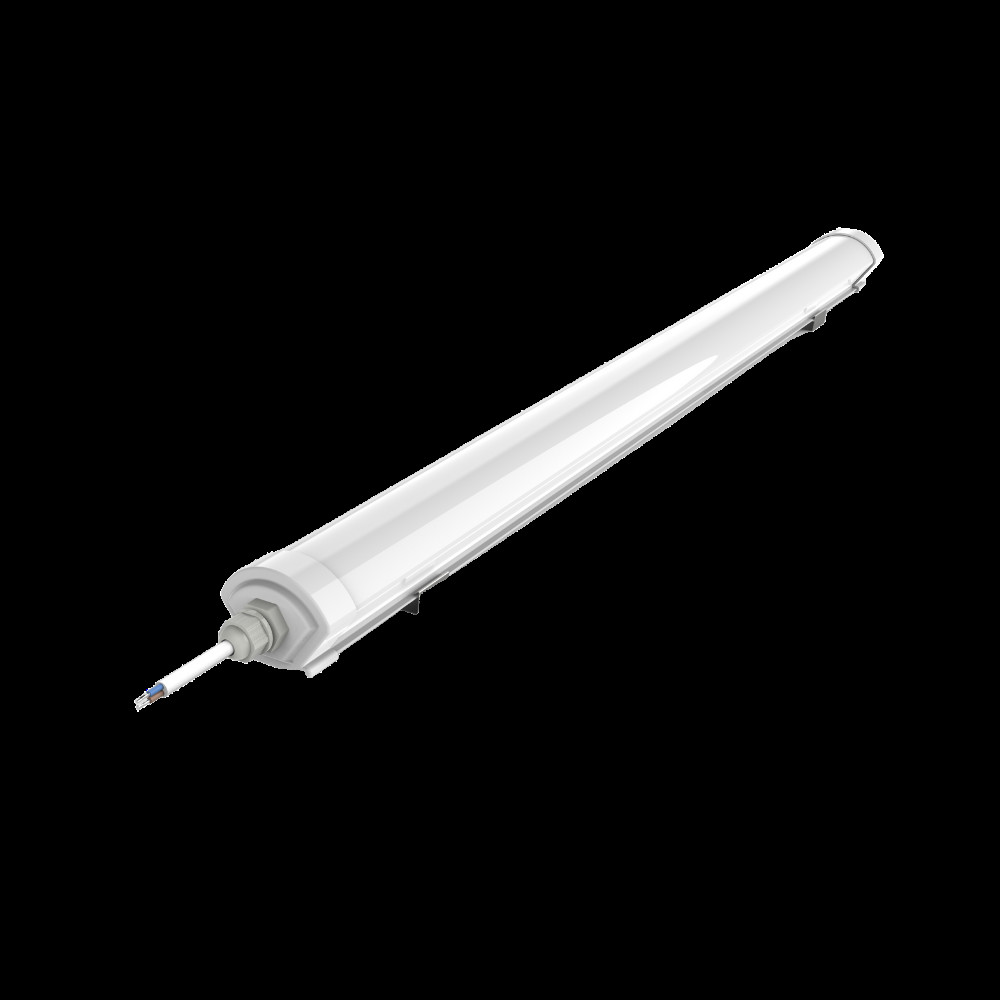

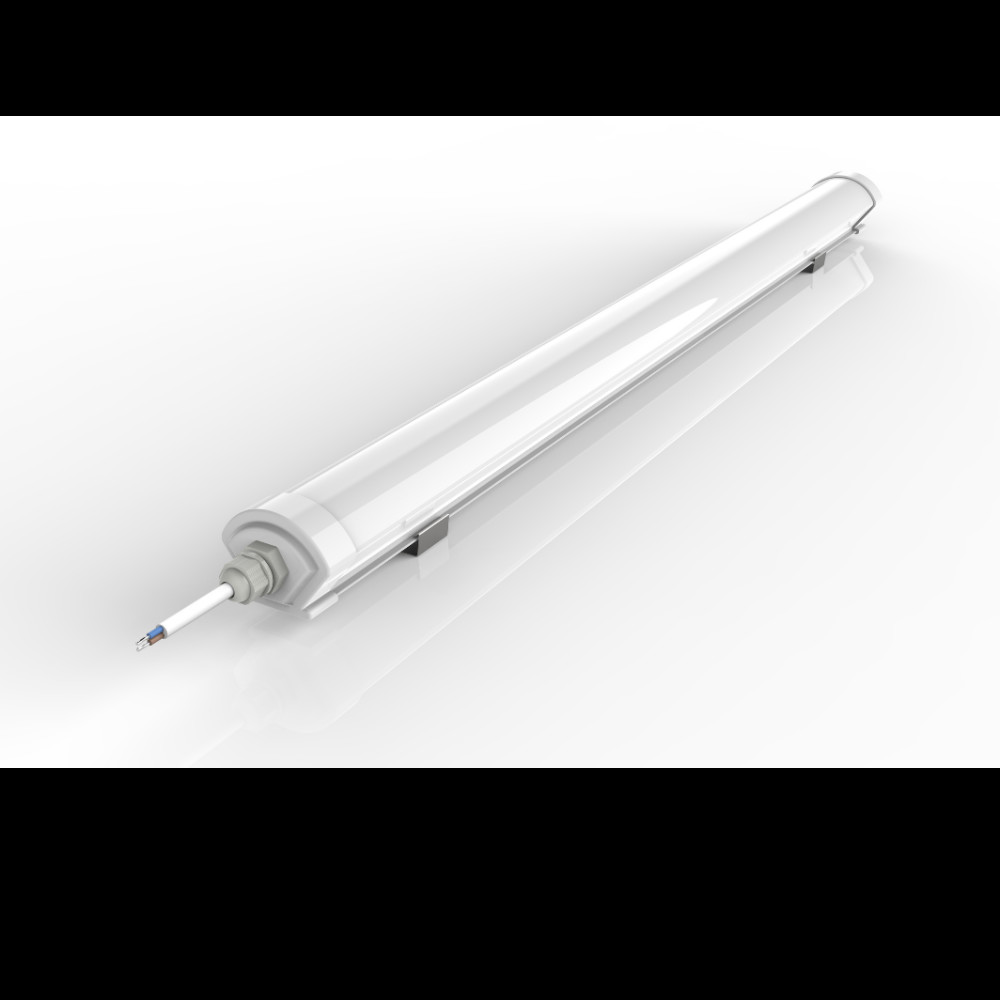

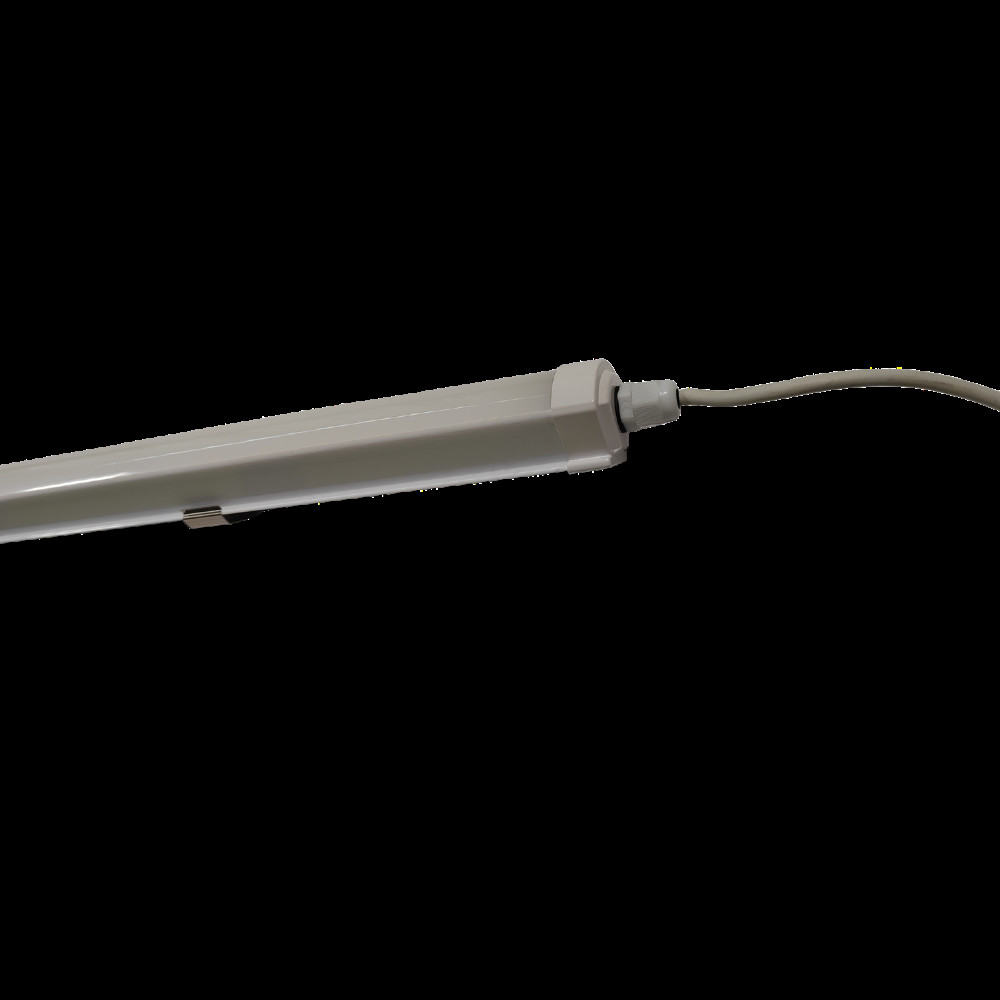

IP66 18W Lamp Fixture 3000K/4000K/5000K Fireproof PC Material LED Tri-Proof Light
Features:
1. The appearance is simple and generous, light, small size, large luminous surface.
2. It is made of import fireproof PC material, which is more safe and reliable.
3. High thermal conductivity aluminum pcb, small size, high power.
4. The standard configuration is 2*.05 square wires, which can be used safely without worrying about the problem of excessive current.
5. It can be installed on the ceiling and is suitable for different environments.
6. Pass the EMC driver, Waterproof IP66.
Model | Power (W) | Light Source | LED QTY | Lm/W | CRI |
MF-LI06H18W-GC2 | 18 | 2835 | 120 |
130 150 180 |
>80 |
MF-LI12H36W-GC2 | 36 | 2835 | 240 | ||
MF-LI15H50W-GC2 | 50 | 2835 | 336 |
The Tri-Proof Light from Ming Feng Lighting is a high-performance and durable lighting solution designed for industrial and commercial applications. With an IP66 rating, this light is resistant to dust and water, making it an excellent choice for harsh environments where reliable lighting is essential.
This light operates on an input voltage range of AC100-277V or 200-240Vac at 50Hz-60Hz, ensuring compatibility with a wide range of power supply systems. The Tri-Proof Light has a wide beam angle of 120°, providing even and uniform lighting across the area.
This light has a color temperature of 3000K-6500K, providing warm and comfortable lighting. Its high power factor of >0.9 ensures high efficiency and reduces energy consumption. With a lifespan of over 50,000 hours, this light offers long-lasting and reliable lighting.
Overall, the Tri-Proof Light from Ming Feng Lighting is a durable and high-performance lighting solution that provides efficient and reliable lighting in harsh environments. Its adjustable design, wide beam angle, and long lifespan make it a cost-effective and versatile choice for various industrial and commercial applications.
1. Before installing the lighting fixtures, please read this instruction manual carefully.
2. The lighting fixtures should be installed, connected and tested by a certified installer based on the local regulations.
3. Lamps should always be installed or replaced with care.
4. Please check the local voltage in accordance with the product requirements before using the product.
5. Relamping only can be done when the power is off and the lamp is completely cooled down.
6. When a lamp is to be cleaned, make the power off and let it cool down completely. Clean the fixture with a soft cloth and a standard PH neutral detergent. Stainless steel finishing should be maintained regularly.
7. Misuse of, or changes to the fixture shall nullify the guarantee.
8. Don't cover the fixtures with flammable materials.
9. Exclusively replaced by the manufacturer or his service agent or the similar qualified person in order to avoid a hazard.
Production Dimension:
Model | A (mm) | B (mm) | C (mm) | D (mm) | Tolerance |
MF-LI06H18W-GC2 | 600 | 47 | 38 | 300 | ±3 |
MF-LI12H36W-GC2 | 1200 | ±3 | |||
MF-LI15H50W-GC2 | 1500 | ±3 |
Packaging:
Model | Inner Box Size (mm) | Carton Size (mm) | Qty/CTN | G.W/CTN |
MF-LI06H18W-GC2 | 680*53*45 | 700*330*295 |
35 |
8.5kg |
MF-LI12H36W-GC2 | 1280*53*45 | 1300*330*295 | 35 | 18.5kg |
MF-LI15H50W-GC2 | 1580*53*45 | 1600*330*295 | 35 | 22kg |
Installation:

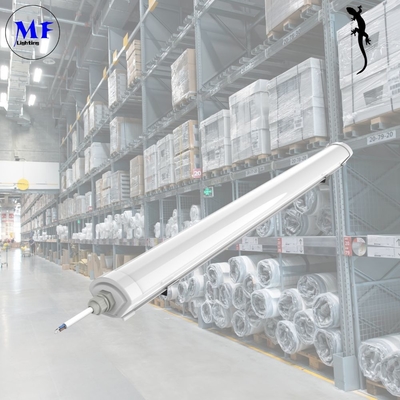

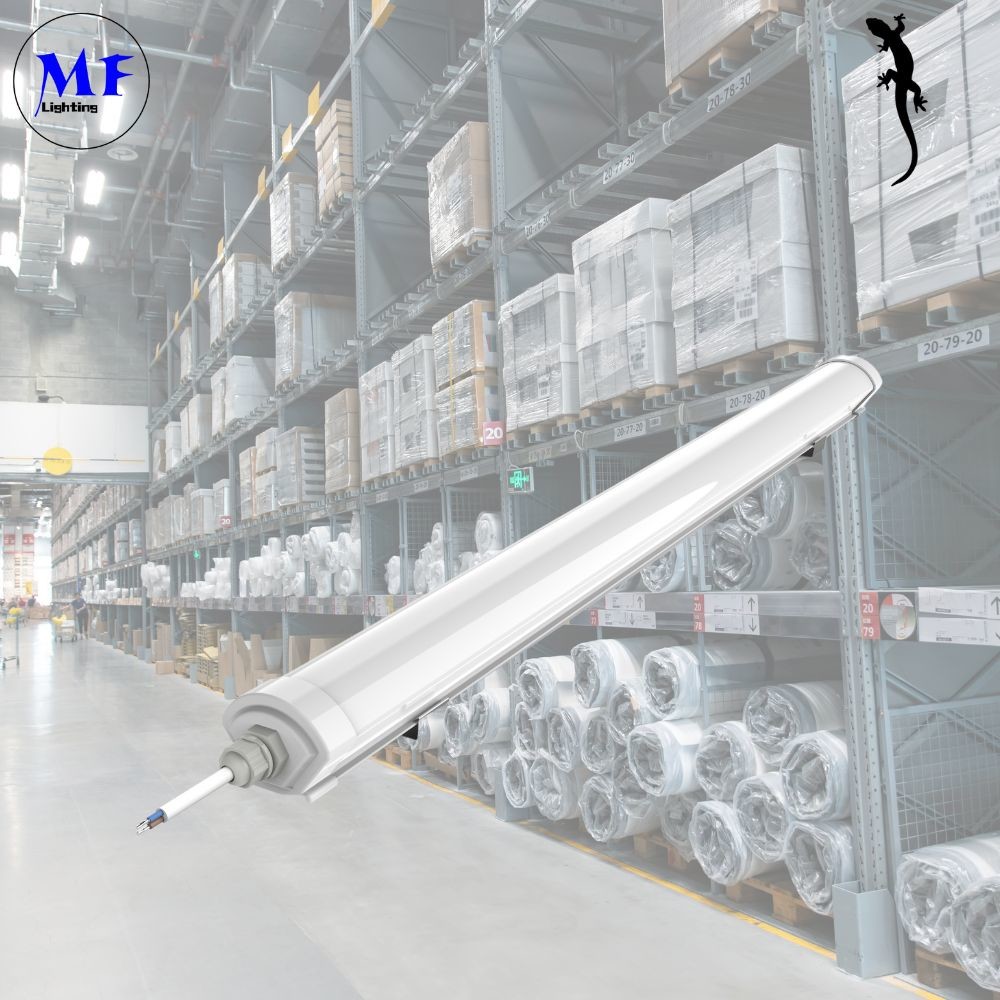

The IP66 tri-proof light is a tough and energy-efficient lighting solution that can be used in many different applications, such as factories, outdoor areas, retail stores, food processing facilities, and sports facilities. It's waterproof, dustproof, and impact-resistant, making it durable and reliable in harsh environments.
