Home ProductsLED Spot Track LightShapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums

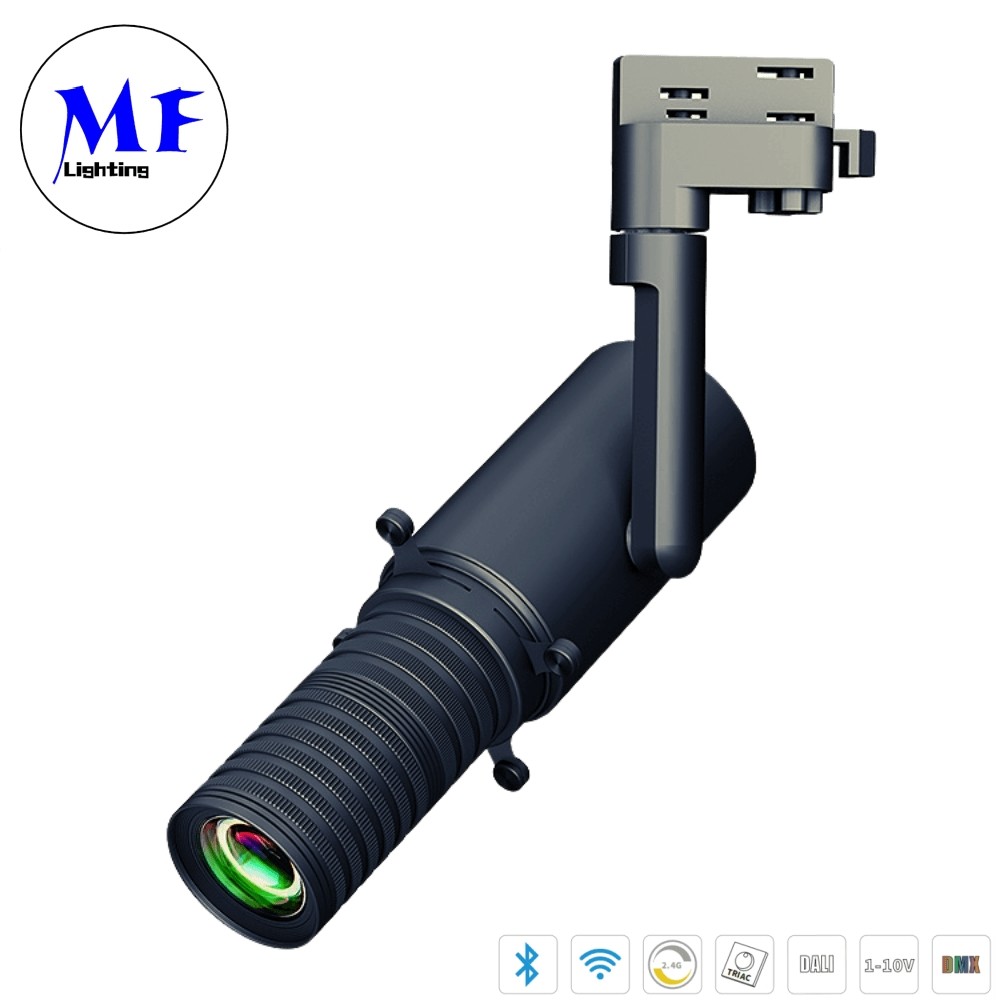

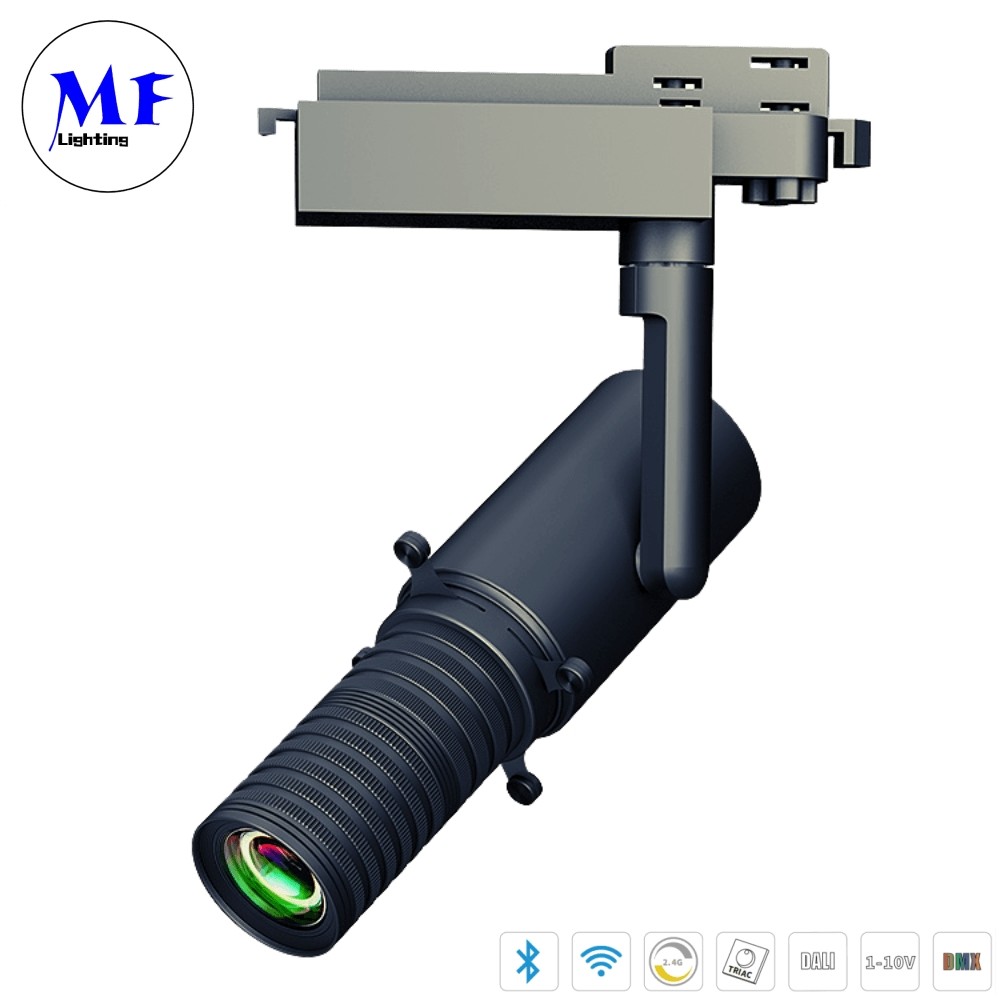

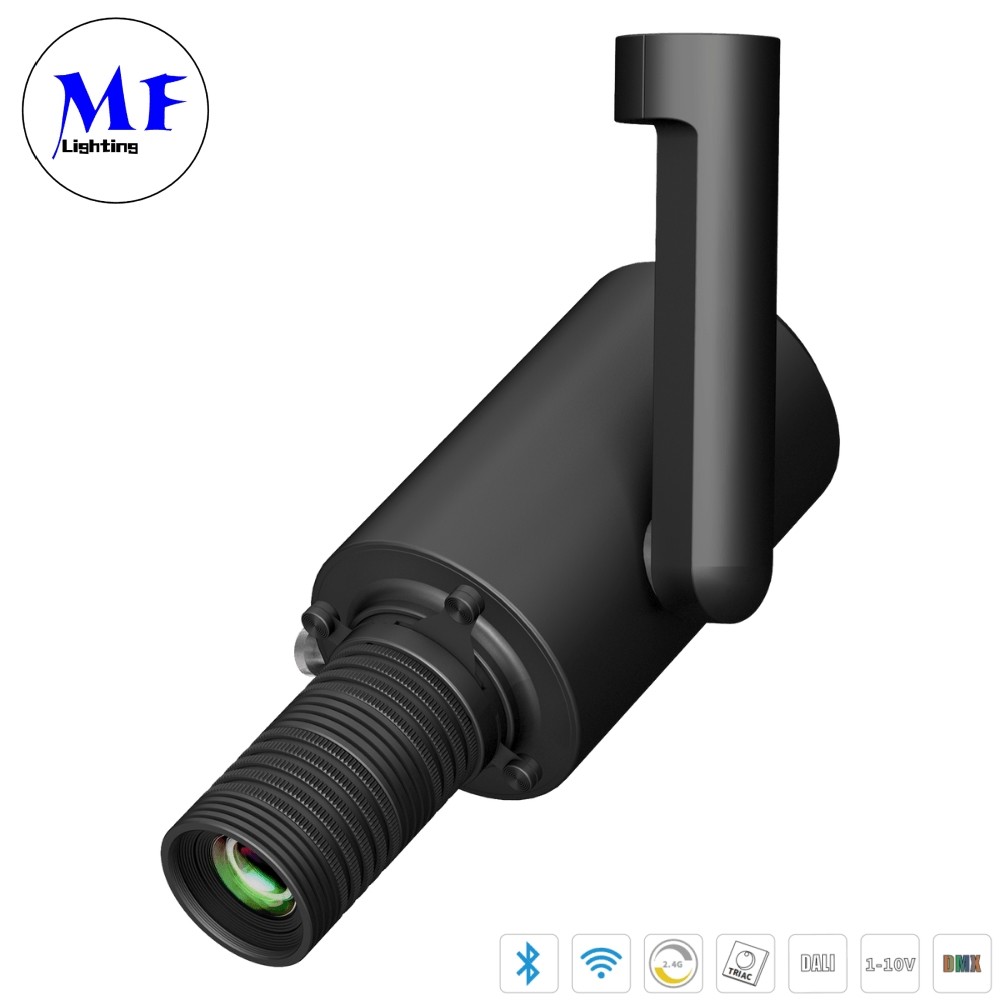

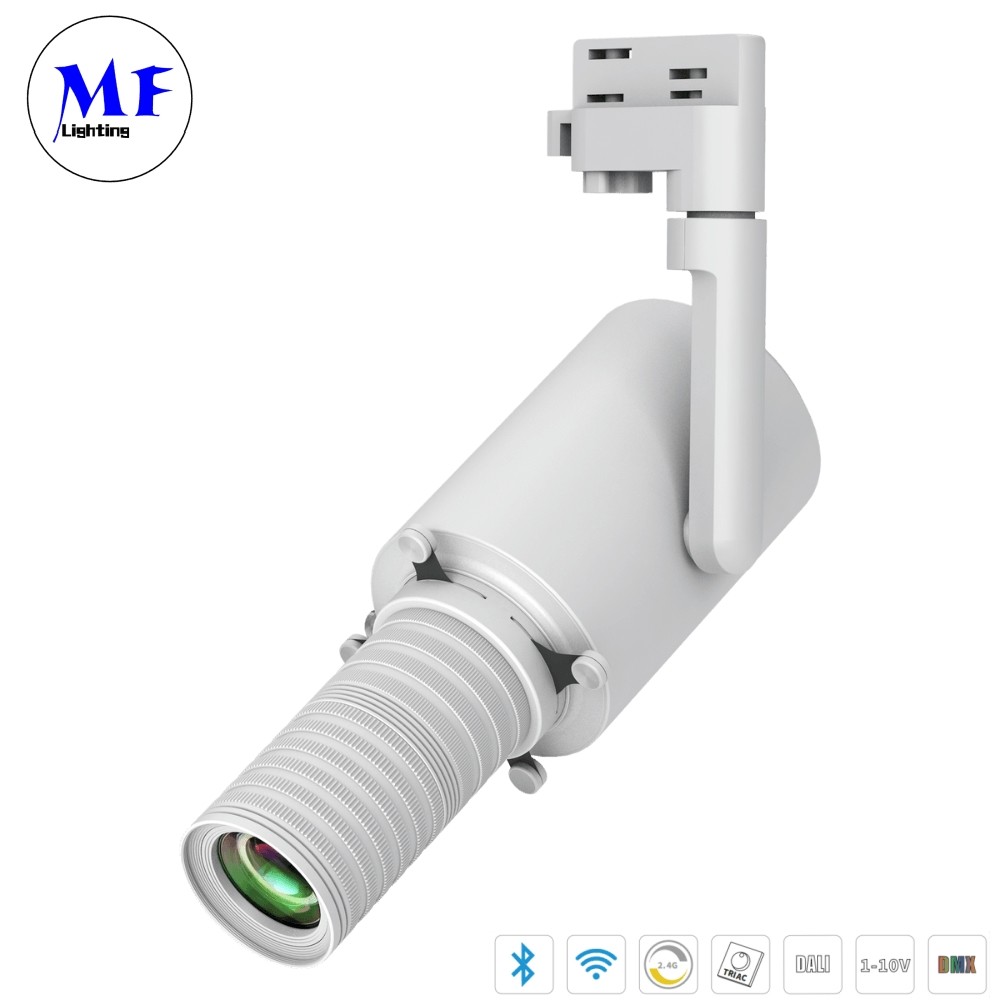

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums
Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums
Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums
Contact Now

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF Shapeable Track light Kingfisher 1

Detail Information
CCT: 2700K/3000K/4000K/2700K-6000K Material: Alloy Aluminum
Power: 8W/10W/20W/28W/37W Color: Changeable
Wire-based: 4wires/3wires/2wires/6wires/Mono/Other Warranty: 2years
Input Voltage: AC 220V-240V/48V DC Beam Angle: 25-45°/20-35°/20-36°/15-25°
Chip Brand: OSRAM CRI: ≥97
Color Of Housing: Black/White Installations: Magnetic 2.0 3.5/Embedded(Cutout 40/70mm)/Powergea
Support Filters: 32/58/Na Installations 2: Track Adapter/Surface Mount
Driver: Tridonic DIP CCT Single Lamp Dimming: Nonsupport
Applications: Museum/Art Gallery/Decoration/Hotel

Product Description

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums



Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 0

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 1Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 2Fully independent intellectual property rights, global patents, global certification!
Dry stepless linear zooming and spot shaping. Frame size 1:0.8

There can never be only one lighting design solution. The possibilities in the design are limitless. Moreover, the spirit of the times, cultural background, abstract concepts, and even the personal characteristics of the designer can be different and diverse. We look for the most suitable way of light expression in this infinite possibility.

Model No.
MF Shapeable track light Kingfisher-1
Power
8W 10W 20W 28W 37W
Luminous Flux
650~1550LM
Ra
≥97
Color Temperature
 2700-6000K
Frame size
 1:0.8
DIP CCT Single Lamp Dimming Support
Housing Color Black White
Voltage 220-240VAC
Driver
Trido



KP series Magnetic contour spotlight (M1003K) has equipped with our newly developed 55° fixed-focuswide-angle optical lens and 15~36· constant zoomoptical lens, compatible with p 38mm mini sizeradiator and magnetic track adapter. Ultra-smallsize, excellent performance.



Cold forging integrated radiator design
A radiator made of 1070#pure aluminum and molded by molding pressure.
It has high thermal conductivity, low-temperature differences, low light failure, and long service life.

Thermal conductivity 226W/m.K

KP series stretching embedded contour spotlighthas equipped with our latest developed 55 fixedfocus wide-angle optical lens and 15 ~ 36constant zoom optical lens. compatible with p38mm mini size radiator and 70mm stretchingembedded device. Ultra-small size, excellentperformance.

Ultra-high-definition projection.
Millimeter-level precise Spot shaping, uniform illumination.
Fixed-focus / zoom lens can be switched arbitrarily (lt trulyintegrates fixed-focus optics and zoom optics mutually. Maximizethe optical properties of fixed-focus and zoom lens).
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight
KP series stretching embedded contour spotlight has the features offlexible rotation and precisely projection, supporting vertical 90°rotation and horizontal 355°rotation.



High-definition optical lens design
It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc..

A new optical path specially designed for COB light sources.
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight







10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight
Optical-grade variable aperture design
An optical diaphragm made of high-precision special material with no
blurring and freezing.
Manual insertion and removal of the light cutting device can freely change the shape of the spot.









Multi-layer dry damping design
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use.
Rotating the device can change the sharpness of the spot.
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight









10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight
Multi-layer dry damping design
Short stroke, considerable focal length, high short-focus and long-focus
recognition, visible to the naked eye, linear zoom is enhanced and more
convenient.
Rotate the device to adjust the spot size.





KP series stretching embedded contour spotlighthas equipped with our latest developed 55 fixedfocus wide-angle optical lens and 15 ~ 36constant zoom optical lens. compatible with p38mm mini size radiator and 70mm stretchingembedded device. Ultra-small size, excellentperformance.
10W Ra>97 M20 No Glare Full Color Gobo Zoomable LED Track Light Framing LED Projector Modern Museum Exhibition Zoomable Shapeable Magnetic Contour Spotlight





Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 10





360° Manual Rotation Design
Loosen the manual screw and turn the lens to achieve the 360°spot rotation adjustment function. Device to solve the 360° rotation of the
projection and light spot.

Gobo Projector Ra>97 Shapeable Track Light 5 Years Warranty Rail Shapeable Cut LED Track Light Spot Light 10

High-definition Optical Lens Design

It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous
efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc. A new optical path specially designed for COB light sources.
Gobo Projector Ra>97 Shapeable Track Light 5 Years Warranty Rail Shapeable Cut LED Track Light Spot Light 11
Optical-grade Variable Aperture Design
An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the
light cutting device can freely change the shape of the spot.

Gobo Projector Ra>97 Shapeable Track Light 5 Years Warranty Rail Shapeable Cut LED Track Light Spot Light 12

Multi-layer Dry Damping
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.

Gobo Projector Ra>97 Shapeable Track Light 5 Years Warranty Rail Shapeable Cut LED Track Light Spot Light 13
Multi-layer Dry Damping
Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.Gobo Projector Ra>97 Shapeable Track Light 5 Years Warranty Rail Shapeable Cut LED Track Light Spot Light 14
DIP color temperature coupled with the single lamp knob dimming design can easily achieve single lampdimming, spot shaping and color temperature adjustment. It can be used alone or can alternatively be equipped with other dimming devices.

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 16

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 17



Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 18

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 19

 I .Adjust the aperture to the appropriate size, and facing thecenter of the irradiated object, adiust the sharpness to a reasonable degree, as shown in Fiqure 17.



II.Pull the four diaphragm sheets outward to the maximum, andthen push one by one vertically inward, to ensure that the cutsquare spot is smaller than the object to be illuminated. andadjust the sharpness of the aperture again until satisfactory, asshown in Fiqure 18.


Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 20
III.lf the shape of the spot does not match the object to beilluminated, first loosen the hand screw at the red mark, rotate theblue part of the lens, adjust the edge of the spot to be parallel tothe edge of the object to be illuminated, and finally tighten thehand screw. As shown in Figure 19, the LOGO projection directionnot matching can also be adjusted to the ideal direction using thismethod.

IV.Stretch the diaphragm sheet one by one outward until the spotsize is substantially consistent with the obiect, as shown in Fiqure20. lf you are not satisfied with the effect, it is recommended torepeat the operation according to the above steps to bring up thespot effect you are happy with.

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 21



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.

Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums 22
