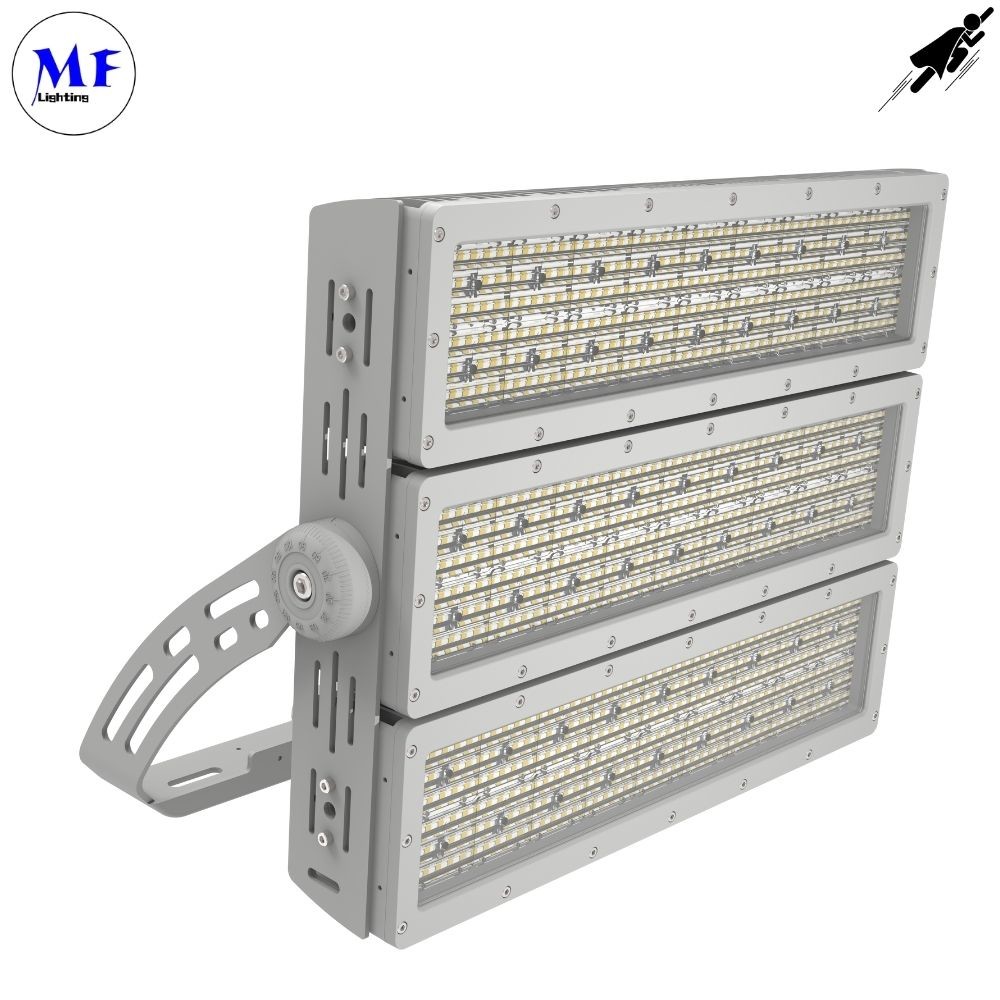

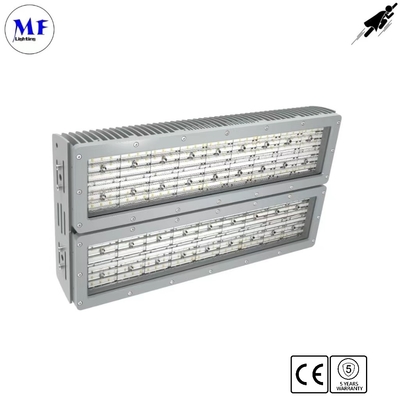

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K
1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K
1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K
Contact Now

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF-1200WiSF

Detail Information
CCT: 2700K/3000K/4000K/5000K/5700K Material: Aluminum Alloy
Power: 400W/600W/800W/1200W/1500W/1800W IP Rate: IP66
Driver: Sosen/MeanWell Luminous Efficacy: 140LM/W-145LM/W
CRI(Ra): 70+/80+90+ Beam Angle: 15D/20*30d/30d/35*85D/Pg30d/Pg60d
Power Efficiency: 0.90 Ik Rate: IK8
Material: Die-Cast Aluminum PF: >0.95
Installation: Bracket Installation/Wall Installation/Pole Instal Life Span: >50, 000hrs
Warranty: 5 Years
Highlight:

1200 watt stadium light

,

150lm/W led arena flood lights

,

High Power led arena flood lights

Product Description

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 01200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 1




Features Of ISF Series

The MF Series Stadium Floodlight represents a new generation of outstanding lighting solutions, boasting easy maintenance, easy installation, versatile light distribution options, and professional-grade features. Its expectional optical design ensures outstanding performance, making it the ideal choice for illuminating outdoor large venues and events, saving maintenance budget and operating costs.

· Up to 150lm/w, power range: 400w-1800w
· Modular design, a maximum of 3 modules available.
· UV stabilized polyester power paint finish for durability and corrosion resistance.
· Die-casting aluminum, excellent heat dissipation design, more conductive to prolong the lifespan.
· Excellent lighting system design, better performance.
· Eco-friendly, the lighting around the site is not plagued by light pollution.
· The illumination of the site is significationly improved, with better uniformity, and the overflow light is reduced to a minimum.

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 2


Note: Normal Voltage=100-277VAC, High Voltage=277-480V AC, please evaluate before choosing. For the power supply in the United States and Canada, in case the input voltage fluctuation >240v, the high voltage solution is highly recommended for performance stability. Improper selection will cause damage to the driver or the light.

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 3

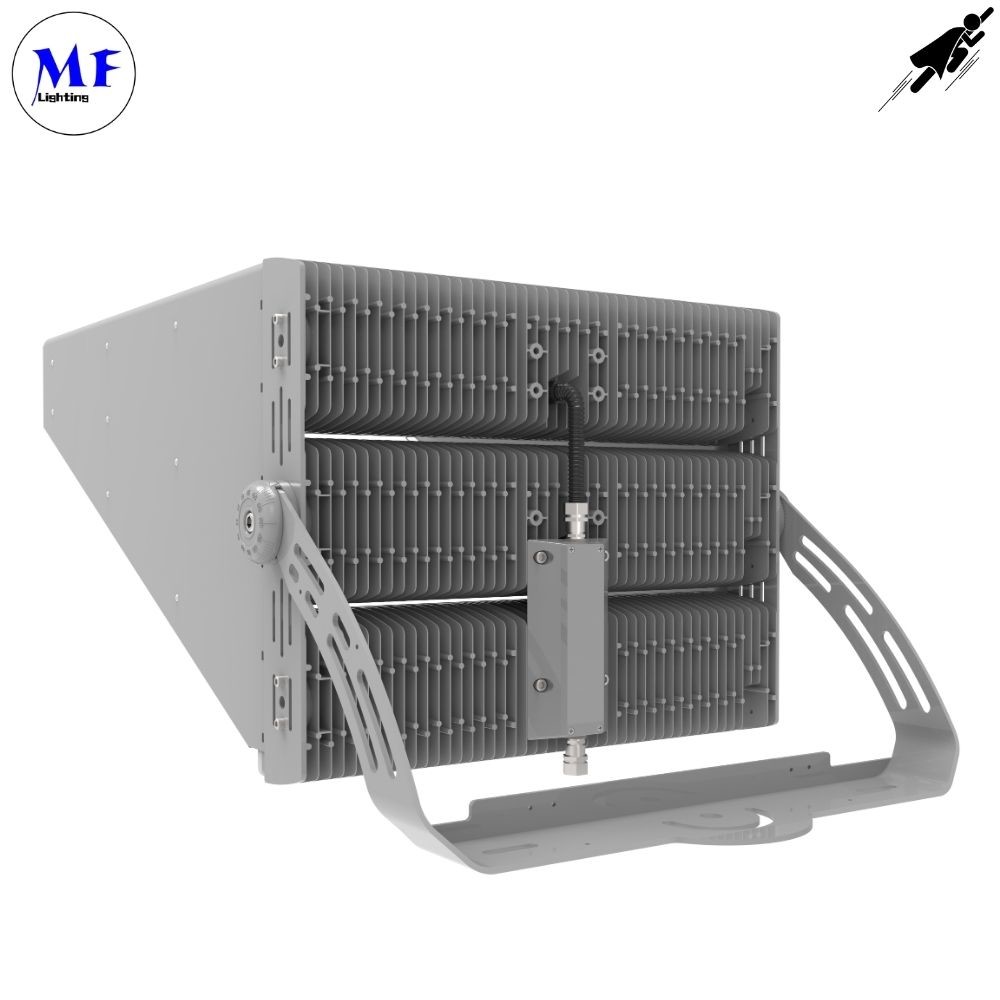

Multiple mounting options turn installation & maintenance job into a easy way.
Installation options include integrated and split setups, with driver box maintenance requiring no tools. you can easily adjust the position, wither on the bracket or using a remote power box, ensuring straightforward and convenient maintenance.

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 4
1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 5
1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 6

Flexible & convenient installation:
1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 71200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 8
1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 9
The MF series features a customizable high -performance optical system designed for professional sports fields. It includes floodlighting optics for precise pitch illumination, offering flexibility and excellent light distribution. Speciazed LEDs ensure high TLCI for television broadcasts.

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 10
The MF series introduces an innovative lighting technique for sports fields, streamlining floodlight installation without requiring precise aiming. It's designed for sports facilities like tennis courts, making luminaire installation quick and easy.

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 11
1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 121200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 13



1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 14

Parameter Table:

Electrical Data
Model MF-400WiSF MF-600WiSF MF-800WiSF MF-1200WiSF MF-1500WiSF MF-1800WiSF
Power(W) 400W 600W 800W 1200W 1500W 1800W
Modules 1 1 2 2 3 3
Input Voltage 100-277V/277-480V, 50/60Hz
THD <20%
PF >0.90
Control Option 0-10V/PWM Timer diming (standard), DALI, DMX512 (optional)
Amblent Temperature -40°C to +50°C
Driver Brand Based on the actual project demand
Surge protection 20kv available
Photometric Data
Efficacy (lm/w, std, dev. ±5%)@CCT=4000K, CRI>70Ra 15D 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W
35*85D 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W
20*30D 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W
30D 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W
PG30D 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W
PG60D 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W
Luminous Flux (lm, std, dev. ±5%)@CCT=4000K, CRI>70Ra 15D 56000lm 84000lm 112000lm 168000lm 210000lm 252000lm
35*85D 60000lm 90000lm 120000lm 180000lm 225000lm 270000lm
20*30D 56000lm 84000lm 112000lm 168000lm 210000lm 252000lm
30D 60000lm 90000lm 120000lm 180000lm 225000lm 270000lm
PG30D 56000lm 84000lm 112000lm 168000lm 210000lm 252000lm
PG60D 56000lm 84000lm 112000lm 168000lm 210000lm 252000lm
Efficacy (lm/w, std, dev. ±5%)@CCT=4000K, CRI>70Ra, with visor 15D 125lm/w 125lm/w 125lm/w 125lm/w 125lm/w 125lm/w
35*85D 135lm/w 135lm/w 135lm/w 135lm/w 135lm/w 135lm/w
20*30D 125lm/w 125lm/w 125lm/w 125lm/w 125lm/w 125lm/w
30D 135lm/w 135lm/w 135lm/w 135lm/w 135lm/w 135lm/w
PG30D / / / / / /
PG60D / / / / / /
Luminous Flux (lm, std, dev. ±5%)@CCT=4000K, CRI>70Ra, with visor 15D 50000lm 75000lm 100000lm 150000lm 187500lm 225000lm
35*85D 54000lm 81000lm 108000lm 162000lm 202500lm 243000lm
20*30D 50000lm 75000lm 100000lm 150000lm 187500lm 225000lm
30D 54000lm 81000lm 108000lm 162000lm 202500lm 243000lm
PG30D / / / / / /
PG60D / / / / / /
ULOR =0%, @Luminaire inclination 0°
CCT 2700K,3000K,4000K,5000K,5700K
CRI Ra70,Ra80,Ra90
Beam Angle 15D/20*30D/30D/35*85D/PG30D/PG60D

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 19

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 20

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 21



Dimension:

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 22

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 23

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 24

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 25





Application Fields:

1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 26



1200W 5 Years Warranty 150lm/W Stadium LED Flood Lighting High Power & Quality IP66 Dustproof Waterproof IK08 5700K 27
