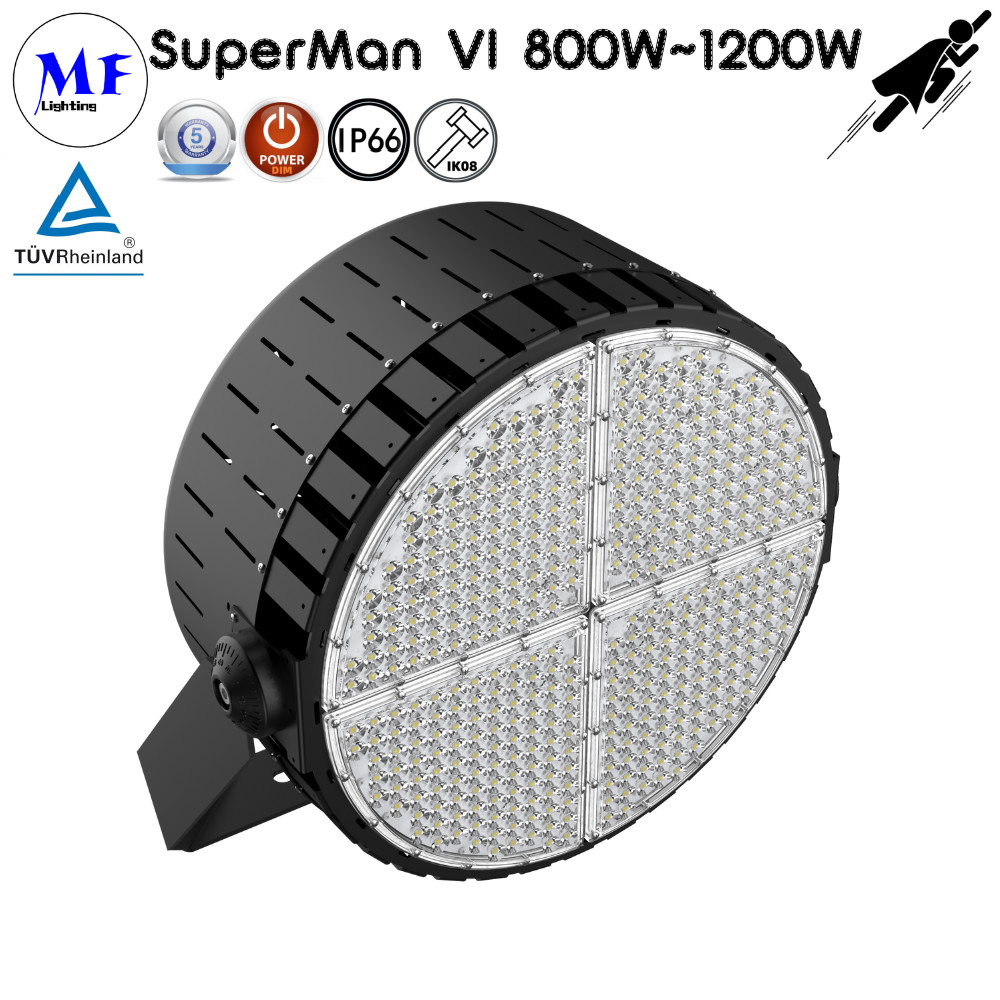

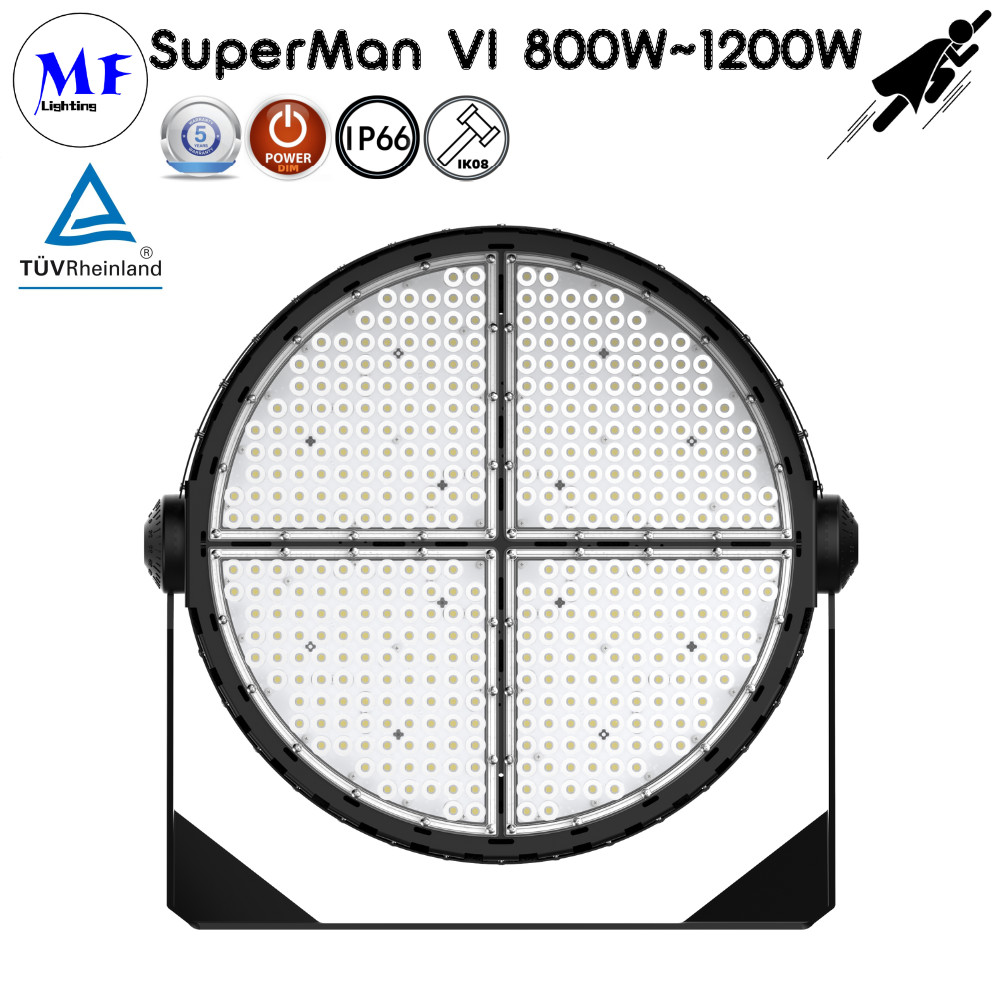

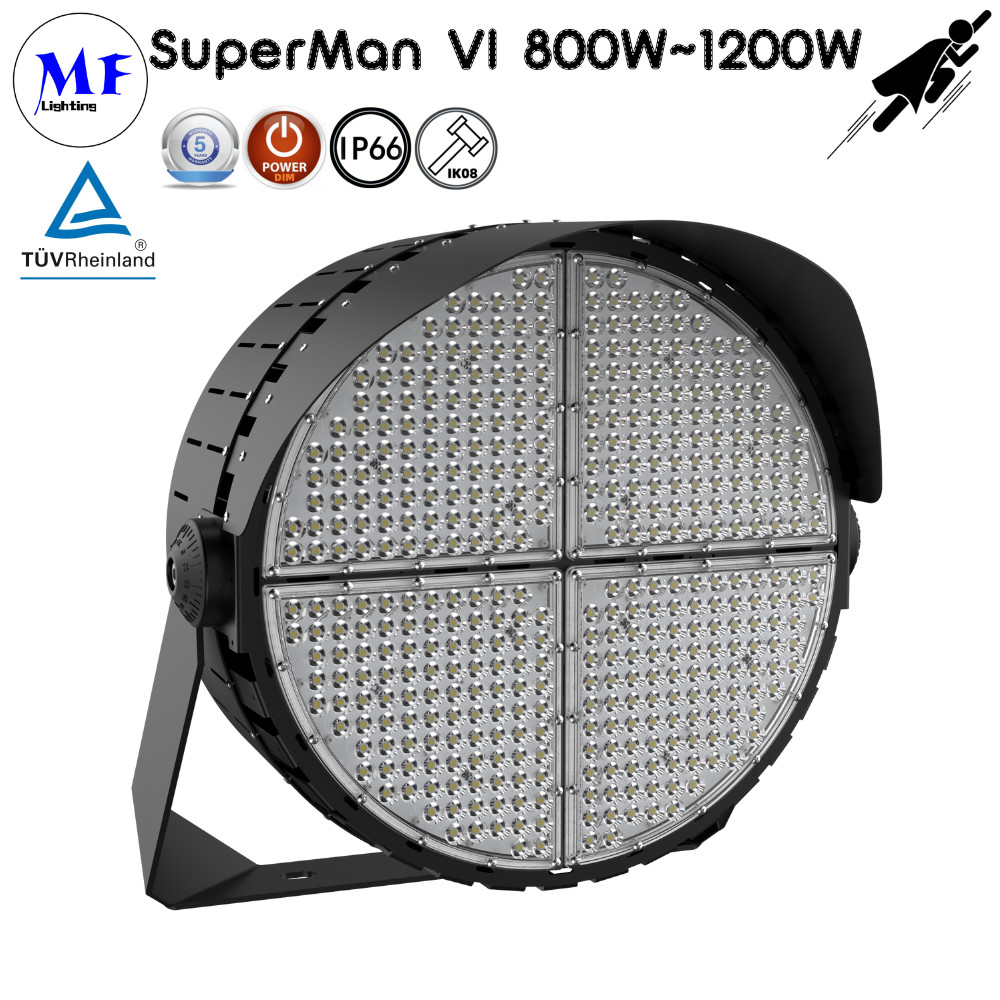

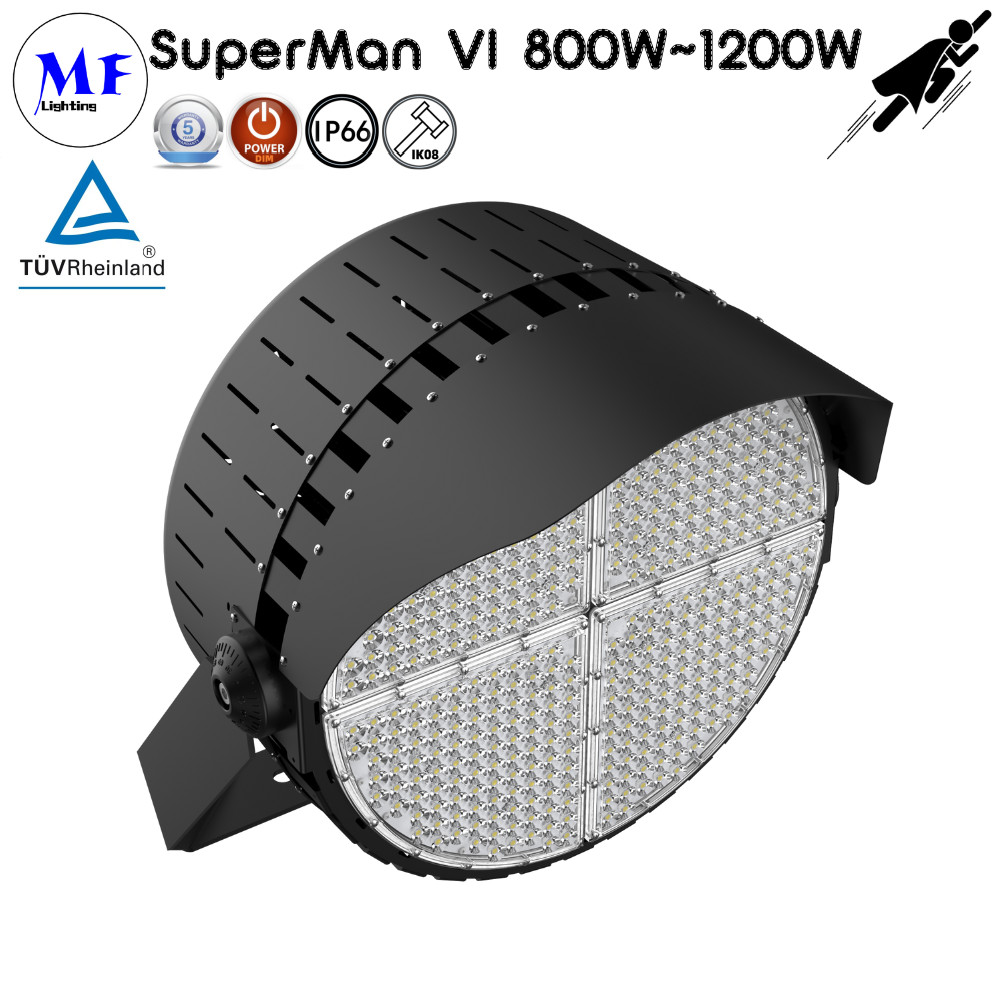

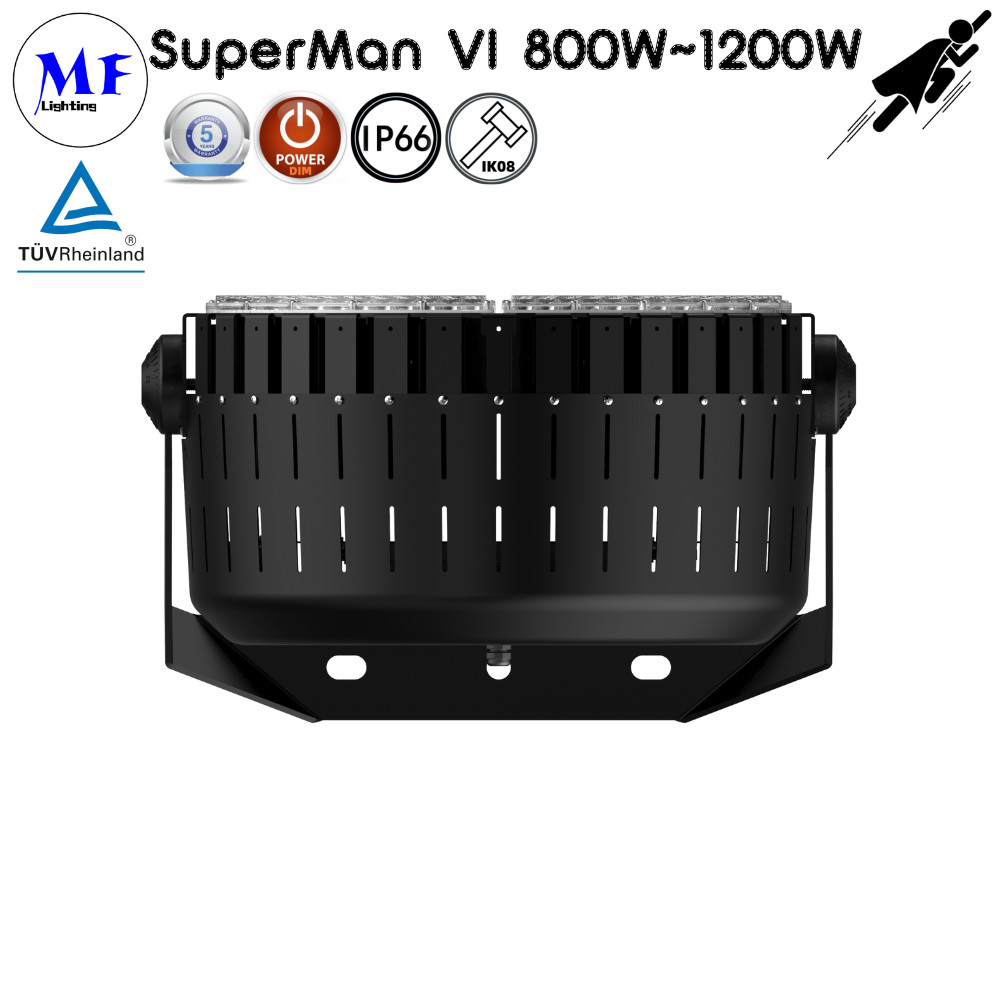

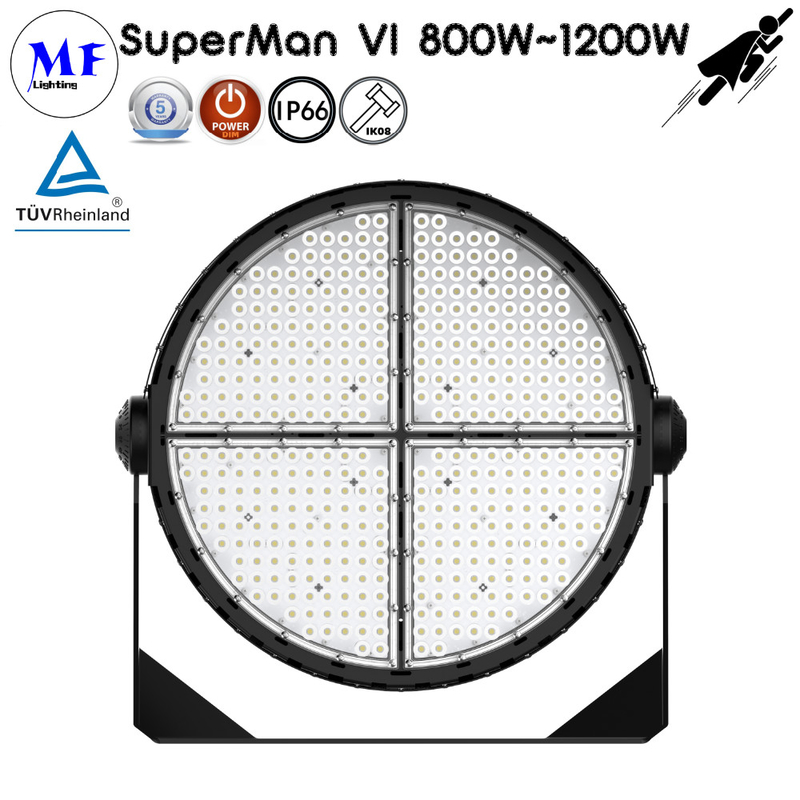

LED High Bay Light High Mast 400w/500w/ IP66 150lm/W Sports Stadiums Football Basketball Sport Field Court Projector
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 10pcs | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 675(L)X 395(W)X205(H)/PCS , N.W:13.4Kg ,G.W: 14.4KG | Delivery Time : | Depends on orders |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 800pcs/Month |
| Place of Origin: | China | Brand Name: | MF |
|---|---|---|---|
| Certification: | CE,RoHS | Model Number: | MF SuperMan VI |
|
Detail Information |
|||
| Item Name: | LED Flood Light / LED Stadium Lights | Material: | Aluminum Alloy |
|---|---|---|---|
| Power: | 300W/500W/600W/800W/1000W/1200W | IP: | IP66 |
| Voltage: | 100-277V/277-480V | LED Chip: | Lumileds 5050 |
| Driver Brand: | Meanwell Xlg | Power Factor: | >0.95 |
| THD: | <10 | CRI (Ra): | >70/>80/>90 |
| Beam Angle: | 15°/25°/45°/60° | IK Class: | IK08/IK10 |
| Working Temp: | -25°C;~50°C | Luminous Efficacy: | >160lm/W |
| Sensor Socket: | Yes | Number Of Gear Units: | 4 Max |
| Highlight: | 300W Outdoor Stadium Light,IK10 Outdoor Stadium Light,IP66 Outdoor Stadium Light |
||
Product Description
OEM ODM IP66 Outdoor Stadium Light Sport Lighting Floodlight LED Flood Light IK10 300W 600W 900W 1000W 1200W
The MF Series Stadium Floodlight represents a new generation of out standing lighting solutions, boasting easy maintenance, easy installation, versatile light distribution options, and professional-grade fea-tures.
lts exceptionaloptical design ensures outstanding performance,making it the ideal choice for illuminating outdoor large venues andevents, saving maintenance budget and operating costs
Operating and Electrical
| Input voltage | 100-277V/277-480V |
| Input frequency | 50 or 60Hz |
| Current | 8.3A(120-277V)/3.6A(277-480A) |
| THD | <20% |
| Power factor (min) | 0.95 |
Mechanical and Housing
| Housing material | Aluminum |
| Reflector material | Aluminum |
| Opticalcover/lens material | Polycarbonate |
| Optical cover/lens finish | Frosted/transparent |
| Product dimensions mm | 480x480x448mm for 600W 540x540x463mm for 1200W |
| Product dimensions(inch) | 18.89x18.89x17.64 for 600W 21.26x21.26x18.23 for 1200W |
| Product color | Black as standard,white/grey/other colors are customized |
Approval and Application
| Ingressprotection code | IP66 |
| Mech.impact protection code | IK10 |
Initial Performance (IEC Compliant)
| Light output | 160lm/w and 190lm/w |
| Luminous flux to lerance | +/-10% |
| SDCM | Less than 5 |
| Init.Corr.Color Temperature | 2700K/3000K/4000K/6000K |
| Init.Color Rendering Index | 70/80/95 |
| Initial input power | 300W/500W600W/800W/1000W/1200W |
| Power consumotion tolerance | +/-10% |
Application Conditions
| Ambient temperature range | -40 to+60ºC |
| Dimming | 1-10V/DMX/DALI as options |
Logistical Data
| Order product name | MF-QCD-P300W/MF-QCD-P500W/MF-QCD-P600W/MF-QCD-P1000W/MF-QCD-P1200W |
| Net weight(piece) | 16.2Kg/600W, 20.8Kg/1200W |
| Gross weight (piece) | 18.5Kg/600W, 23.9Kg/1200W |
| Packaging dimensions(mm) | 600WCTN:650x490x410MM 1200WCTN:670x540x485MM |
| Pallet | 16pcs/Pallet |
| Packaging unit (piece) | 1pcs/CTN |
requirements for professional light distribution and an extensive scope of applications.
Stadium,Wharf,Airport, Dock, Tower Crane, Large Outdoor Parking
Packing and Production:
About us:
Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.
Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.
MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
