Product Description

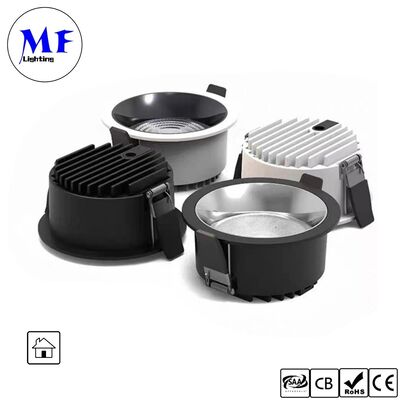

35W 160lm/W Spot Downlight Triac /0-10V/Dali-2 Dimmable CRI90 IP20 Wide Beam angle 120° 8INCH/10INCH Recessed Anti-glare LED Down light for Commercial Spaces
Features:
1.IP20 Rating Design: uitable for indoor application only.
2.Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
3.Wide beam angle: 120°with UGR<19 provides eye-friendly lighting for shopping mall ,offices and public area
4.Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya zigbee and DALI dimming with smart control via APP.
5.Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT 2700-6000K options for customized lighting scenes.
6.High Luminous Efficiency: Delivers 140-160 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.
7.Multiple Housing Colors: Available in White/ Black//Shiny silver/Gun Blackr to match various interior styles.
Detail Photos:

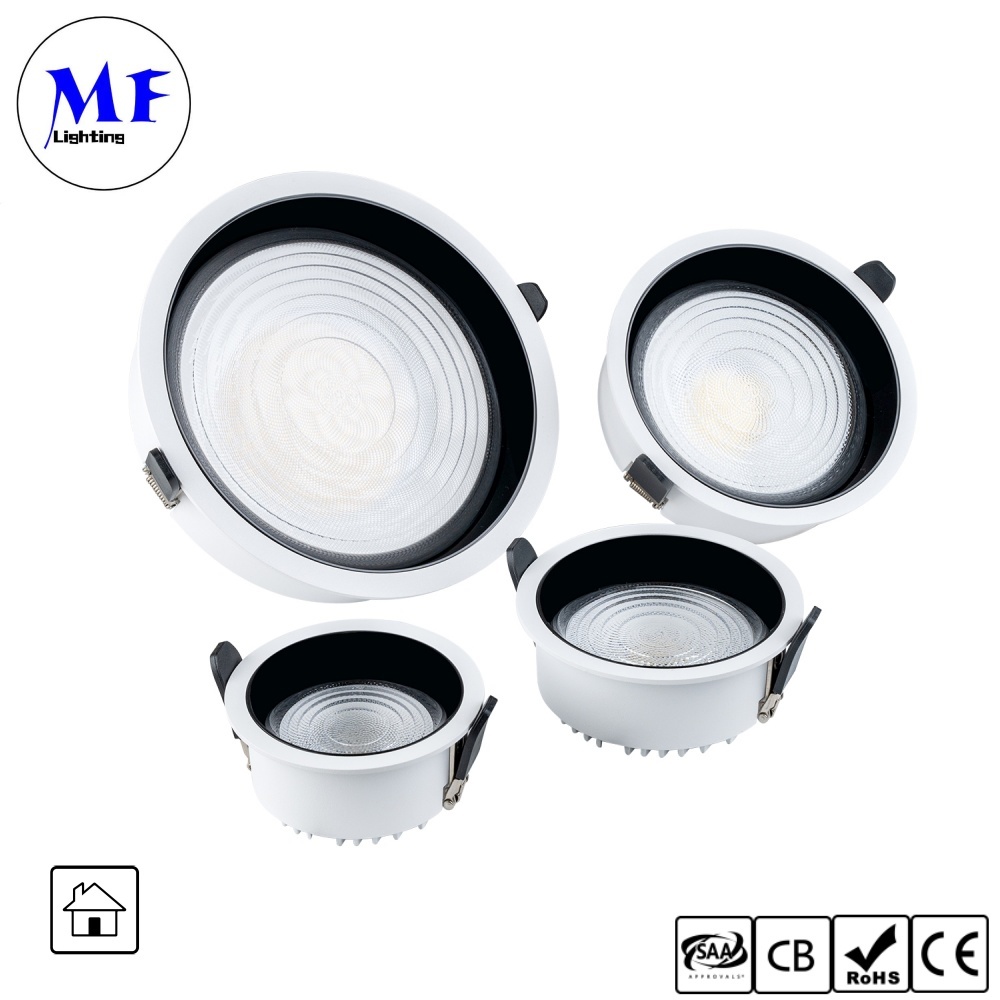

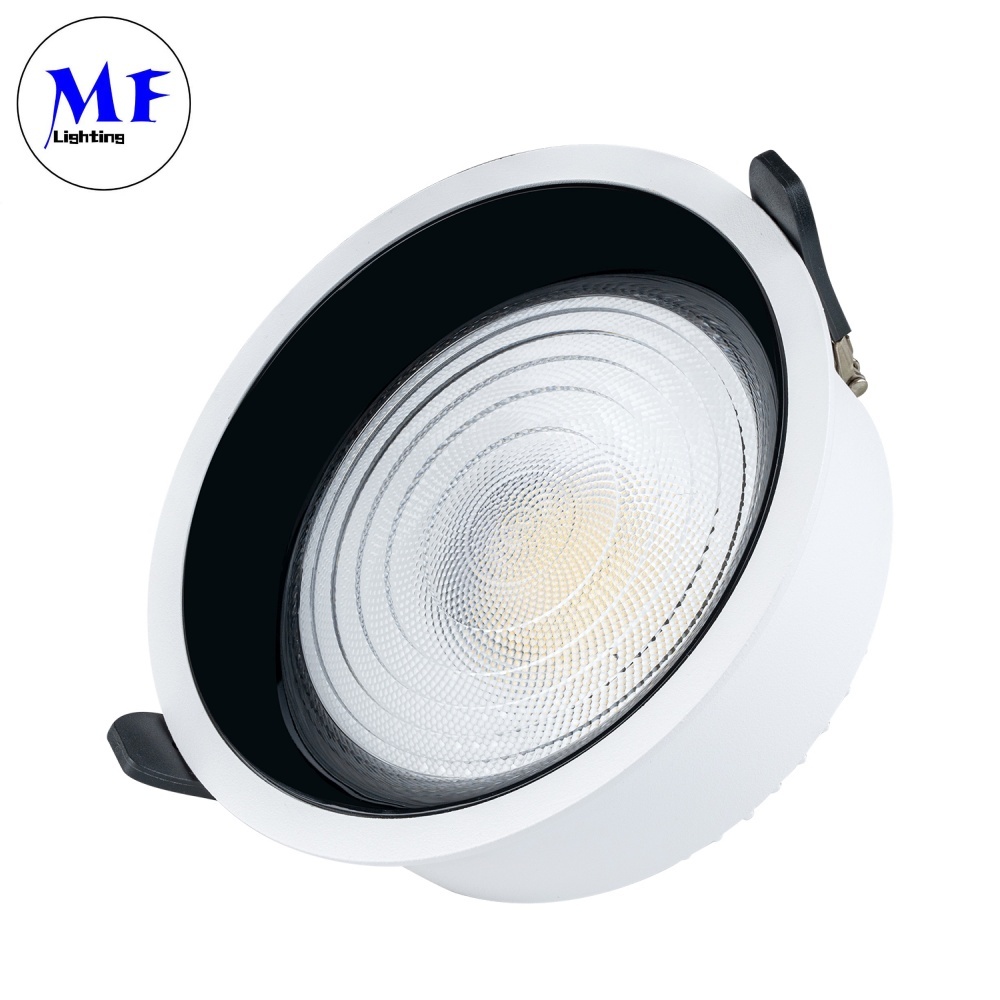

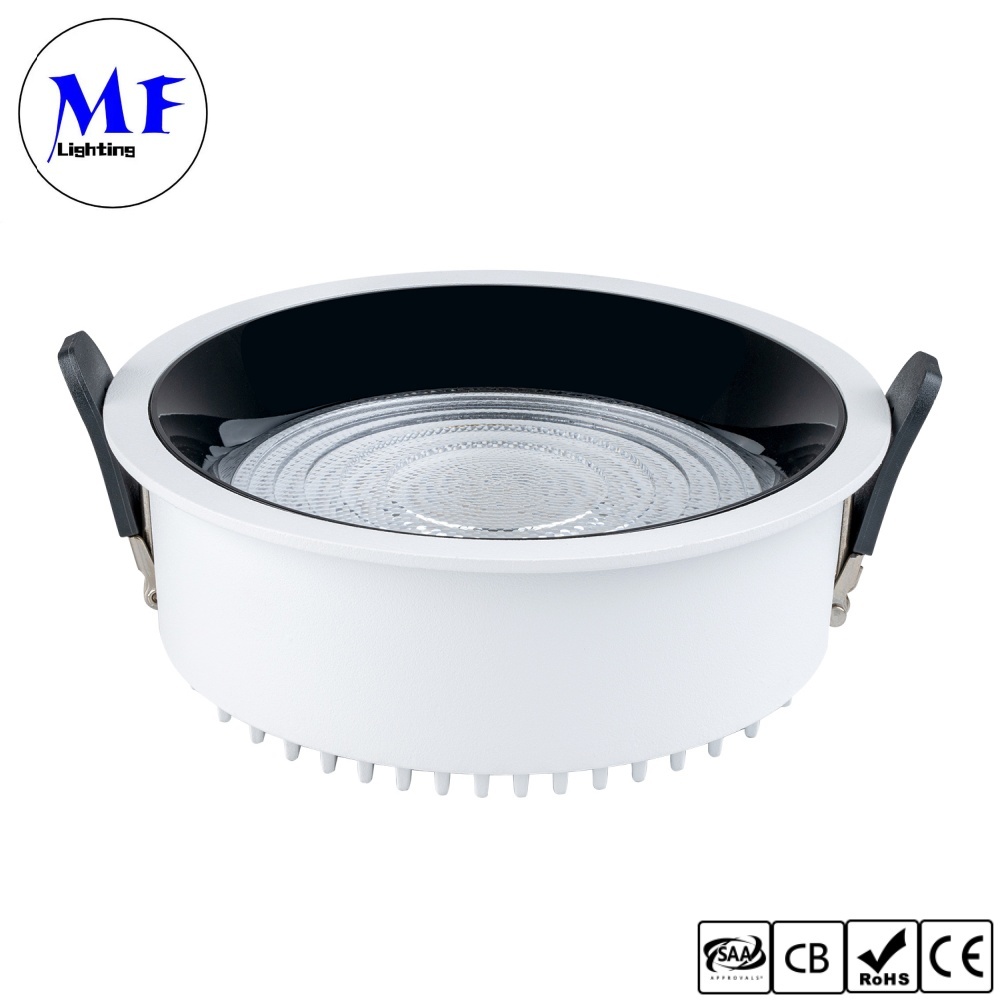

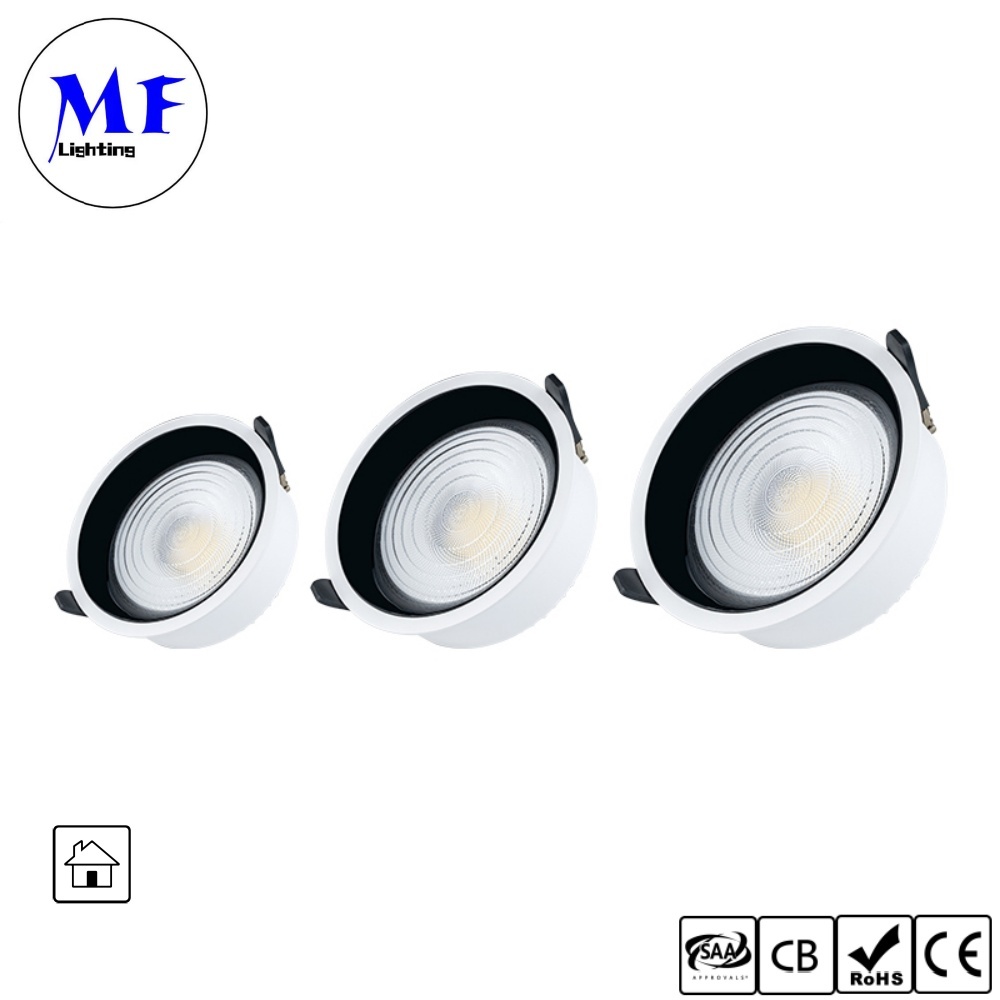

MF-DLT14 Family recessed led downlights have multi-layer refractive optical lens delivers strong stereoscopic lighting effect.

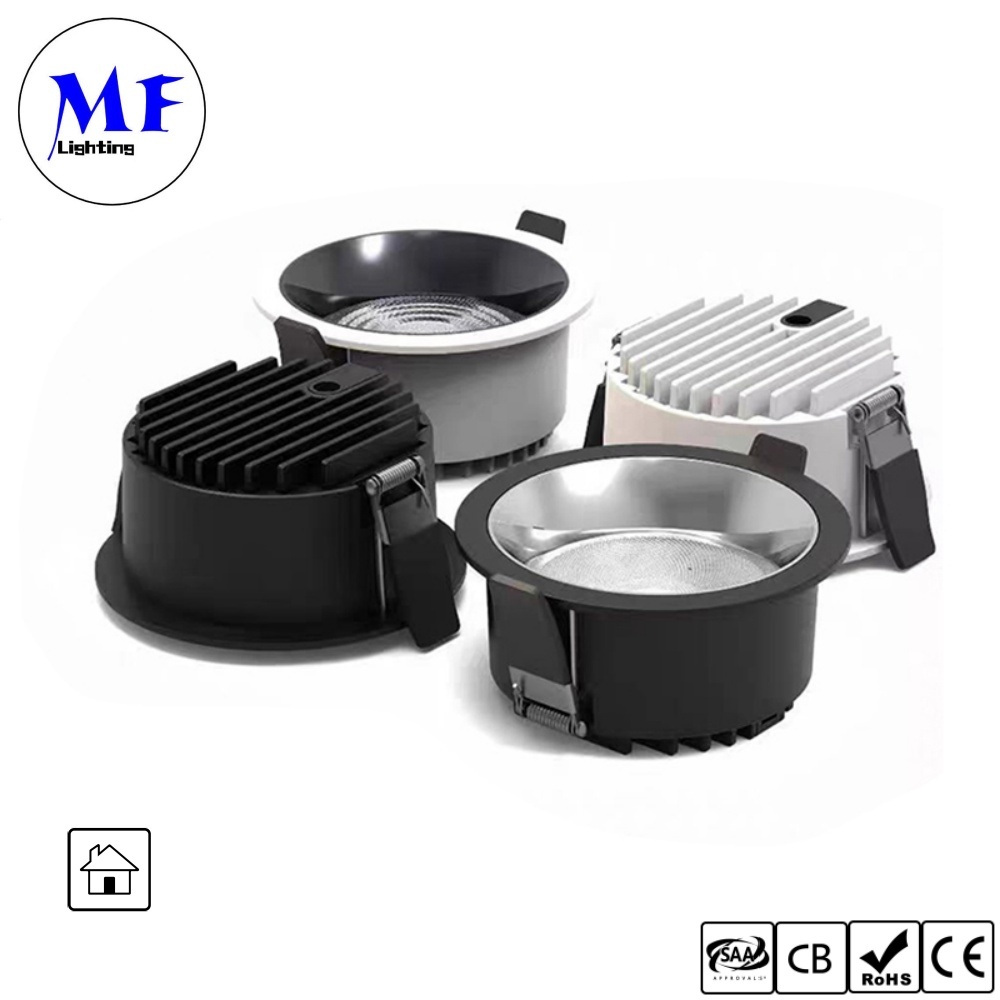

Built with anti-glare lamp cup, spotlight reflection ring, optical lens, SMD chip, steel spring clip and aluminum shell. Modular structure for easy assembly and installation, effectively cut glare to protect eyes, create soft and comfortable illumination.
SMD Recessed Downlight, high luminous efficiency up to 140-160LM/W. Adopts aerodynamic heat dissipation design. Guide fins accelerate air convection to fully dissipate heat. Greatly reduce light decay and extend lamp service life. Stable SMD chip ensures consistent bright output.
Wide beam angle up to 120°, large uniform lighting coverage.
Intelligent Dimming & CCT Tunable
Seamlessly adjust brightness and color temperature from 2700K warm white to 6000K cool white.
Multiple control protocols supported: DALI, 0-10V, Tuya/Zigbee, TRIAC.
Switch freely among warm white, natural white and cool white to create different lighting atmospheres for commercial & residential scenes.
| Model |
MF-DLT14-7W/10W/12W/15W/18W/20W/25W/30W/35W/40W/45W/50W
60W/70W/80W/100W |
| Input voltage |
110Vac or 200-240Vac, 50hz/60hz |
| Power(watt) |
7W/10W/12W/15W/18W/20W/25W/30W/35W/40W/45W/50W
60W/70W/80W/100W |
| Color temperature |
2700K/3000K /3500K/ 4000K / 5000K /6000K , 2700-6500K Tunable |
| LED Chip |
Brid.gelux |
| LED Driver |
Aohuaweiye/Lifud/Eaglerise /Boke Brand for different dim version |
| PF |
5-20W≥0.50, 20W≥0.95 |
| Housing Colour |
White/black/as options |
| Reflector color |
White/Black/Shiny silver//Gun Black |
| Luminous Flux (lm) |
140-160LM/W |
| CRI(Ra) |
Ra80+/Ra90+ |
| Lifespan |
≥50000hrs |
| Beam Angle |
120° |
| Material |
Die-casting Aluminum |
| Operating Temperature |
-20ºC~50ºC |
| Dimmable |
Non-Dim/Triac/0-10V/Dali-2 dimmable/Tuya Zigbee as options |
| CCT Adjustable |
2700-6000K Tunable as optional if need |
| IP |
IP20 |
| UGR |
<19 |
| Certificate |
CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver) |
| Warranty Period |
5 years |
| Model |
Power |
Cut out(MM) |
Dimension(MM) |
Beam Angle |
| MF-DLT14 |
7W/10W |
75 |
84*42 |
120° |
| MF-DLT14 |
12W/15W |
80 |
90*42 |
120° |
| MF-DLT14 |
18W |
95 |
105*42 |
120° |
| MF-DLT14 |
20W |
120 |
130*42 |
120° |
| MF-DLT14 |
25W/30W |
140 |
155*46 |
120° |
| MF-DLT14 |
35W/40W |
160 |
175*49 |
120° |
| MF-DLT14 |
45W/50W/60W |
200 |
240*57 |
120° |
| MF-DLT14 |
70W |
220 |
240*56 |
120° |
| MF-DLT14 |
80W |
240 |
270*56 |
120° |
| MF-DLT14 |
100W |
260 |
290*56 |
120° |
Instructions
- Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
- Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
- Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
- Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
| Power |
Carton Size(cm) |
G.W(KG) |
PCS/CTN |
| 7W/10W |
54*26*24CM |
8.5KG |
50PCS |
| 12W/15W |
52*37*26CM |
10.0KG |
50PCS |
| 18W |
65*27*28.5CM |
11.0KG |
50PCS |
| 25W/30W |
49.5*30*36.5CM |
12.8KG |
30PCS |
| 35W/40W |
53*41*41CM |
20.5KG |
40PCS |
| 45W/50W/60W |
46*34.5*49.5CM |
18.0KG |
20PCS |
| 70W |
51*36*53.5CM |
22.5KG |
20PCS |
| 80W |
56*34.5*58.5CM |
25.0KG |
20PCS |
| 100W |
60*34.5*62.5CM |
28.5KG |
20PCS |
Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
