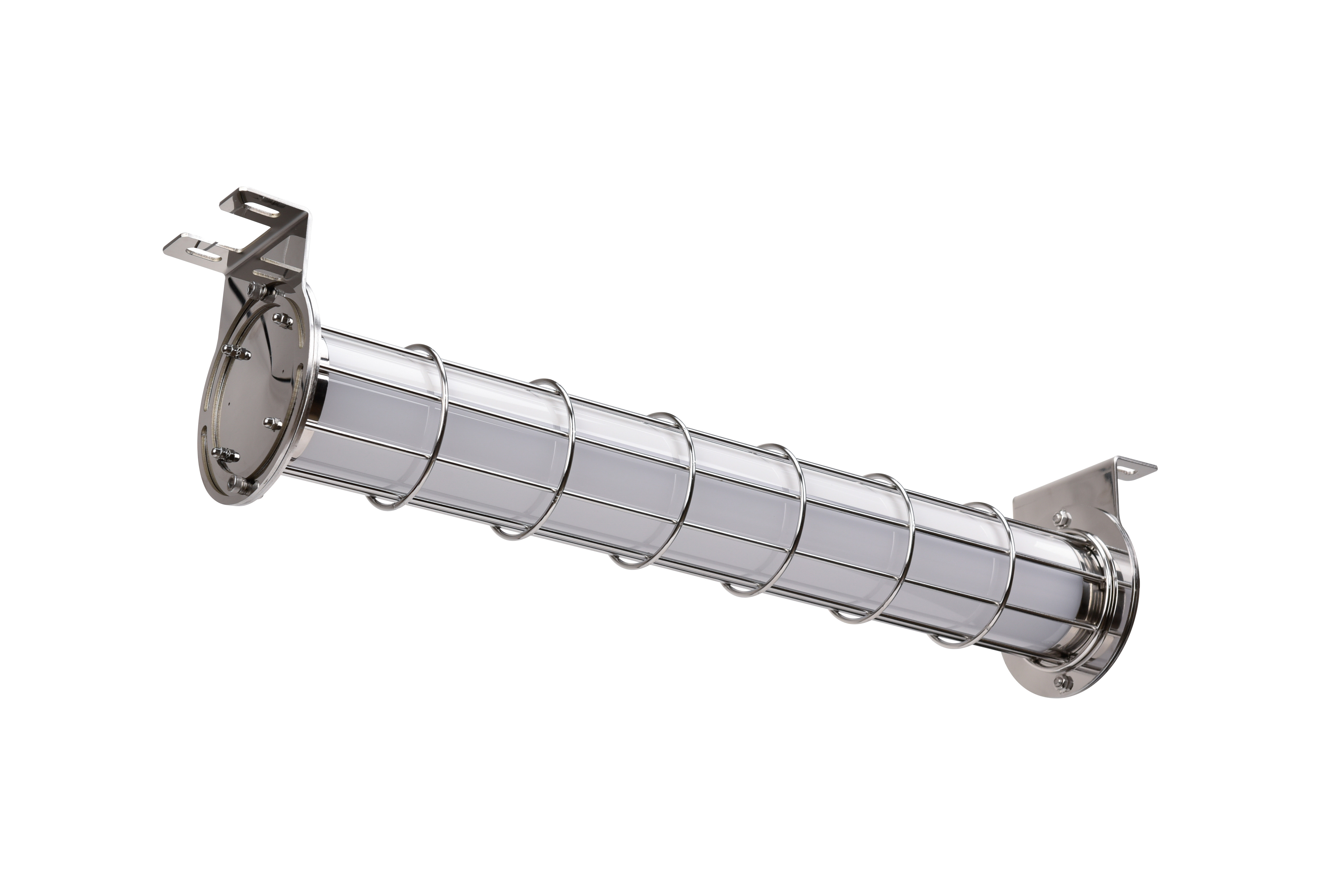

Zone 2 Atex LED Explosion-Proof Light Gas Station Industrial Platform Lighting
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 100PCS | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 39.5*39.5*20.8cm/1pcs, G.W: 9.5Kg | Delivery Time : | Depends on orders |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 5,000pcs/Month |
| Place of Origin: | China | Brand Name: | MF |
|---|---|---|---|
| Certification: | CE,RoHS,UL,DLC | Model Number: | MF-ESO1 |
|
Detail Information |
|||
| System Power: | 160±5W | Input Voltage: | 120-277Vac,50/60Hz |
|---|---|---|---|
| Efficiency: | 120lm/w | CRI: | >80 |
| PF: | >0.90 | IP Grade: | IP67 |
| Mounted Style: | Recessed /Surface/Pendant | THD: | <15% |
| Impact Protection: | IK10 | Explosion Proof: | Yes |
| High Light: | Ip67 LED Explosion Proof Lights,Ik10 LED Explosion Proof Lights |
||
Product Description
● Anti-surge & lightning strikes up to 2KV, and withstand 3.5KV high voltage
● Luminous Efficiency:120LM/W
● LED Type: Samsung, High lumen efficacy SMD2835 led chips
●Beam Angle:180°
● LED Driver: JUSIN, 88% efficiency,flicker free,THD<15
● LED Driver Output: DC36-42V
● Function: Non-Dimmable
● Input voltage 120-277v AC universal voltage, 1.5m power cord with 3-pin plug
● CRI:80Ra
● IP67 & IK10
● Working Temperature:-30~50℃
● 5 years warrant
Product Description:
Specifications:
|
Item |
MF-ES01 |
|
Input voltage |
120-277Vac 50Hz/60Hz |
|
LED Power |
20W/40W |
|
Luminaire Efficiency |
120lm/W |
|
Delivered Flux(Tj80°c) |
17600 lm |
|
IP Rating |
IP66 |
|
LED QTY |
120 pcs |
|
Color temperature |
3000K-6500K |
|
Function |
Non-Dimmable |
|
LED Driver |
Meanwell |
|
Color Rendering Index |
Ra>80 |
|
Power Factor |
>0.94 |
|
Lifespan |
≥50,000hrs |
|
Operation Environment |
Temperature:-30°C~50°C/Humidity:10%~95% |
|
Material |
Aluminum Alloy |
|
Product Size(mm) |
685(L)*130(W)*155(H)/ 1285(L)*130(W)*155(H) |
|
Net Weight |
3Kg/4.3Kg |
|
Certificate |
CE/RoHS |
|
Warranty Period |
5 years |
Dimensions(mm)&Parameters:
Installation:
Step 1: Drill 4 holes according to the hole of the light holder.
Step 2: Install expansion screw into mounting hole.
Step 3: Lock nut to fix the light.
Step 4: Adjust the angle of light, fix the rotating bracket (Screw torque:2.5N/m) and plug in.
After-sales service:
● From the date of purchase, the product is provided with a free warranty for 5 years, and the following conditions are not included in the free warranty during the warranty period.
● Failure and damage caused by unpacking products; failure caused by falling and touching during handling and use.
● Failure to operate in accordance with the instructions.
● After the warranty period, if the parts need to be replaced during the maintenance process, only the cost of materials to replace the parts, free of time costs.
Applications:
Wildly applied in petrol station, canopy, airport, supermarket, train station, lobby, industry, shopping mall and indoor parking.
