Precision Aiming Device High Mast Flood Light LED Sport Field LED IP66 10kv SPD

Contact Now

Precision Aiming Device High Mast Flood Light LED Sport Field LED IP66 10kv SPD

Minimum Order Quantity :	1pcs	Price :	Ex-work/FOB price
Packaging Details :	Depends on each model	Delivery Time :	2 weeks
Payment Terms :	T/T, Western Union, Paypal	Supply Ability :	1000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE,RoHS	Model Number:	MF-QCDG-SXXXW

Detail Information
Input Voltage:	90-305V~50/60Hz	Power:	400W 600W 800W 1000W 1200W 1800W
Luminous Efficiency:	160LM/W	IP Rating:	IP66
CCT:	27K-30K/40K-50K/57K-65K	Beam Angel:	10/25/45/60/90, Asymmetric 60°
Driver:	International Driver Brand	Body Color:	Black/Silver
Housing:	Powder Coated Aluminium Alloy	Chips:	Lumileds
Dimming:	1-10V, Dali2.0	Precision Aiming Device:	MF
High Light:	Precision Aiming High Mast Flood Light , 10kv SPD High Mast Flood Light , IP66 High Mast Power Flood Light

Product Description

Precision Aiming Device LED Sport Field Light LED High Mast Flood Light IP66 10kv SPD

Precision Aiming Device High Mast Flood Light LED Sport Field LED IP66 10kv SPD 0
World class level chips, high brightness, low light decay & long life-time

International driver brand, overheat protection, high convert efficiency, high PF & surge protection, (1-10V,DALI2.0)

Die-casting technology with ADC12, excellent thermal management and balance the internal & external temperature, reduce chip Tj and light decay.

Optical UV resistant PC lens with 94% light transmitance, IK08. Light Distribution: 10°/15°/25°/45°/60°/90°/Asymmetrical 60°

Bracket Installation, operation temperature: -35C- +50C

Model N0.	MF-QCDG-S400w	MF-QCDG-S500w	MF-QCDG-S600w	MF-QCDG-S800w	MF-QCDG-S1000w	MF-QCDG-S1200w	MF-QCDG-S1500w	MF-QCDG-S1800w
lnputVoltage	AC100-277v
output Voltage	DC42
Rated Power	400w	500w	600w	800w	1000w	1200w	1500W	1800W
Qty of LED	840PCS*3030	840PCS*3030	840PCS*3030	168CPCS*3030	1680PCS*3030	168OPCs*3030	2520PCS*3030	2520PCs*3030
PF	>0.95
LED Brand	World class level
Luminous Flux	60000lm±5%	75000lm±5%	90000lm±5%	120000lm±5%	150000lm±5%	180000lm±5%	225000Im5%	270000lm5%
CRI	Ra>80
CCT	3000-6500K
Beam Angle	10/25/45/60/90 Asymmetrical 60°
Driver Brand	MW/SOSEN
THD	<10%
lK Rating	IK08
Rating	IP66
Life Span	50000Hrs
Size	718214222mm	718214222mm	718*214.222mm	732439290mm	732.439*290mm	732439290mm	732666290mm	732666290mm
N.W	19.15kg	19.65kg	20.05kg	32.00kg	33.0Okg	34.0Okg	46.00kg	47.30kg
G.W	21.55kg	22.05kg	22.5skg	35.30kg	36.30kg	37.30kg	49.70kg	51.0

1.Modular Design: each module has powerrating from 400W to 600W, three modulescan be combined into 1800W
2.Die Casting Heat Sink: concise appearanceexcellent thermal management & compactstructure.
3.Handlebar Design: easy for installation & carry
4.Racked Angle: allows for precise installation, up to 270°
5.High-strength cold-rolled plate design with integral flanging and bending,light weight, high mechanical strength
6.Special Corrosion Treatment: to reach theWF2 standard and suitable for harshenvironments
7.Precision Aiming Device.
8.Tempered Glass Cover: achieve lK08 rating and additional protection to the lens to apply harsh conditions.
9.Spill Light Options: reduces light pollution
10.Double Surge Protection: driver & extra 10KV SPD

Precision Aiming Device High Mast Flood Light LED Sport Field LED IP66 10kv SPD 2

Precision Aiming Device High Mast Flood Light LED Sport Field LED IP66 10kv SPD 3

Precision Aiming Device High Mast Flood Light LED Sport Field LED IP66 10kv SPD 6

Vertical Horizontal Suspended

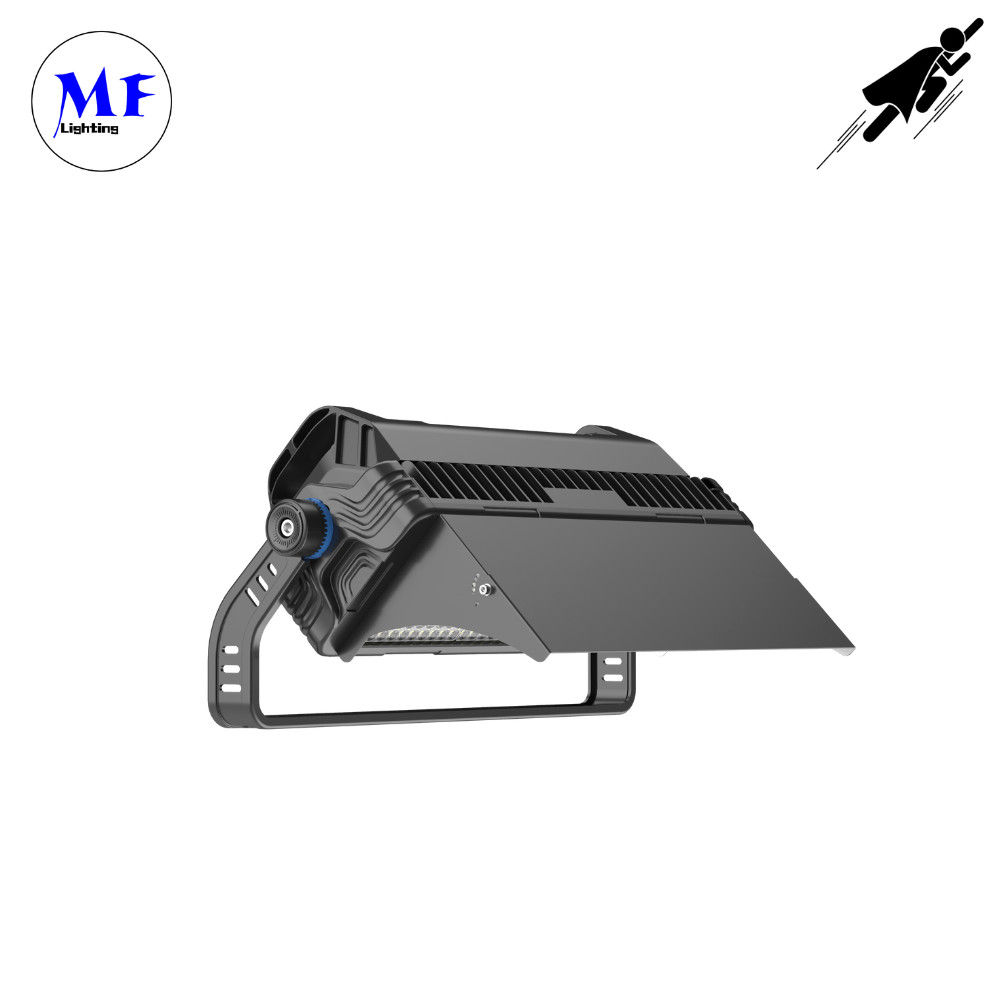

Spill Shield

Roads and highways / Parking lots / Sports stadiums / Railroad yards / Shipyards / Warehouses / Truck stops and rest areas /
Outdoor parks and recreation areas / Playgrounds / Storage facilities
Any Outdoor place,Etc
Factory Price 400W 600W 800W 1000W 1200W 1800W IP66 Precision Aiming Device 10kv SPD LED Sport Field Light LED High Mast Flood Light
