IP66 IP67 LED Explosion Proof Street Light With Dustproof EX IECEX IK10 30W 50W 60W 80W 100W

Product Description

IP66 IP67 LED Explosion Proof Street Light With Dustproof EX IECEX IK10 30W 50W 60W 80W 100W

1.High luminous efficacy - Up to 120-140 lumens per watt

2.0-10V dimming

3.Waterproof and dust-proof, without internal cleaning and maintenance

4.Simple structure for easy and quick installation

5.Stainless steel fasteners, ADC12 aluminum housing, good corrosion resistance

6.Tempered glass, high light transmittance and impact resistance

7.Suitable for Zone 1&2 (Gas), Zone 21&22 (Dust)

ATEX Standard (Zone 1): II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T95°C...T125°C Db IP66
ATEX Standard (Zone 2): II 3G Ex ec mb IIC T6...T4 Gc II 2D Ex tb IIIC T80°C...T125°C Db

IECEx Standard (Zone 1): Ex eb mb IIC T6...T4 Gb Ex tb IIIC T95°C...T125°C Db IP66
IECEx Standard (Zone 2): Ex ec mb IIC T6...T4 Gc Ex tb IIIC T80°C...T125°C Db

Class I Zone 2 Group IIC
Class II Zone 21 Group IIIC
IP66/IP67
IK06/07 (without wire guard)
IK09 (with wire guard)
1000 hours salt spray

Electrical:

​​Optical:

Environmental:

Mechanical:

​Light Distribution:

Installation:

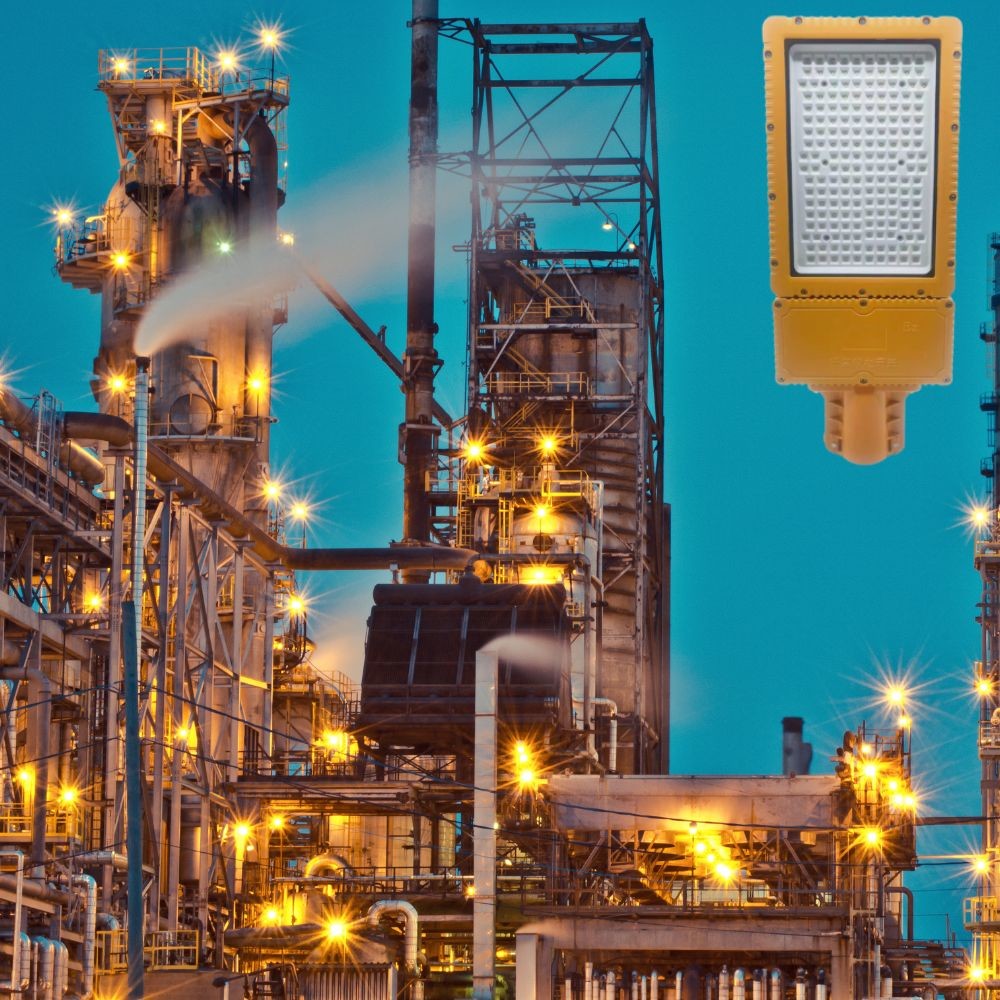

Explosion-proof streetlights find application in various hazardous environments where the presence of flammable gases, vapors, or dust particles poses a risk. Some of the common application scenarios include:

1.Chemical Plants: Explosion-proof streetlights are crucial in chemical plants where volatile substances are processed or stored. They provide reliable illumination in areas where the potential for explosions is high, such as storage tanks, processing units, and loading docks.
2.Oil Refineries: In oil refineries, where flammable materials like crude oil and petroleum products are handled, explosion-proof streetlights ensure safe lighting in critical areas such as refineries, storage tanks, pipelines, and maintenance facilities.
3.Mining Sites: Mines often contain combustible gases and dust that can be ignited by traditional lighting sources. Explosion-proof streetlights are used in mining operations to provide illumination in underground tunnels, shafts, and processing plants, minimizing the risk of accidents.
4.Petrochemical Facilities: Petrochemical plants involve the handling and processing of volatile substances. Explosion-proof streetlights are essential in areas like storage facilities, distillation units, and loading areas, where the potential for explosions is significant.
5.Hazardous Waste Storage Areas: Facilities that store hazardous waste require explosion-proof lighting to ensure safety during handling and disposal operations. These streetlights are used in waste treatment plants, landfill sites, and hazardous material storage areas.
6.Industrial Manufacturing: Certain industrial manufacturing processes, such as those involving chemicals, paints, or solvents, may generate flammable atmospheres. Explosion-proof streetlights are employed to provide reliable lighting in production areas, warehouses, and assembly lines.

7.Most of the harsh environment, extreme weather, such as dust storms, snow and ice weather

Packing and Production:

About us:

Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
