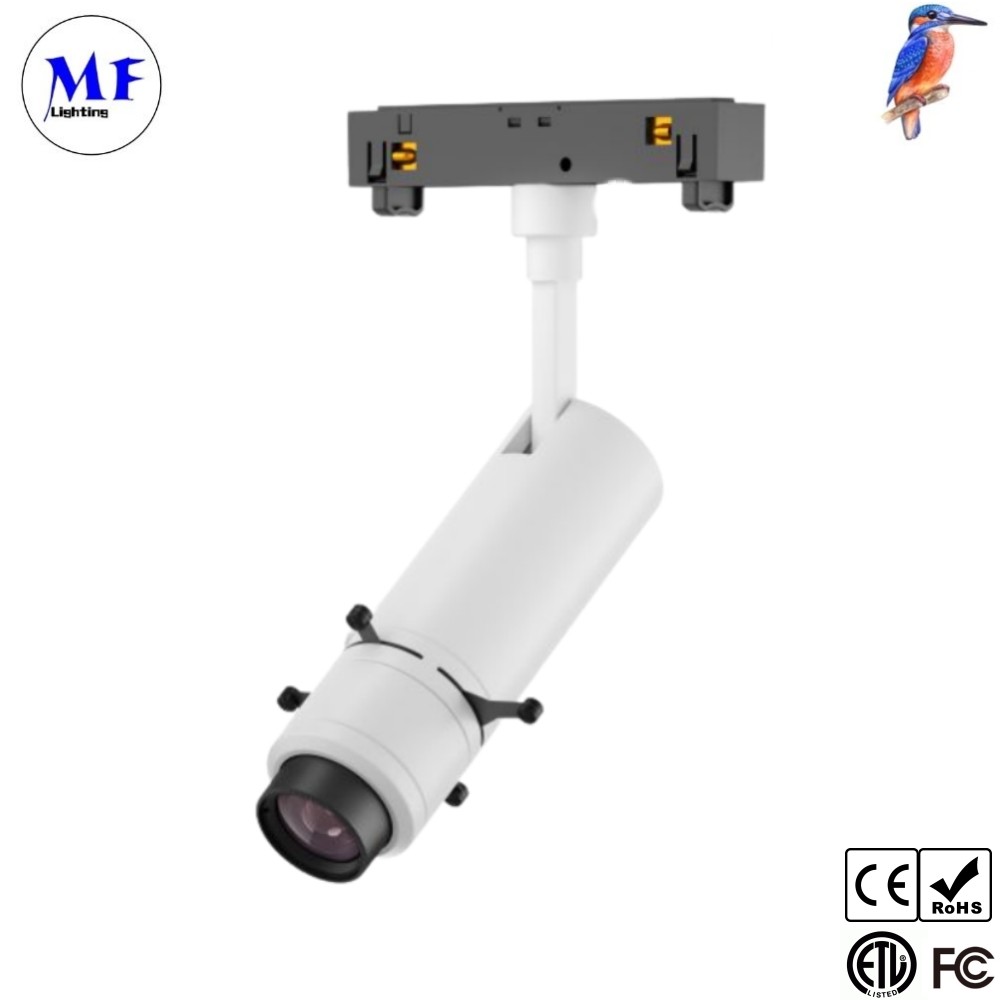

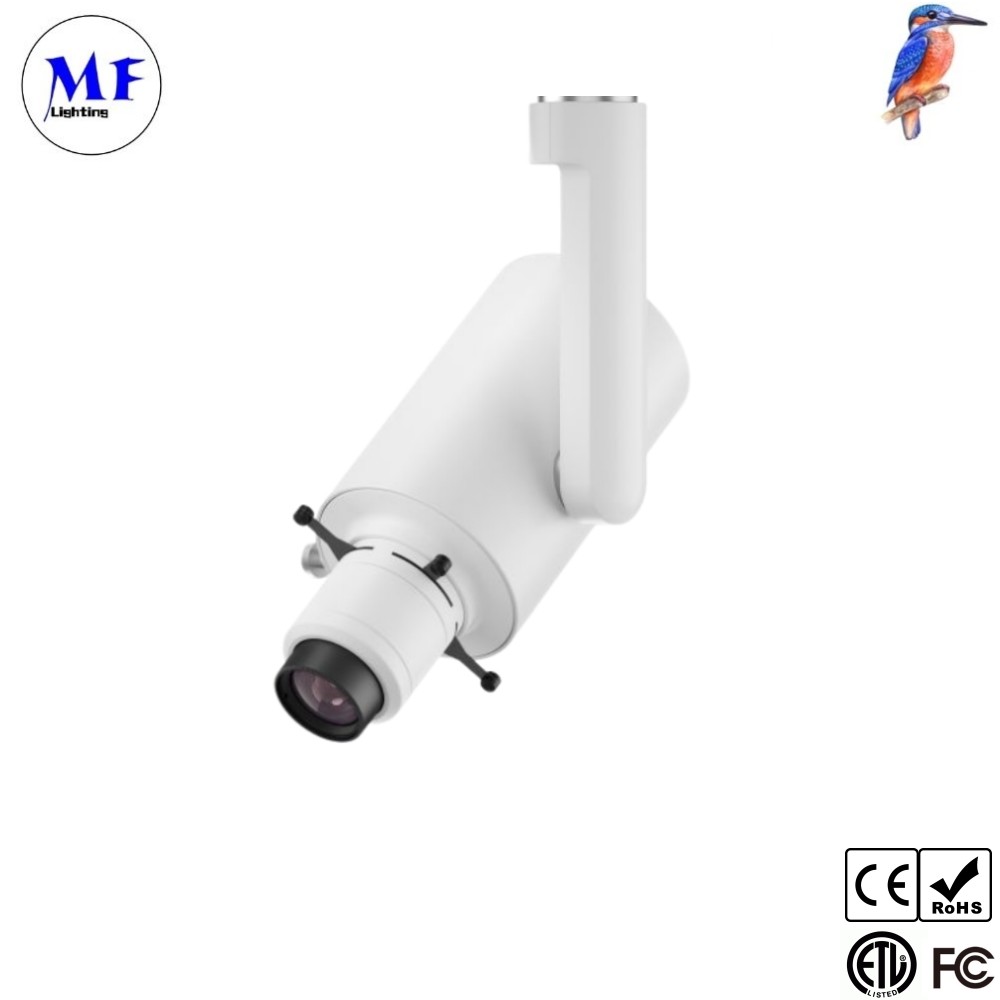

Shapeable LED Spot Track Light With Smart CCT DIP Dimming For Contemporary Art Museum

Product Description

Shapeable LED Spot Track Light With Smart CCT DIP Dimming For Contemporary Art Museum

1.Cold forging integrated radiator design
A radiator made of 1070#pure aluminum and molded by molding pressure. It has high thermal conductivity, low-temperature differences, low light failure, and long service life. Thermal conductivity 226W/m.K

2.360° manual rotation design
Loosen the manual screw and turn the lens to achieve the 360°spot rotation adjustment function. Device to solve the 360° rotation of the projection and light spot.

3.High-definition optical lens design
It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc.. A new optical path specially designed for COB light sources.

4.Optical-grade variable aperture design
An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.

5.Multi-layer dry damping design
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.

6.Multi-layer dry damping design
Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.

Applications : High-end commercial space; cultural exhibitions; Museums and galleries; Gobo projection and other creative lighting Main functions

Changing spot shape/size/sharpness/directions, dim CCT/brightness, compatible with various Filters such as color/UV/ND/CPL filters, etc . Main

Advantages: Completely original design with 8 core patents; high luminous efficiency, high spot uniformity, no distortion and blue edge, no color difference;

GZ series shapeable track light features a compact design, with dry mechanical damping system. It achieves stable and reliable front and rear zoom, spot shaping and projection, ultra-high cost performance, very suitable for the current new commercial lighting design and no main lamp design. Its photoelectric performance is the same as DQ Series.

Track Support:

Installation/Spot effect:

Projection support:

DIP color temperature coupled with the single lamp knob dimming design can easily achieve single lamp dimming, spot shaping and color temperature adjustment. It can be used alone or can alternatively be equipped with other dimming devices.

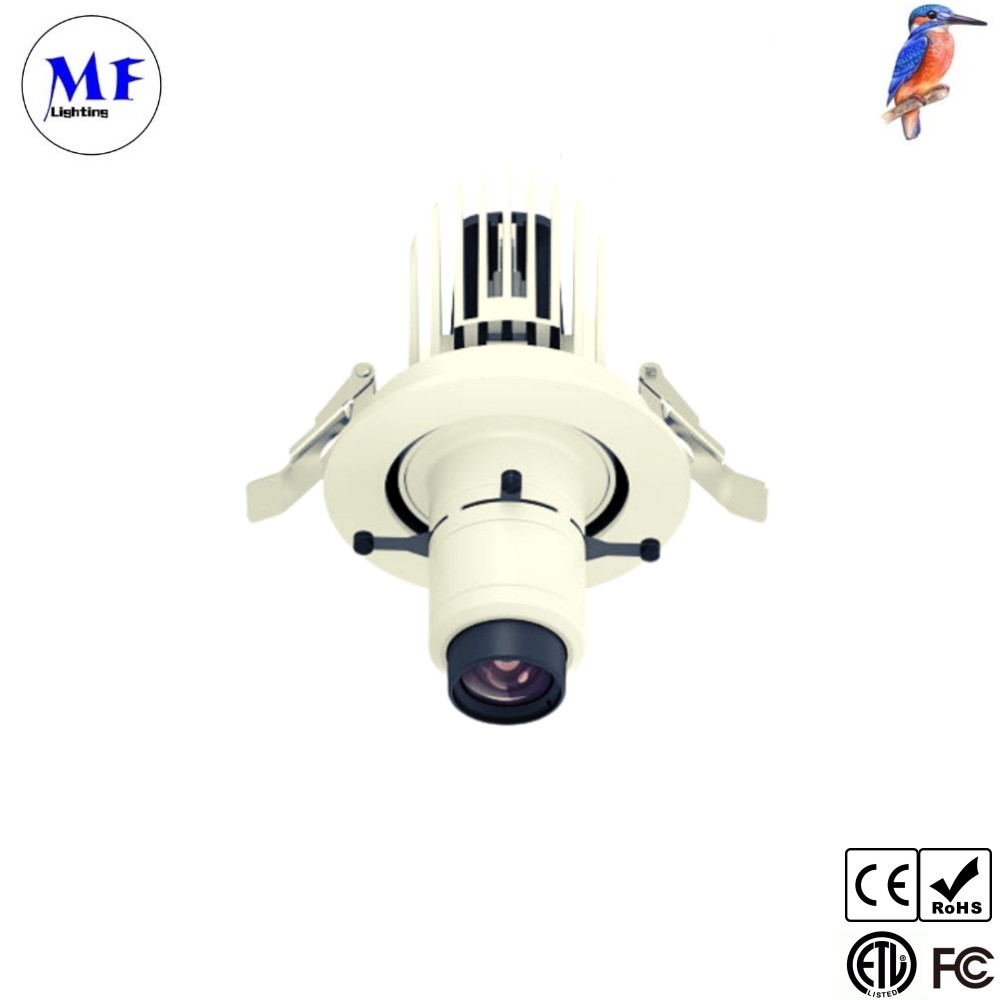

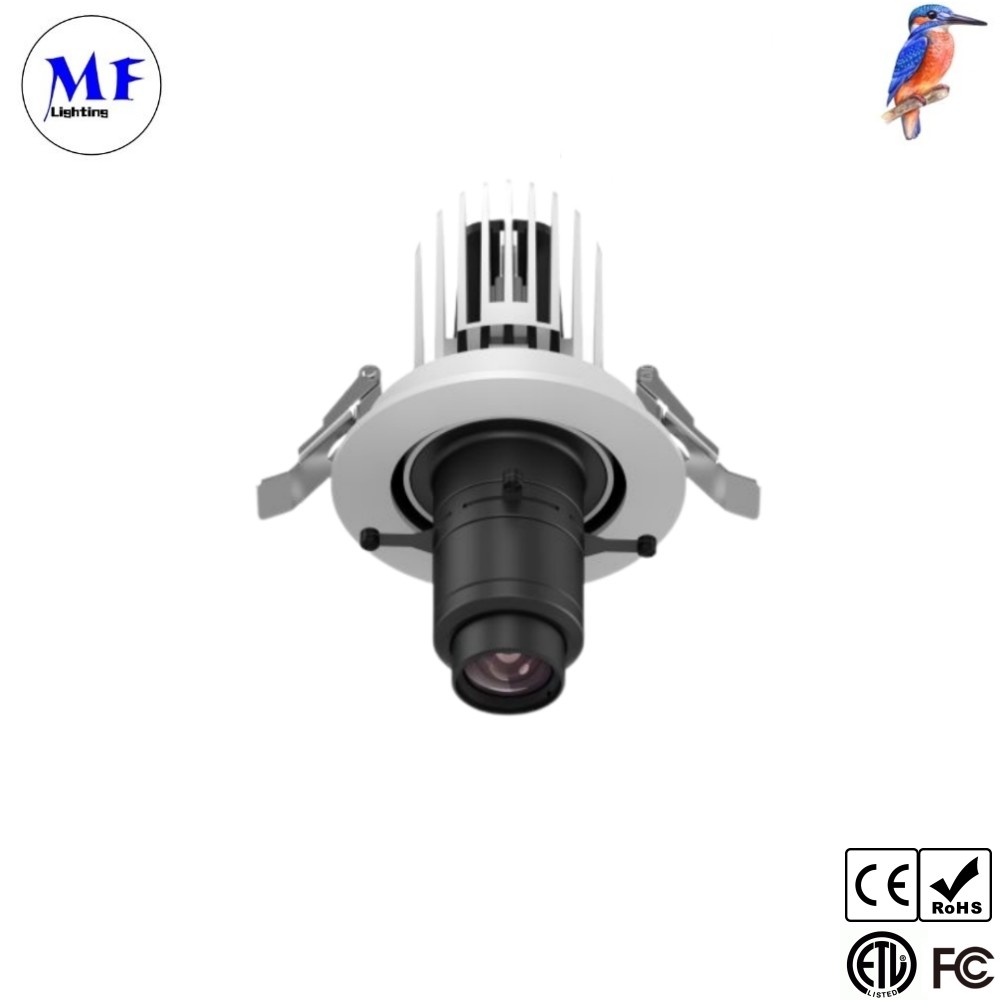

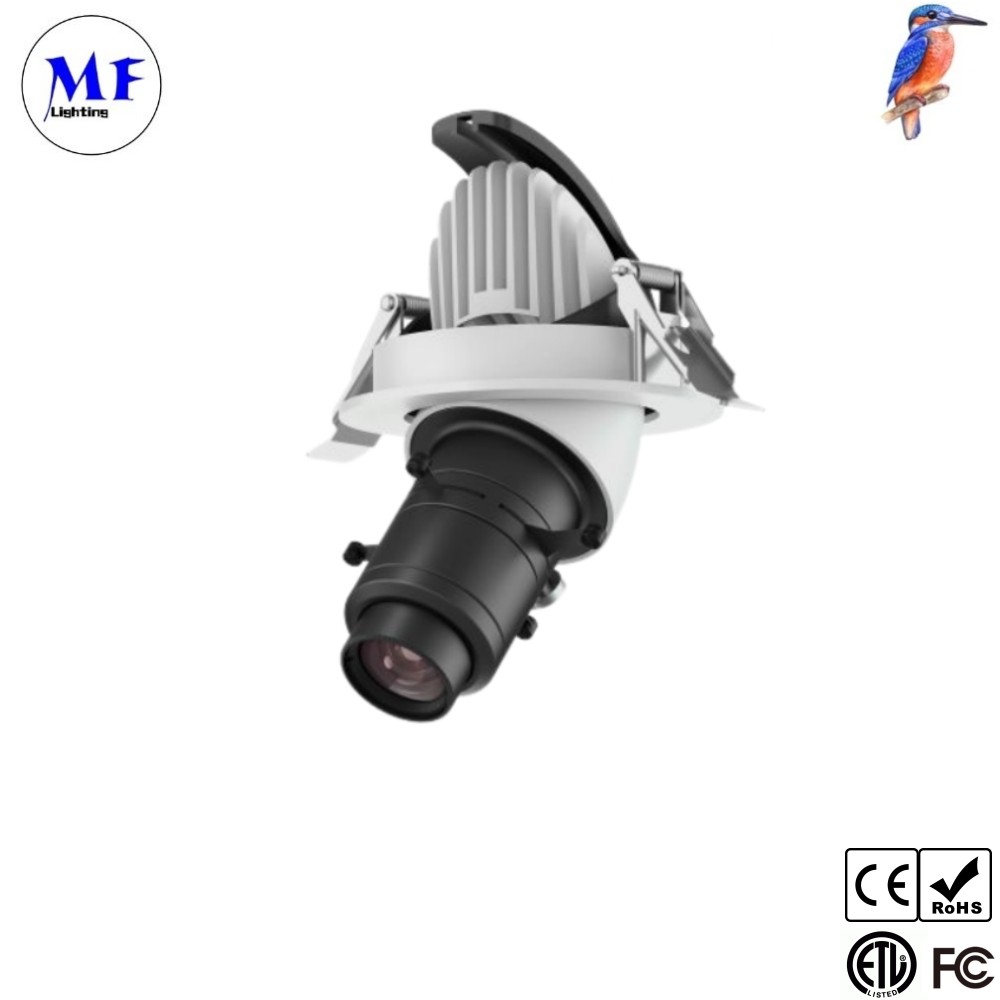

Installation:

A mini shapeable track light with a maximum diameter of only 36mm, the maximum angle of up to 45 D0870L D0840L 01 05a 03a M03 degrees. Suitable for any commercial lighting. Support embedded installation, magnetic installation, and track installation. Photoelectric performance is the same to the DQ series.

I. First loosen and pull out thehand screw (red part) shown inFIG. 1, and then pull out themain part of the lens (bluearea) and separate it from thelamp body: Figure 2 shows thepart of the optical lens afterseparation, and Figure 3shows the part of the lampbody after separation.
Il. Stretch the four diaphragmsheets on the optical lens ofFigure 4 outward to themaximum extent as showm inFigure 5.
IIl Uns crew the blue part ofthe optical components at thebottom of the lens in Figure 6and separate it as shown inFigures 7 and 8.Then separatethe lens face ring in FIG. 8 asshown in FIG.9.
IV. Find the gobo devicedelivered by the manufacturer(the red part in Figure 10),install the gobo device asshown in Figure 10, and thenreinstall the optical lens asshown in Figure 11, and thenreinstall the lens as shown inFigure 6, and then reinstall thelamp body as shown in Figure1. The LOGO lamp assembly iscomplete.
V.You can design and make avariety of image gobo. Thespecifications are shown inFigure 12.

Daily maintenance:
I .When the edge of the circularspot becomes rough or granular(Figure 13) please open the lensand wipe the red part in Fiqure 7with a dust-free cloth or eyeglasscloth.
Il .When the edge of the squarespot becomes rough or granular(Figure 14) please open the lensand wipe the green edge inFiqure 7 with a dust-free cloth oreyeglass cloth.
IIl.When small shadows or particlesappear in the middle or edge of anyspot (Figure 15, 16), open the lensand wipe the optical lens in Fiqure 8with a dust-free cloth or eyeglassdoth

LED track lights find extensive application in galleries and art museums, where they play a crucial role in illuminating and accentuating artwork and exhibitions. With their versatility and precision lighting capabilities, these lights enhance the visual experience and create an immersive atmosphere for visitors. In gallery spaces, LED track lights are used to highlight individual pieces of artwork, sculptures, or photography exhibits. The adjustable nature of track lights allows curators to precisely direct the light onto specific areas, emphasizing details, textures, and colors. This focused lighting helps bring out the true essence of the artwork, creating a captivating visual impact. Art museums often feature diverse collections, ranging from classical masterpieces to contemporary installations. LED track lights offer the flexibility to adapt to different styles and mediums of art. They can be adjusted to cater to specific lighting requirements, such as warm or cool tones, depending on the artwork's characteristics. The dimming capabilities of LED track lights also allow curators to create customized lighting scenes that add depth and drama to the exhibition space. Furthermore, LED track lights provide energy-efficient solutions, ensuring long-lasting illumination while minimizing energy consumption. This is especially important for art institutions that aim to reduce their carbon footprint and operating costs. In summary, LED track lights serve as indispensable tools in the world of art. Their ability to provide focused, adjustable, and energy-efficient lighting makes them an ideal choice for galleries and art museums, enhancing the presentation of artwork and captivating visitors with an immersive visual experience.

Such as the Gallery exhibition spaces,Artwork display areas,Sculpture display zones,Photography exhibitions,Art museum galleries,Art auction venues,Special themed exhibits,Artist studios,College art galleries,Contemporary art installations,Historical artifact exhibitions,Fine art collections,Temporary art showcases,Artwork restoration workshops,Art education centers,Public art displays,Cultural heritage exhibitions,Artisan craft exhibitions,Multimedia art presentations,Experimental art installations,Interactive art exhibits,Outdoor sculpture parks,Artistic performance spaces,Art festivals and fairs,Artistic workshops and seminars,Art therapy centers,Virtual reality art experiences,Artisanal jewelry displays,Street art exhibitions,Artisanal ceramics and pottery showcases.
