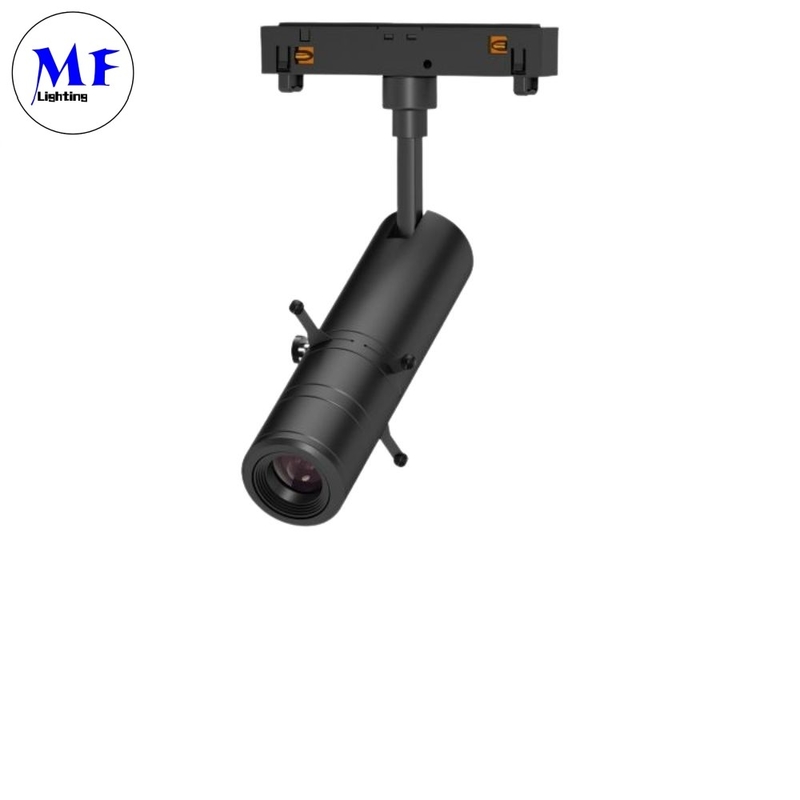

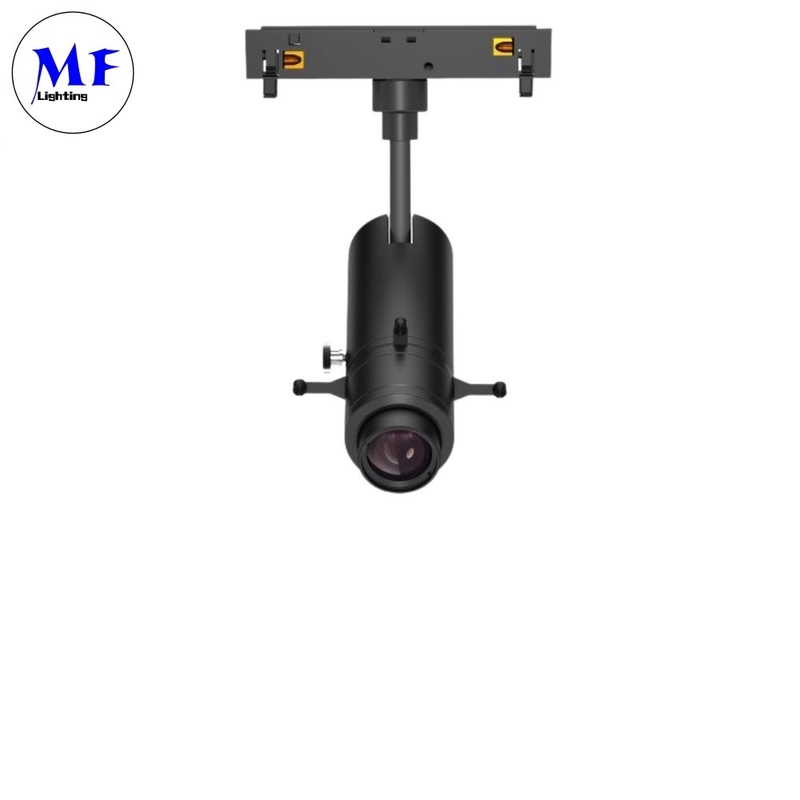

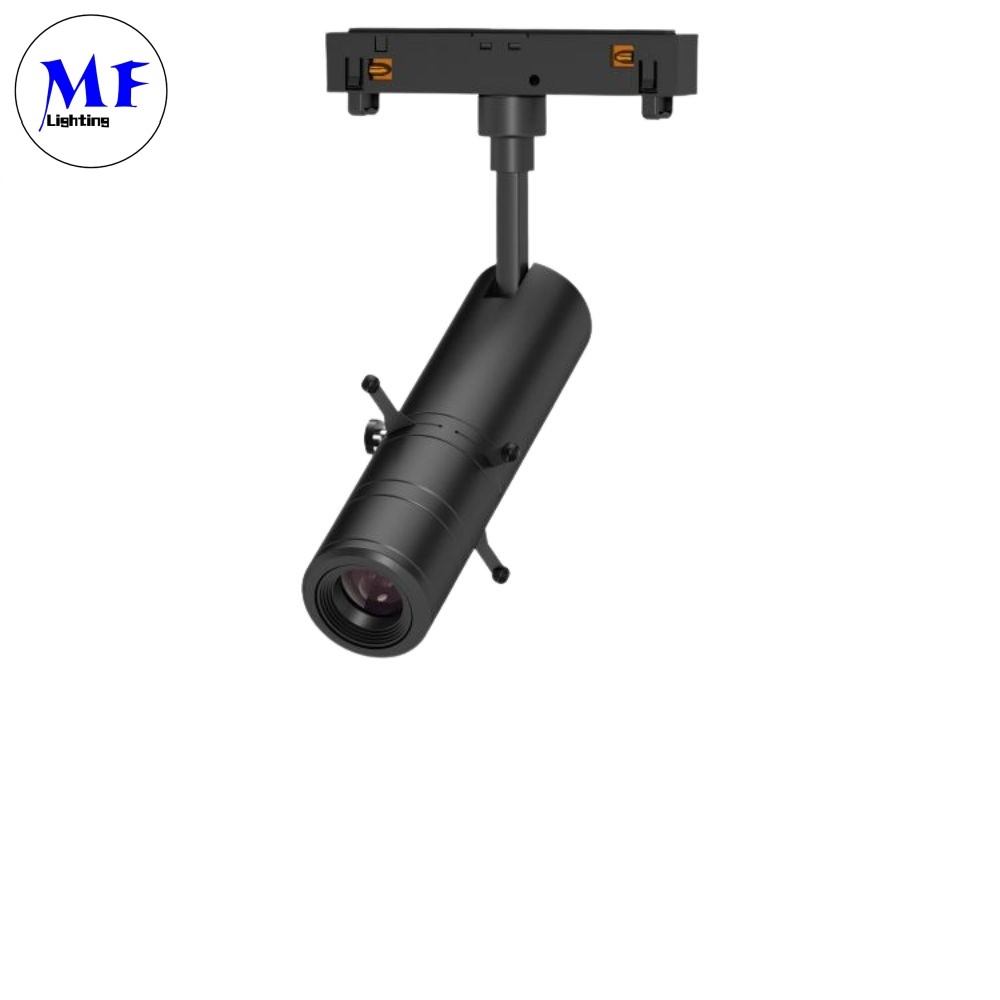

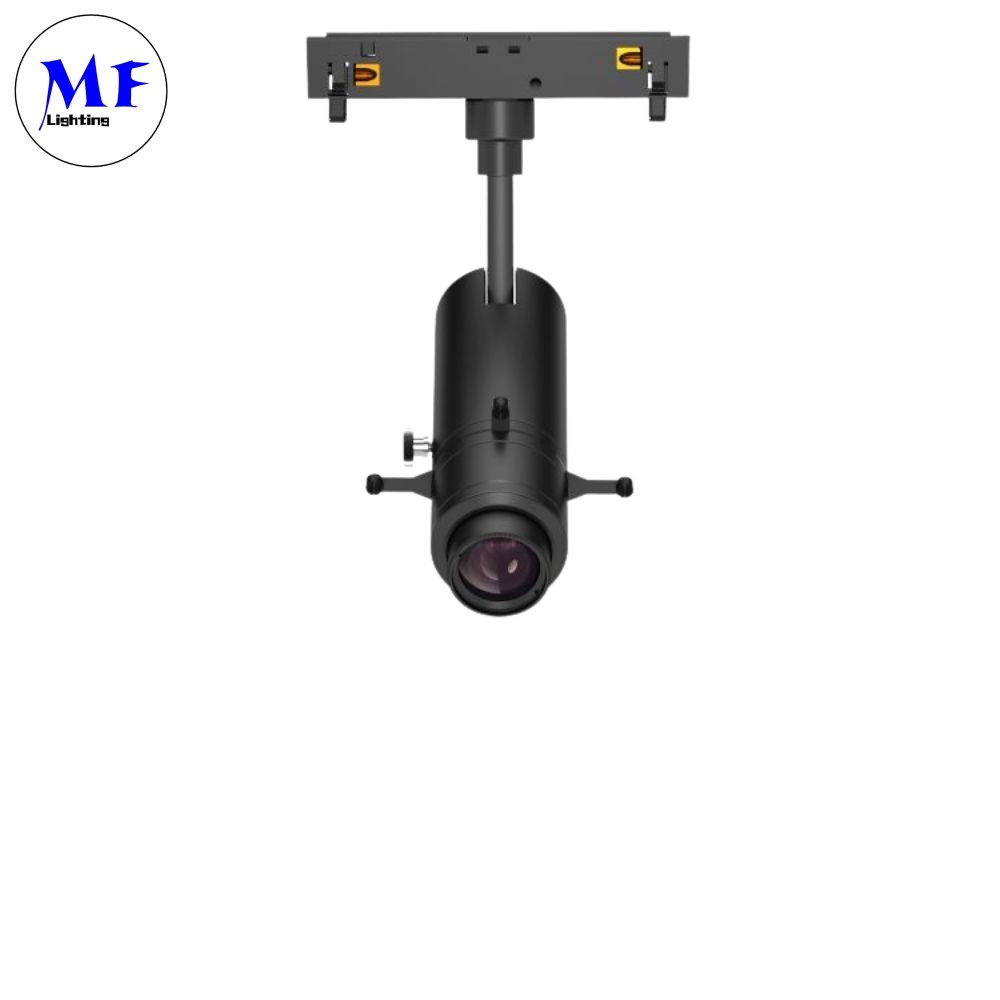

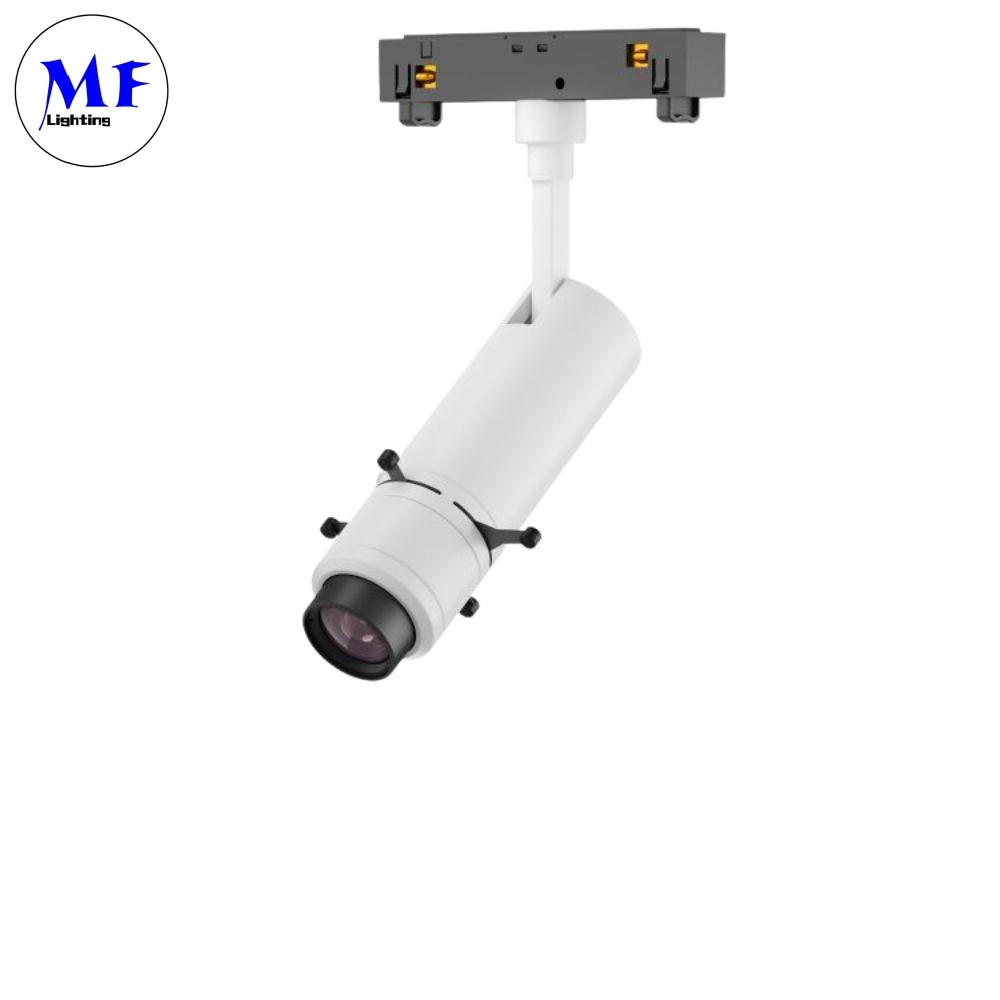

Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light

Minimum Order Quantity : 100PCS Price : Negotiable
Delivery Time : Depends on orders Payment Terms : T/T, Western Union, L/C, Paypal
Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CCC, CE, ETL, FCC, RoHS Model Number: D1070K-3855/3836B

Detail Information

Input Voltage: 220-240V Power: 6-10W
System Illumination: 300-350lm CCT: 2700K-6000K
Zoom Range: Fixed 55°/Zoom 15-36° Ra: 97
Color Of Housing: Black White Driver: Tridonic
Installation: Embedded (Cutout 70mm)

Product Description

10W 220-240V 2700K-6000K Kingfisher-2 Shapeable Track Lights Spot Shaping/ Zoom / Projection / Smart Control

Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 0



Specifications:



Model No. D1070K-3855/3836B
Power
10W
Luminous Flux
300-350LM
Ra
≥97
Color Temperature
2700-6000K
Zoom Range
15°~36°/55°
DIP CCT Single Lamp Dimming Non-support
Housing Color Black White
Voltage 220-240V
Driver
Tridonic





Description:



KP series stretching embedded contour spotlight (M1003K) has equipped with our newly developed 55° fixed-focus wide-angle optical lens and 15°-36° constant zoom optical lens, compatible with 38mm mini size radiator and 70mm stretching embedded device. Ultra-small size, excellent performance.



Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 1

Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 2

Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 3





Key Features:



Ultra-high-definition projection.
Millimeter-level precise spot shaping, uniform illumination.
Fixed-focus/zoom lens can be switched arbitrarily (it truly integrates fixed-focus optics and zoom optics mutually. Maximize the optical properties of fixed-focus and zoom lens).

Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 4

KP series magnetic contour spotlight has the features of flexible rotation and precise projection, supporting vertical 90° rotation and horizontal 355° rotation.

Dimming and CCT changing via smart control.

Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 5



Installation:

Adjust the aperture to the appropriate size, and facing the center of the irradiated object, adjust the sharpness to a reasonable degree, as shown in Figure 17.
Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 6
Pull the four diaphragm sheets outward to the maximum, and then push one by one vertically inward, to ensure that the cut square spot is smaller than the object to be illuminated, and adjust the sharpness of the aperture again until satisfactory, as shown in Figure 18.
Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 7

If the shape of the spot does not match the object to be illuminated, first loosen the hand screw at the red mark, rotate the blue part of the lens, adjust the edge of the spot to be parallel to the edge of the object to be illuminated, and finally tighten the hand screw. As shown in Figure 19, the LOGO projection direction not matching can also be adjusted to the ideal direction using this method.
Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 8
Stretch the diaphragm sheet one by one outward until the spot size is substantially consistent with the object, as shown in Figure 20.
If you are not satisfied with the effect, it is recommended to repeat the operation according to the above steps to bring up the spot effect you are happy with.
Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 9

Applications:



Track lights are commonly used in various applications such as retail stores, art galleries, residential lighting, hospitality venues, offices and workspaces, and showrooms. They offer adjustable and focused illumination, making them ideal for highlighting products, artwork, architectural features, or creating desired ambiance. The versatility of track lights allows for easy repositioning and adjustments, providing flexible lighting solutions for different environments.



Dimmable CCT Adjustable Projector Lamp Tracking Spotlight Magnetic Attraction LED Track Light 10



FAQ:



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
