40W-480W IP67 Waterproof Ik10 LED Flood Light For Tunnel Underground Walkway Subway

Product Description

40W-480W IP67 Waterproof Ik10 LED Flood Light For Tunnel Underground Walkway Subway

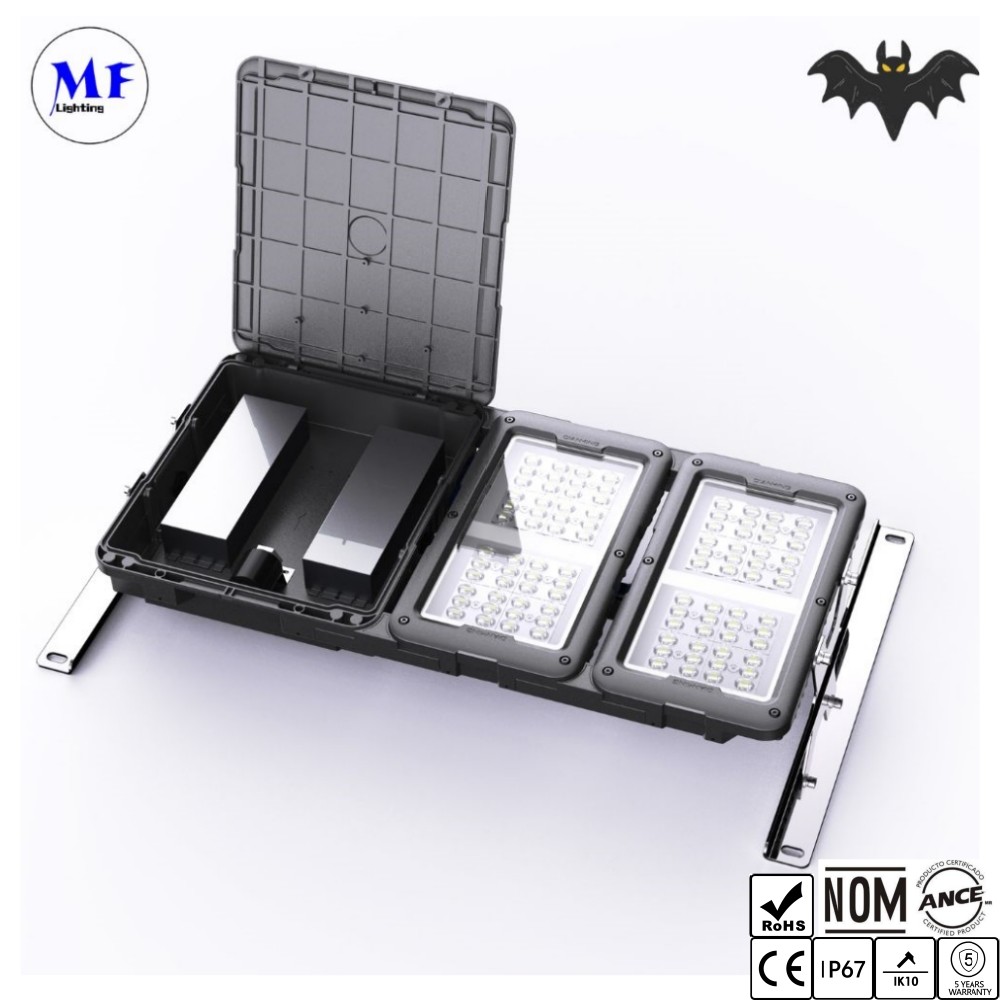

1.Perfect module design, using 5mm tempered glass, waterproof level meets IP67, allows to combine 1~4 modules according to actual needs of projects;
2.Professional secondary optical design, specially designed for solar street light, maximizing the balance of individual parameters, while minimizing the color reproduction caused by secondary optics.
3.A new generation high brightness outdoor led, lower current drive. The whole lighting efficiency increased by about 10%, and lower light decay.
4.Equipped with an independent power supply chamber, supports independent lightning protection requirements;

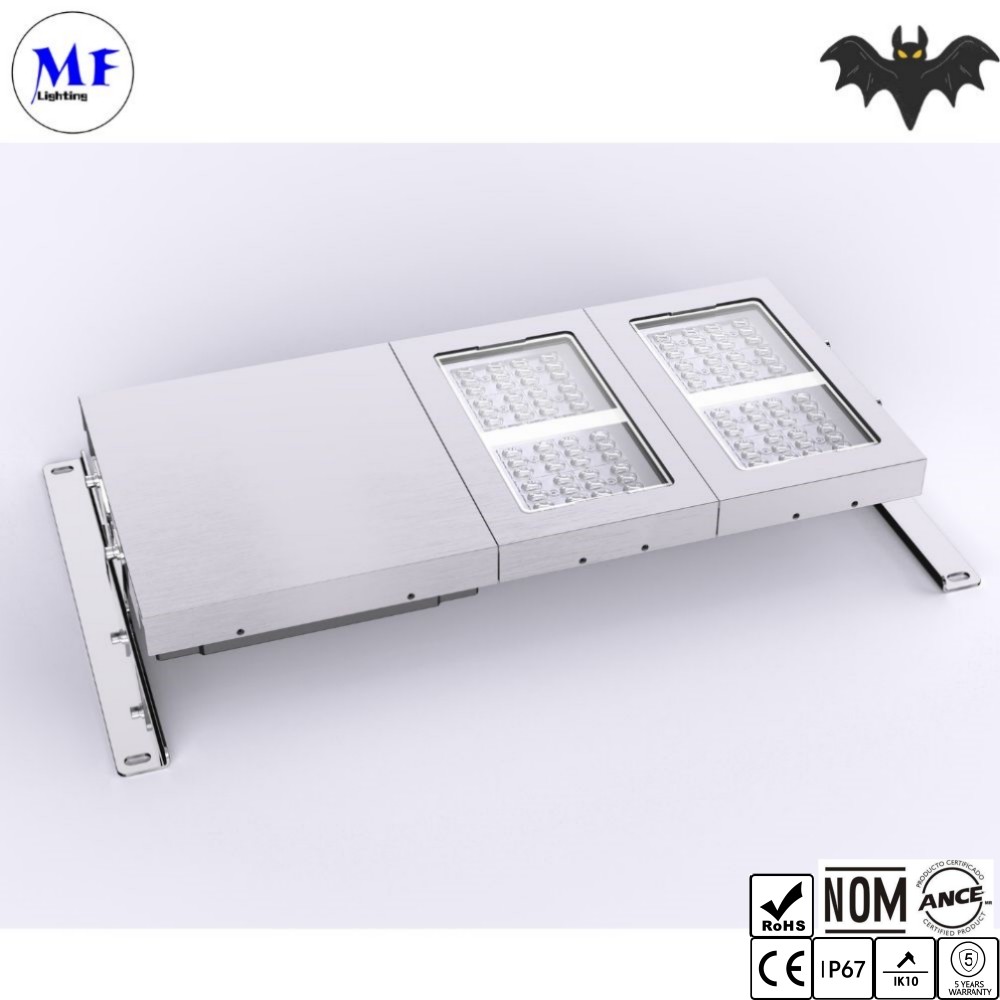

5.Stainless steel shell is optional to prevent galvanic corrosion in extreme environments
6.All connectors are tool-free waterproof plug-in design.
7.Installation is simple and convenient. Two mounting brackets are available. The ceiling bracket and the side-mounted bracket can be selected according to project requirements;
8.Reinforced insulation design, supporting CLASS I , CLASS II
9.Compatible with tunnel-specific zhaga interface design, high compatibility.

Installation:

Installation Steps:

1. Use 4 M10 bolts to install the lamp on the bridge as shown in the picture;
2. Connect the waterproof connectors of the lamps, correctly connect the power cord to the puncture clamp, and then connect it to the AC power supply cord (see wiring steps for details);
3. Adjust the lamp to the position according to the actual lighting needs of the site, and then tighten the bolts;
4. Adjust the dimming line settings according to on-site needs (not required for non-dimming);
Note: The power supply cable must ensure even distribution of the three-phase load.

If the product does not contain dimming cable: Please adapt the cable outer diameter φ7-9mm by yourself, strip the wire 15mm, and expose 5mm copper;

LED Tunnel Light finds wide application in various tunnel environments. Its advanced features and benefits make it a preferred choice for tunnel lighting solutions.
One primary application is in road tunnels. LED Tunnel Light provides bright and uniform illumination, ensuring clear visibility for drivers. This enhances safety by minimizing the risk of accidents and improving overall traffic flow. The long lifespan of LEDs reduces maintenance requirements, making it suitable for tunnels with high traffic volumes.
Another application is in pedestrian tunnels. LED Tunnel Light creates a well-lit environment, offering a sense of security and comfort to pedestrians. The high brightness ensures clear visibility, reducing the chances of slips, trips, and falls. Additionally, the energy efficiency of LED technology contributes to sustainable lighting solutions for pedestrian tunnels.
Furthermore, LED Tunnel Light is utilized in railway and metro tunnels. It provides consistent and reliable lighting for train operators, enabling them to navigate through the tunnels safely. The durability of LED fixtures ensures continuous operation, even in demanding railway environments.
LED Tunnel Light also finds application in underground mining tunnels. It offers high visibility in these challenging environments, enhancing safety for miners. The resistance to water, dust, and vibrations makes it suitable for the rugged conditions typically encountered in mining operations.
Overall, LED Tunnel Light is extensively used in road tunnels, pedestrian tunnels, railway tunnels, and mining tunnels. Its superior brightness, energy efficiency, durability, and reliability contribute to safer and more sustainable tunnel environments across various industries.

.
