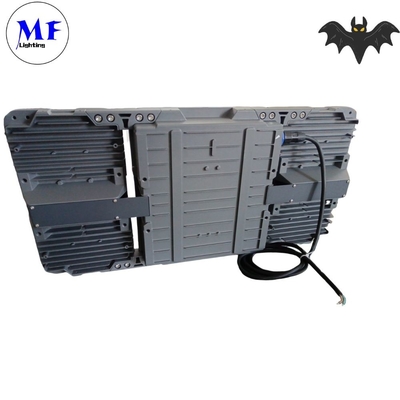

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light

Contact Now

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light

Minimum Order Quantity :	10pcs	Price :	negotiable
Delivery Time :	1 week for sample order; 2 weeks for bulk order.	Payment Terms :	L/C, T/T, Western Union, Paypal
Supply Ability :	10, 000PCS/Months

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MFTL-T9-XXX

Detail Information
Input Voltage:	AC100-240V,47~63Hz	Warranty:	5 Years
Lumen:	140lm/W	Operating Temperature:	-30°c To+50°c
Storage Temperature:	-30°c~+60°c	Driver:	Inventronics
LED Chips Brand:	Lumileds5050	CRI:	70
Lifetime:	>80, 000hrs

Product Description

Technical Specification

Power	40W	50W	60W	80W	100W
Luminous Flux	5600±5% lm	7000±5% lm	8400±5% lm	11200±5% lm	14000±5% lm
LED QTY	48 pcs	48 pcs	48 pcs	48 pcs	48 pcs
Luminous Efficacy	150 lm/W		140 lm/W
LED	5050
Module QTY	1 Module

Power	120W	150W	180W	200W	240W
Luminous Flux	16800±5% lm	21000±5% lm	25200±5% lm	28000±5% lm	33600±5% lm
LED QTY	48 pcs	96 pcs	96 pcs	96 pcs	96 pcs
Luminous Efficacy	140 lm/W
LED	5050
Module QTY	2 Modules

Power	270W	300W	350W	400W	450W
Luminous Flux	37800±5% lm	42000±5% lm	49000±5% lm	56000±5% lm	63000±5% lm
LED QTY	144 pcs	144 pcs	192 pcs	192 pcs	192 pcs
Luminous Efficacy	140 lm/W
LED	5050
Module QTY	3 Modules		4 Modules

Color	Warm White	Natural White	Cold White	Cold White
CCT	3000±300K	4000±300K	5000±300K	5700±300K
CRI	ÿ70
Beam Angle	85°x155°; 102°x155°; 125°x148°; 23°x105°
Main Material	Alloy aluminum, optical PC, stainless steel
Service Life	>80000h
Storge Tem.	30°C~+60°C
Operating Tem.	-30°C~+50°C
Input Frequency	47~63HZ
Input Voltage	-100~240V AC

Installation

Installation Steps:

1. Use 4 M10 bolts to install the lamp on the bridge as shown in the picture;

2. Connect the waterproof connectors of the lamps, correctly connect the power cord to the puncture clamp, and then connect it to the AC power supply cord (see wiring steps for details);

3. Adjust the lamp to the position according to the actual lighting needs of the site, and then tighten the bolts;

4. Adjust the dimming line settings according to on-site needs (not required for non-dimming);

Note: The power supply cable must ensure even distribution of the three-phase load.

If the product does not contain dimming cable: Please adapt the cable outer diameter φ7-9mm by

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 0

Dimensions

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 1

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 2

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 3

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 4

Light Distribution Curve

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 5

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 6

Packing

Model	Power	Module QTY	PACKING(LxWxH)	A	B	EPA	Weight	Packaging size (l x w x h)
MFTL-T9-040	40W	1 pc	558430104.5	402.5mm	524mm	0.2399m²	8.92kg	540395120(mm)
MFTL-T9-050	50W						8.92kg
MFTL-T9-060	60W						9.03kg
MFTL-T9-080	80W						9.03kg
MFTL-T9-100	100W						9.03kg
MFTL-T9-120	120W						9.16kg
MFTL-T9-150	150W	2 pcs	748430104.5	402.5mm	714mm	0.3216m²	11.30kg	730395120(mm)
MFTL-T9-180	180W						11.34kg
MFTL-T9-200	200W						11.34kg
MFTL-T9-240	240W						11.51kg

Model	Power	Module QTY	PACKING(LxWxH)	A	B	EPA	Weight	Packaging size (l x w x h)
MFTL-T9-270	270W	3 pcs	938430104.5	402.5mm	904mm	0.4033m²	14.30kg	920395120(mm)
MFTL-T9-300	300W						14.30kg
MFTL-T9-350	350W	4 pcs	1128430104.5	402.5mm	1904mm	0.4850m²	16.28kg	1110395120(mm)
MFTL-T9-400	400W						16.32kg
MFTL-T9-450	450W						16.49kg

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 7

Applications

LED tunnel lights are used to illuminate tunnels, underground spaces, and areas that require bright, energy-efficient lighting. They are commonly used in tunnels, underground parking lots, industrial facilities, sports complexes, outdoor walkways, subway stations, airports, and mining operations. LED tunnel lights provide improved visibility, safety, and cost savings compared to traditional lighting options.

40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light 8

FAQ

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
