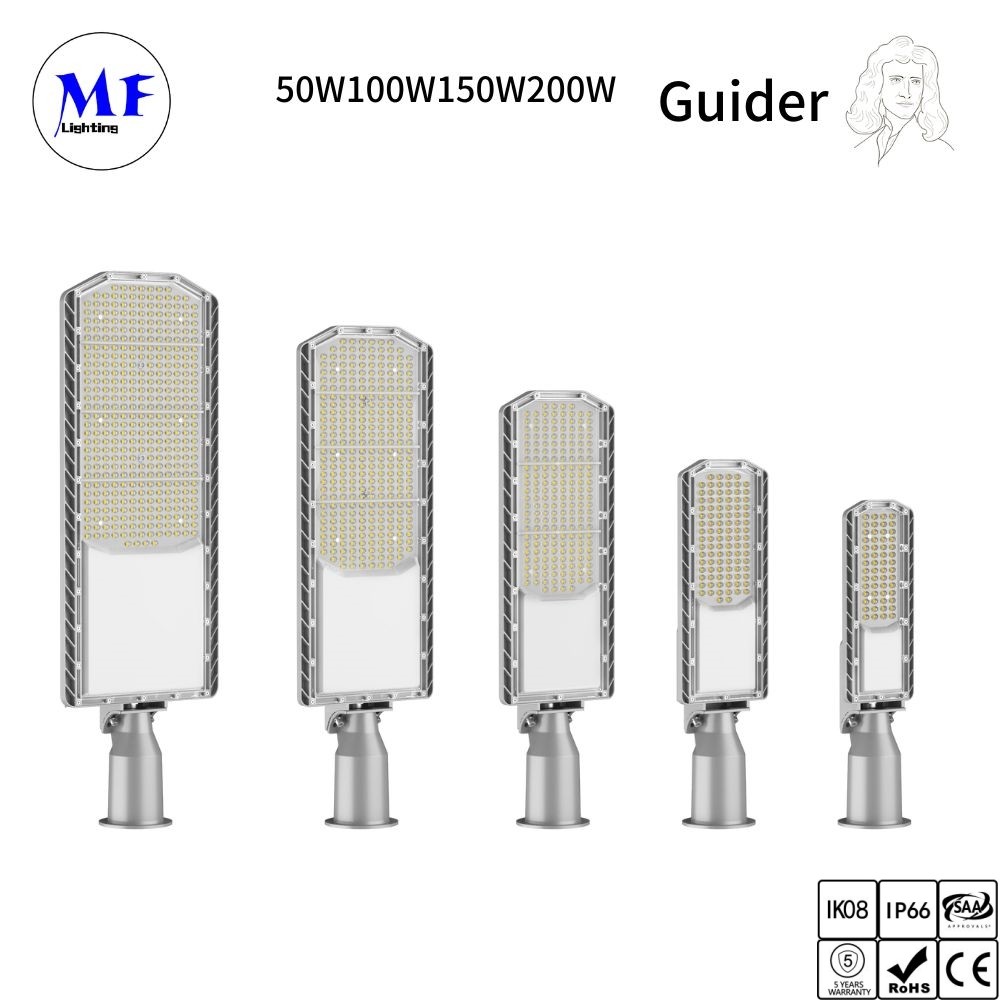

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Model Number: MF-Guider

Detail Information

Certification: CB/TUV/Dlc/ENEC/CE/ROHS/ETL/SAA CCT: 3000K-6500K
Material: ADC12 Aluminum Die-Casting Fixture Housing Input: 100-227V
Power: 30W/50W/100W/150W/200W IP Rate: IP66
Warranty: 5years Lifespan: >60, 000hrs
Luminous Flux: 140~150lm/W Ik Rate: Ik10
Chip Brand: LuMileds LED Driver: Zh
Total Harmonic Distortion: <15% Application: Parking Lot Light/Urban/Village Street/Road/Highways/Garden/Park/Schoole/Square/Hospital/Any Large Outdoor PLACE
Beam Angle: Type II Driver Efficiency: 92%

Product Description

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking Lot Pedestrian Walkway Park IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 0



1.Lumileds Chips: Our LED Tri Proof Light utilizes Lumileds chips, renowned for their exceptional brightness, low light decay, and long life-time. These high-quality chips ensure a powerful and sustained illumination, maintaining consistent performance over an extended period.



2.International Driver Brand: The LED Tri Proof Light features a driver from a reputable international brand. This driver offers advanced functionality, including overheat protection, high conversion efficiency, high power factor (PF), and surge protection. It also supports optional dimming protocols such as 1-10V and DALI2.0, providing enhanced control and energy management capabilities.



3.Die-Casting Technology: Our LED Tri Proof Light is manufactured using die-casting technology with ADC12, a premium aluminum alloy. This technique ensures excellent thermal management, effectively dissipating heat and maintaining optimal operating conditions. By reducing chip junction temperature (Tj) and minimizing light decay, it guarantees long-lasting performance and reliability.



4.Optial UV Resistant PC Lens: Equipped with an optical UV resistant PC lens, our LED Tri Proof Light achieves an impressive light transmittance of 94%. This high-quality lens ensures maximum light output and uniform distribution. With an IK08 rating, it also offers exceptional resistance to impacts and durability.



5.Pole Installation and Wide Operating Temperature Range: Our LED Tri Proof Light is designed for easy installation on poles, providing flexibility in various application scenarios. Additionally, it operates reliably across a wide temperature range, from -35°C to +50°C, making it suitable for both extreme cold and hot environments.





IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 1


IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 2

Model No. MF-LD-G30w MF-LD-G50W MF-LD-G100w MF-LD-G150w MF-LD-G200w
Input Voltage AC100-277Vv 50/60Hz AC100-277V50/60Hz AC100-277V 50/60Hz AC100-277V 50/60Hz AC100-277V 50/60Hz
Rated Power 30w 50w 100w 150w 200w
Qty of LED 56PCS*2835 96PCS*2835 192PCS*2835 270PCS*2835 368PCS*2835
PF >0.95 >0.95 >0.95 >0.95 >0.95
LED Brand Lumileds Lumileds Lumileds Lumileds Lumileds
Luminous Flux 4200Im±5% 7000lm±5% 14000Im±5% 21000lm±5% 28000lm±5%
CRI Ra>70,80 Ra>70,80 Ra>70,80 Ra>70,80 Ra>70,80
CCT 3000-6500K 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Beam Angle 70*140° 70*140° 70*140° 70*140° 70*140°
Driver Brand SOSEN/ZH SOSEN/ZH SOSEN/ZH SOSEN/ZH SOSEN/ZH
THD <10% <10% <10% <10% <10%
IK Ratng IK08 IK08 IK08 IK08 IK08
IPRaing IP66 IP66 IP66 IP66 IP66
luife Span 50000Hrs 500O0Hrs 500O0Hrs 50000Hrs 50000Hrs
Size 425*108*96mm 477"138*96mm 566"177*96mm 650210*96mm 719*244*96mm



IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 3

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 4





Light Distribution:

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 5






Installation:

1.Wall-mounted
2.Pole-mounted

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 6

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 7



LED Street Light Applications:

  1. Parking lot light
  2. Urban/Village Street
  3. Road
  4. Highways
  5. Garden/Park
  6. Schoole/Square/Hospital
  7. Any Large Outdoor Area,etc



IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 8



1.Roadway lighting: LED street lights are widely used for illuminating roads and streets in urban and rural areas, providing enhanced visibility and safety for motorists and pedestrians.
2.Parking lot lighting: LED lights are commonly installed in parking lots to ensure well-lit and secure environments, improving visibility for drivers and pedestrians.
Pathway and sidewalk lighting: LED street lights are utilized to illuminate pathways, sidewalks, and park trails, creating safer walking and cycling routes, especially during nighttime.
3.Highway lighting: LED street lights are employed along highways and expressways, offering clear visibility for drivers, reducing accidents, and improving overall road safety.
4.Residential street lighting: LED lights are commonly used for lighting residential streets, enhancing the safety and security of neighborhoods.
5.Public space lighting: LED street lights are installed in public spaces such as parks, plazas, and public buildings, providing adequate lighting for outdoor activities and gatherings.
6.Industrial area lighting: LED lights are utilized in industrial areas and warehouses, ensuring proper illumination for increased productivity and worker safety.
7.Campus and institutional lighting: LED street lights are used in educational campuses, hospitals, and other institutional settings to provide efficient and reliable lighting solutions.
8.Smart city integration: LED street lights can be integrated into smart city systems, allowing for remote monitoring, energy management, and adaptive lighting control.
Overall, LED street lights find applications in various settings, including roadways, parking lots, pathways, highways, residential areas, public spaces, industrial areas, and smart city infrastructures, contributing to improved visibility, energy efficiency, and safety.





IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 9

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 10

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 11

Packing and Production:







IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 12

IP66 50W-200W LED Street Light Waterproof Weather Resistant For Parking lot Pedestrian Walkway Park 13

About us:





Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
