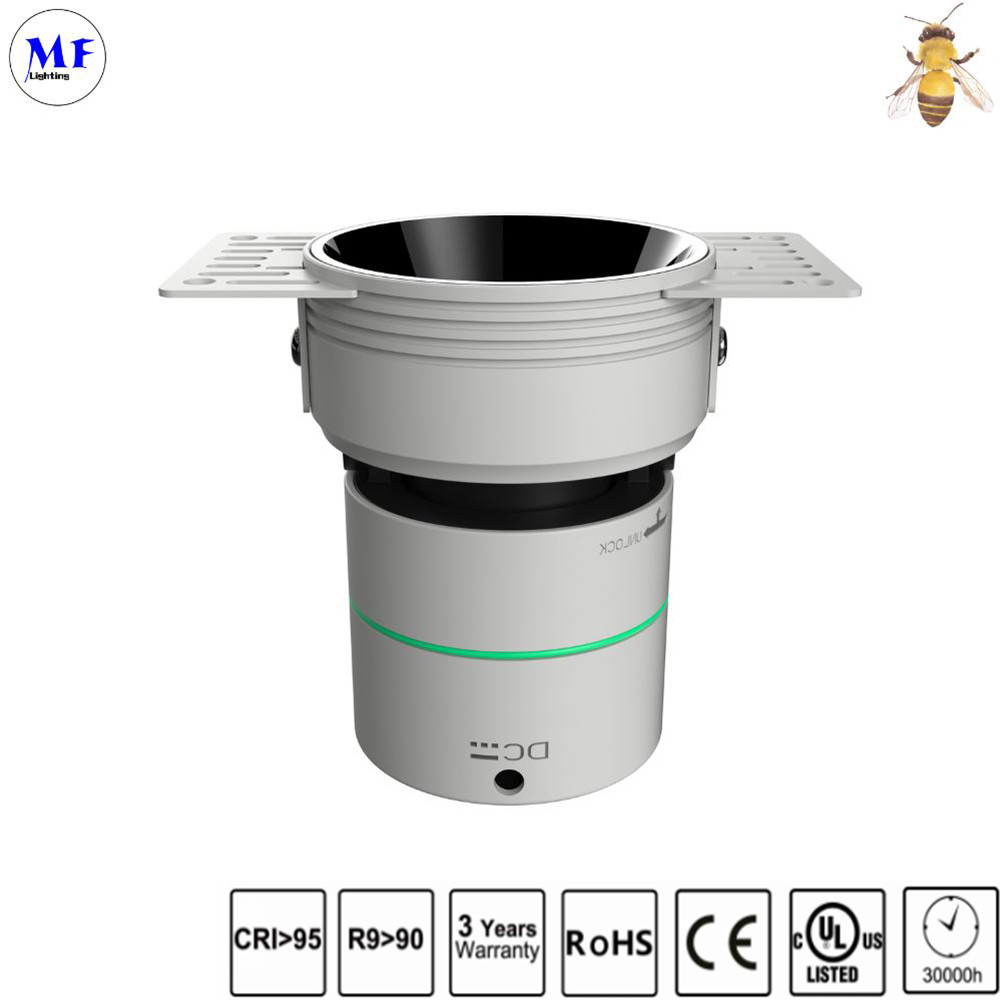

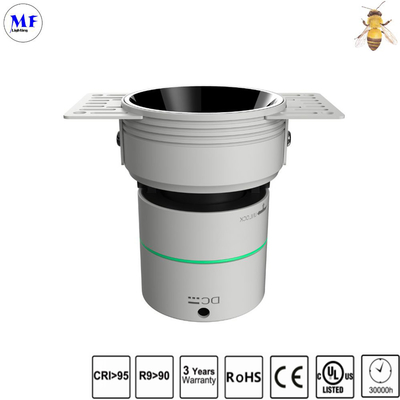

20W/2X20W/3X20W/4X20W Square Trim Aluminum Housing Recessed Downlight Interior Lighting LED Ceiling Down Light

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 8pcs (13kg/CTN) 45.5*45.5*32cm Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal, L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CCC, CE, CQC, ETL, RoHS, SAA Model Number: MF-TH201-7W

Detail Information

Power: 20W/2X20W/3X20W/4X20W Luminous Flux: 100lm/W
Beam Angle: 24° 36 °45 °50 °60 ° CRI: >80Ra Or 90Ra
Warranty: 3 Years Optional LED Brand: Cree Or Epistar COB LED
Application: Engineering, Home Furnishing, Residential Gardens, Commercial Buildings, And Pub Nominal Current: 350,000mA
Protection Class: II Operating Mode: Electronic Control Gear
Luminous Flux (Lm): 640-800lm Lifespan: ≥35000hrs
High Light:

3X20W LED Down Light

,

Aluminum Housing Recessed Downlight

,

Square Trim Aluminum Housing Recessed Downlight

Product Description

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

Product Description

- Offers excellent luminous efficacy
- Can directly replace compact fluorescent lamp downlights
- Provides energy savings of up to 60% compared to CFL lamp-based luminaires
- Offers a uniform and homogenous light output
- Features a functional and aesthetically pleasing design
- Easy installation with fast connection options
- Comes with a 3-year guarantee for added peace of mind

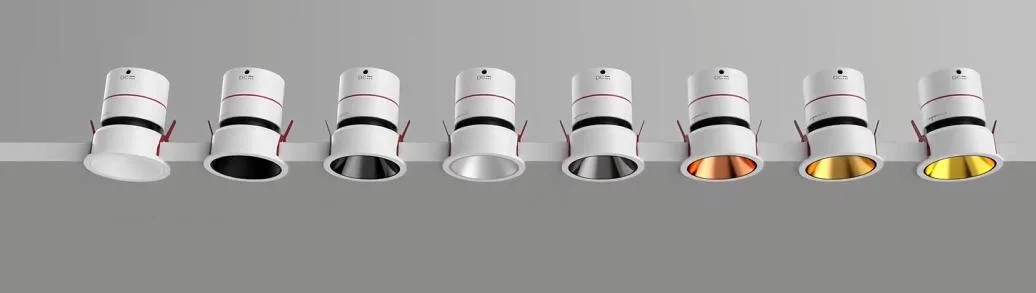

Specialized design apperance

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

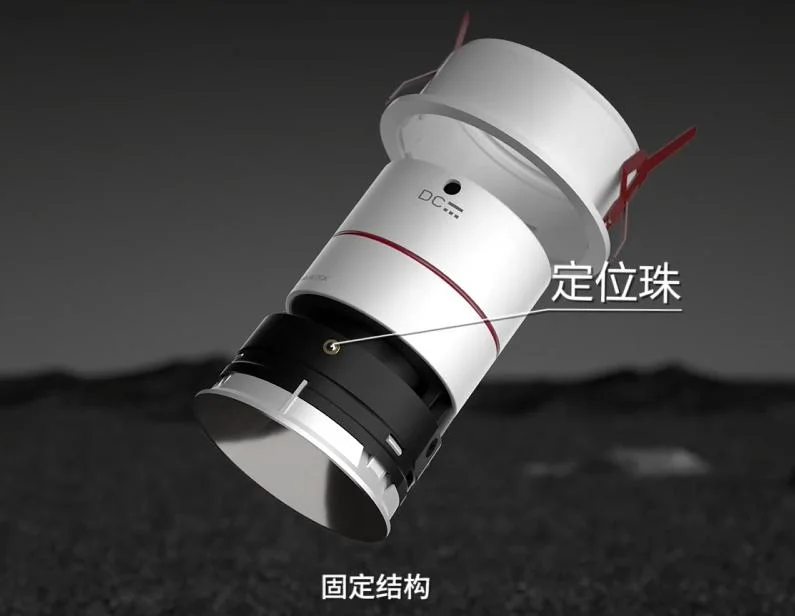

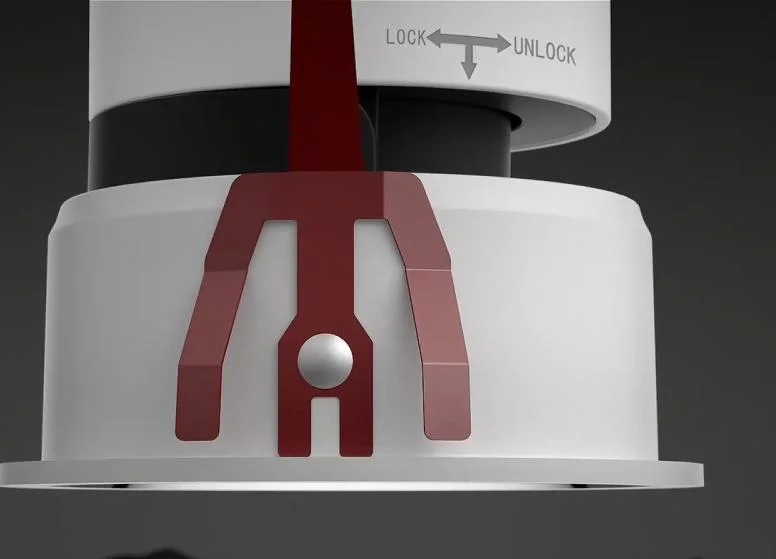

fixed structure


Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

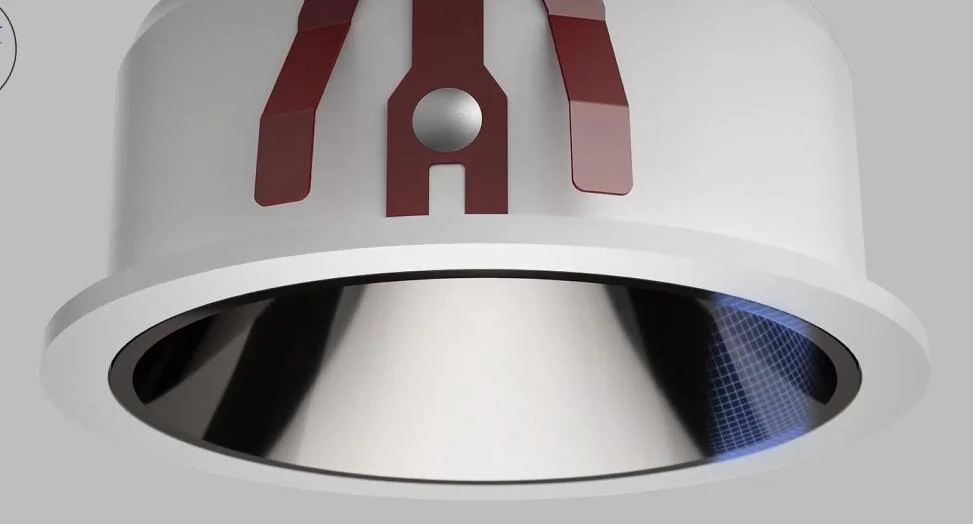

Anti Glare

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

Reflective cup

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

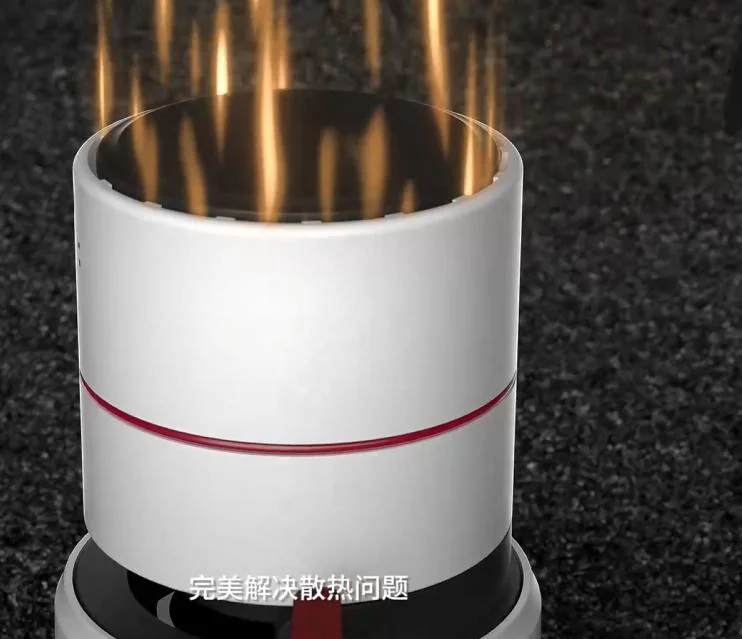

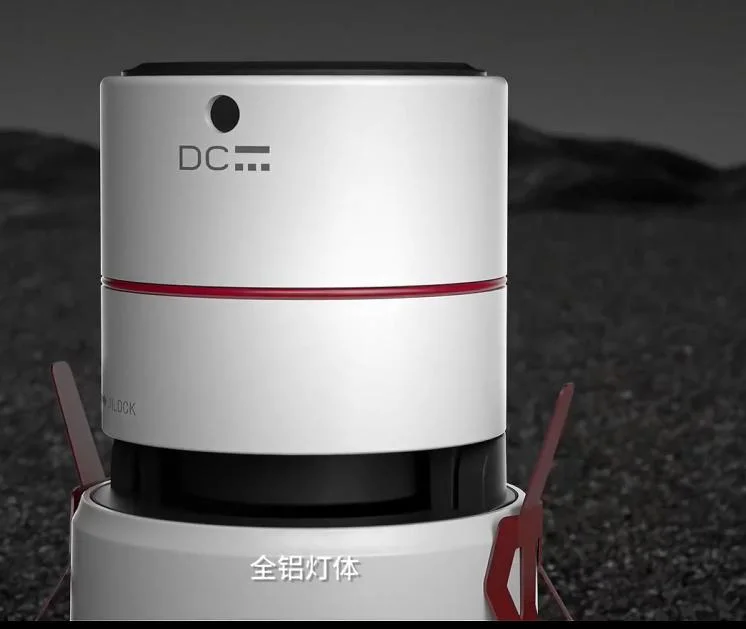

Aluminum structure with strong heat dissipation

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

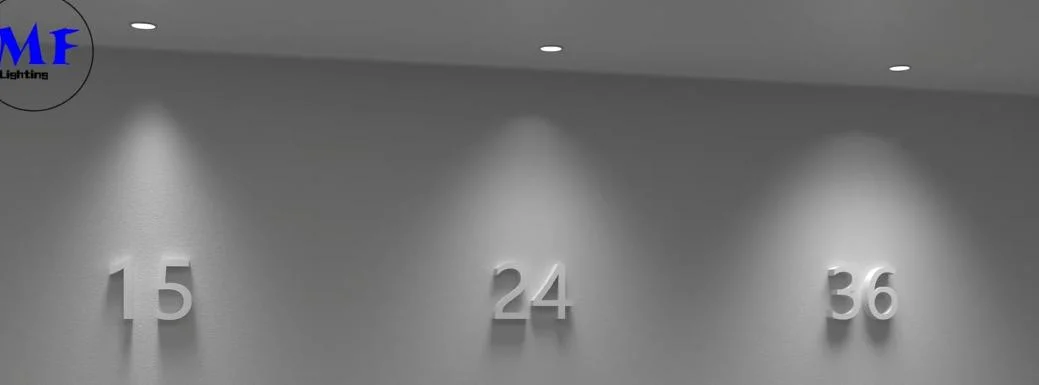

Beam angle:

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

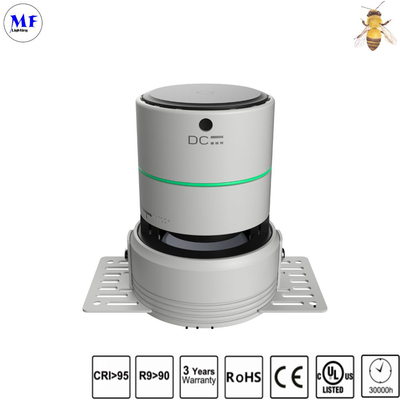

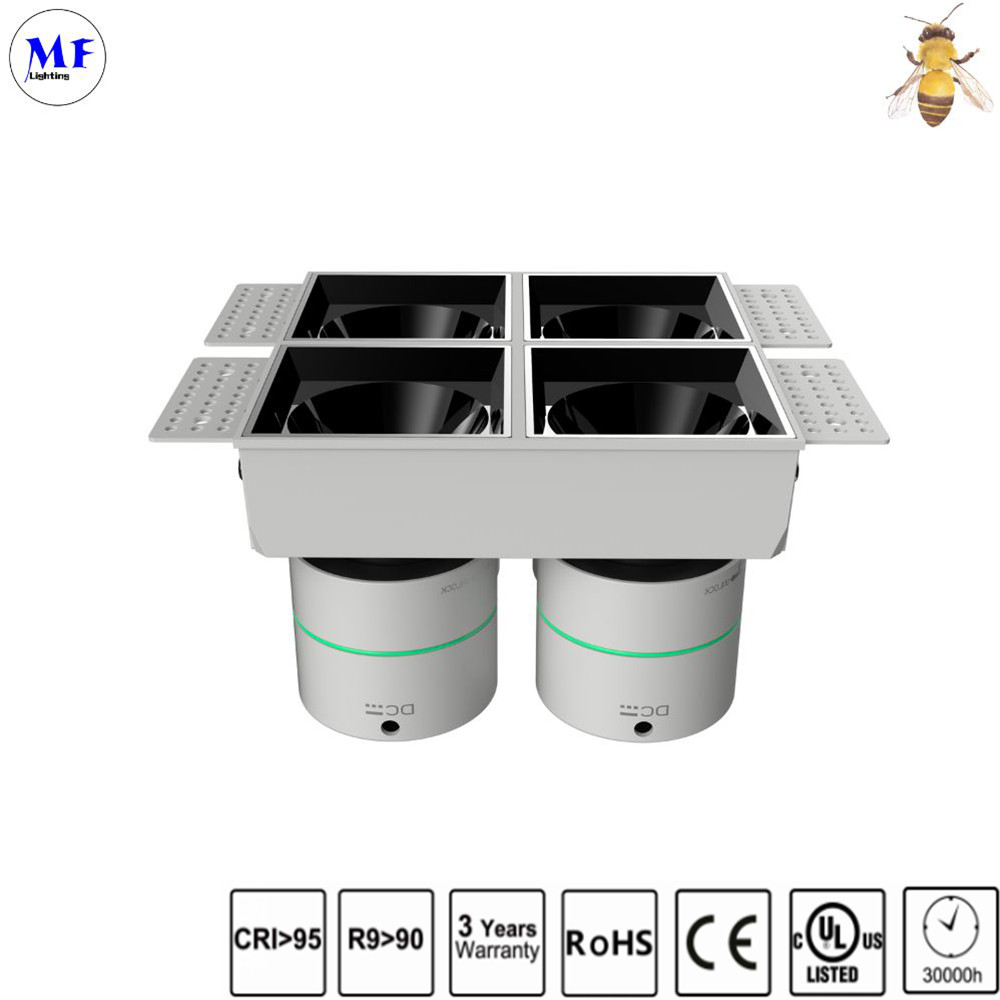

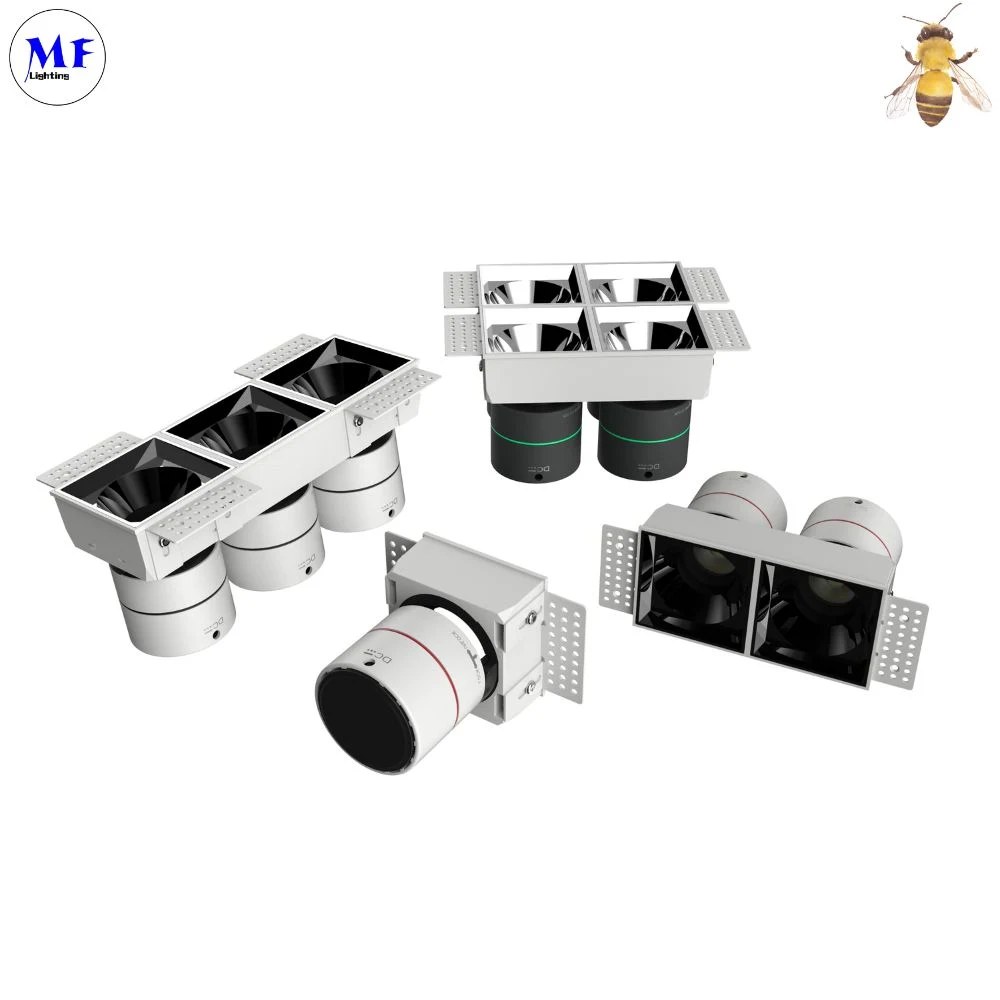

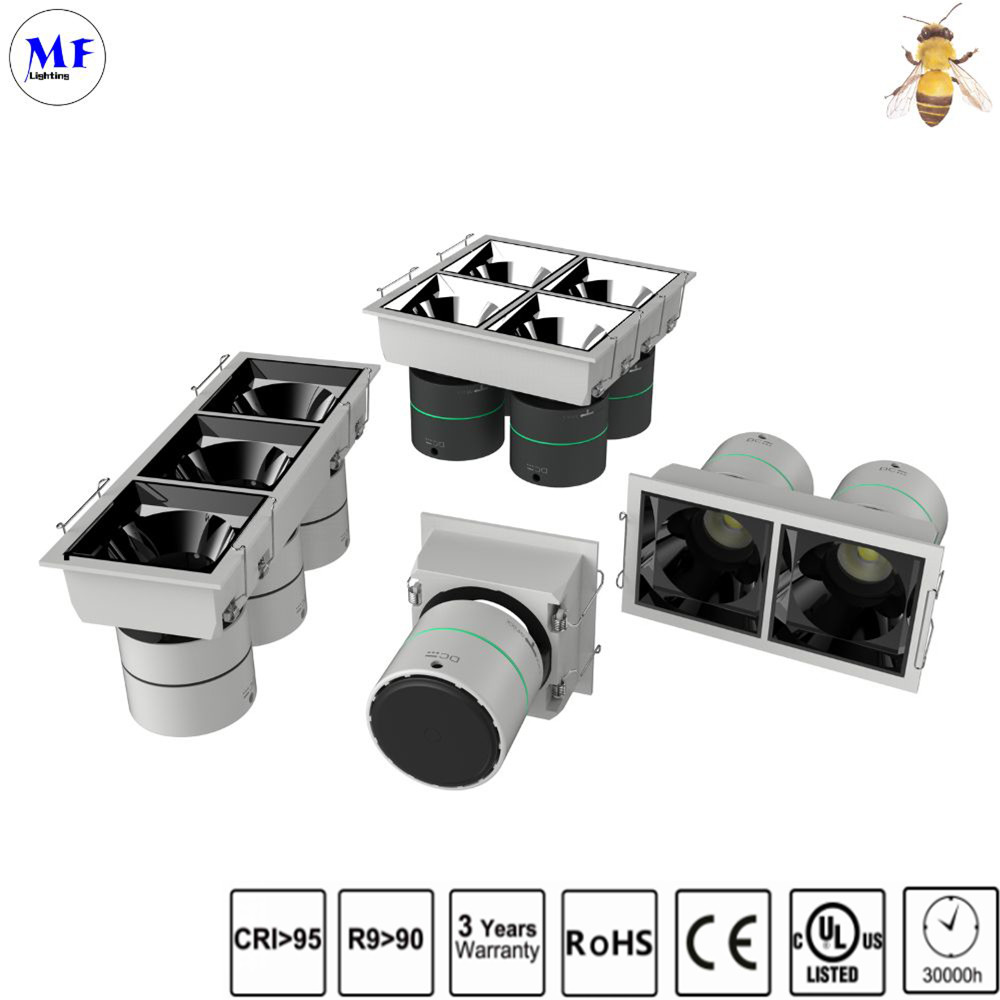

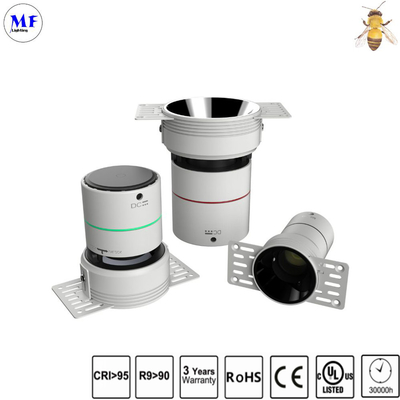

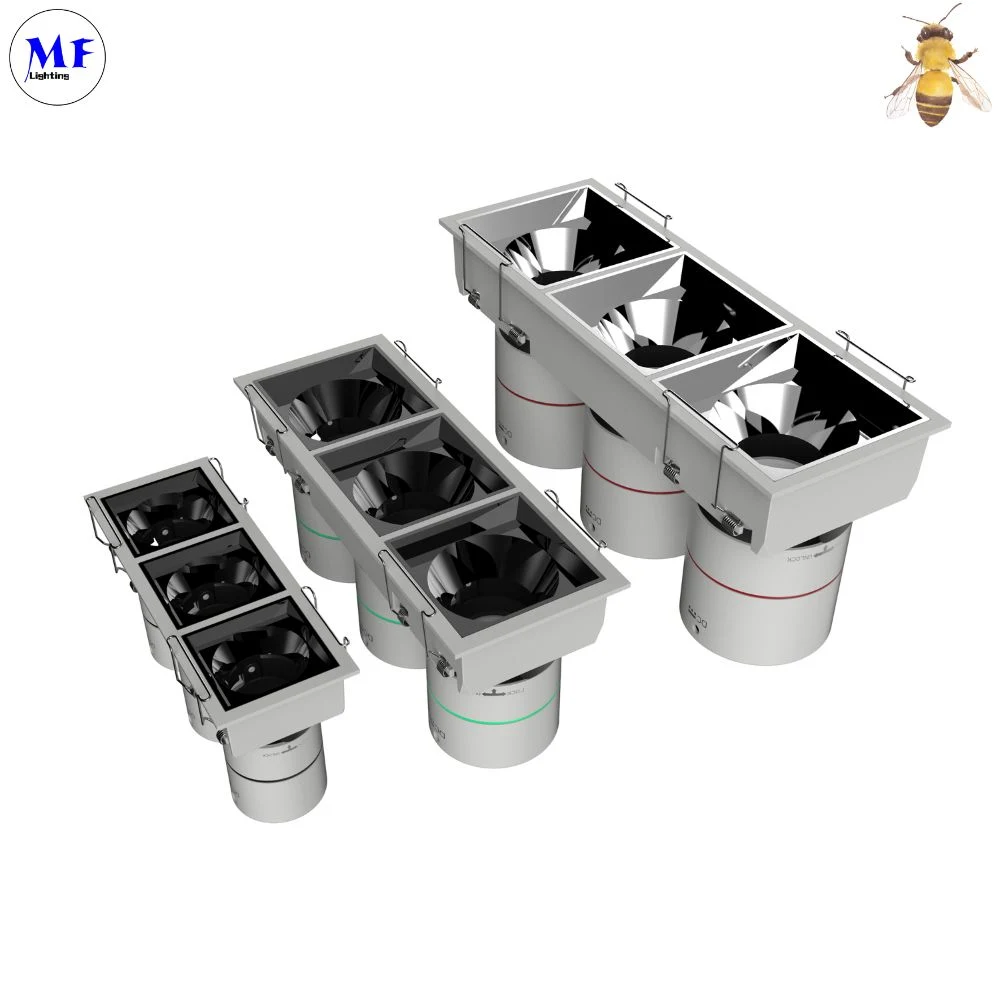

Product pictures:

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas



Product Parameters

Parameters
Electrical Data:


Nominal Wattage
7W / 12W / 20W x1 x2 x3 x 4
Nominal Voltage 100-240V
Mains Frequency 50-60Hz
Nominal Current 350,000mA
Power Factor λ 0.9
Protection Class II
Operating Mode Electronic Control Gear (ECG)

Application & Mounting:

Ambient Temperature Range -20 °C~ 40°C
Type of Connection Terminal, 2-pin
Type of Protection IP40
Dimmable No
Mounting Type Recessed
Mounting Location Ceiling
Application Environment Indoor
LED module Replaceable Not replaceable
Lifespan L70/B50 at 25 °C 30000 h1)
Number of Switching Cycles 15000



Material & Color:

Product Color White
Housing Color Grey
Body Material Aluminum
Mercury Content 0.0mg

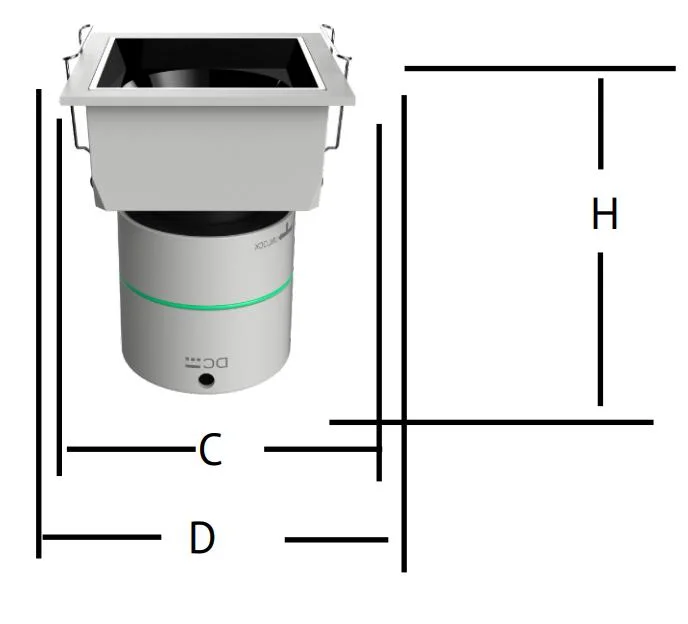

Dimension



Diameter
Refer to below table
Length
Refer to below table
Height
Refer to below table
Product Weight 610.00g

Code Item Size(LxHxM) Cutting Size
MF-TH201-S7W 62x62x85mm 55x55mm
MF-TH201-S2X7W 115x62x85mm 110x55mm
MF-TH201-S3X7W 170x62x85mm 160x55mm
MF-TH201-S4X7W 115x115x85mm 110x110mm
MF-TH201-BS12W 85x85x98mm 75x75mm
MF-TH201-BS2X12W 159x85x98mm 150x75mm
MF-TH201-BS3X12W 232x85x98mm 220x75mm
MF-TH201-BS4X12W 158x158x98m 150x150mm
MF-TH201-CS20W 103x103x130mm 95x95mm
MF-TH201-CS2X20W 197x103x130mm 190x95mm
MF-TH201-CS3X20W 291x103x130mm 287x95mm
MF-TH201-CS4X20W 192x192x130mm 187x187mm
Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

Photometry

Luminous Flux
7W 700lm / 12W 1200lm/ 20W 2000lm x1x2x3x4
Luminous Efficacy 100 lm/W
Color Temperature 3000K 4000K 6000K
Light Color (designation) Warm White
CRI ≥80

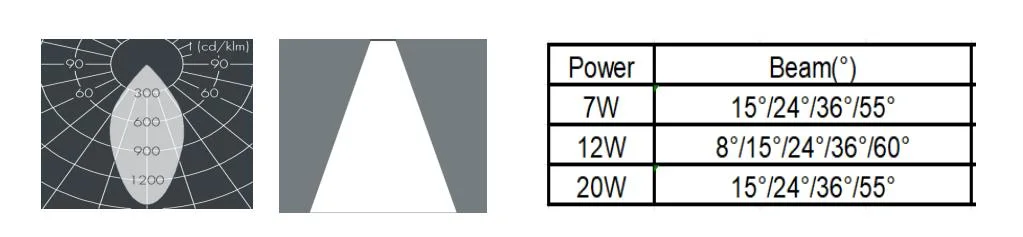

Beam Angle
8°/15°/24°/36°/60°
Beam Options


Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

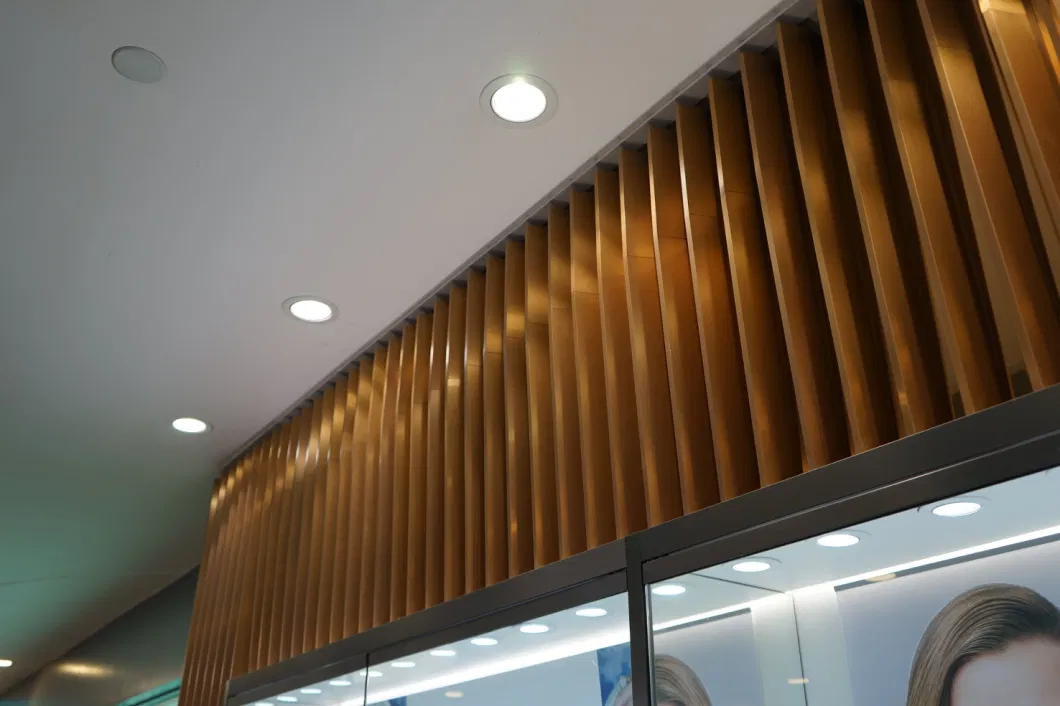

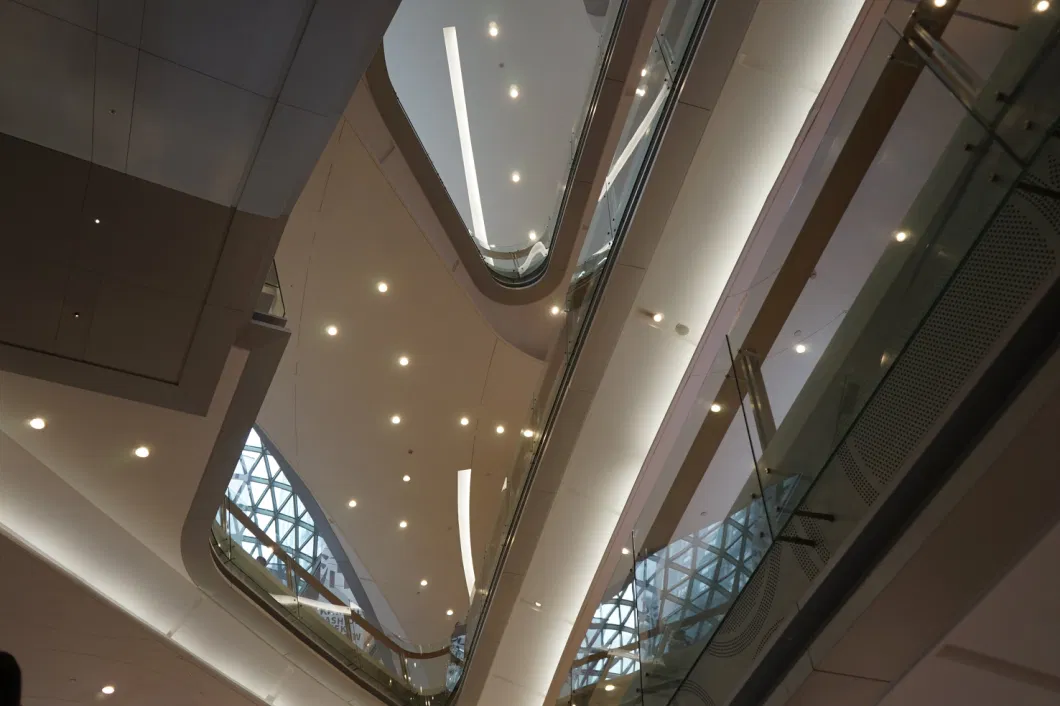

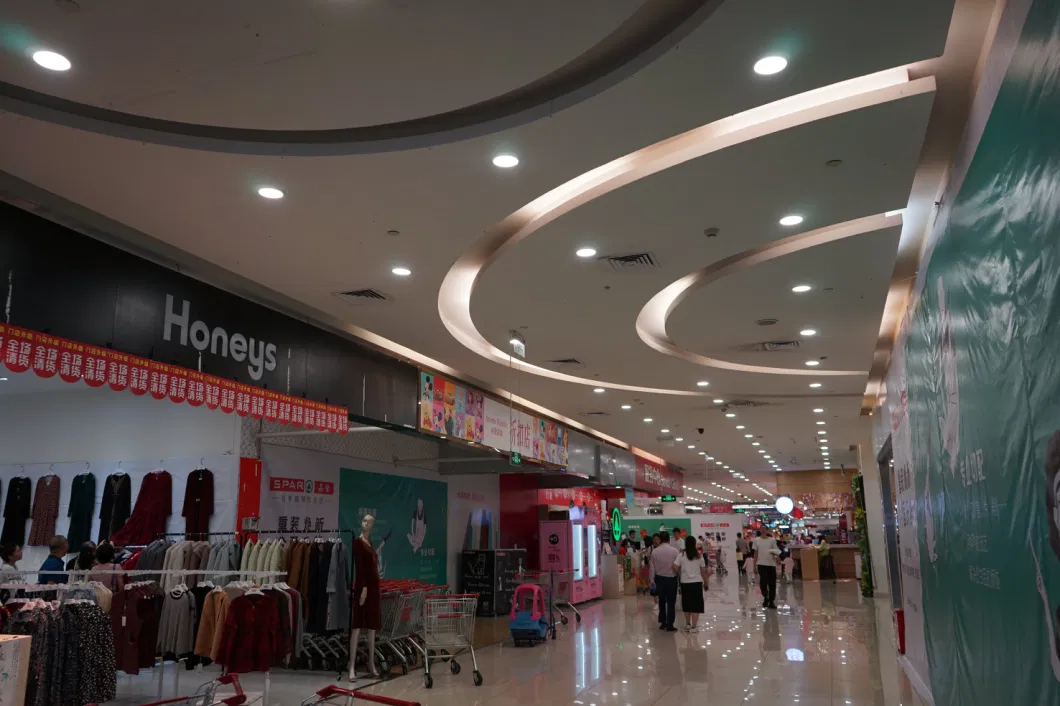

Application

LED downlights are widely utilized in a variety of indoor settings, including residential, commercial, public, and industrial spaces. They offer efficient and reliable lighting solutions for a range of environments such as living areas, bedrooms, kitchens, offices, retail stores, restaurants, hotels, schools, libraries, hospitals, warehouses, and factories. LED downlights are favored for their energy efficiency, extended lifespan, and adaptability. They can be tailored to deliver various light colors, brightness levels, and beam angles, ensuring they meet diverse lighting requirements.

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas



Packaging & Shipping

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas




Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

Certifications

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

Company Profile

Factory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public AreasFactory Price 7W 12W 20W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

About Us
We are a factory specializing in the production of LED lights for a wide range of indoor and outdoor applications. Our product portfolio includes LED downlights, LED panel lights, LED wall lights, LED tube lights, LED spotlights, LED track lights, LED ceiling lights, LED high bay lights, LED tri-proof lights, LED flood lights, LED high mast lights, LED stadium lights, LED street lights, LED garden lights, and LED explosion-proof lights. These products are widely installed in various large-scale lighting applications, such as farms, factories, schools, bridges, tunnels, ports, subways, airports, mines, hospitals, and more.
With a focus on LED lighting, we have gained expertise in producing and exporting high-quality LED light fixtures to over 132 countries in Asia, Europe, North America, Latin America, and the Pacific Ocean islands. Our LED lights are manufactured under the ISO9001 system, and our professional team ensures efficient management throughout the production process. We hold certifications such as CE, CB, ENEC, RoHS, CSA, UL, SAA, and REACH, which are accredited by reputable organizations like SGS or TUV, depending on the LED light family.
At MF, our dedicated R&D team is driven by passion, persistence, and technological expertise. Our engineers meticulously develop our LED lights, paying attention to even the smallest details. Our goal is to provide high-quality LED lighting solutions by combining our visionary approach with in-depth knowledge. We firmly believe in the power of lighting to enhance the quality of life and work for users worldwide. As a team, we understand that "LIGHTS THE WORLD" is not just a slogan but a commitment that we strive to fulfill through our hard work, day by day.
