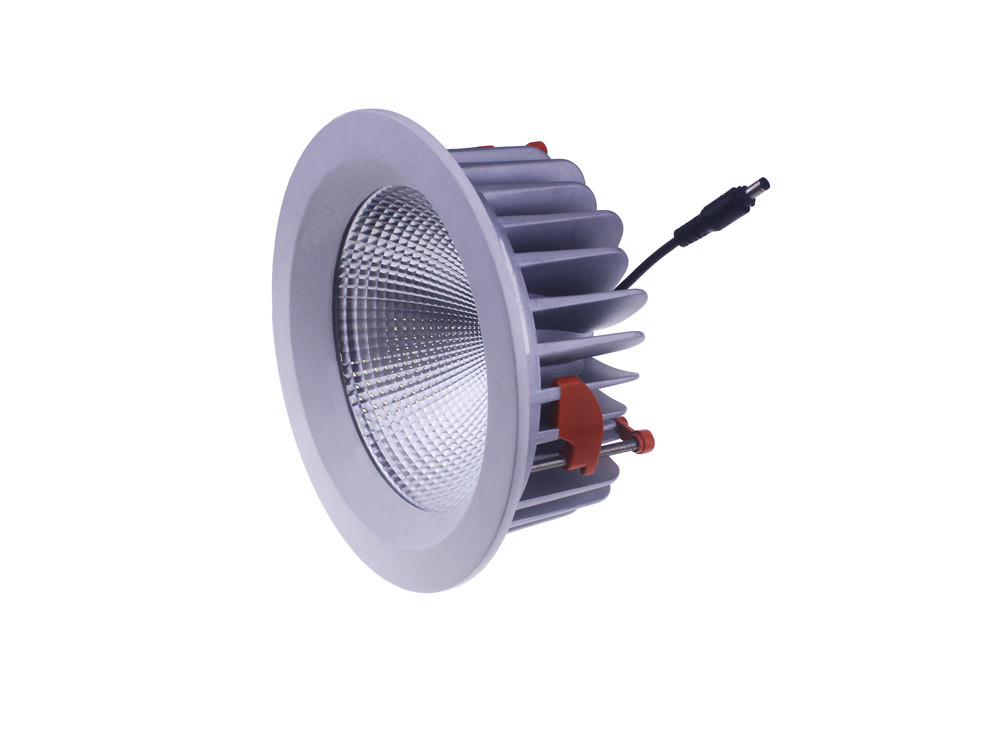

30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting

China 30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting supplier
30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting supplier 30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting supplier 30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting supplier 30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting supplier

Large Image :  30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting

Product Details:

Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-E500162

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: factory price
Packaging Details: 44*42.5*32.5cm/12pcs, G.W: 15.3KG
Delivery Time: 1 week for sample order, 2 weeks for mass order
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 10,000pcs/Month
Contact Now
Detailed Product Description
Power: 30W Input: 100-240Vac, 50/60HZ
Luminous Flux: 3400lm @3000K, 3500lm@4000K, 3600lm@5000K Waterproof Grade: IP65
Beam Angle: 40° CCT: 3000K / 4000K / 6000K
LED Brand: COB CREE LED Driver: IP67 MEAN WELL LED Driver
Dimmable: Triac Dimmable House Color: White RAL9003
CRI: >85 UGR: <19

30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting

30W Waterproof IP65 dimmable LED Down light Spec download: MF-E500162 Spec--22W & 30W.pdf


Detail Paramters:

Input voltage 220-240Vac, 50hz/60hz
Product Size D186*90mm
Cut out Size 162mm
Power(watt) 22W/30W
Color temperature 3000K / 4000K / 5000K
LED Chip Cree COB/ Epistar COB
LED Driver Lifud (IP44) / Meanwell (IP65)
PF ≥0.90
Housing Colour White RAL9003
Luminous Flux (lm)

22W: 1870lm@3000K, 1900lm @4000K, 2100lm@5000K

30W: 2550LM@3000K, 2600LM@4000K, 2700LM@5000K

CRI(Ra) 83
Lifespan 50000hrs
Beam Angle 40°
Material Aluminum
Operating Temperature -200C ~500C
Dimmable Available
Protection grade IP20, IP44, IP65 for optional
Certificate CE/ RoHS
Warranty Period 5 years





30W Waterproof IP65 dimmable LED Down light main features:


1. Use the latest high-efficiency COB CREE CXA2520 leds, make the light output efficiency up to 100-120LM / W, color rendering index up to more than 85.



2. Using certified TUV,ETL, FCC, CE, ROHS Taiwan brand MEANWELL IP67 waterproof power supply, stable performance, power factor up to 0.95 and above. Set the stability working environment for the 30W Waterproof IP65 dimmable LED Down light and keep long lifetime. At the same time IP67 MEANWELL LED driver effectively ensure the waterproof rating of the lamp reaches IP65.


3. High reflectivity materials reflector imported from Japan, reflectivity up to 95%.



4. Cover: UGR <19 transparent glass cover, effectively ensure the visual comfort.


5.  International standard RAL9003 dusting white for housing, high-end atmosphere, beautiful. At the same time can be customized color too.


6. the spring, screw corrosion-resistant, anti-rust treatment, solid to support the lamp weight.


7. High quality die-cast aluminum material heatsink, which provides a stable working environment for LED light source, enhances the use of lamps and lifespan, and ensures long-term reliable performance of lamps.

8. Excellent and  easy to install IP67 waterproof male and female connector. To make sure the 30W Waterproof IP65 dimmable LED Down light can reach IP65 degree of protection and meet outdoor use.


Waterproof IP65 dimmable LED Down light accessories:



A. Waterproof Wire Connector

B.Waterproof End Cap

C. Waterproof Power Supply

D. Waterproof Silicone Ring

E. Waterproof housing design



 Waterproof IP65 dimmable LED Down light family with different size, different watt for choose.
30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting



Waterproof IP65 dimmable LED Down light Package:



30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting



Waterproof IP65 dimmable LED Down light Application:



30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting  30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting

30W Waterproof IP65 dimmable LED Down light, round/square,bathroom and outdoor lighting
