Modern Indoor Decoration Lighting LED Spot Down Light 5W-80W Square Circle Trim Hotel Room Corridor
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
|Minimum Order Quantity :||100PCS||Price :||Ex-work, FOB|
|Packaging Details :||54*34*38.5cm/24pcs, G.W: 16.7KG||Delivery Time :||2 Weeks|
|Payment Terms :||T/T, Western Union, Paypal, L/C||Supply Ability :||10,000pcs/Month|
|Place of Origin:||China||Brand Name:||MF|
|Certification:||CE, RoHS||Model Number:||MF-300F098|
|Beam Angle:||80°||Dimmable:||Triac Dimamble/ 1-10V Dimmable / DALI|
|Input:||220-240Vac, 50/60Hz||LED Brand:||Epistar / Samsung Chip|
|LED Driver:||IP65 Meanwell||Lifespan:||>50000Hrs|
led down lighting,
led down light fixtures
7W / 9W LED Ceiling Lighting , Exterior Downlights Meanwell Driver+ Samsung Leds
|Input voltage||220-240Vac, 50hz/60hz|
|Cut out Size||￠98mm|
|Color temperature||3000K / 4000K / 6000K|
|LED Chip||Samsung/ Epistar|
|LED Driver||Lifud (IP44) / Meanwell (IP65)|
|Housing Colour||White RAL9003|
|Luminous Flux (lm)||
7W: 545lm@3000K, 600lm@4000K, 700lm@5000K
9W: 765lm@3000K, 800lm@4000K, 900lm@5000K
|Operating Temperature||-200C ~500C|
|Warranty Period||3 years|
A: Installation Clip: The installation clip has under gone a special treatment to give it an excellent corrosion resistance in order to effectively support the light.
B: Connector: An IP67 waterproof rating ofthe connector raisesthe level of lighting protection, though the standard choices include IP65, IP44 and IP20 levels of protection based on different usage situtions.

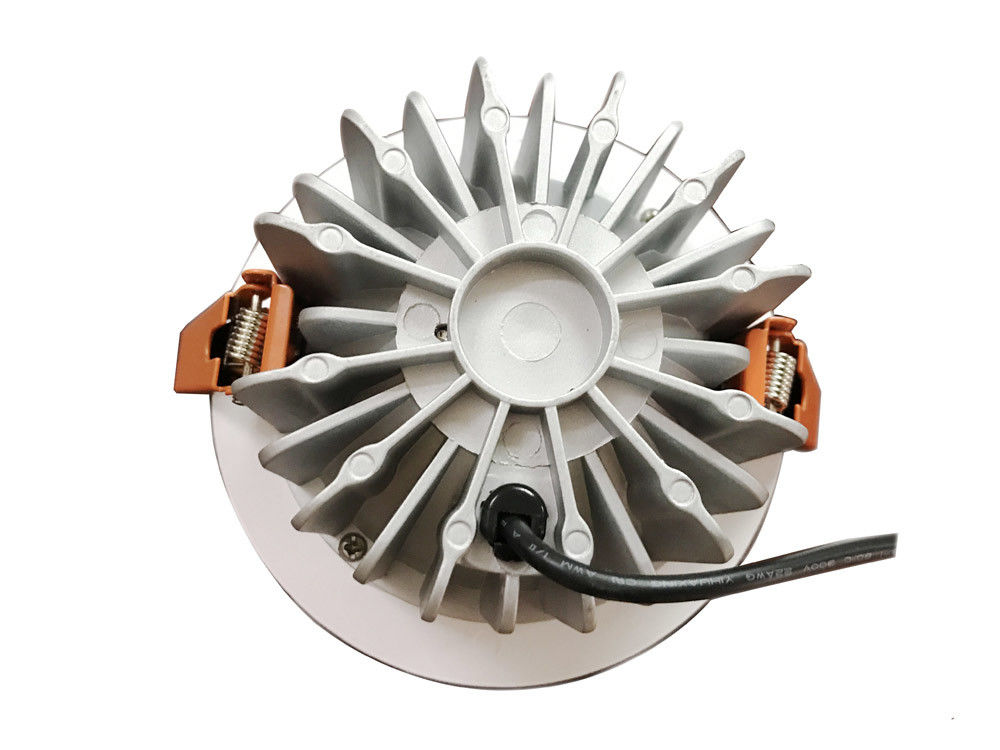

C: Radiator: The high quality die-cast aluminum material used on the radiator offer the led light source with a stable operation environment, thus ensuring long term and reliable operations.
D: MCPCB: A highly heat conductive aluminum masterial is used that is highly pressure resistant.
E: Light Source: We use the latest SAMSUNG or Epistar light emitting diode, which ensures light aberrations are as small as possible, with a color rendering which ensures the accordance of aberration of light. The color-rendering index can even be more than 85.
F: Reflective lamp cup: The highly reflective material used for the reflective lamp cup ensures a large outputwith soft fiber optics.
G: Mist surface acrylic or glass cover: There covers ensure the light that is emitted is done so in a uniform, soft and non-glaring manner.
H: Lamp shell cover ring: The sheel cover ring meets RAL9003 standards.It is sprayed in a layer of white paint to make it pleasing to the eye, though we offer different color options base on customer requirements.
I: Driver: We use Japanes LIFUD power supply or Taiwanese MEANWELL waterproof power supplies, offering a power factor of more than 0.95.
