|Luminous Flux:||12W: 900lm@3000K, 1000lm@4000K, 1100lm@5000K||IP:||IP20/IP44/IP65 Options|
|Beam Angle:||40°||Dimmable:||Triac Dimamble/ 1-10V Dimmable|
|Input:||220-240Vac, 50/60Hz||Product Size:||D135*70mm|
|Cut Out Size:||￠113mm||Warranty Period:||5 Years|
dimmable led downlights,
cob led downlights

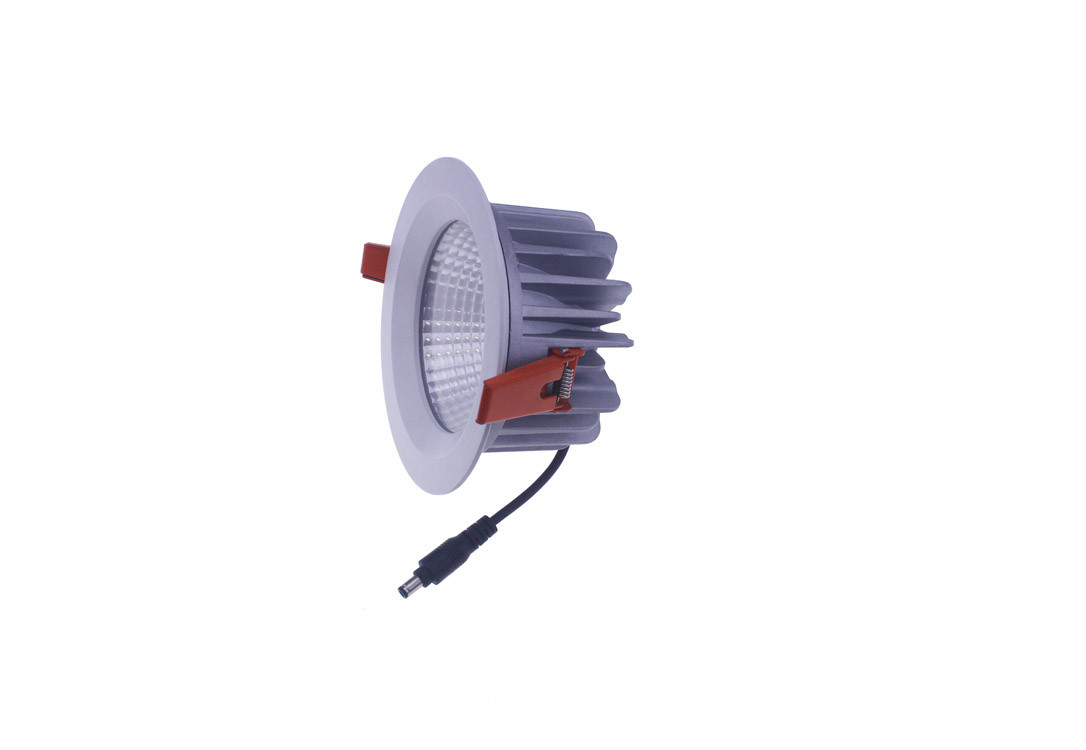

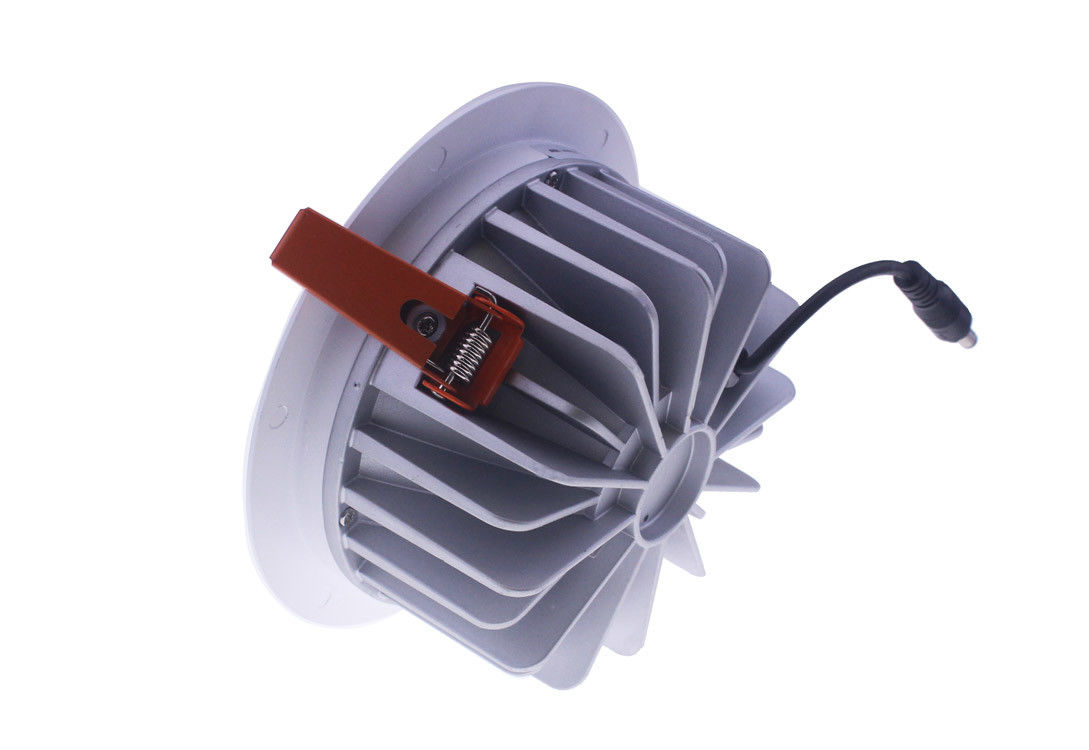

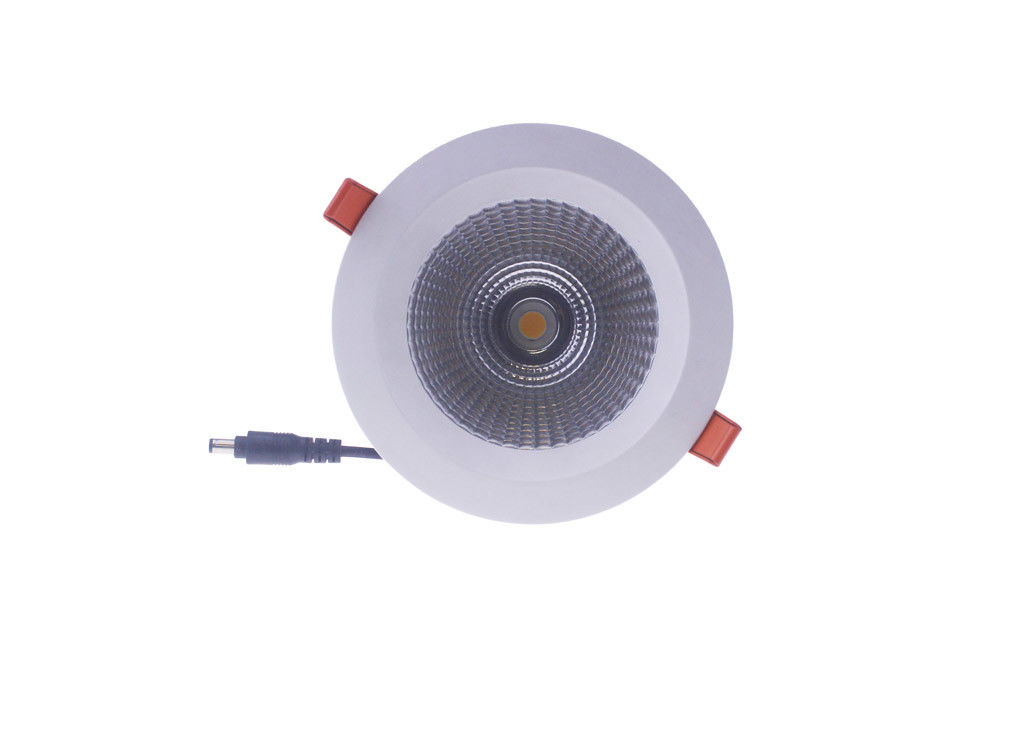

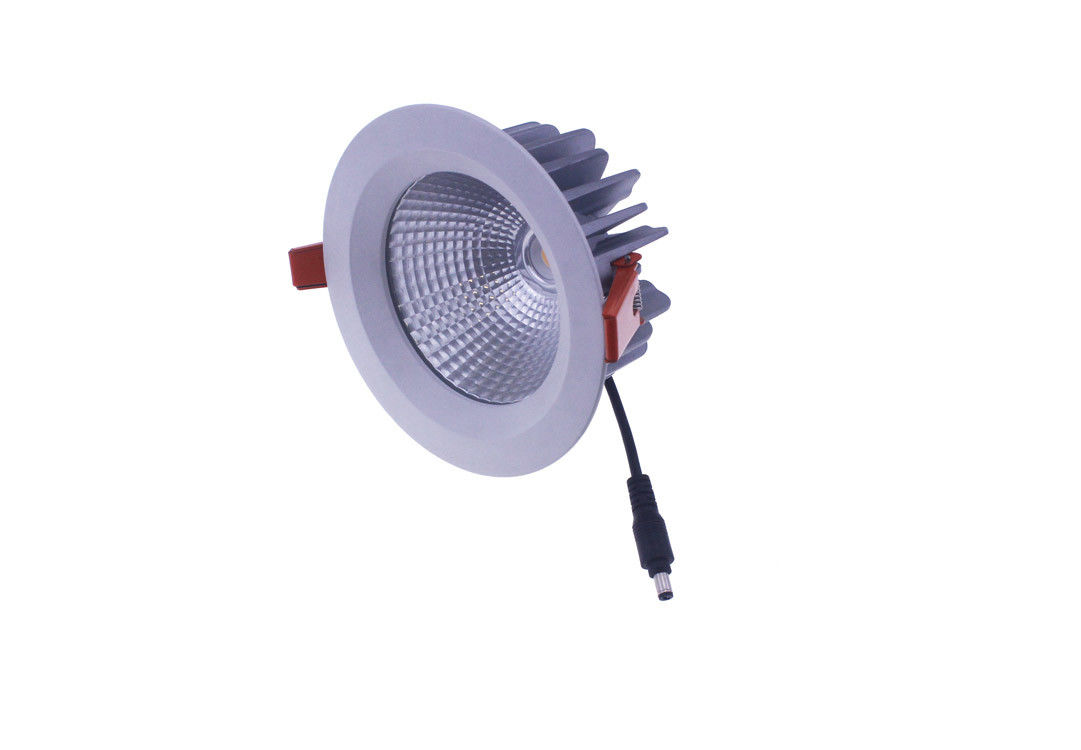

White 12W /16W IP65 Dimmable LED Down Lights 120lm Per Wattage 3000K / 4000K / 6000K
MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality Dimmable LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng Dimmable COB led down lights is the most comprehensive architectural LED downlights in the market to replace CFL downlight, power are 12W/16W/22W/30W/40W/50W, Luminous Flux efficiency up to 90lm/w,Also CRI>80 is available, the whole series provide a collection of intelligent led lighting solutions,
A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, Dimmable LED DOWN LIGHTS maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.
Mingfeng Lighting Co. is a professional LED light manufacturer established in 2009. Our product lines include LED grow lights, LED flood lights, LED industrial high bay lights, LED panel lights, and waterproof LED indoor down lights. All of our products are designed for large-scale lighting systems used in farms, factories, schools, bridges, tunnels, harbors, airports, and many more applications.
The E esries of waterproof led ceiling down lights are widely used in schools, hospitals, offices, shopping malls, social gathering areas, bathrooms and other stores for a bright, welcoming appearance.
Technical Parameters: MF-E350113 Spec -12 & 16W.pdf
|Input voltage||220-240Vac, 50hz/60hz|
|Cut out Size||￠113mm|
|Color temperature||3000K / 4000K / 6000K|
|LED Chip||Cree COB/ Epistar COB|
|LED Driver||Lifud (IP44) / Meanwell (IP65)|
|Housing Colour||White RAL9003|
|Luminous Flux (lm)||
12W: 900lm@3000K, 1000lm@4000K, 1100lm@5000K
16W:1300lm@3000K, 1400lm@4000K, 1500lm@5000K
|Operating Temperature||-200C ~500C|
|Warranty Period||5 years|
3", 3.5", 4"
5", 6", 8"
Light Source: We Utilize the latest technology in highly efficient COB CREE light emitting diodes. The output efficiency ranges between 100 to 120lm/w, with a color rendering index reaching upwards of more than 85.
Power Supply: We use Japanes LIFUD power supply or Taiwanese MEANWELL waterproof power supplies, offering a power factor of more than 0.95. This power supply also features a stable quality that extends the service life of the light.
Reflection ring: This ring is made of a highly reflective material with a reflectivity of more than 95%.
Contact Person: Claire Li
