5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition

Certification
China Ming Feng Lighting Co.,Ltd. certifications
China Ming Feng Lighting Co.,Ltd. certifications
Customer Reviews
I have been working with MF-Claire for the past 6 months,Miss Claire have shown full cooperation and professional action all over this period, and we are so happy for dealing with her and MF company.

—— Ing. Ibrahim Amer-Spain

Hi Claire that's perfect thanks again, I will spread your name far and wide among the UK growing community! You've been a lot of help.

—— Tom Strichen---UK

It was a great experience having an opportunity to work with such a professional supplier like MF and having received finest services from you.

—— Shashi

I need more your 60pcs 200W Pionner led grow lights , This lamp work good for my flowers

—— Richard

MF is a reliable supplier of LED lighting products. I have known her and buy from the factory since 2009.

—— David Hale--USA

Professinonal across the MING FENG LIGHTING CO,.LTD company featured with best people such as Allen. I'm impressed!

—— Florian--UK

I must thanks a lot for MING FENG team, without their great support, especial the EXCELLENT DIALUX SIMULATION we can't win the parking lot project.

—— Ricardo--Brazil

I really would like to work with MING FENG, their professional service on the lighting solution and reliable products help me win much market!

—— Thierry Baron--UK

I'm Online Chat Now

5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition

5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition
5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition 5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition

Large Image :  5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-HCSL-5C/7C/10C/12C
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 75*50*24cm/10pcs, G.W: 16.6KG
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 10,000pcs/Month

5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition

Description
Power: 5W/7W/10W/12W Luminous Flux: 425-900lm
Beam Angle: 24° CRI: >83 And >90
Warranty: 3 Or 5 Years Optional LED Brand: CREE/Epistar
Cut Out :: ¢75-80MM ¢95-105MM ¢95-105MM ¢115-120MM Normal Voltage :: AC 200-240V
High Light:

cob led downlights

,

recessed led downlights





5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition



Quick Detail:

  1. COB LED Down Light
  2. Input: AC 200V-240V, 50/60Hz
  3. Luminous Flux: 425-900lm
  4. CRI: >80 and >90
  5. Beam Angle: 240
  6. Lifespan: ≧40000Hrs
  7. IP: 44
  8. Dimmable: Yes



Description:



Company profile:



Ming Feng Co.,Ltd, established in 2000, more than 10 years rich experience.

Factory has more than 100 workers.



Product range:



LED indoor light: LED spot light, LED bulb, LED tube, LED down light, LED ceiling light, LED track light, LED table light and LED panel light.



LED outdoor light: LED flood light, LED high bay light, LED street light, LED tunnel light and LED gas station light.



Website:



http://www.mingfeng-lighting.com

http://www.mf-ledlights.com

http://www.growlights-mf.com



MingFeng COB led downlights and spot lights are the most comprehensive architectural LED downlights in the market to replace CFL downlight, Cut out are D95*H46 , D115*H59 , D115*H59, D138*H73, power are 5W/7W/10W/12W, Luminous Flux efficiency up to 100lm/w, Also CRI>90 is available, the whole series provide a collection of intelligent led lighting solutions.



 A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, COB LED DOWN LIGHT maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.


Specifications:


Model No

MF-HCSL-5C/7C/10C/12C

Input voltage

200-240Vac/220Vac, 50hz/60hz

Power(watt)

5W/7W/10W/12W

Dimension

D95*H46 D115*H59 D115*H59  D138*H73

Color temperature

2700/3000/4000/ 5000K

LED Chip

CREE/Epistar

PF

>0.92

Housing Color

Matt White(RAL9003)

Luminous Flux (lm)

425-900lm

CRI(Ra)

≥80 and >90

Lifespan

≥40000hrs

Beam Angle

24 Degree

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

Y

IP

44

Dimension Single Package

230x145x200mm

Certificate

CE/RoHS

Warranty Period

3 /5 years




Competitive Advantage:



  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output CREE COB LED Chips.
  3. Super high efficiency, up to 500LM/680LM/850LM/980LM .
  4. 30 degree flood beam angle, soft light effect.
  5. Excellent reflector, complete visual comfort.
  6. IP44 design suitable for damp environment.
  7. Both CRI>80 and CRI>90 for option.
  8. Kn<10 driver, reliable performance.
  9. Smooth dimming on most dimmers.
  10. Life to 70% lumen maintenance, 45,000 hours.
  11. High power factor>0.92.
  12. 3 or 5 years guarantee.

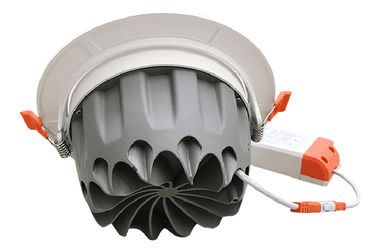

COB LED DOWN LIGHT SHOW:



5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition 0

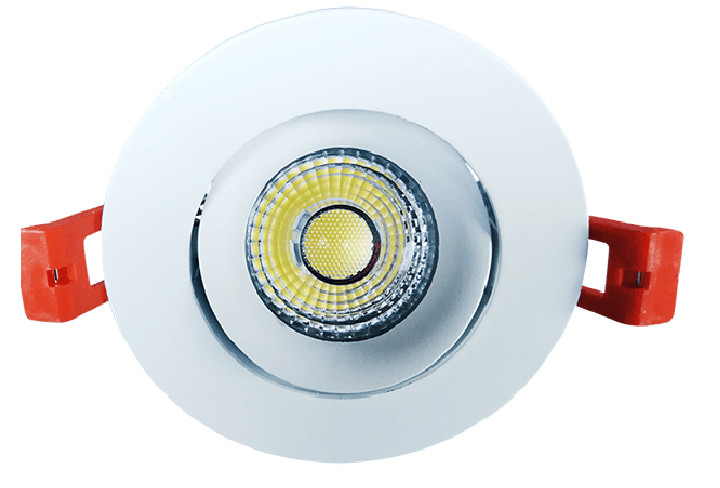

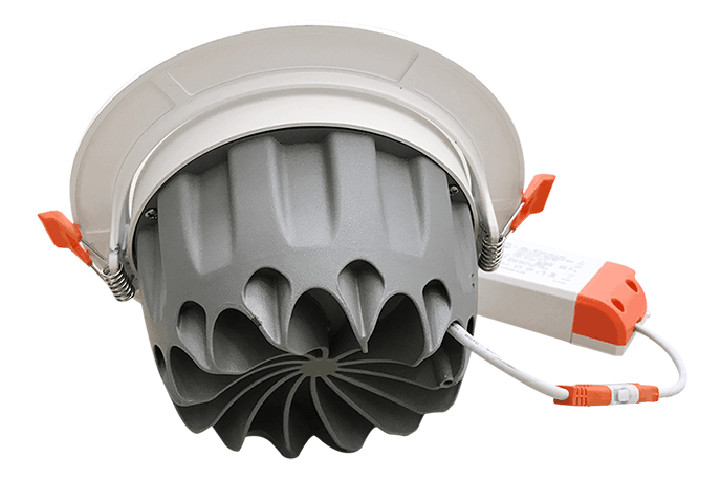

COB LED DOWN LIGHTS:



5W / 10W / 12W Epistar COB Curved LED Down Lights Dimmable Kitchen Spot Lighting For Exhibition 1


Applications:


1. Conference/Meeting rooms, Classrooms

2. Hospital , Schools

2. Offices, Factories

3. Hotels, Offices or other Commercial Complexes

4. Residential/Institution Buildings

5. Places where energy saving and high color rendering index are needed





FAQ:

Q: 1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q: 2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 5-7 days for order quantity below 500pcs..



Q: 3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample cheking is available



Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, Fedex or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
