20 Watt Rotatable LED spotlight ceiling light, 15° , 24° , 38° beam angle

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 56.5*39.5*31.5cm/18pcs, G.W: 16.3KG Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal, L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF- TD805F

Detail Information

Power: 20W/28W/32W Luminous Flux: 100lm/w
Beam Angle: 15 Degree , 24 Degree, 38 Degree IP Grade: IP20
CRI: >83 Warranty: 3 Or 5 Years Optional
LED Brand: COB CREE PF: >0.92
CCT: 3000K /4000K /5000K/ 6500K
High Light:

led ceiling lights

,

recessed led light

Product Description



20W Recessed Aluminum COB Ceiling Down Lights lamp head adjustable



Description:

MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality COB LED downlights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng COB led downlights is the most comprehensive architectural LED downlights in the market to replace CFL downlight, Cut out are 93mm, 125mm, 165mm, 195mm power are 9W / 15W / 22W /
30W

Luminous Flux efficiency up to 85lm/w, Also CRI>80 is available, the whole series provide collection

of intelligent led lighting solutions,

 A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, COB LED DOWN LIGHT maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.


Specifications:
COB Ceiling Down Lights


Model No

MF- TD805F

Input voltage

200-240Vac/220Vac, 50hz/60hz

Power(watt)

20W/28W/32W

Dimension

Product Size: Dia160    Cutting hole size: 150mm-155mm

Color temperature

3000K/4000K/5000K/6500K

LED Chip

citizen 1204C4

PF

>0.92

Housing Color

Matt black

Luminous Flux (lm)

2000lm/2800lm/3200lm

CRI(Ra)

≥83

Lifespan

≥40000hrs

Beam Angle

15° , 24° , 38°

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

Y

IP

20

Certificate

CE/RoHS

Warranty Period

3  years or 5 years




Competitive Advantage:
COB Ceiling Down Lights



  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output CREE COB LED Chips.
  3. 15 degree, 24 degree and 38 degree flood beam angle, soft light effect.
  4. Excellent reflector, complete visual comfort.
  5. IP20 design suitable for damp environment.
  6. CRI>80.
  7. Smooth dimming on most dimmers.
  8. Life to 80% lumen maintenance, 45,000 hours.
  9. High power factor>0.92.
  10. 3 or 5 years warranty.

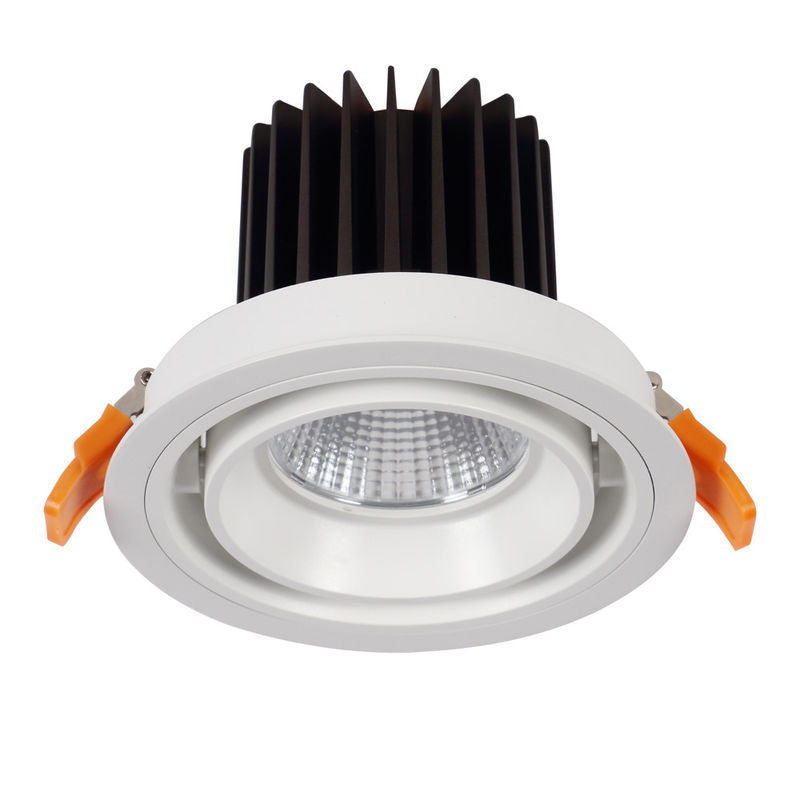

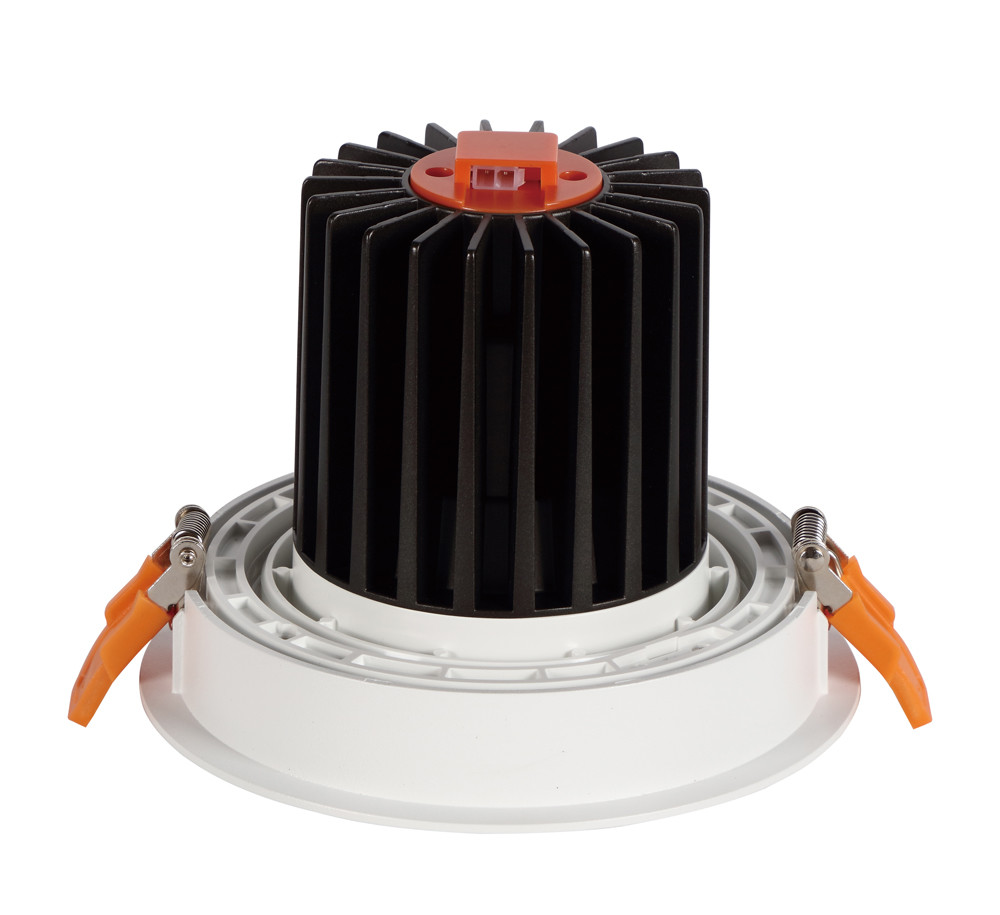

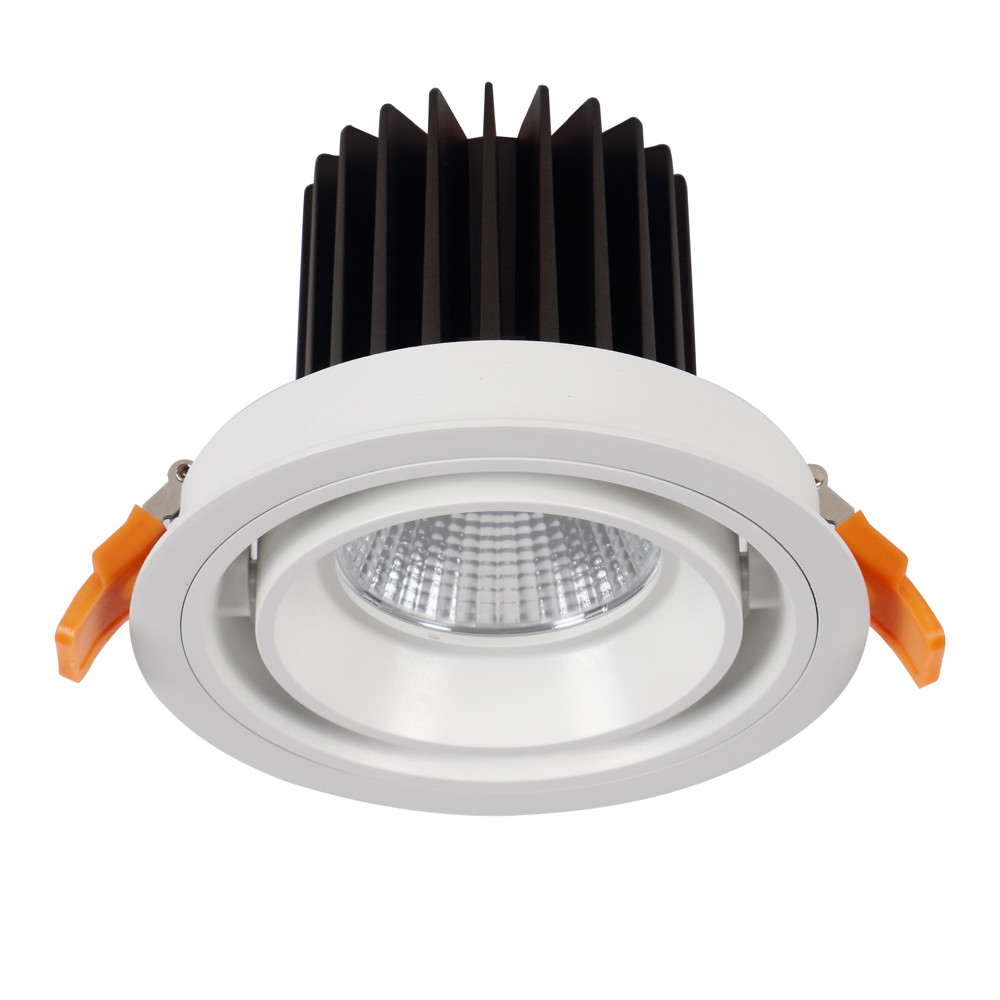

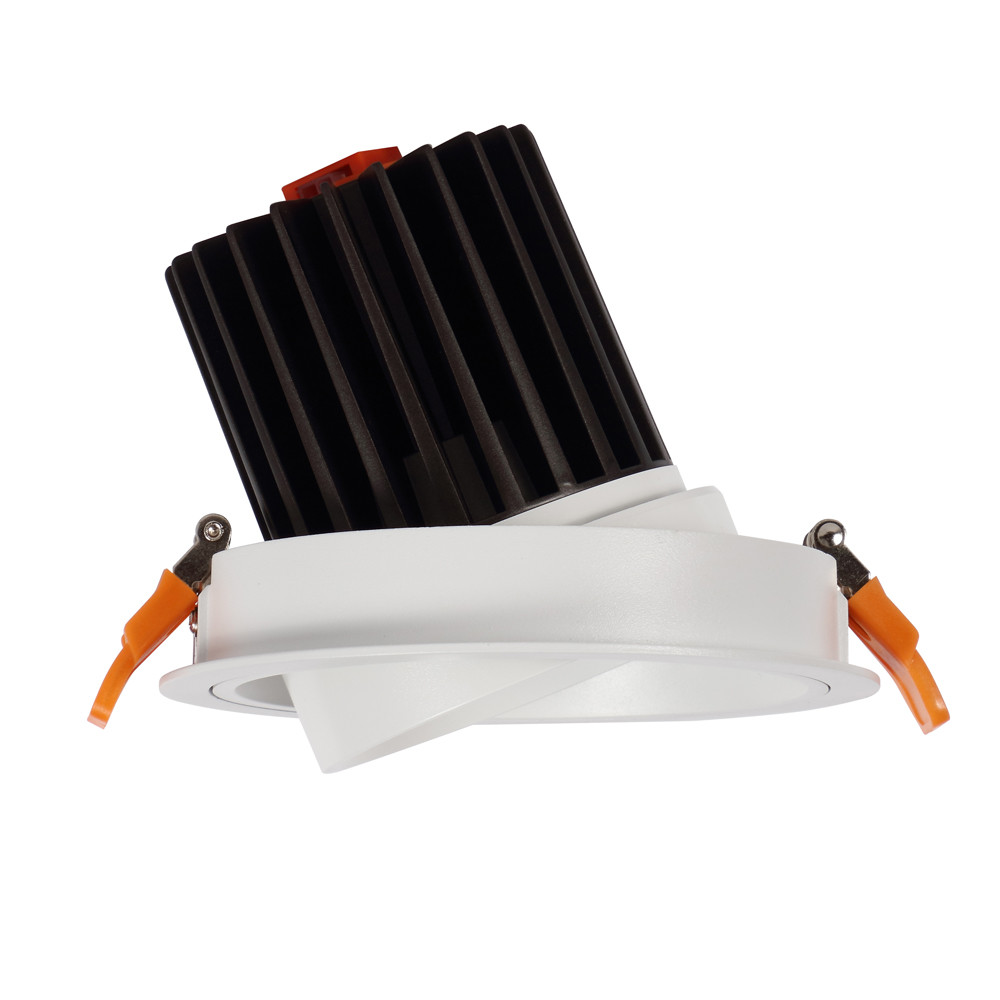

COB LED DOWN LIGHT SHOW: COB Ceiling Down Lights



20 Watt Rotatable LED spotlight ceiling light, 15° , 24° , 38° beam angle 0

20 Watt Rotatable LED spotlight ceiling light, 15° , 24° , 38° beam angle 1

20 Watt Rotatable LED spotlight ceiling light, 15° , 24° , 38° beam angle 2




Dimension: COB Ceiling Down Lights



20 Watt Rotatable LED spotlight ceiling light, 15° , 24° , 38° beam angle 3




Packing Information : COB Ceiling Down Lights



20 Watt Rotatable LED spotlight ceiling light, 15° , 24° , 38° beam angle 4



Applications:
COB Ceiling Down Lights



Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.



20 Watt Rotatable LED spotlight ceiling light, 15° , 24° , 38° beam angle 5

20 Watt Rotatable LED spotlight ceiling light, 15° , 24° , 38° beam angle 6
