IP65 Dimming LED Linear High Bay Lighting

IP65 Dimming LED Linear High Bay Lighting
IP65 Dimming LED Linear High Bay Lighting IP65 Dimming LED Linear High Bay Lighting

Large Image :  IP65 Dimming LED Linear High Bay Lighting

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE,RoHS
Model Number: MF-HB200W-K1 / MF-HB250W-K1
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: FOB/Ex-work Price
Packaging Details: 130*21*18cm/1pcs, N.W: 8KG, G.W: 8.5KG
Delivery Time: 7-10 days delivery time
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs/Month

IP65 Dimming LED Linear High Bay Lighting

Description
Lamp Name:: Warehouse High Bay Fixtures Function:: Daylight Sensor,Microwave Sensor, DALI Dimming Control System
Dimming :: Yes, Available Warranty: 7 Years
IP Rating: IP65 Beam Angle: 60°/90°/ 120°
Application:: Warehouse, Commerce, Factory And So On PF: >= 0.95
High Light:

led highbay lights

,

ufo high bay lights


IP65 Dimming LED Linear High Bay Lighting



Description:





Warehouses, factories, and other industrial facilities have always relied on high bay lighting to provide bright light to large spaces. Now, MF offers an all-in-one solution to these lighting applications. The LED Linear High Bay fixtures provide high quality, bright light while cutting out the maintenance costs of lamp and ballast replacements.



Optional wire guards are available to ensure added safety. Various mounting option and optical sensors are also available.
Suitable for suspension by rope, surface-mounting (bracket sold separate), pole mounting (bracket sold separate).



FEATURES AND BENEFITS:



  1. 0-10V Dimming standard
  2. Wire guard available for additional protection
  3. Optional Motion sensors available
  4. High efficiency – 170 lm/w and up
  5. Low energy consumption
  6. Resistant to high and low temperatures
  7. Suspended luminaire
  8. 7-year limited warranty





Specifications:
IP65 LED Linear High Bay Lights



Item Code: MF-HB200W-K1 MF-HB250W-K1
Power: 200W 250W
LED quantity : SMD3030 (308pcs) SMD3030 (308pcs)
Lumens : 34000lm 42500lm
Dimension: 1190*122*95MM 1190*122*95MM
Input Voltage: AC200-277V , AC90-305V, AC180-528V
CRI :  >70Ra
Beam Angle : 60°/90°/ 120°
Operating Temperature: -40℃ to 55℃
Lens Material: Clear / Frosted PC
Housing Material: Aluminum
Mounting: Pipe, Ceiling,Suspend mounts
IP Range : IP65
Material Usage: UL CB SAA Compliant,no mercury
Environment : Indoor , outdoor, Dry/Wet location





Unique Advantage : IP65 LED Linear High Bay Lighting



1. Milky Lens and Transparent Lens Available.

    View Angle 60° 90° 120° available

     Milky Lens : Light did not glare but warm , always in pression.

     Transparent Lens: Transparent Lens transmittance over 90%



2. IP rating IP65

   Use silicon rubber ring sealing process, IP grade reach IP65, completely prevent dust invasion and heavy rain.



3. Perfect Heat Dissipation

   Large and broad radiating plate have excellent thermal performance , meet the requirement of professional light distribution;High pressure die-casting process made this reflector strong, it has been processed by electrophoretic paint,and passed the 200hours salt spray test.



4. Custom Screw

    Allen screw firm properly than cross screw, inside the hexagon not easy to slip but operate easily, very convenience to loose and tighten.



IP65 Dimming LED Linear High Bay Lighting 0

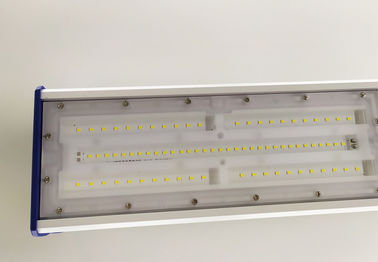

IP65 LED Linear High Bay Lights Photo show :



IP65 Dimming LED Linear High Bay Lighting 1





Installation Instruction



IP65 Dimming LED Linear High Bay Lighting 2





Packing Information :



IP65 Dimming LED Linear High Bay Lighting 3





Application :


Widely used in Factory , Workshop , Warehouse, Logistics Center Exhibition Hall, Gymna-sium, Shipyards,Mining, Gas Station, Supermarkets,etc.
