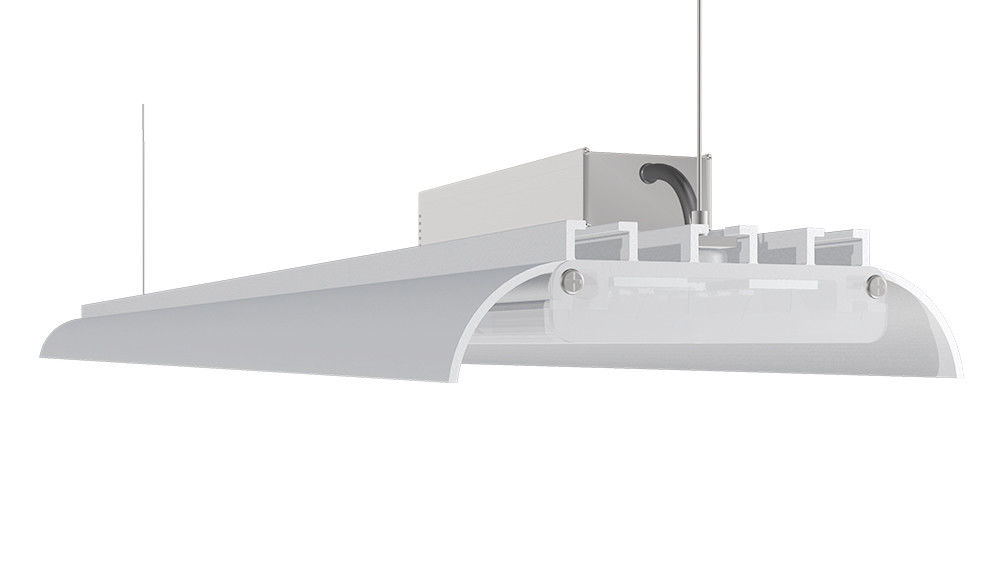

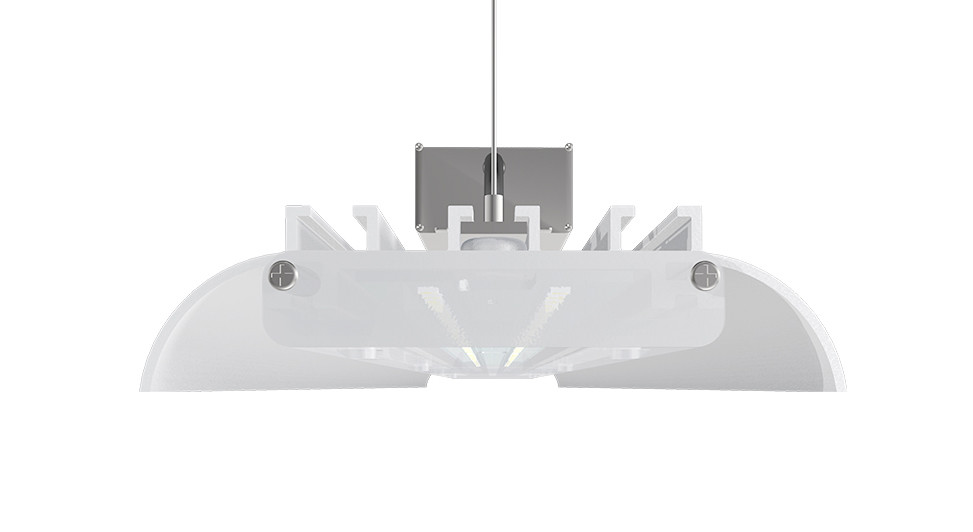

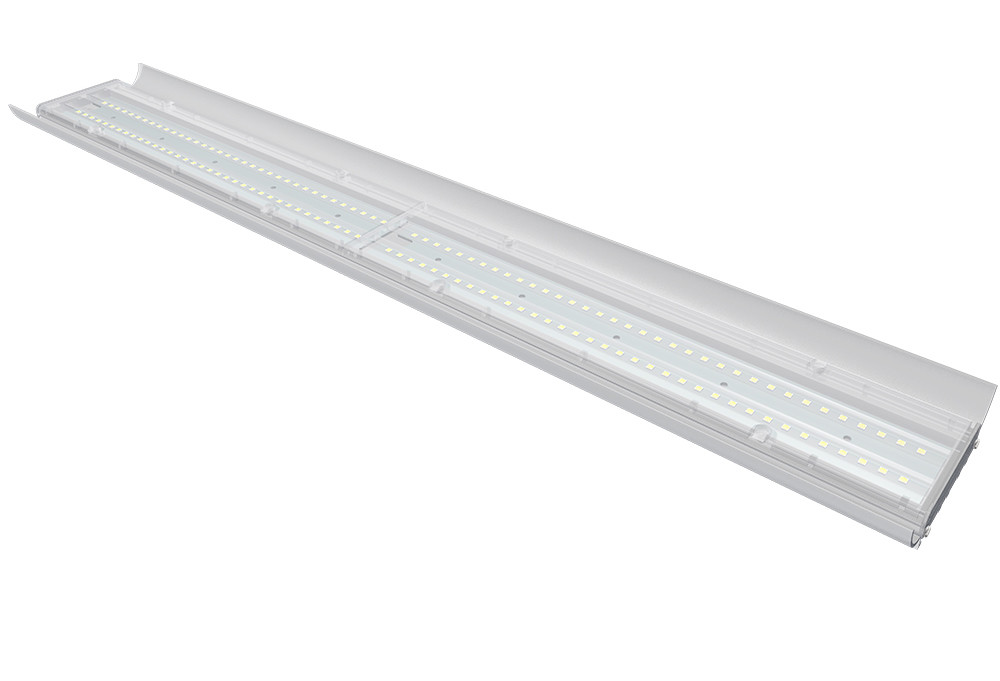

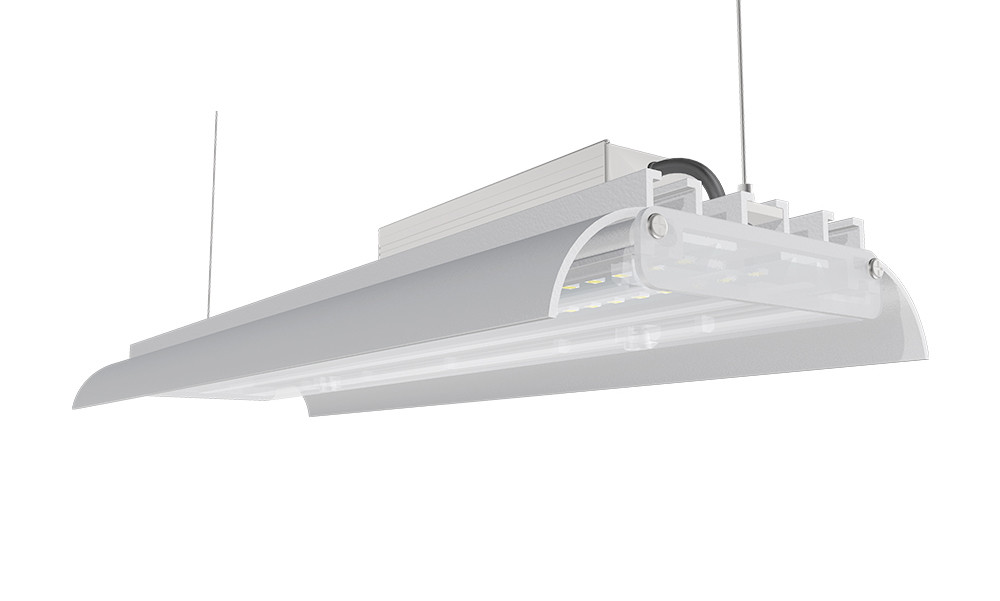

120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY

Certification
China Ming Feng Lighting Co.,Ltd. certification
China Ming Feng Lighting Co.,Ltd. certification
Customer Reviews
I have been working with MF-Claire for the past 6 months,Miss Claire have shown full cooperation and professional action all over this period, and we are so happy for dealing with her and MF company.

—— Ing. Ibrahim Amer-Spain

Hi Claire that's perfect thanks again, I will spread your name far and wide among the UK growing community! You've been a lot of help.

—— Tom Strichen---UK

It was a great experience having an opportunity to work with such a professional supplier like MF and having received finest services from you.

—— Shashi

I need more your 60pcs 200W Pionner led grow lights , This lamp work good for my flowers

—— Richard

MF is a reliable supplier of LED lighting products. I have known her and buy from the factory since 2009.

—— David Hale--USA

Professinonal across the MING FENG LIGHTING CO,.LTD company featured with best people such as Allen. I'm impressed!

—— Florian--UK

I must thanks a lot for MING FENG team, without their great support, especial the EXCELLENT DIALUX SIMULATION we can't win the parking lot project.

—— Ricardo--Brazil

I really would like to work with MING FENG, their professional service on the lighting solution and reliable products help me win much market!

—— Thierry Baron--UK

I'm Online Chat Now

120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY

120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY
120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY 120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY 120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY 120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY

Large Image :  120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY

Product Details:
Place of Origin: China
Brand Name: MF
Certification: UL,DLC,Premium,SAA,TUV,VEET,CB
Model Number: MF-HB120W-K3
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 127*15*0.8cm/1pcs, G.W: 3.65Kg
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal,L/C
Supply Ability: 10,000pcs/Month

120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY

Description
Power: 120W Luminous Efficacy: 175lm/W
Lumen Output: 21000lm CRI: ≥80Ra
System Efficiency: ≥90% Dimmable: Yes(Optional)
IP Rating: IP44 Lifespan: 100,000+hours
High Light:

led highbay lights

,

ufo high bay lights



120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY



Quick Detail:


Power : 30w,60w,90w,120w

Luminous Efficacy: 175lm/w

Lumen Output : 21000lm

LED Quantity: 196pcs

Dimension : 1183*100*25mm

CCT : 3000K, 4000K, 5000K, 6000K(Custom Option)

CRI : >80Ra

System Efficiency : ≥90%

Input Voltage : AC 100-277V/347V/480V

Power Frequency : 50-60Hz

Output Voltage : DC36-48V

Power Efficiency : >92%

Dimmable : Yes(Optional)

IP Rating : IP44

Lifespan : 100,000+hours

Storage Temperature : -20°~65℃

Operating Temperature : -20°~55℃

Certification : UL, DLC, Premium, SAA, TUV, VEET, CB

Color of housing : White(customized)

Description:



*Sandblasting oxidation treatment on heat sink makes fixture body with better abrasion performance and corrosion resistance.

*Frosted Lens design with soft light Various beam angle of 30°/60°/90° options, and Asymmetric 25°/30°.

*PC transparent/ frosted cover, the overall appearance looks lighter and thinner.

*High lumen 175lm/w 3030 SMD LED Chip

*Power by Meanwell driver.




Specifications:




Model No

MF-HB120W-K3

Input voltage

AC 100-277V/347V/480V

Power(watt)

120W

Dimension

1183*100*25mm

Color temperature

3000K /4000K/ 5500K/6000K

LED Chip

SMD 3030

IP Rating

IP44

Housing Color

White

Luminous Flux (lm)

21000lm

CRI(Ra)

80

Lifespan

≥100000hrs

Beam Angle

30°/60°/90°

Material

Aluminum Alloy + PC

Operating Temperature

-200C ~500C

Dimmable

Y

Certificate

UL, DLC, Premium, SAA, TUV, VEET, CB

Warranty Period

5 years




Competitive Advantage:


1.High lumen efficacy.

2. Unique design makes it different from existing LED linear.

3. 30/30/90/ degree above. It can replace 60W traditional incandescent bulb directly. Save at least 80% energy.

4. Long lifetime 100000Hrs. (Calculated as 8 hours per day, average lifespan 34 years above.)

6. No IR-and UV radiation.





Technical Data:



120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY 0

120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY 1







120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY 2

Package:



120W 175LM/W IK10 DIMMABLE FROSTED LENS TWO SIDE COVER K3 LINEAR LED HIGH BAY 3



Model NO.

N.W/pcs

G.W/pcs

QTY/CTN

N.W/CTN

G.W/CTN

Size/CTN

MF-HB120W-K3


2.6kg

3.2kg

1pcs

2.8kg

3.45kg

124*15*0.8cm





Applications:


Widely use in Factory, Workshop, Warehouse, Logistics Center, Exhibition Hall, Stadium, Gas Station, Supermarket and etc.
