Factory Lighting 50W High Bay Lighting 4400 Lumen With Ra70 LED Lights

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 58.5*58.5*35cm/4pcs, G.W: 7.7Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-HB050

Detail Information

High Light:

led highbay lights

,

ufo high bay lights

Product Description

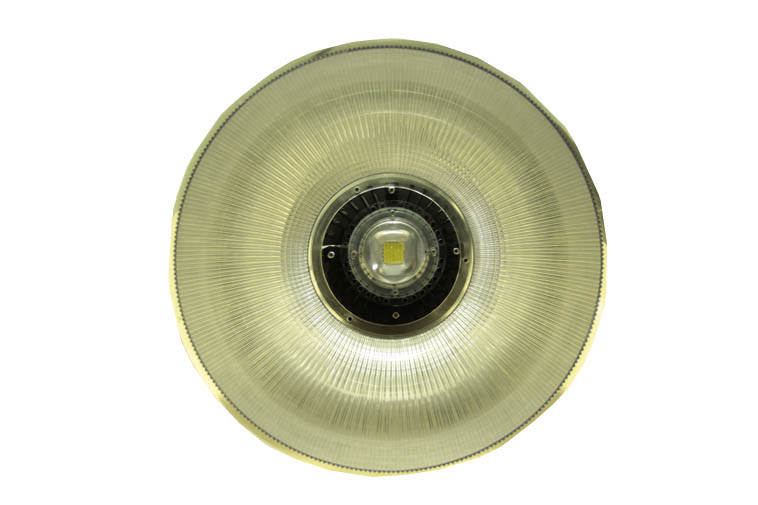

Factory Lighting 50W High Bay Lighting 4400 Lumen With Ra70 LED Lights





Quick Detail:



  1. 50W LED High bay light
  2. Input: AC 85V-265V, 50/60Hz
  3. Luminous Flux:≧4400Lm
  4. Beam Angle:45°,90°,120°
  5. Brand chip: Bridgelux and Epistar
  6. LED Driver: Meanwell
  7. IP:54
  8. Power Factor:>0.9
  9. Reflector: AL/ PC

PC / AL Reflector 50W Ra70 Bridgelux Chip LED High Bay Lighting With 4400LM





Description:



As one of excellent LED lights suppliers in led lighting industry, Ming Feng newly released high bay light series products, which are most completely serialized, low pitched, but powerful in leds lighting industry.



LED high bay light heat dissipation management system is triple effect of heat dissipation and enhancing luminaries performance to elongate lifespan. High vertical illumination, high uniformity of luminance, meet requirements of large space lighting. Plug-play structure is convenient for installation/maintenance. Multiple features of this model such as accurate light distribution, anti-glaring, uniform light color, etc.





Specifications:



Item

MF-HB050

Input voltage

85-265Vac  50Hz/60Hz

LED Power

50W

System Consumption

55W

Delivered Flux

4400lm

IP Rating

IP54

Beam Angle

45°,90°,120°

Color temperature

3000K-6500K

LED Chip

Bridgelux / Epistar

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Lens

Glass or PC

Net Weight

6.6Kg

Certificate

CE/RoHS

Warranty Period

3 years







Competitive Advantage:



1. The heat sinker is using high quality 250*160 mm diameter sun flower pure aluminum, anodic oxidation for the surface heat sinker

2. The anodic oxidation spinning reflector can be separated from the main body part, easy to transport

3. High light transmittance PC cover used upon the LED

4. Using Epistar or Bridgelux COB LED, make the light even

5. 45°,90°and 120°,three beam angles can be optional



Light Distribution Curve:





Factory Lighting 50W High Bay Lighting 4400 Lumen With Ra70 LED Lights 0Factory Lighting 50W High Bay Lighting 4400 Lumen With Ra70 LED Lights 1



Factory Lighting 50W High Bay Lighting 4400 Lumen With Ra70 LED Lights 2





Dimension:



Factory Lighting 50W High Bay Lighting 4400 Lumen With Ra70 LED Lights 3





Applications:





 Wildly use for factory, warehouse, exhibition hall, airport, shopping mall, train station, lobby and so on.
