Mini Dimmable LED Down Lights IP44 LED Spotlight

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-T001Y6
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 51×50×28cm/40 sets, G.W: 15.5KG
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 10,000pcs/Month

Detail Information

High Light:

cob led downlights

,

recessed led downlights

Product Description

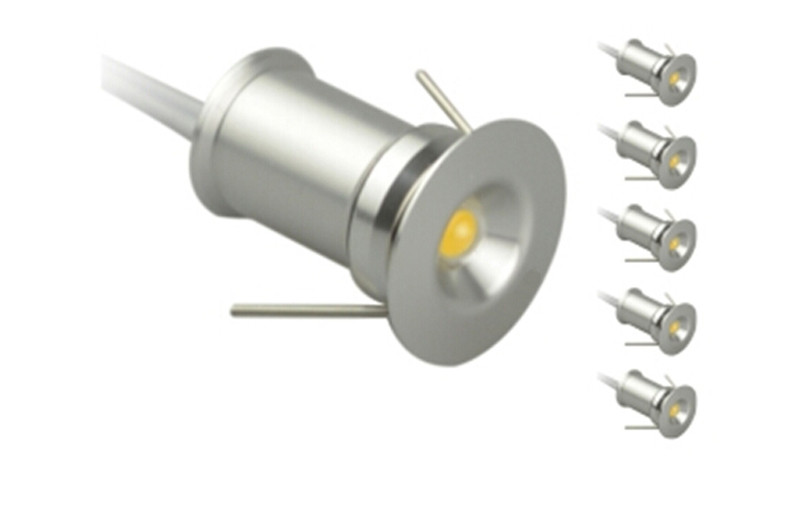

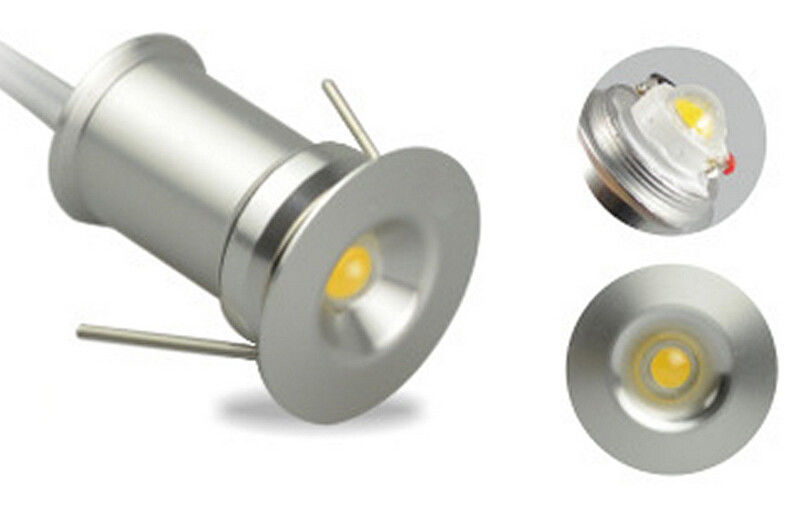

Mini 580 Lumen Mini Dimmable LED Down Lights Epistar Chips IP44 LED spotlight

Quick Detail:

  1. 1W*6pcs/set Mini Dimmable LED Down Light
  2. Input: 85-277Vac, 110/220Vac, 50/60Hz
  3. Luminous Flux:≧850Lm
  4. CRI: >80
  5. Beam Angle: 90°
  6. LED chip: Epistar
  7. IP: 44
  8. Dimmable: Yes



Description:

MingFeng, as a prominent China Mini Dimmable LED down light company, devotes himself to providing high quality Mini Dimmable LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.
Long LED lifespan comes from scientific thermal management. Superior material, heat sink appearance design and the thermology application, not a single one of these can be dispensed with Ming Feng Lighting utilize distinctive highly thermal conductivity material, unique multi-surface and hole designing for heat sink making the air flow fast, which fully taking away the heat and keeping the junction temperature of LED chips very low.


Specifications:


Model No:

MF-T001Y6

Input voltage

85-277Vac, 110/220Vac, 50hz/60hz

Power(watt)

1W*6pcs/set

Dimension

D20*25mm , Cut-size: ¢15mm

Color temperature

Warm White,Pure White,Cool White,Red, Yellow,Blue,Green

LED Chip

Epistar

PF

>0.92

Luminous Flux (lm)

520-580lm

CRI(Ra)

≥80

Lifespan

≥35000hrs

Beam Angle

90°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

Y

IP

44

Dimension Package

245×158×50mm/set

Carton Size 51×50×28cm/40 sets

Weight Package

15.5KG

Certificate

CE/RoHS

Warranty Period

3 years



Competitive Advantage:


  1. High output Epistar LED chips ,stable performance.
  2. Beam angle 90 degree,
  3. CRI> 80
  4. The lamp body compact, easy to install, wide range of applications.
  5. Luminous efficiency ≧115lm/W
  6. Isolation and IC constant current driver, could improve installation efficiency three times.
  7. High power factor>0.92.
  8. 3 years guarantee



Dimension:

Mini Dimmable LED Down Lights  IP44 LED Spotlight 0


Installation Instruction:

Mini Dimmable LED Down Lights  IP44 LED Spotlight 1


Package:

Mini Dimmable LED Down Lights  IP44 LED Spotlight 2

Mini Dimmable LED Down Lights  IP44 LED Spotlight 3



Applications:


Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc
