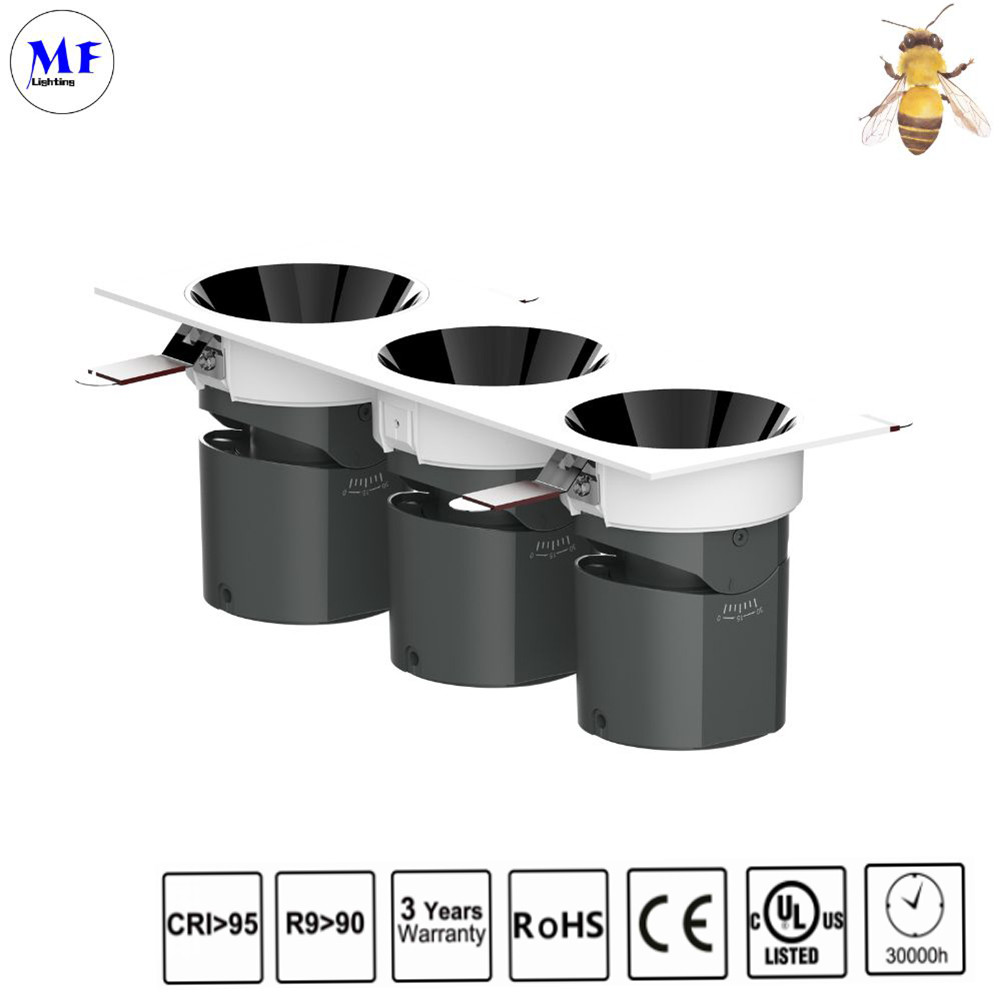

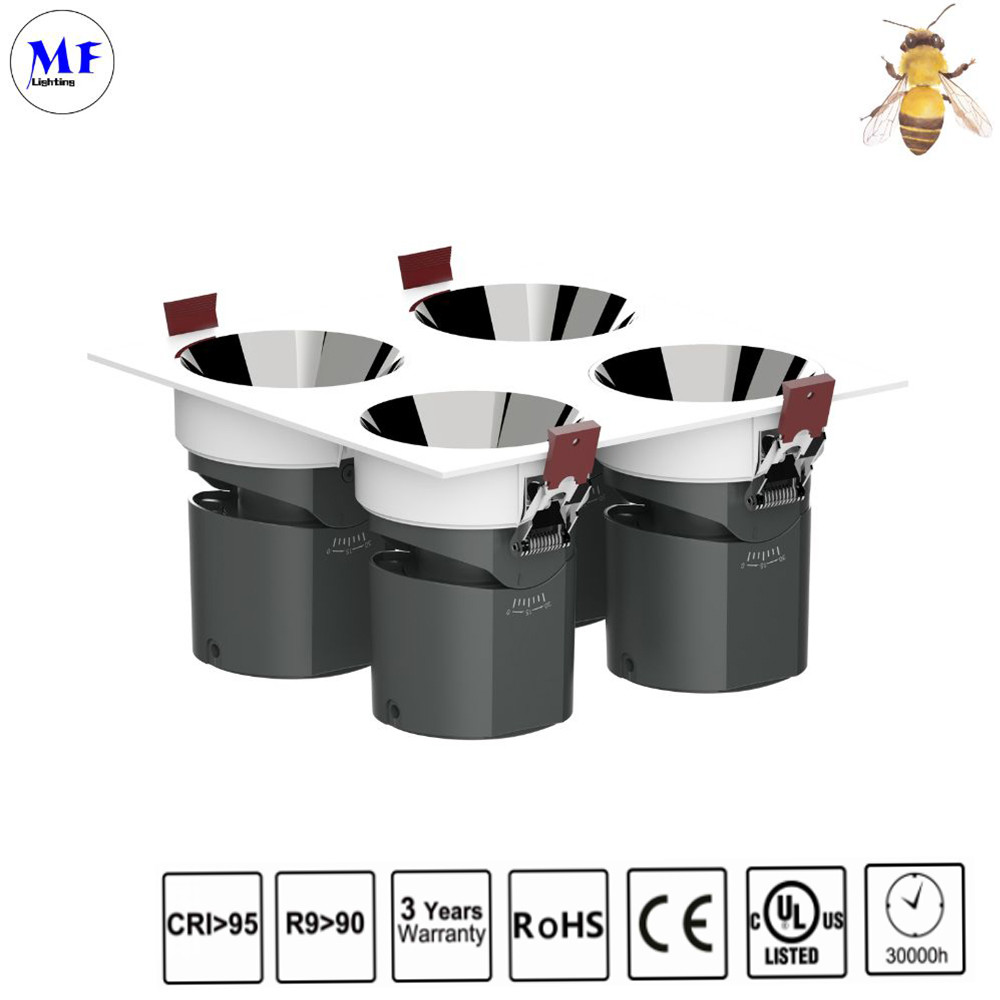

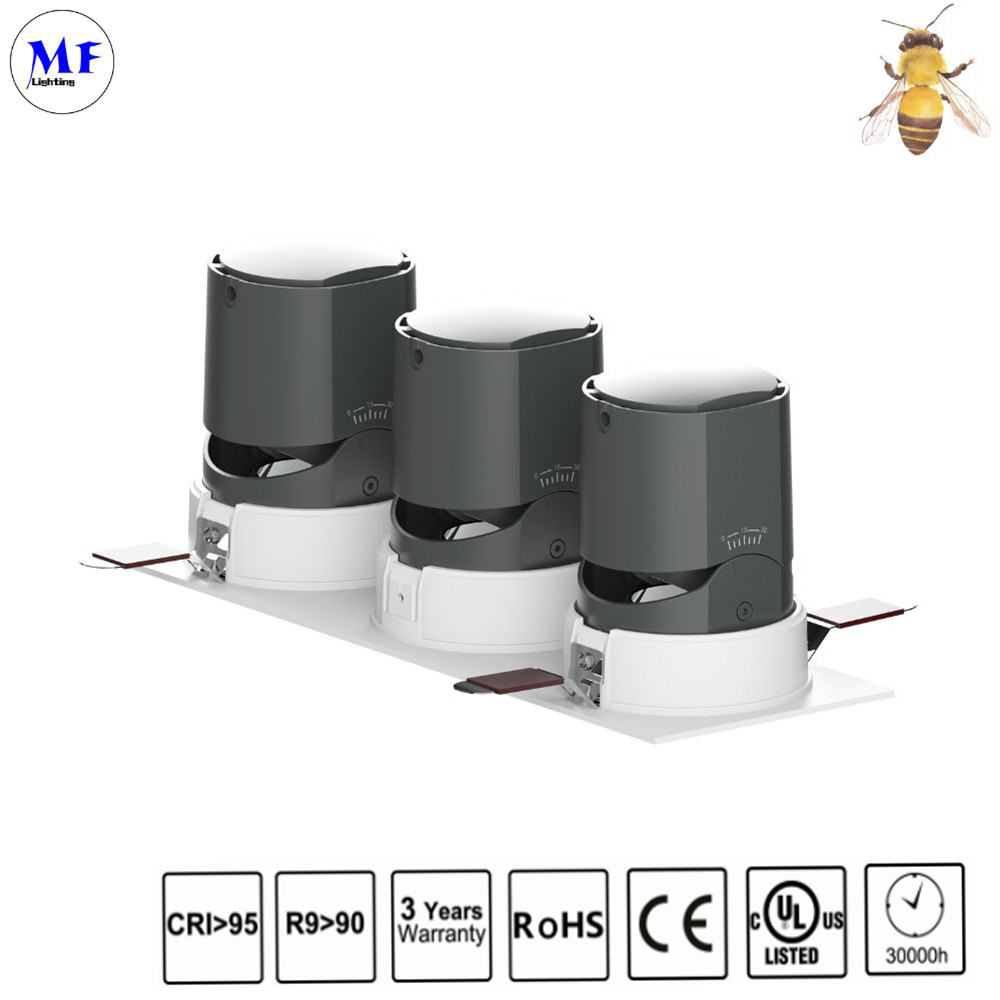

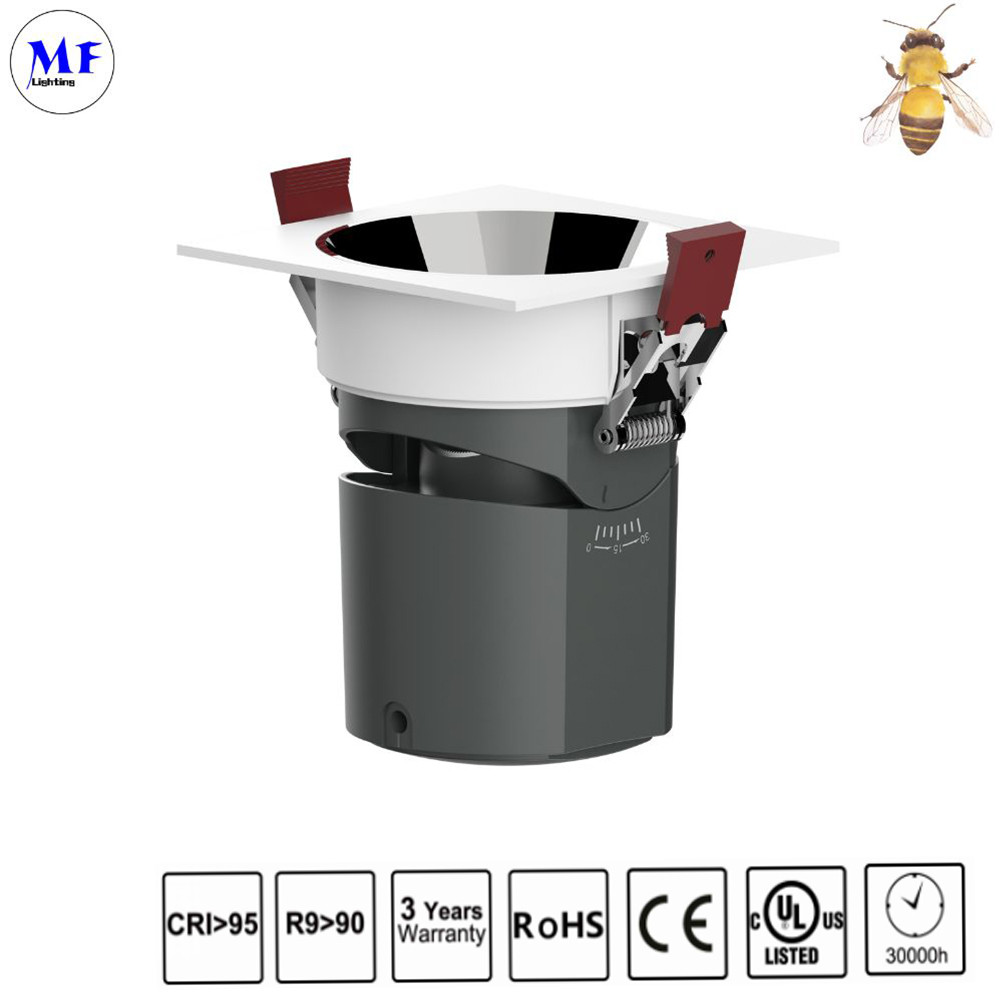

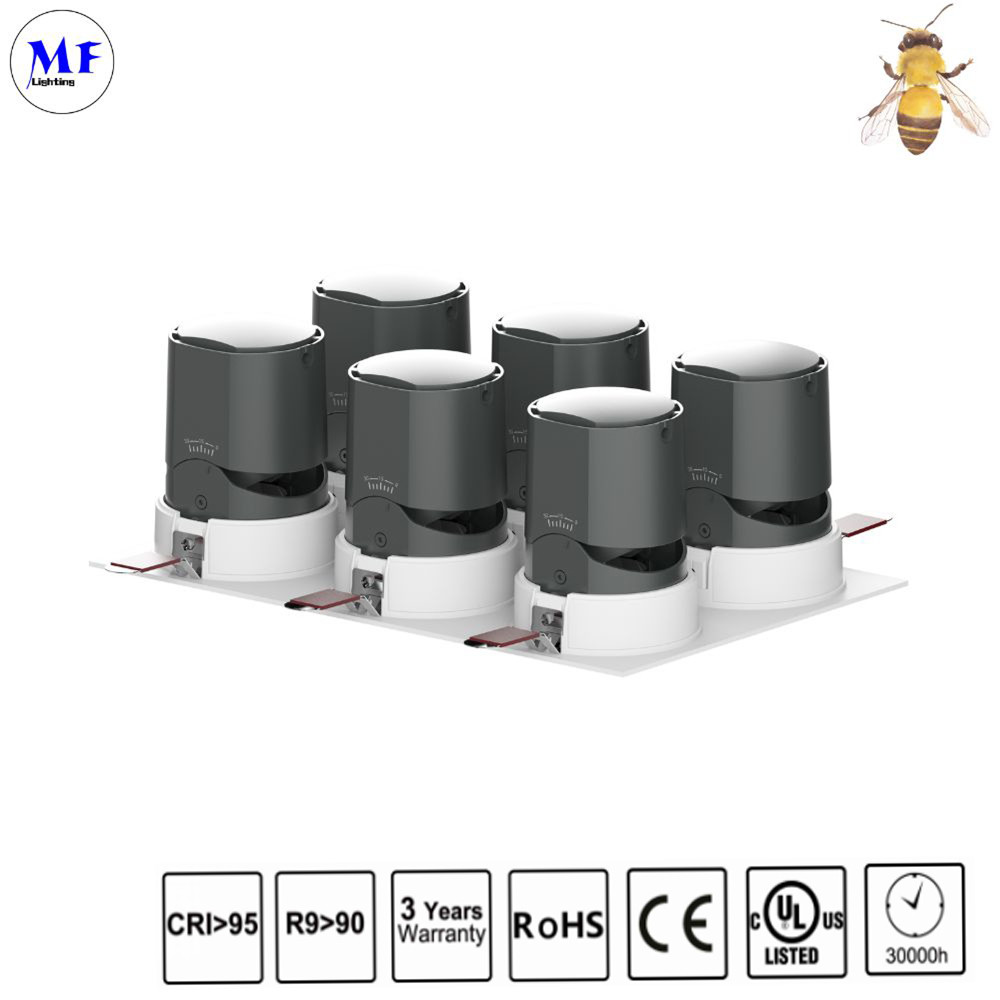

18W Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light With Epistar COB CE RoHS

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA,TUV,CB,ETL,UL Model Number: MF-BEE3

Detail Information

Beam Angle: 8°/15°/24°/36°/60° Input Voltage: AC 100-240V
Power: 5W / 10W / 18W X1 X2 X3 X 4X6 CCT: 3000K/4500K/6000K
Material: Aluminum Installation: Recessed
Switch: Turn On/Off Warranty: 3 Years
Application: Shopping Mall,warehouse,Office,hotel,bedroom,restaurant IP Rate: IP40
Mounting Location: Ceiling Lifespan L70/B50 At 25°C: 30000 H
Luminous Efficacy: 100 Lm/W/Higher Nominal Current: 350.000 Ma
Protection Class: II Reflector: Shining Black/Shining White As Options
Angle Adjustable: 360°/20° Horizontal Type: Square Trim/Circle Trim/Without
High Light:

Anti Glare Round Recessed Light

,

18W Round Recessed Light

,

LED Down Light 6000K

Product Description

Epistar COB 5W CE RoHS Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Product Description

High luminous efficacy

Direct replacement for compact fluorescent lamp downlights

Energy savings up to 60 %
(compared to luminaires that use CFL lamps)

Very homogenous light

Functional design

Easy installation with fast connection

3 years guarantee


Diameter of required ceiling
cut-out:55mm,75mm,95mm,60mm,80mm,100mm
Type of protection, back side: IP40
Type of protection, front side: IP44

Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light
Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light
Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down LightEpistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Reflector Color



Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Specifications


Electrical data
Nominal wattage
5W / 10W / 18W
Nominal voltage 100.…240 v
Mains frequency 50…60 Hz
Nominal current 350.000 mA
Power factor λ 0.90
Protection class II
Operating mode Electronic control gear (ECG)

Photometrical data
Luminous flux
5W 500lm / 10W 1000lm/ 18W 1800lm
Luminous efficacy 100 lm/W
Color temperature 3000 K 4500K 6000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Beam angle
8°/15°/24°/36°/60°

Dimensions & Weight

Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light
Materials & Colors
Product color(Ring) White
Housing color Grey
Body material Aluminum
Mercury content 0.0 mg


Application & Mounting
Ambient temperature range -20…+40 ºC
Type of connection Terminal,2-pin
Type of protection IP40
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter
Refer to Dimensions & Weight
LED module replaceable Not replaceable

Lifespan
Lifespan L70/B50 at 25ºC 30000 hr
Number of switching cycle 15000

Detailed Photos



Beam Options

Luminous Flux
5W 7500lm / 10W 1000lm/ 18W 1800lm x1x2x3x4x6
Luminous Efficacy 100 lm/W
Color Temperature 3000K 4000K 6000K
Light Color (designation) Warm White
CRI ≥80
Beam Angle
15°/24°/36°

Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Application

LED downlights are commonly used indoors in residential, commercial, public, and industrial spaces. They provide efficient and effective lighting for living areas, bedrooms, kitchens, offices, retail stores, restaurants, hotels, schools, libraries, hospitals, warehouses, and factories. LED downlights are popular due to their energy efficiency, long lifespan, and versatility, and can be customized to provide different light color, brightness, and beam angles to meet different needs.

Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light
Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light
Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light



Packaging & Shipping



Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products.

When placing an order, for the quantity please enter single or multiples of a shipping unit.

Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light




Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Certifications

Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Company Profile

Epistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down LightEpistar COB Epistar COB 6X5ww CE RoHS Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light




About US

We are a factory specializing in the production of LED lights for a wide range of indoor and outdoor applications. Our product portfolio includes LED downlights, LED panel lights, LED wall lights, LED tube lights, LED spotlights, LED track lights, LED ceiling lights, LED high bay lights, LED tri-proof lights, LED flood lights, LED high mast lights, LED stadium lights, LED street lights, LED garden lights, and LED explosion-proof lights. These products are widely installed in various large-scale lighting applications, such as farms, factories, schools, bridges, tunnels, ports, subways, airports, mines, hospitals, and more.
With a focus on LED lighting, we have gained expertise in producing and exporting high-quality LED light fixtures to over 132 countries in Asia, Europe, North America, Latin America, and the Pacific Ocean islands. Our LED lights are manufactured under the ISO9001 system, and our professional team ensures efficient management throughout the production process. We hold certifications such as CE, CB, ENEC, RoHS, CSA, UL, SAA, and REACH, which are accredited by reputable organizations like SGS or TUV, depending on the LED light family.
At MF, our dedicated R&D team is driven by passion, persistence, and technological expertise. Our engineers meticulously develop our LED lights, paying attention to even the smallest details. Our goal is to provide high-quality LED lighting solutions by combining our visionary approach with in-depth knowledge. We firmly believe in the power of lighting to enhance the quality of life and work for users worldwide. As a team, we understand that "LIGHTS THE WORLD" is not just a slogan but a commitment that we strive to fulfill through our hard work, day by day.
