20Watt CREE Chip COB LED Down Light With 1700 Lumen Dimmable Isolation Driver

Minimum Order Quantity :	100PCS	Price :	Negotiable
Packaging Details :	55×37×31cm/18pcs. G.W: 13KG	Delivery Time :	Depends on orders
Payment Terms :	T/T, Western Union, Paypal, L/C	Supply Ability :	10,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-T140020

Detail Information
Power:	20W	Cut Out Size:	￠140mm
LED Chip:	CREE	Beam Angle:	60°
Dimmable:	Yes	Luminous Flux:	1700LM
High Light:	recessed led light , led down light

Product Description

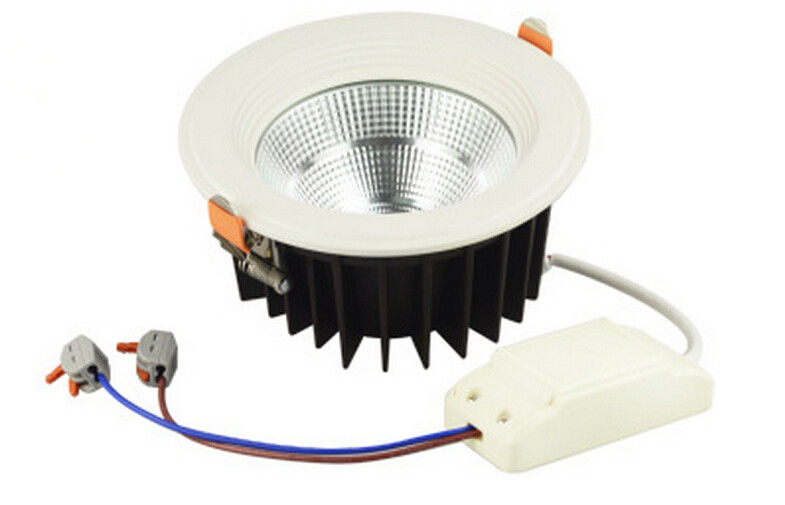

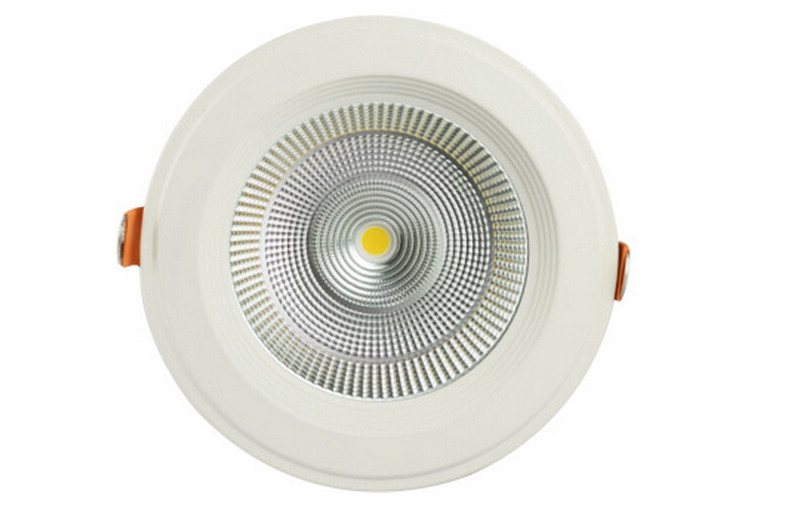

20W CREE Isolation driver COB LED Down Light With 1700 Lumen Dimmable Downlighting

Quick Detail:

20W COB LED Down Lights
Input: AC 85V-277V, 110/120VAC ,50/60Hz
Luminous Flux:1500-1700LM
CRI: >80
Beam Angle: 60°
Lifespan: ≧35000Hrs
IP: 20
Dimmable: Yes

Description:

MingFeng, as a prominent China LED down light company, devotes himself to providing high quality LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng COB LED square down light is the most comprehensive architectural LED downlights in the market to replace CFL downlight, power from 10W to 40W, brightness from 830to 3500LM.
Also CRI>80 is available, the whole series provide a collection of intelligent led lighting solutions, bringing a revolution for commercial ligting.

Specifications:

Model No	MF-T140020
Input voltage	85-277Vac , 110/220Vac, 50hz/60hz
Product Size	D158*75mm
Cut out Size	￠140mm
Power(watt)	20W
Color temperature	WW(2700-3000K) ,NW(4000-4500K) ,CW(5500-6500K)
LED Chip	CREE
PF	≥0.95
Luminous Flux (lm)	1500-1700LM
CRI(Ra)	>80
Lifespan	≥35000hrs
Beam Angle	^60°
Material	Aluminum
Operating Temperature	-20⁰C ~50⁰C
Dimmable	Y
IP	20
Single Package	175×175×95mm/pcs
Carton Size	55×37×31cm/18pcs. G.W: 13KG
Certificate	CE/RoHS
Warranty Period	3 years

Competitive Advantage:

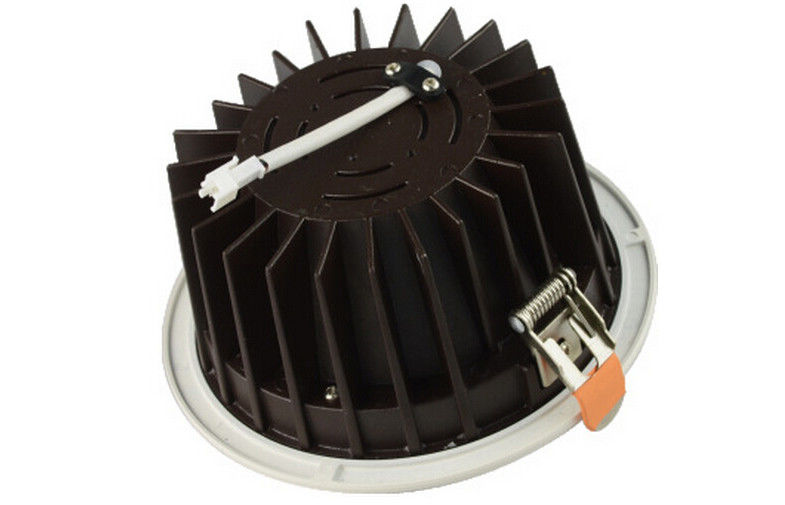

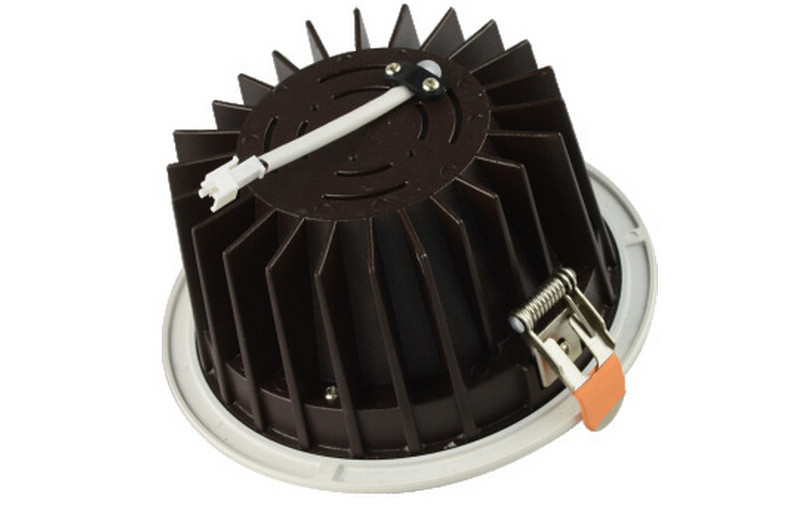

Die-casting heatsink, advanced cooling system.
60° beam angle , soft light effect.
High brightness CREE LED chip, CRI>80, Luminous Flux could from 830-3500LM.
Luminous Efficiency >105lm/W.
Smooth dimming or most dimmers.
Isolation, IC constant current driver, and wide voltage 85-277VAC.

Dimension:

20Watt CREE Chip COB LED Down Light With 1700 Lumen Dimmable Isolation Driver 0

Packing:

Applications:

Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
