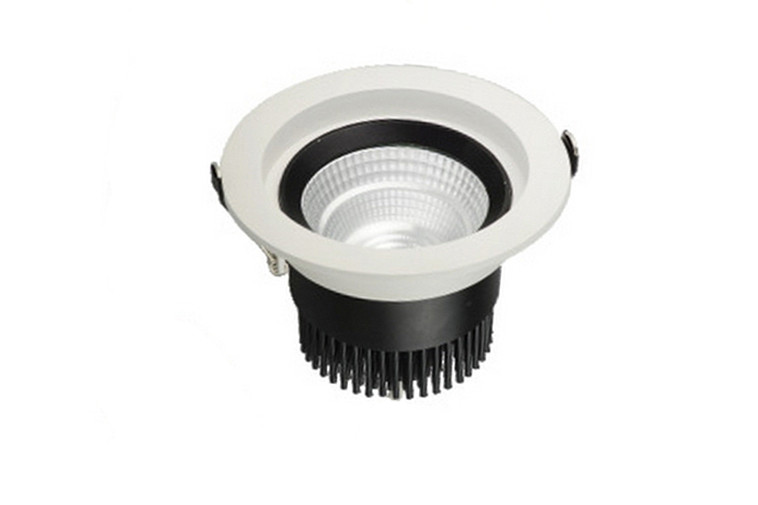

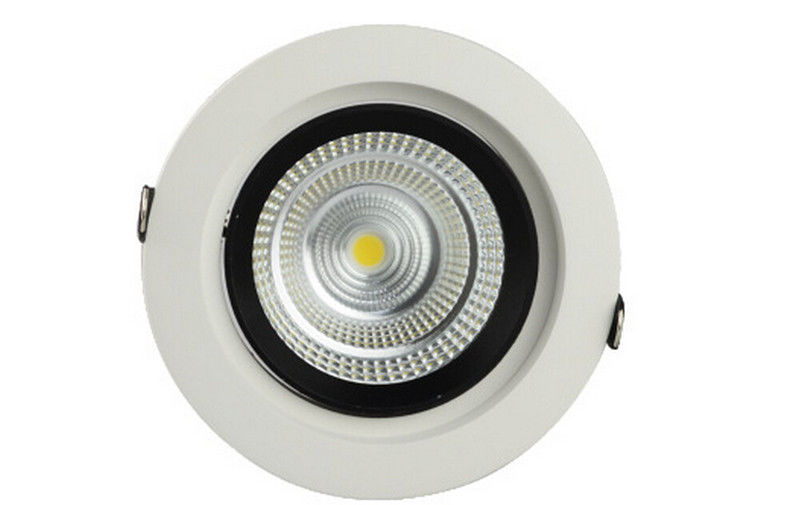

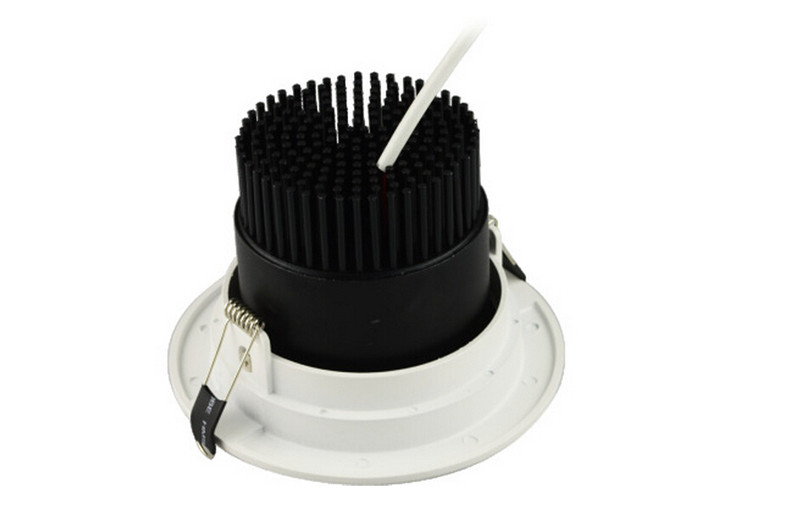

Dimmable 110 / 220 VAC Input 20W indoor COB LED Down Light CREE LEDs 1700Lm

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 49×49×42cm/27pcs. G.W: 16KG Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal, L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-S125020

Detail Information

Power: 20W Input: 85-265Vac, 50/60Hz
Luminous Flux: 1700LM Beam Angle: 24°/60°
LED Brand: CREE CRI: >80
PF: >0.9 UGR: <19
IP: 20 Warranty: 3 Years
High Light:

led ceiling lights

,

led down light

Product Description



Dimmable 110 / 220 VAC Input  20W indoor COB LED Down Light CREE LEDs 1700Lm




Quick Detail:



  1. 20W COB LED Down Lights
  2. Input: AC 85V-277V, 110/120VAC ,50/60Hz
  3. Luminous Flux:1500-1700LM
  4. CRI: >80
  5. Beam Angle: 60°
  6. Lifespan: ≧35000Hrs
  7. IP: 20
  8. Dimmable: Yes



Description:

MingFeng, as a prominent China LED down light company, devotes himself to providing high quality LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng COB LED square down light is the most comprehensive architectural LED downlights in the market to replace CFL downlight, power from 10W to 40W, brightness from 830to 3500LM.
Also CRI>80 is available, the whole series provide a collection of intelligent led lighting solutions, bringing a revolution for commercial ligting.


Specifications:



Model No

MF-S125020

Input voltage

85-277Vac , 110/220Vac, 50hz/60hz

Product Size

D145*101mm

Cut out Size

125mm

Power(watt)

20W

Color temperature

WW(2700-3000K) ,NW(4000-4500K) ,CW(5500-6500K)

LED Chip

CREE

PF

≥0.95

Luminous Flux (lm)

1500-1700LM

CRI(Ra)

>80

Lifespan

≥35000hrs

Beam Angle

24°/60°

Material

Aluminum

Operating Temperature

-200C ~500C

Dimmable

Y

IP

20

Single Package 158×158X130mm/pcs
Carton Size 49×49×42cm/27pcs. G.W: 16KG

Certificate

CE/RoHS

Warranty Period

3 years




Competitive Advantage:


  1. Die-casting heatsink, advanced cooling system.
  2. 60° beam angle , soft light effect.
  3. High brightness CREE LED chip, CRI>80, Luminous Flux could from 830-3500LM.
  4. Luminous Efficiency >105lm/W.
  5. Smooth dimming or most dimmers.
  6. Isolation, IC constant current driver, and wide voltage 85-277VAC.




Dimension:

 Dimmable 110 / 220 VAC Input  20W indoor COB LED Down Light CREE LEDs 1700Lm 0


Packing:

Dimmable 110 / 220 VAC Input  20W indoor COB LED Down Light CREE LEDs 1700Lm 1




Applications:

Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
