Module Adjustable IP66 LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light

Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light
Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light
Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light

Large Image :  Module Adjustable IP66 LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS, CB, IK10
Model Number: MF-L450W50B
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Ex-work/FOB price
Packaging Details: 75*45*30cm/pcs/CTN, N.W: 17.4KG, G.W: 19.0Kg
Delivery Time: 2 weeks
Payment Terms: T/T, Western Union, Paypal,L/C
Supply Ability: 10,000pcs/Month

Module Adjustable IP66 LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light

Description
Model No:: MF-L450W50B Input Voltage:: 100~240V Ac, 50/60Hz
Power: 230W,450W,650W,900W,1350W LED Type: Lumileds
Power Supply: Meanwell SPD: 10KV/20KV As Options
Beam Angle: 15°/25°/60°/130° X 40°/130°x 25°/110° Ingress Protection: IP66
UGR: <19 Luminous Efficiency: 150LM/W
High Light:

led sport lights

,

led flood lights

150Lumen/W IP66 LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light



Features:



1. Different beam angle 15°/25°/60°/110° symmetric, and asymmetric 130° x 40°/130°x 25°.

2. Lumileds 3030/5050, System efficiency up to 150LM/Watt.

3. Meanwell Driver.

4. Glass/PC optic lens for optional.

5. Dali, 0-10V dimmable available.

6. Built-in10KV surge protection.

7. Long lifetime over 50,000hrs, extremely low maintenance cost.

8. 5 years warranty.

9. Die-casting Aluminum housing with Akzonobel powder coating.

10.Suitable for sport fields,high mast, harbor, gymnasiums,warehouse, billboard, garden/buildingdecoration.




Specifications:



Electrical Data Model No MF-L450W50B
Input voltage AC100-277V/AC277-480V,50/60Hz
Power(watt) 230W,450W,650W,900W,1350W
Power Factor 0.90
Power Efficiency >90%
Total Harmonic Distortion <15%
Optical Data LED Type Lumileds
Efficiency 150lm/W
Luminous Flux 34500/67500/97500/135000/202500Lm
CCT 3000K/4000K/5000K/6000K
CRI >70Ra
System Efficiency >90%
Beam Angle 15°/25°/60°/130° x 40°/130°x 25°/110°
SDCM <5
Others IP IP66
Lens Material PC/Glass
Heat Radiator die-cast aluminum
Net weight 17.4kg(450W)





Module adjustable IP66 LED Sport lights characters:



1. Power range from 230W to 1350W

Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light 0


2. Driver Box:



a) Driver control board



One driver failed, whole fitting still work



The indicator lights will show which driver is failed,very easy for maintenance



b) Build-in 10KV SPD, Higher Reliability



Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light 1

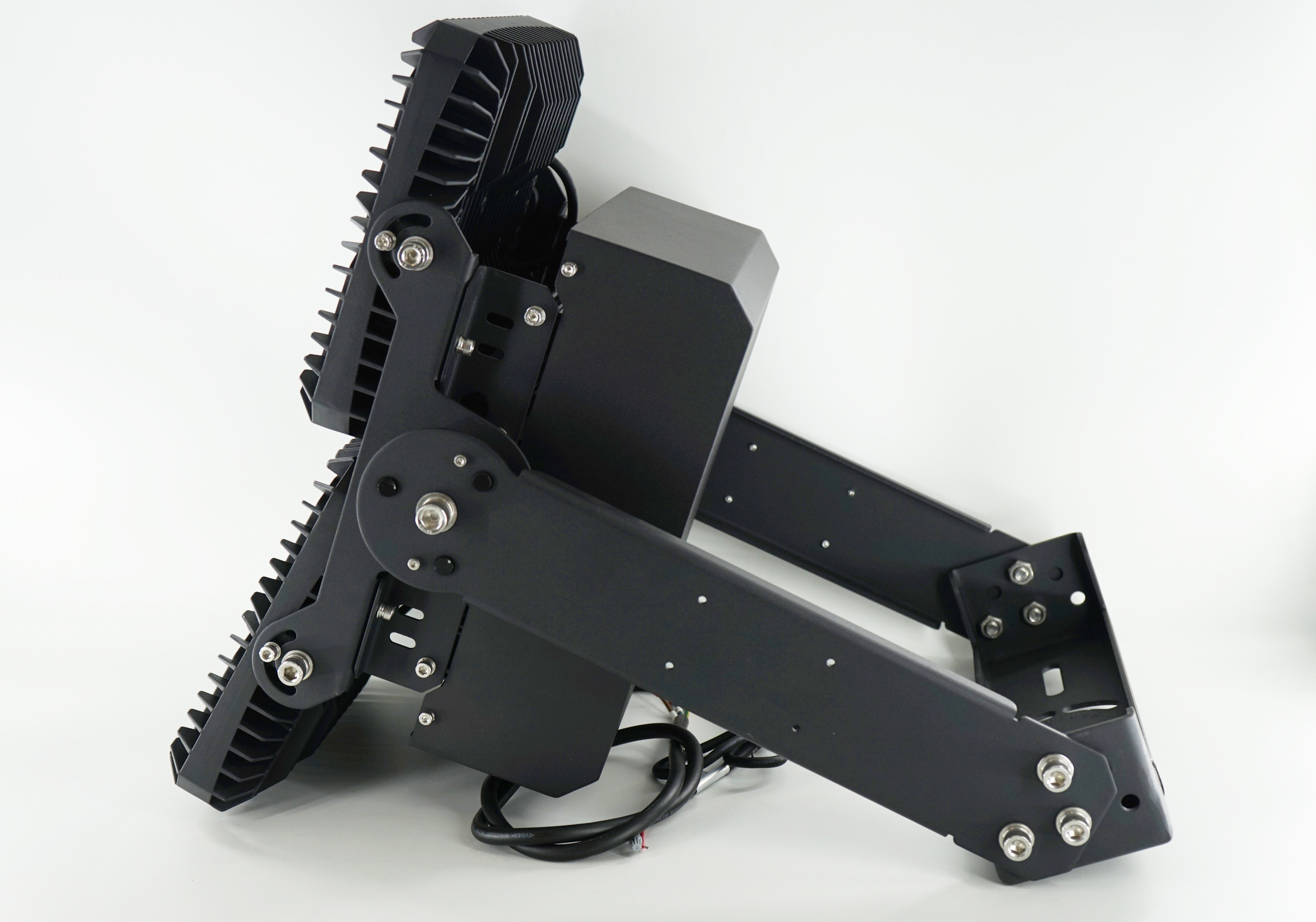

3. Module adjustable design:



*270° angle adjustable, Much stronger bracket to eliminate metal fatigue risk

*Unique air level for accurate angle adjustment





Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light 2





4.Competitive remote driver solution:



 Using only 1 Cable & 3 Junction Boxes to connect the body and drivers



 Minimized the power loss by cable (<0.5%), and save the cost of cable



Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light 3Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light 4







 One of our Germany customer Basketball court installation case for rerreference.



Applications: Football field, tennis court, basketball court, basketball court, golf course, all kinds of sports fields, as well as squares, parks and other outdoor open areas



Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light 5



Module Adjustable IP66  LED Sport Lights, 230W-1350W, Dali/0-10V dimmable LED Flood Light 6
