300W LED Flood Light IP66 Slim Led Flood Light High Lumen Led Flood Light Outdoor Flood Light Fixtures Waterp
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 1pcs/Carton | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Paypal,L/C | Supply Ability : | 10,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | UL,DLC,Premium,SAA,TUV,VEET,CB | Model Number: | MF-QCD-SxxW |
Detail Information |
|||
Power: | 400W 500W 800W 1000W | Luminours Efficacy: | 150lm/W |
---|---|---|---|
CCT: | 3000K/4000K/5000K/6000K | CRI: | ≥80Ra |
System Efficiency: | ≥90% | Lens: | 20°/30°/45° |
Housing: | ADC12 | Driver: | Meanwell/Sosen |
Lifespan: | 60,000hrs | IK: | Ik10 |
High Light: | IP66 High Mast Power Flood Light,High Power High Mast Flood Light,400W High Power Flood Light |
Product Description

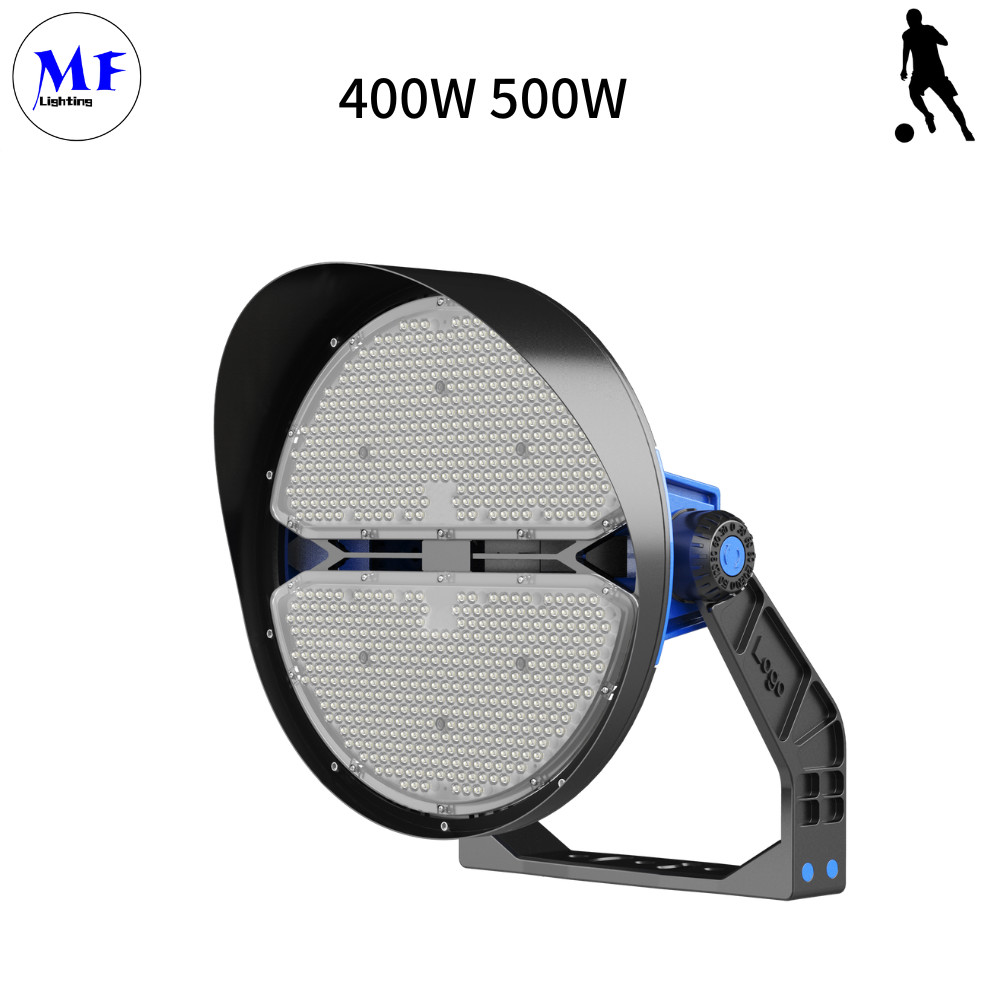

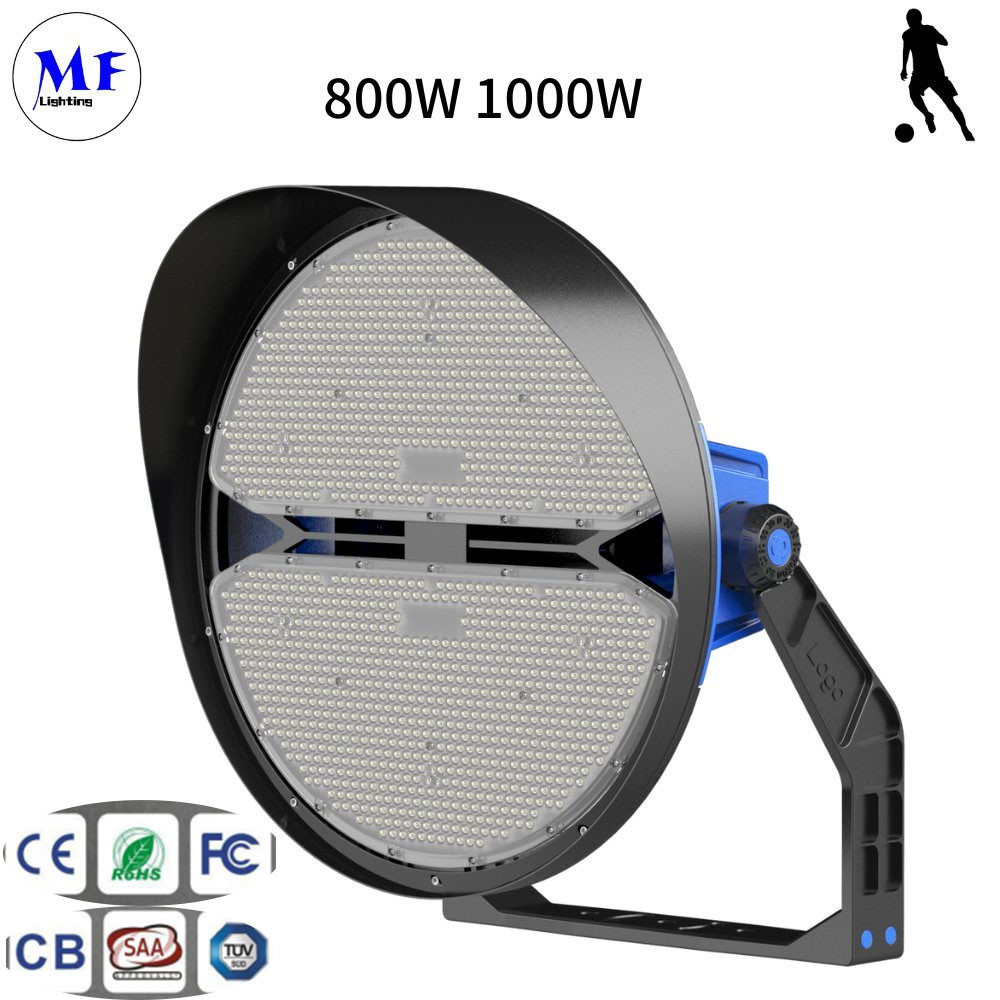

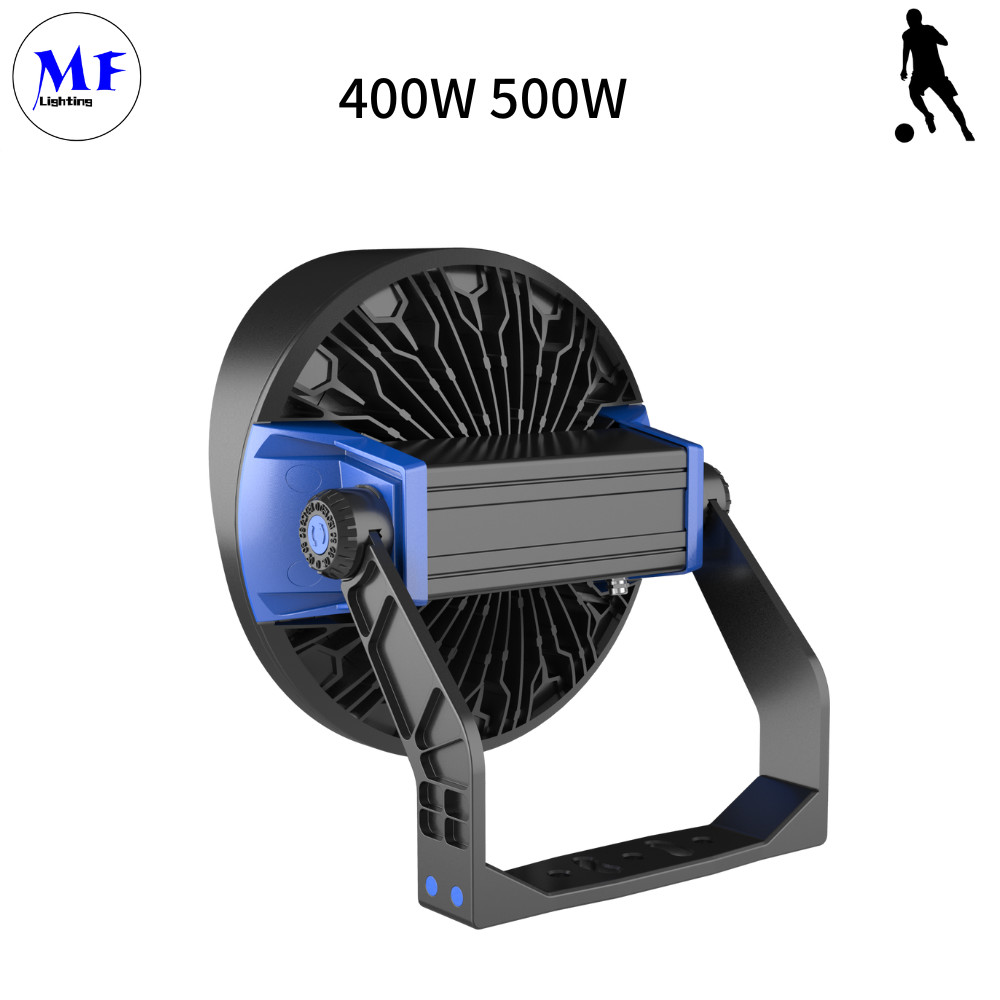

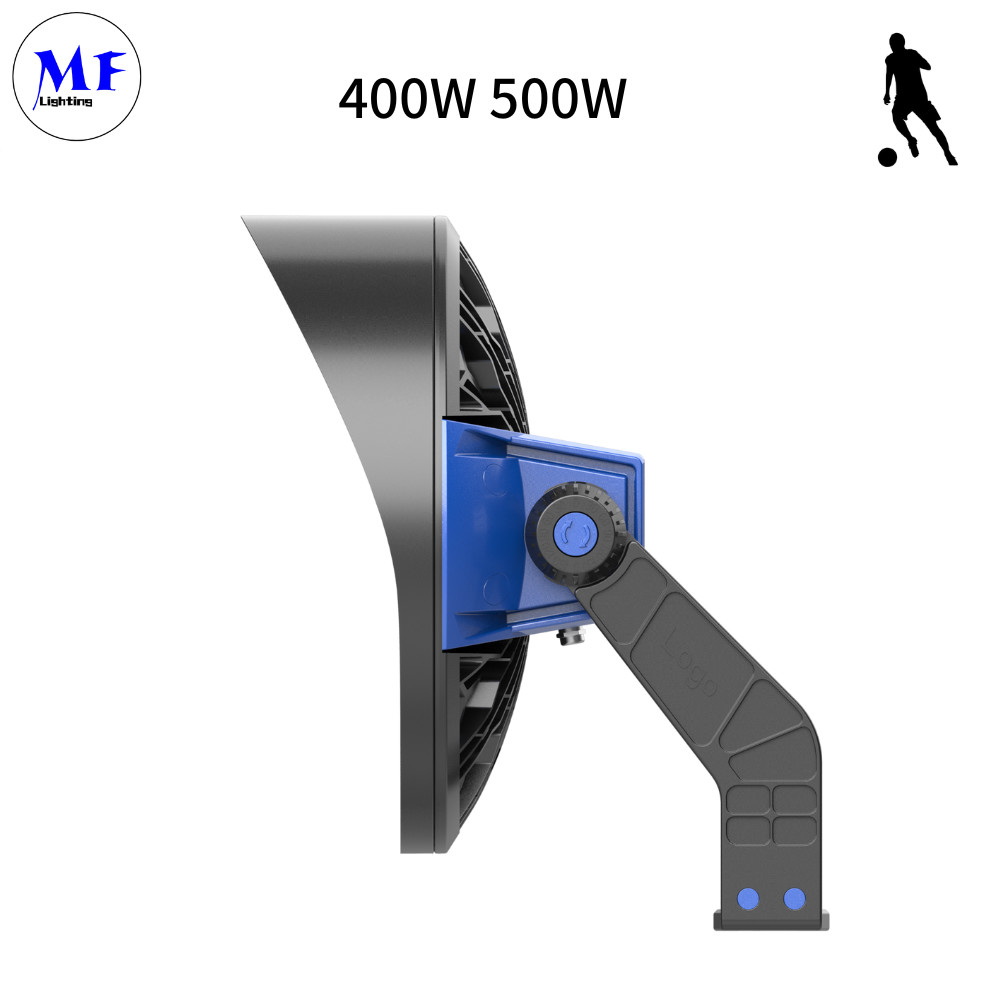

High Power Flood High Mast Light IP66 400W Roads and Highways Parking Lots Sports Stadiums
Description: LED Sport light / LED stadium light / LED high mast light
Model | MF-QCD-S400W | MF-QCD-S500W | MF-QCD-800W | MF-QCD-1000W |
Consumptior | 400w | 500w | 800w | 1000w |
input Voltage | AC100-277V | |||
LED chip | lu-mileds/O-SRAM | |||
Chip orY | 770 pcs | 770 pcs | 1540 pcs | 1540 pcs |
CRI | Ra>70,Ra>80 | |||
Power Factor | >0.95 | |||
Light Efficacy | 140~150lm/W | |||
IP Rating | IP66 | |||
Working Temp | -35°C~+50°C | |||
Beam Angel | 8°/25°/45°/60°/90° | |||
Warranty | 5 Years/ 7 Years | |||
Product size Carton Size(mm) |
L493xW439xH520 L550xW500xH500 |
1493xW439xH520 L550xW500xH500 |
L651xW586xH511 L700xW650xH600 |
L651xW586xH511 L700xW650xH600 |
N.W/G.W | 15KG/16KG | 15KG/16KG | 27.5KG/29.3KG | 27.5KG/29.3KG |
1. Long lifespan. High efficiency Tai Wan Mean Well Driver,
2. 170LM/W , High power. 3030 SMD led chip.
3. IP67 waterproof Rated, IK10, 4KV/10KV Surge protect
4. 10°/25°/45°/60°/90° Beam Angle PC lens Transmittance up to 92%
5. Good heat dissipation.Durable structure&stable performance
6. More Smart function: 0-10V Dimming, PMW signal, Timing optional, Light sensor
Polycarbonate Lens Racked Angle Driver & Extra 10KV SPD
High mast floodlights are designed to illuminate large outdoor spaces such as parks, sports fields, airports and car parks. They are usually mounted on tall poles or structures to provide maximum coverage and visibility.
Some key features of high mast floodlights include:
1. High brightness: High pole flood lights are designed to provide high brightness to illuminate large areas. They typically have a lumen output of a few thousand to tens of thousands.
2. Wide beam angle: High mast flood lights usually have a wide beam angle to provide maximum coverage. They have a beam angle of up to 120 degrees.
3. Durability: High Mast Floodlights are durable enough to withstand harsh weather conditions and extreme temperatures. They usually have a high IP rating to keep out dust and water.
4. Energy Efficiency: High mast floodlights are usually based on LEDs and consume less energy than traditional lighting sources. This keeps your electricity bills down and reduces your carbon footprint.
5. Controllability: High mast flood lights are usually controllable, allowing the operator to adjust the brightness and direction of the light as needed. This allows for more efficient lighting and reduces energy waste.
To install a high mast light, the following steps and precautions should be taken:
1.Choose the right installation location: The high mast light should be installed above the area that needs illumination, taking into account factors such as the light projection range and surrounding environment. Also, the foundation conditions and nearby structures should be considered for potential impact.
2.Prepare equipment and tools: Confirm the type and quantity of high mast lights needed and prepare the necessary tools and equipment, such as cranes, welding machines, bolts, and angle irons.
3.Install the foundation: Select a suitable reinforced concrete foundation based on the size and weight of the high mast light and install an iron plate "socket" on the foundation for later installation of the high mast light.
4.Install the high mast light: Connect the base of the high mast light to the socket and secure it with bolts. Then, use a crane to lift the high mast light onto the socket and secure it with bolts.
5.Connect the power supply: Connect the cable of the high mast light to the power line and ensure the wiring is correct, secure, and well-insulated.
6.Test and adjust: After installation, test and adjust the high mast light to ensure it operates normally and has even light distribution.
Becareful!
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
Attention
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
