LED High Bay Light High Mast 400w/500w/ IP66 150lm/W Sports Stadiums Football Basketball Sport Field Court Projector
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 58.5*36.5*18.5cm/1pcs, G.W: 7.0Kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union,L/C Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS, DLC, UL | Model Number: | MF-Sea Gull High Mast |
Detail Information |
|||
CCT: | 2700K-6500K | Material: | ADC12 Aluminum Die-Casting Fixture Housing |
---|---|---|---|
IP: | 66 | Power: | 400W-600W-800W |
Certificated: | CE/ETL/FCC/ROHS/SAA/TUV/CB/UL | Application: | Wharf/Airport/Aproan/Stadium/Highway/Sea Port/etc |
Input Voltage: | AC100-305V,50-60Hz | LED Brand: | Lumileds |
Luminous Efficacy: | 140lm/W | CRI(Ra): | 70+/80+/90+ |
Beam Angle: | 30/45/60/90/80*140°/Asymmetrica L60° | Output Voltage: | DC48 |
Installation: | Pole | ||
Highlight: | led tri-proof lights,car wash led lights |
Product Description

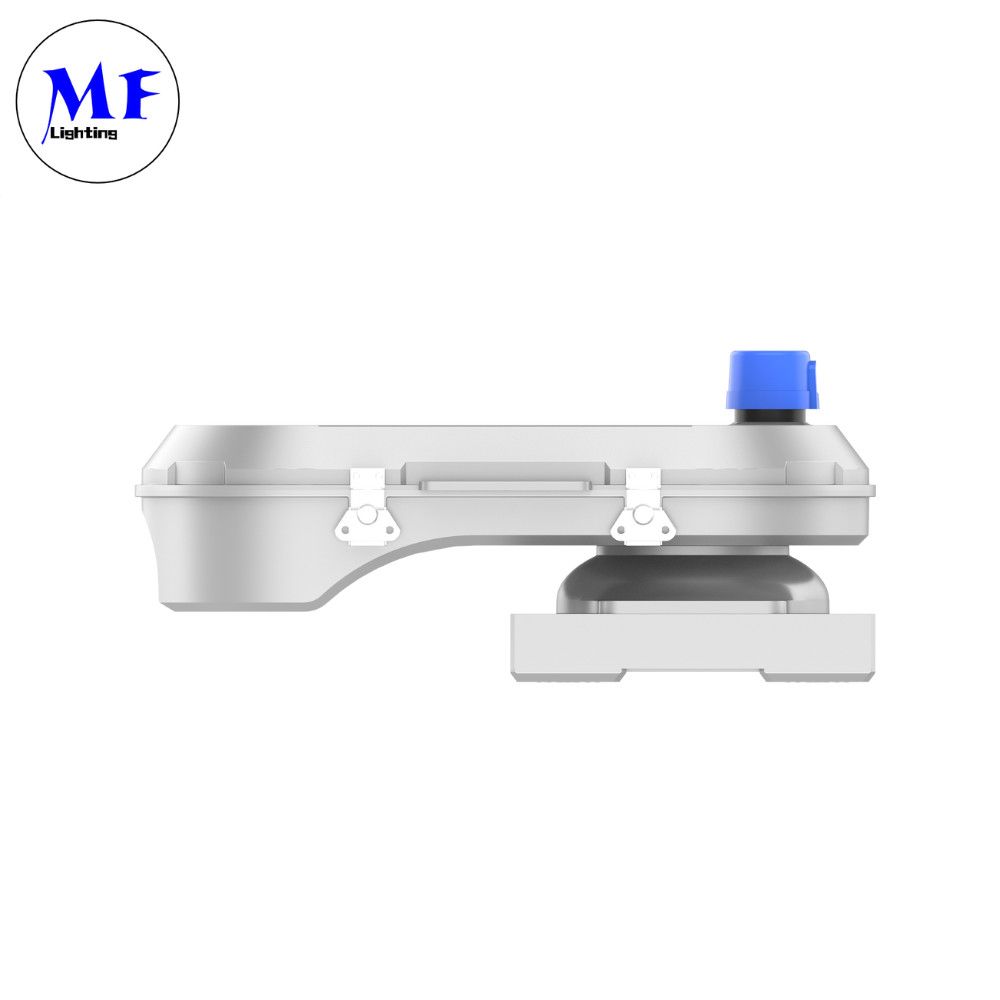

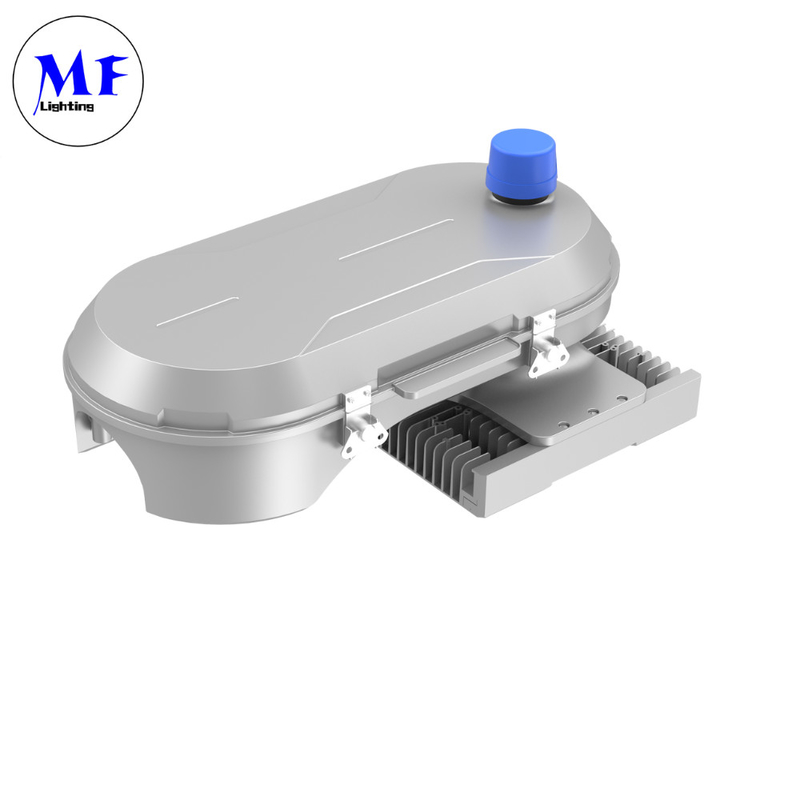

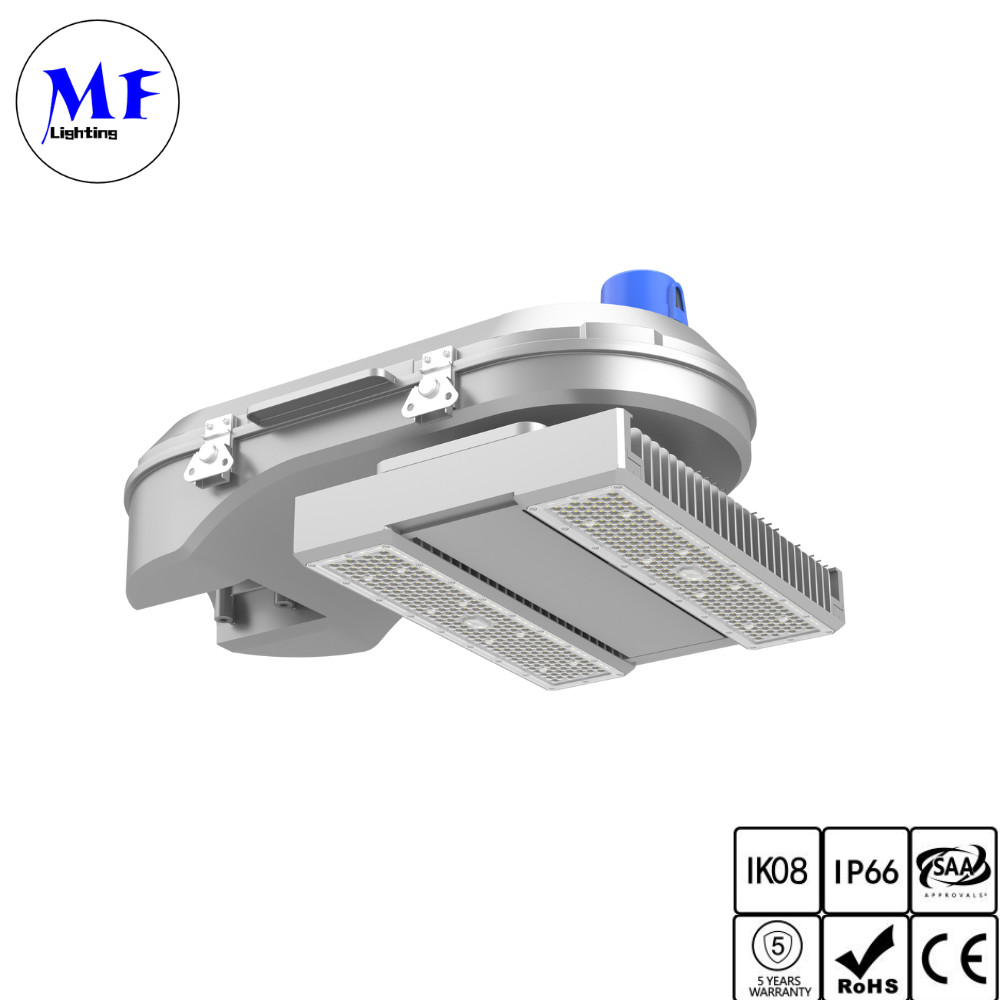

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
Optical Data | |
Power | 400w |
LED Chips | Lu-mileds |
Luminous Efficacy | 140lm/W15% |
Luminous Flux | Refer to lES |
CCT | 2700K-6500K |
Beam Angle | 30/45°/60/90/80*140R/Asymmetrica 160° |
CRI(RA) | 70+/80+/90+ |
Electrical Data | |
Driver | Mean-well/So-sen/Inven-tronics |
InputVoltage | AC100-305V,50-6OHz |
Power Factor | >0.95 |
OutputVoltage | DC48 |
Total Harmonic Distortion | <15% |
DriverEfficiency | 92% |
Others | |
lRating | lP66 |
Lifespan | 60,000Hrs |
Housing | Die-Cast Aluminum |
Lens Material | Polycarbonate |
Fixture Size | 672*430*304mm |
Carton Size | |
Net Weight | 16.9KG |
Gross Weight | 18.9KG |
lnstallation | Pole |
Diameter | 60mm-100mm |
Luminous Intensity Distribution Diagram:
Installation:
Accessory:

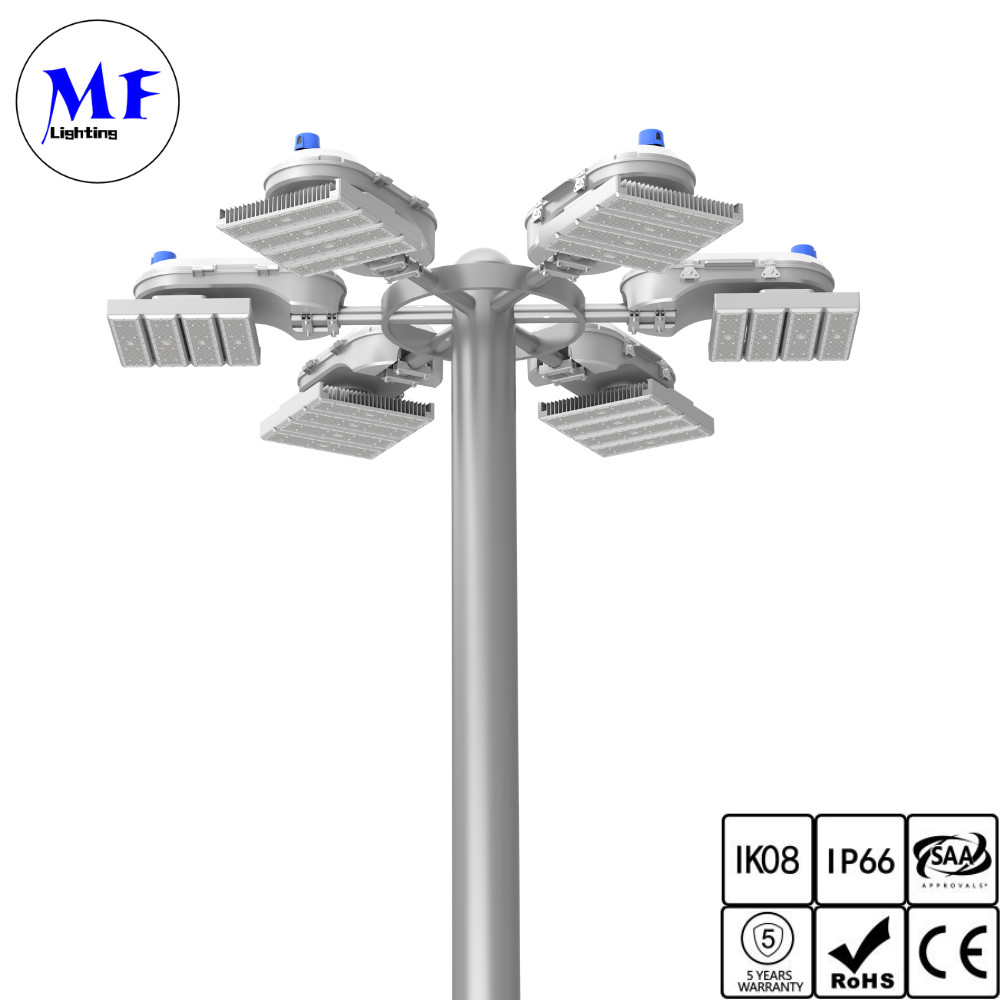

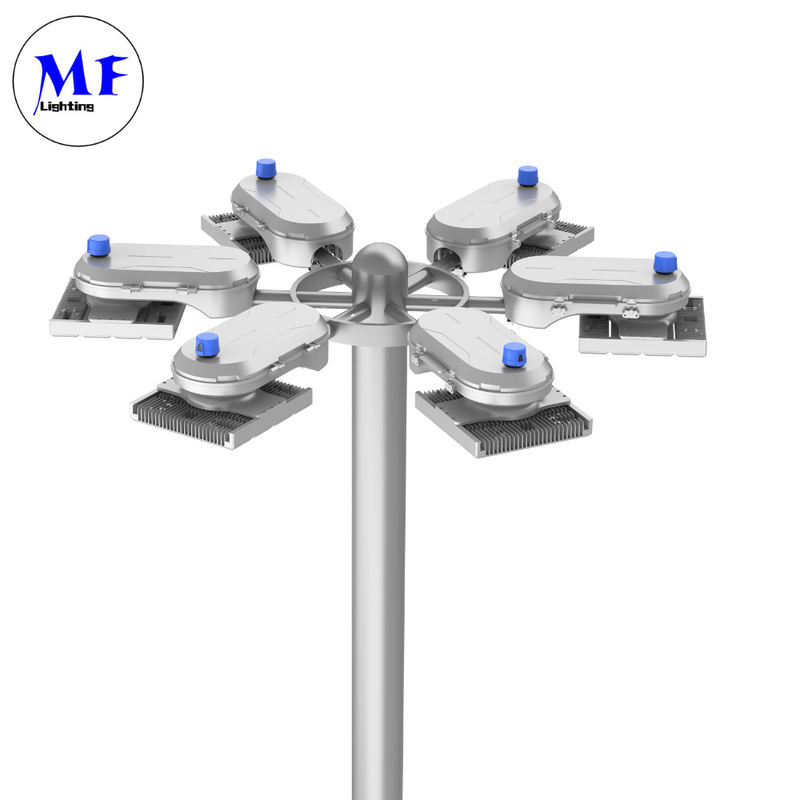

LED High Mast Light
About us:
Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.
Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.
MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
