LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 42*42*50cm/2pcs, G.W: 9.5Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-Diamond3 Flood Light

Detail Information

CCT: 3000-6000K Adjustable: Power/CCT Adjustable
Power: 30W/50W/100W/150W/200W/250W/300W/500W IP RATE: IP66
Material: Aluminum Warranty: 5 Years
Ik Rate: Ik08 LED: SMD3030
High Light:

led sport lights

,

sport field lights

Product Description

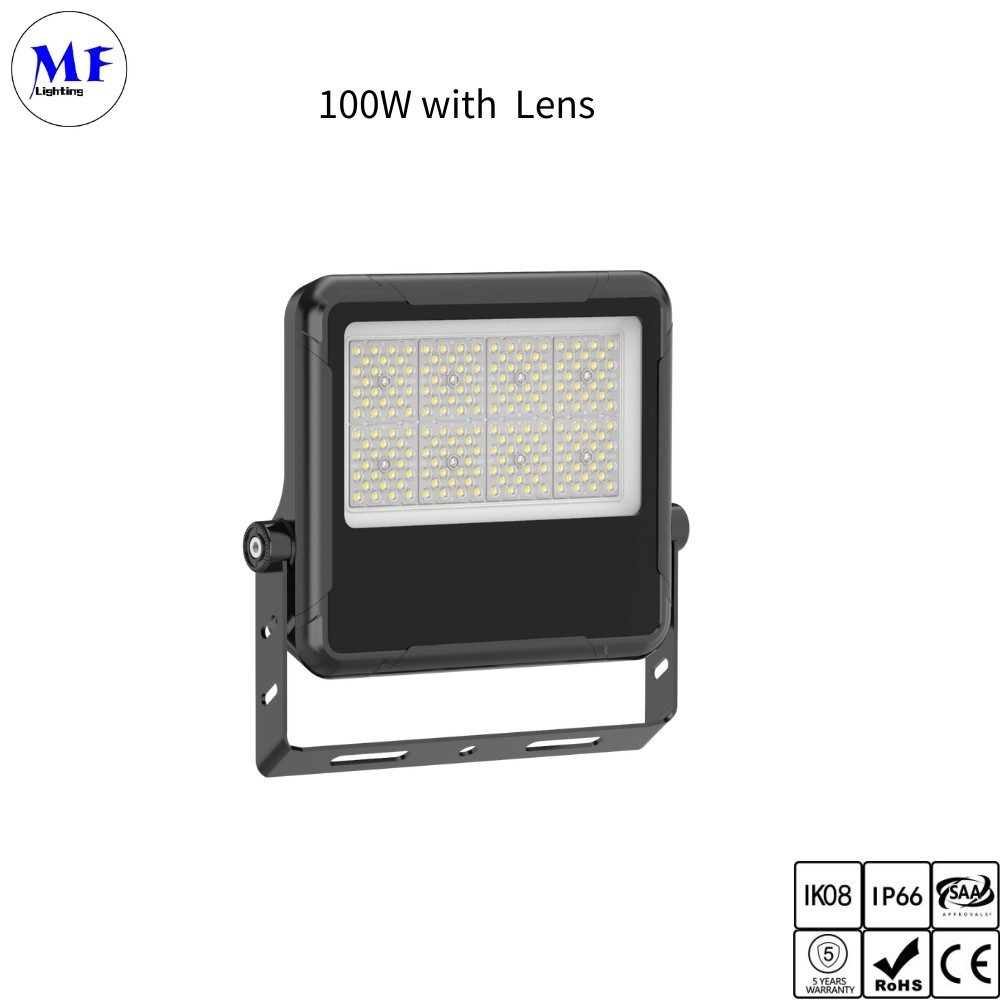

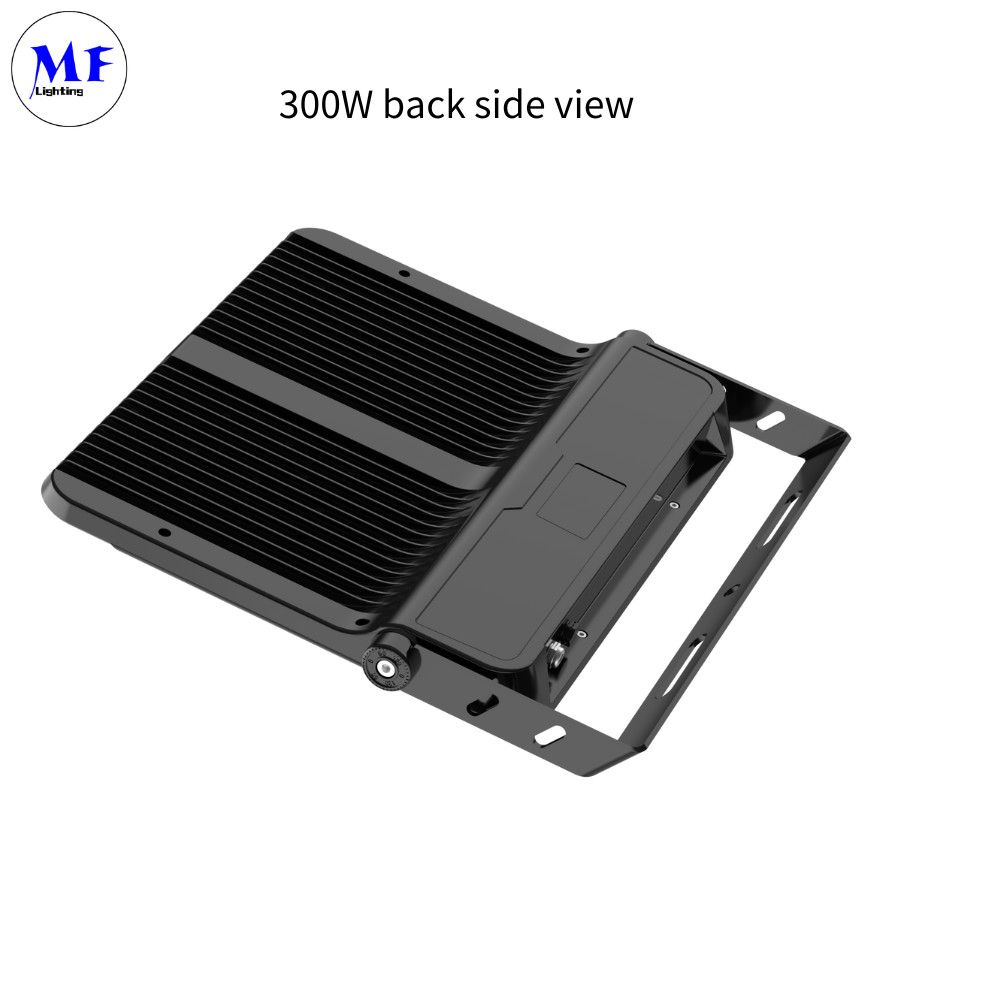

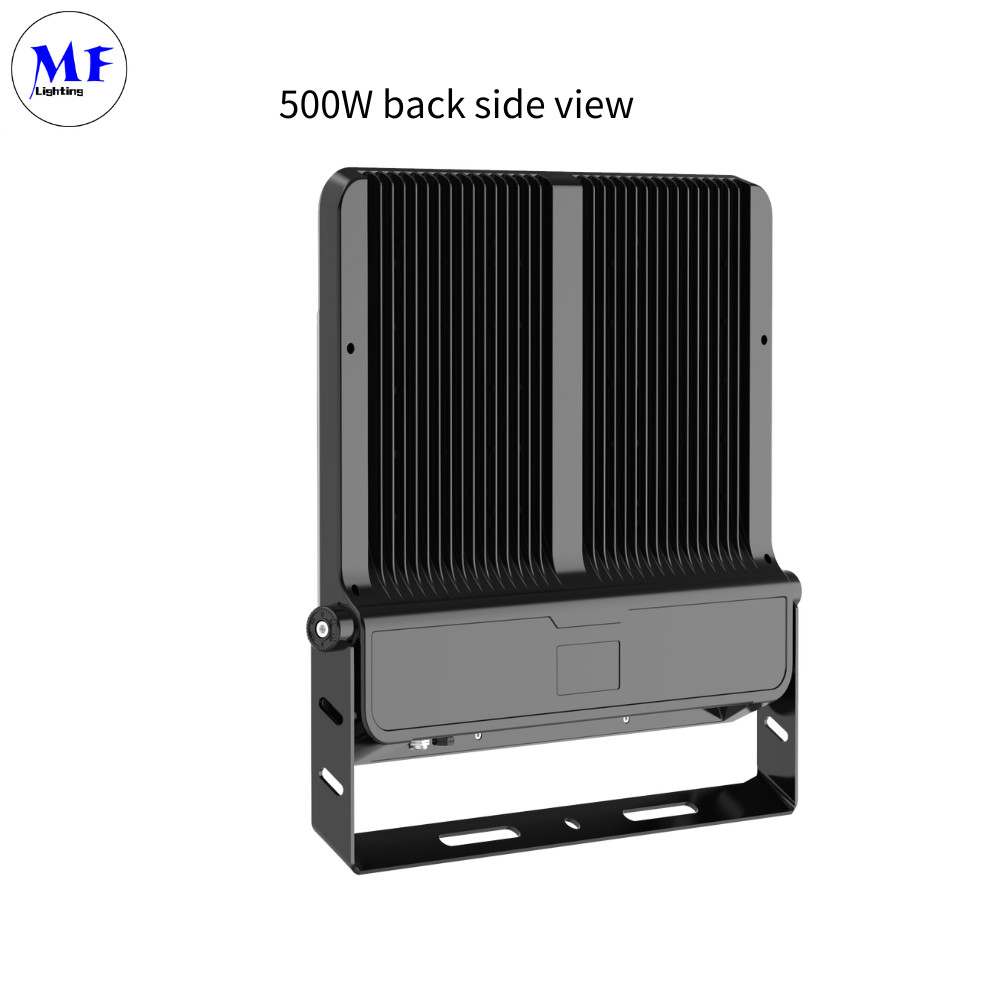

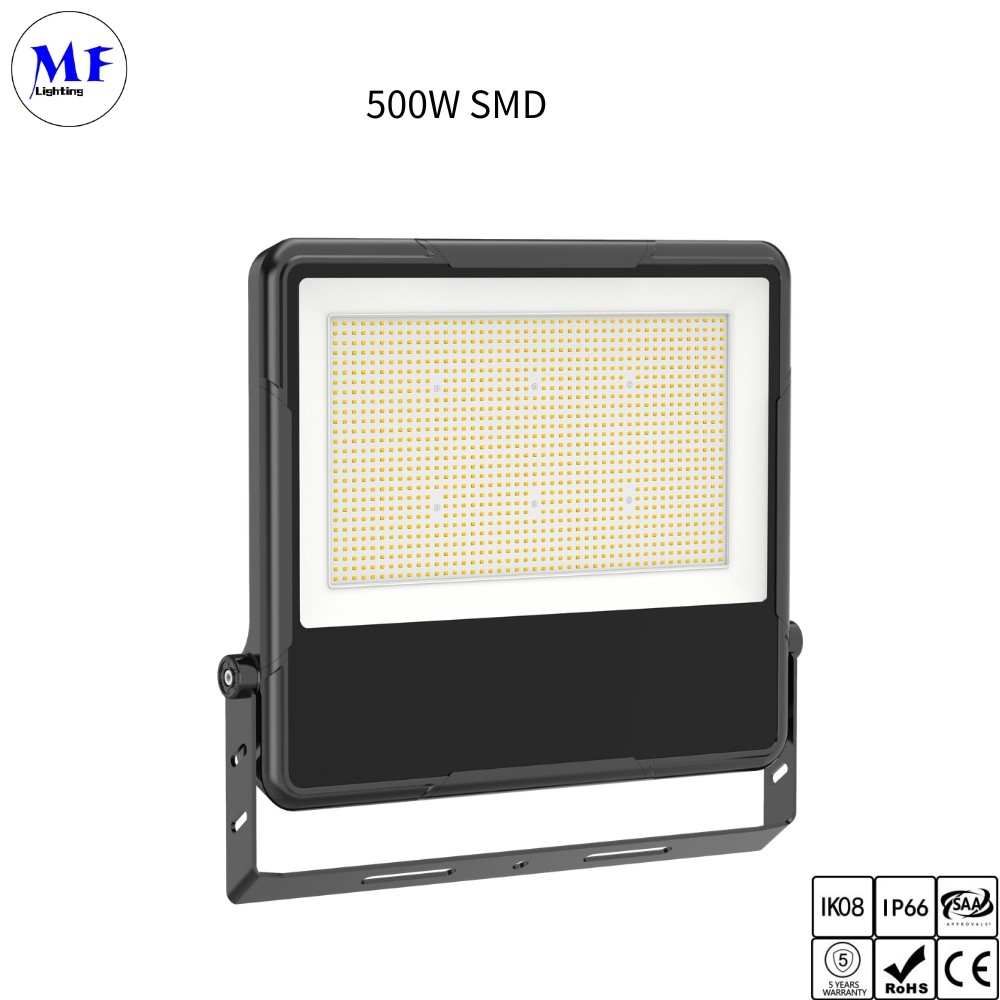

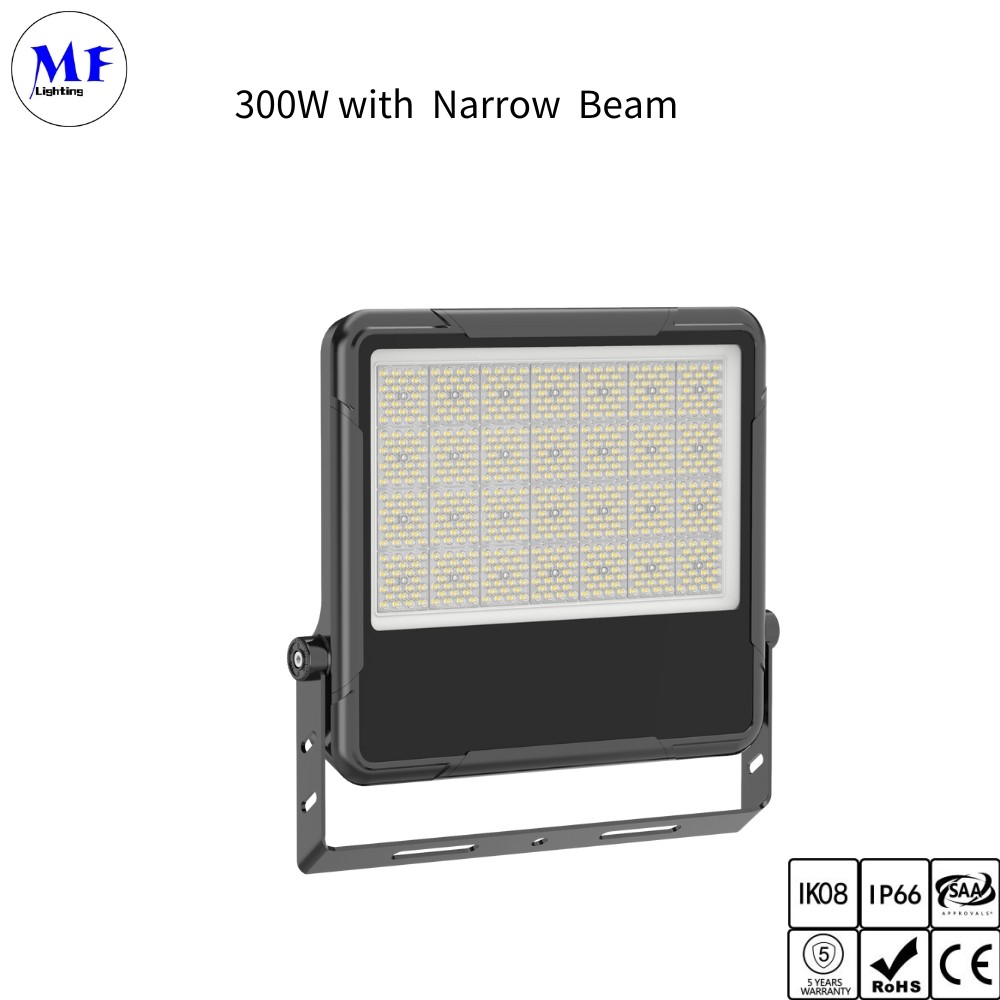

LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field
LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 0



1.Die-casting technology by ADC12, excellent thermal management, reduce the temperature difference and ensure the lumen depreciation.
2.4mm tempered glass, Integrated Breather Valve: Balances The Internal & External Temperature and Humidity
3.Offset bracket design, Racked Angle ±120 ° adjustable, Allows For Precise Installation
4.Top brand LED chip and driver, ensure the product quality and lifetime
5.Ingress Protection Rating: IP66
6.Operation Temperature: -25ºC-+50ºC
7.3000K,4000K,5000K, 5700K,6500K available
8.CRI >70,80 9.5 years Warranty



LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 1
1.Die-casting technology by ADC12
2.Racked Angle,10° steps, allows for 270° ,installation adjustment.
3.Hem corner, strengthen stability
4.Breather Valve, balance the internal and external pressure and humidity
5.Offset bracket and Galvanized treatment,corrosion resistant
6.4mm Tempered Glass
7.ACD12 Frame, Concise appearance, No Screws design.
8.CCT,POWER Adjustable

LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 2


LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 3



Model No. 100w 150w 200w 240w 300w
lnput Voltage Ac100-277V,50-60Hz AC100-277v,50-60Hz AC100-277V,50-60Hz AC100-277V,50-60Hz AC100-277V,50-60Hz
Rated Power 120W-100W-80W 150W-120W-100w 200W-150W-100w 240W-200W-150w 300W-240W-200w
PF >0.95
LED Brand Lumileds
Luminous Flux 18,000lm -15,000lm-12,000lm 22,500lm-18,000lm -15,000lm 30,000lm-22,500lm-18,000lm 36,000lm-30,000lm-22,500lm 45,000lm-30,000lm-22,500lm
CRl >70,80
CCT 3000K-4000K-5700K
Beam Angle 120°
Driver Brand S0SEN
THD <15
lK Rating IK08
IPRating IP66
Life Span 60,000Hrs
Size 302*314*49mm 358*364*49mm 386*414*51mm 460*480*54mm 460*480*54mm
N.w 2.80kg 4.50kg 5.80kg 7.85kg 8.0kg
G.w 3.35kg 5.05kg 6.35kg 8.75kg 8.9kg


LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 4

LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 5

LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 6
LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 7






Installation:
LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 8
LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 9

  1. Sport Court
  2. Golf Course
  3. Large Parking Lot
  4. Wharf
  5. Airport
  6. Construction Site
  7. Any Large Outdoor Are,etc



COMMERCIAL LIGHTING PUBLIC LIGHTING INDUSTRIAL LIGHTING
Tunnel Tunnel Manufacture
Supermarkets Airports Warehouses
Large retailers Stadium Parking lots
School Train stations Exhibition centers
Billboard Bus stations Gas stations
Building etc. Toll stations
Garden etc.

LED Flood Light 3 In 1 30W-500W Power CCT Adjustable IP66 Waterproof For Football Sports Field 10
