Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts

Minimum Order Quantity : 50pcs Price : Ex-work price
Packaging Details : 305*305*205mm, G.W:3.5±0.2KG Delivery Time : 2 weeks
Payment Terms : T/T, Western Union, L/C,Paypal Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE,RoHS,CB,TUV,ETL,DLC Model Number: 150W LED Hi-bay light

Detail Information

Item :: 150W LED Highbay Light Power:: 150W
Input Voltage:: AC100-277V LED Chip:: SAMSUNG/
LED Driver:: LIFUD/MeanWell/Lonsng Luminous Flux(lm):: 19500lm / 21500lm
CRI:: >80Ra Beam Angle: 60°, 90°, 105°
Warranty: 5 Years Certifcated: CE,RoHS,CB,TUV,ETL,DLC
Fixture Material: ADC12 Aluminum Alloy Use Environent: Dry Or Damp Or Wet
Operating Humidity: 15-90%RH Export Carton Size: 305*305*205mm
High Light:

Waterproof IP65 High Bay Light

,

TUV LED High Bay Lighting

Product Description

Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts


Specifications:



Product Name LED Highbay light
Power 80 100 120 150 Watts(Dimmable&No-Dim)
LED Type SAMSUNG
CCT 3000K, 4000K, 5000K, 5700K, 6500K
Beam Angle 60°, 90°, 105°
CRI >80Ra
System Efficiency >90
PowerSupply LIFUD/MeanWell/Lonsng
Input Voltage AC100-277V
Power Frequency 50/60Hz
OutputVoltage DC80-150V/DC28.8-48V
Output Current 0.73/2.19A  1.09/3.28A  1.45/4.3A(Constant Currrent)
Power Efficiency ≥90%
Power Factor ≥0.9
Total Harmonic Distortion <15%
Application Indoor
IP Rate IP65
Safety Certification CE,RoHS,TUV,CB,ETL,DLC
Fixture Material ADC12 Aluminum alloy
Life span >50000Hrs(Ta=30℃ @LM70)
OperatingTemperature -30 ~ 45℃
Operating Humidity 15-90%RH





150 Watts LED High Bay Light Dimension:


 Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 0

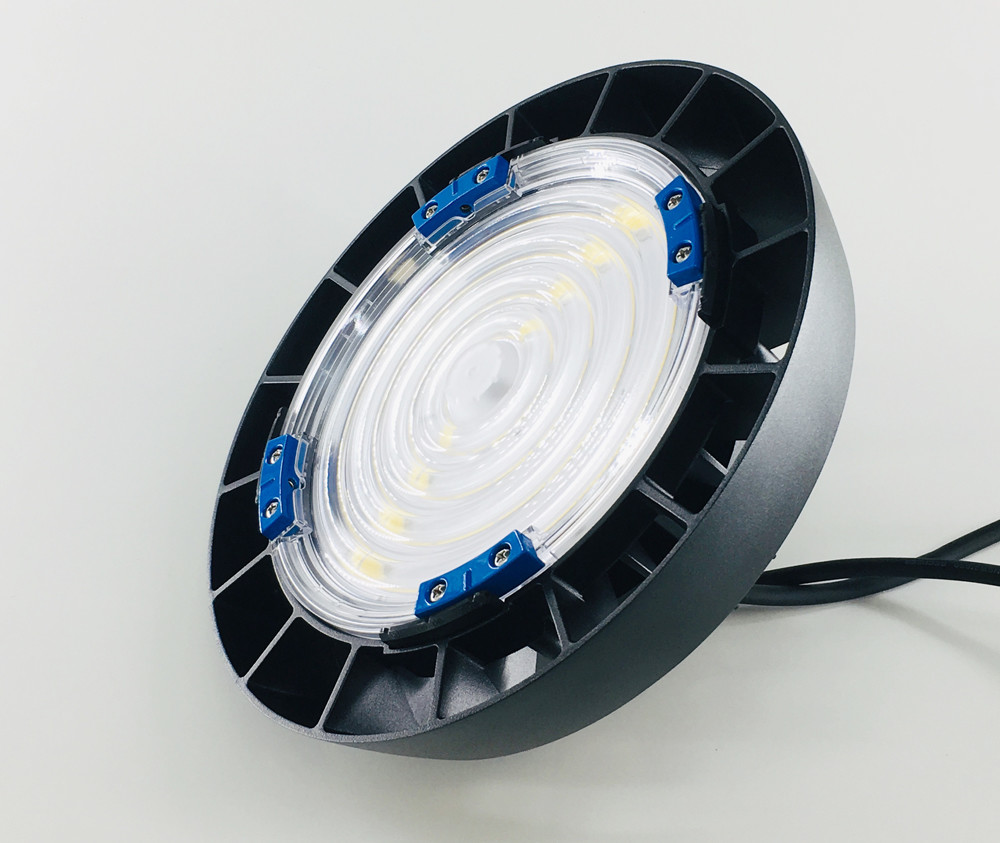

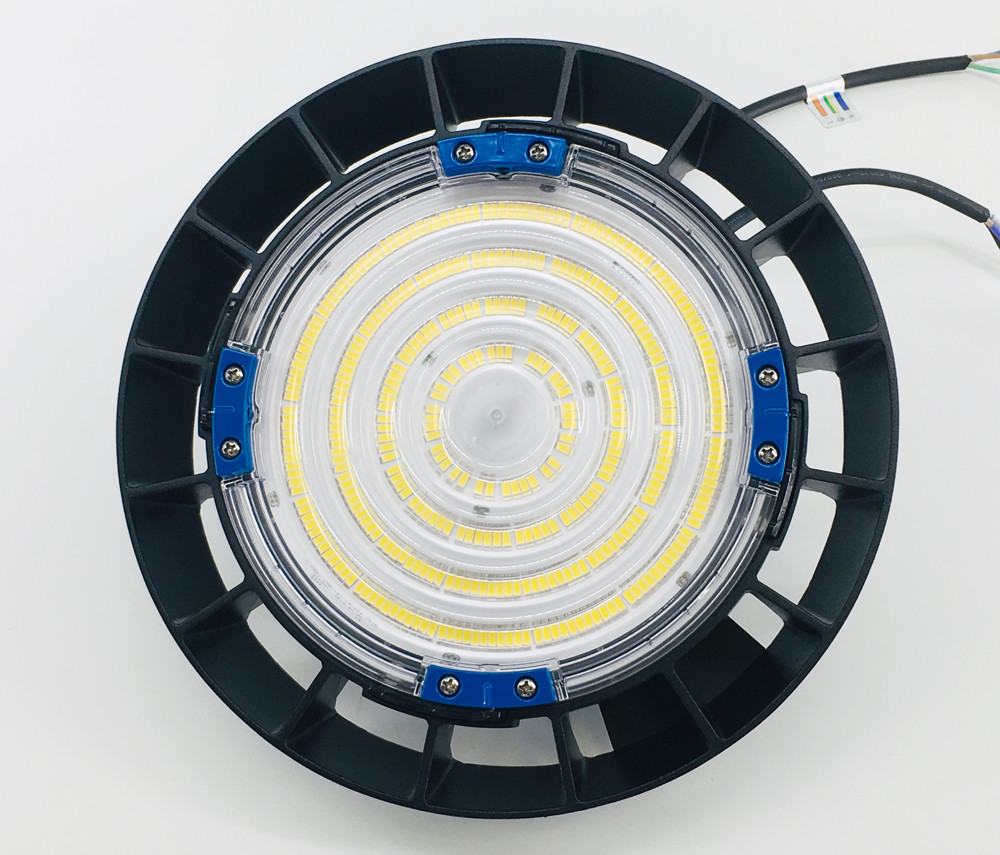

LED High Bay Light Product shows:


 Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 1  Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 2

Conventional models & 4 level switch models & Panda design models



Conventional model:

The Beam Angle(60° / 90° / 105° ) can be adjusted to meet the luminescence needs of different sites.

Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 3



4 level switch model:

Base on the beam Angel adjustable, power ( 80W/100W/120W/150W ) is adjustale also.

Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 4





Panda model:

A dustproof enclosure is added to the regular model, which is easy to clean for the dusty and

suitable for dusty environment.



Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 5



Details:



4 level switch:                                                    Safety rope:



Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 6  Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 7



Beam Angle Adjustable:                                  Custom laser trademark:



Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 8 Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 9



Beam Angle:

Angle Zoomable LED Industrial High Bay lights, UFO IP65,100-277Vac input,100W/150W/200W Angle Zoomable LED Industrial High Bay lights, UFO IP65,100-277Vac input,100W/150W/200W Angle Zoomable LED Industrial High Bay lights, UFO IP65,100-277Vac input,100W/150W/200W
                 105°                                                    90°                                              60°



Carton Package:



Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 13 Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 14



Aging text:

Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 15Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 16


  Applications:

For area lighting for interior and exterior applications. e.g, airport, golf coruse, factory, plants, warehouse, exhibition halls, Gym....



Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 17Waterproof IP65 High Bay Light Power Dimmable Angle Adjustable 80 100 120 150 Watts 18

Q1: Are you a manufacturer?

MF: Yes,we have our own factory with over 14 years R&D and manufacture experience base on ISO quality management since 2009.


Q2. Can I have a sample order for UFO LED High Bay Light ?
MF: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.


Q3. How about the lead time of UFO LED High Bay Light ?
MF: 3-7 days for sample order, 15-25 days for mass production order base on order quantities.


Q4: How do you ship the finished production ?
MF:By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc) are optional.


Q5: Is it OK to print my logo on UFO LED High Bay Light ?
MF:We provide OEM service to our customers, we can help to make the label and color box according to your requirements.


Q6: How to proceed an order for UFO LED High Bay Light ?
MF:Firstly, please let us know your detail requirement and application environment. secondly we will recommend some suitable products and solutions to you according to your request. Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, then we start for the production and arrange the shipment.


Q7: How to deal with the defective?
MF: AlI of our product are produced in strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
