1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W

Contact Now

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W

Minimum Order Quantity :	50pcs	Price :	Ex-work price
Packaging Details :	30.530.520.5cm/38.538.527.5cm	Delivery Time :	2 weeks
Payment Terms :	T/T, Western Union, L/C,Paypal	Supply Ability :	10,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE,RoHS,CB,TUV,ETL,DLC	Model Number:	MF-UFO-KxxxW

Detail Information
Item ::	MF-UFO-KxxxW	Power::	100W 150W 200W 240W 300W
Input Voltage::	AC100-277V	LED Chip::	SAMSUNG/LUMILEDS
LED Driver::	MEANWELL /SOSEN / ZH	System Efficacy::	150±5% LM/W
CRI::	>80Ra	Beam Angle:	60°/90°/1120°
Warranty:	5 Years	Certifcated:	CE,RoHS,CB,ETL,DLC5.1
Fixture Material:	ADC12 Aluminum Alloy	OperatingTemperature:	-30 ~ 50℃
Operating Humidity:	15-90%RH	StorageTemperature:	-40 ~ 70℃
Highlight:	Dimming UFO Highbay Light , 150W Dimming Highbay Light , 150lm/W Dimming Highbay Light

Product Description

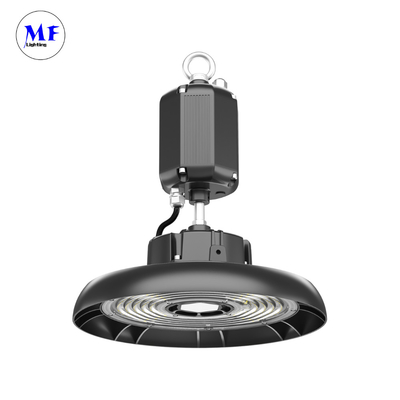

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 0

IP66 High bay light
Input: AC 100-277V, 50/60Hz
Luminous Flux: 150±5% LM/W
CRI: >80Ra
PF: >90%
Lifespan: ≧50000Hrs
IP rate: IP66
Dimming: 0-10V
PowerSupply: MEANWELL /SOSEN / ZH

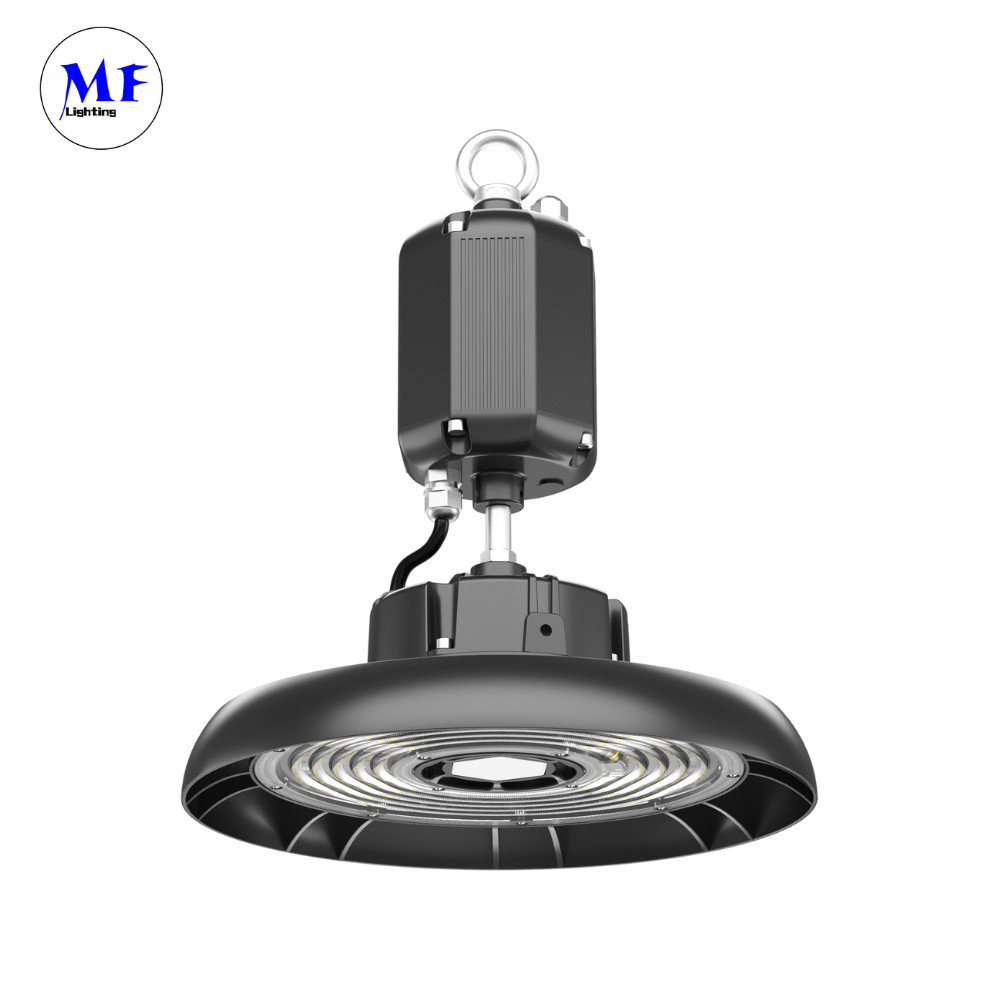

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 1

Mode No.	MF-UFO-H10Dw	MF-UFO-H150w	MF-UFO-H200w	MF-UFO-H240W
Input Votage	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Rated Power	100W	150W	200W	240W
LED	210PCS*2835	300PCS*2835	375PCS*2835	430PCS*2835
PF	>0.95	>0.95	>0.95	>0.95
LED Brand	Lumiled	Lumiled	Lumiled	Lumiled
Luminous Flux	15000lm±5%	22500lm±5%	30000lm±5%	36000lm±5%
CRI	Ra>70,80,90	Ra>70,80,90	Ra>70,80,90	Ra>70,80,90
cc	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Beam Ange	60/90/120	60/90/120	60/90/120	60/90/120
Driver Brand	MW/SOSEN/ZH	MW/SOSEN/ZH	MW/SOSEN/ZH	MW/SOSEN/ZH
THD	<10%	<10%	<10%	<10%
lKRating	IKo8	IKO8	IK08	lKO8
lP Rating	IP66	IP66	IP66	IP66
life Span	50000Hrs	50000Hrs	50000Hrs	50000Hrs
Size	270"149mm	300*158mm	330*164mm	330*164mm
N.w	2.50kg	2.80kg	4.00kg	4.10kg
Gw	2.90kg	3.40kg	4.65kg	4.75kg
Certification	ETL/DLC/CE/SAA/FCC/RoHS/CCC

*Lightweight, impact resistant fixture is designed for easy and safe installation.
*Die-casting technology by ADC12, excellent thermal management, reduce the temperature difference and ensure the lumen depreciation
*Multiple mounting options for a variety of applications, Pendant, loop.
*High strength polycarbonate lens, achieve IK 08, Anti-UV, transmittance > 94%
*Multiple lighting distributions: 60°/90°/120°
*Top brand LED chip and driver, ensure the product quality and lifetime
*Ingress Protection Rating: IP66
*Operation Temperature: -35 C -+50
*Up to 140lm/W: 170lm/W:190lm/W
*3000K.4000K.5000K.5700K color temperature
*CRI>80
*Offered in 100,150, 200 and 240W

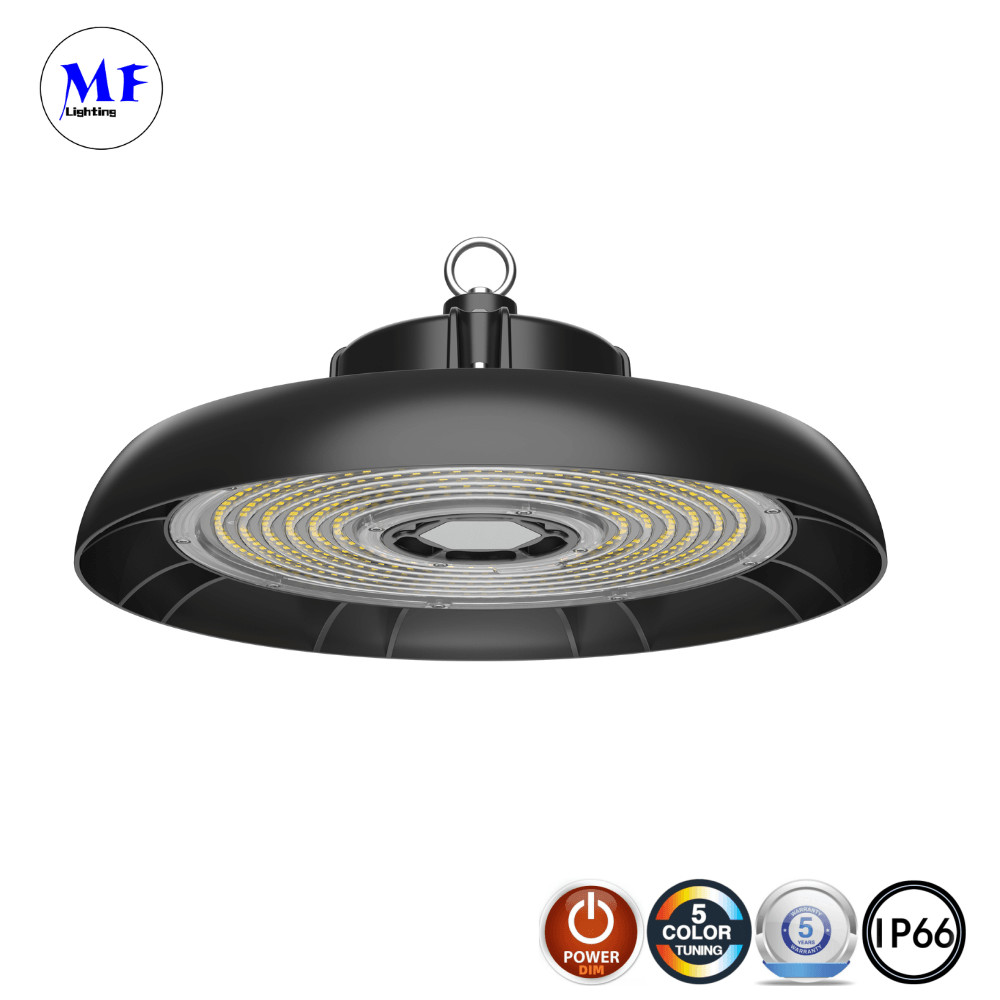

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 2

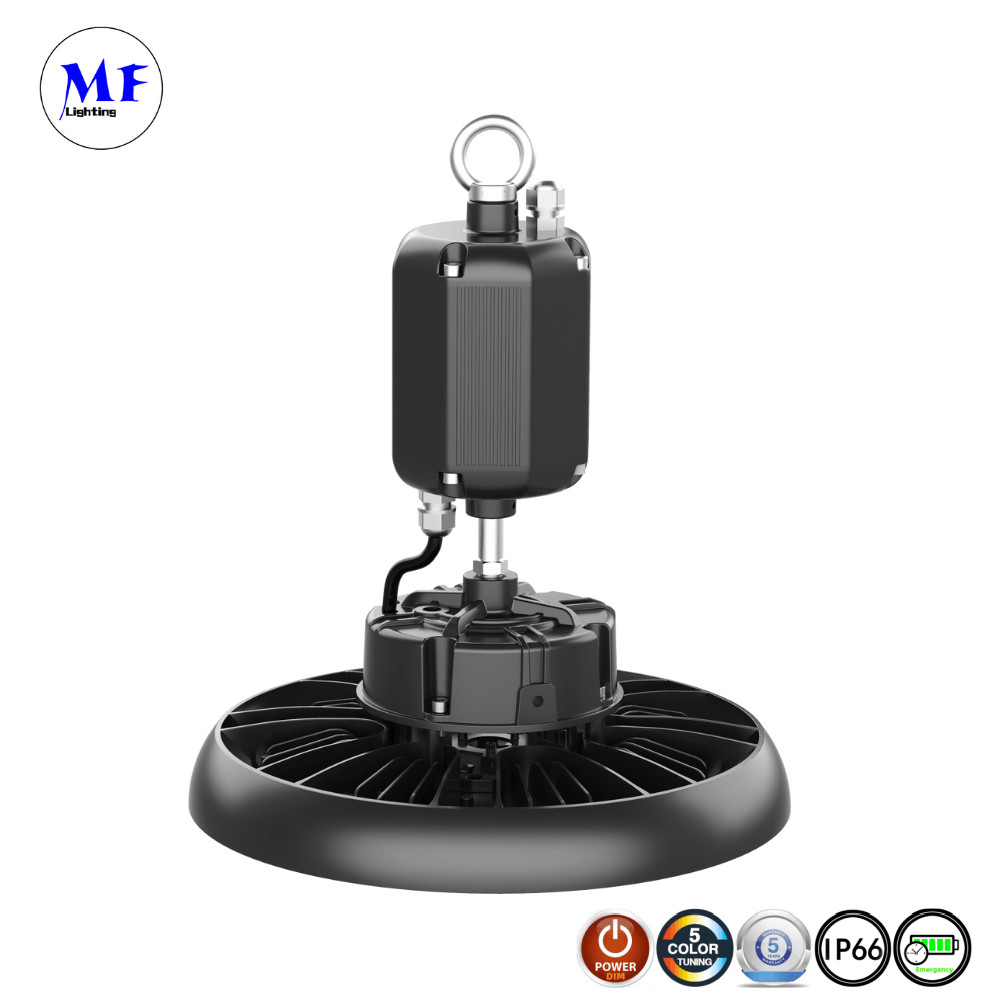

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 3

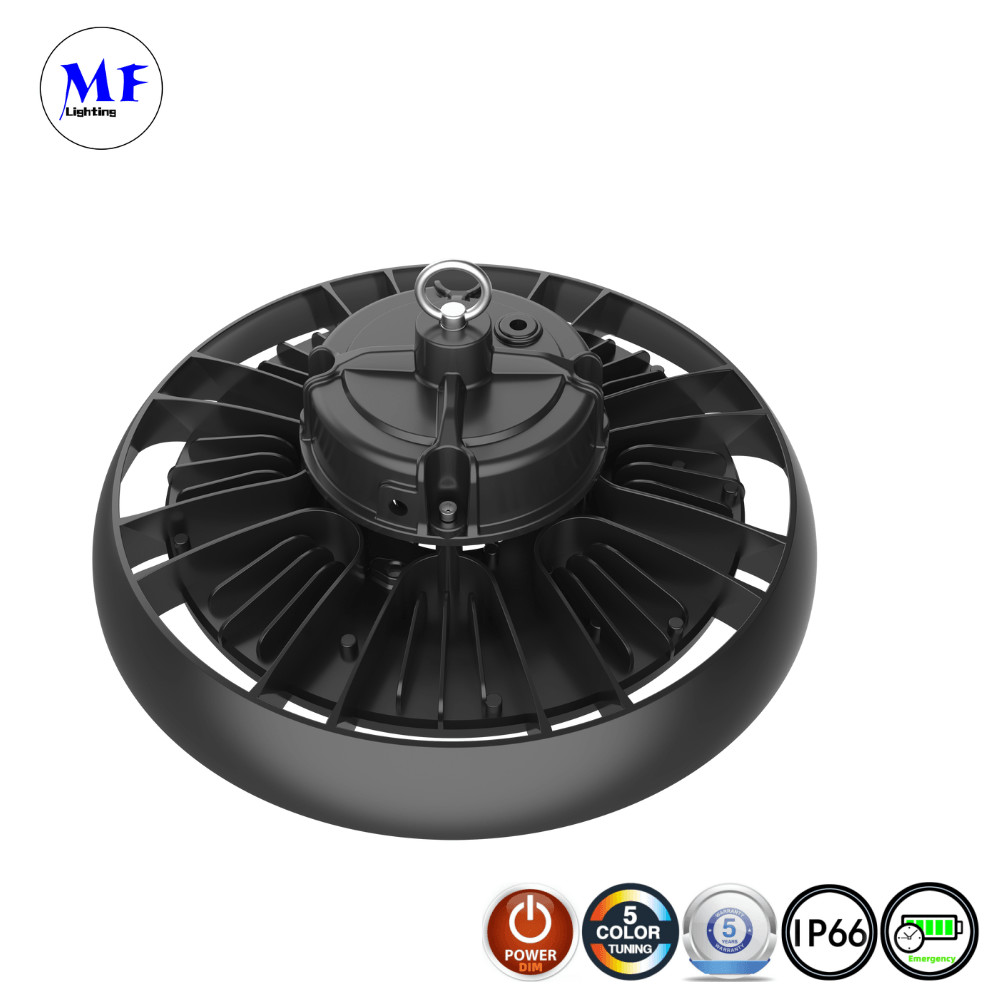

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 4

Multiple lighting distributions: 60°/90°/120°

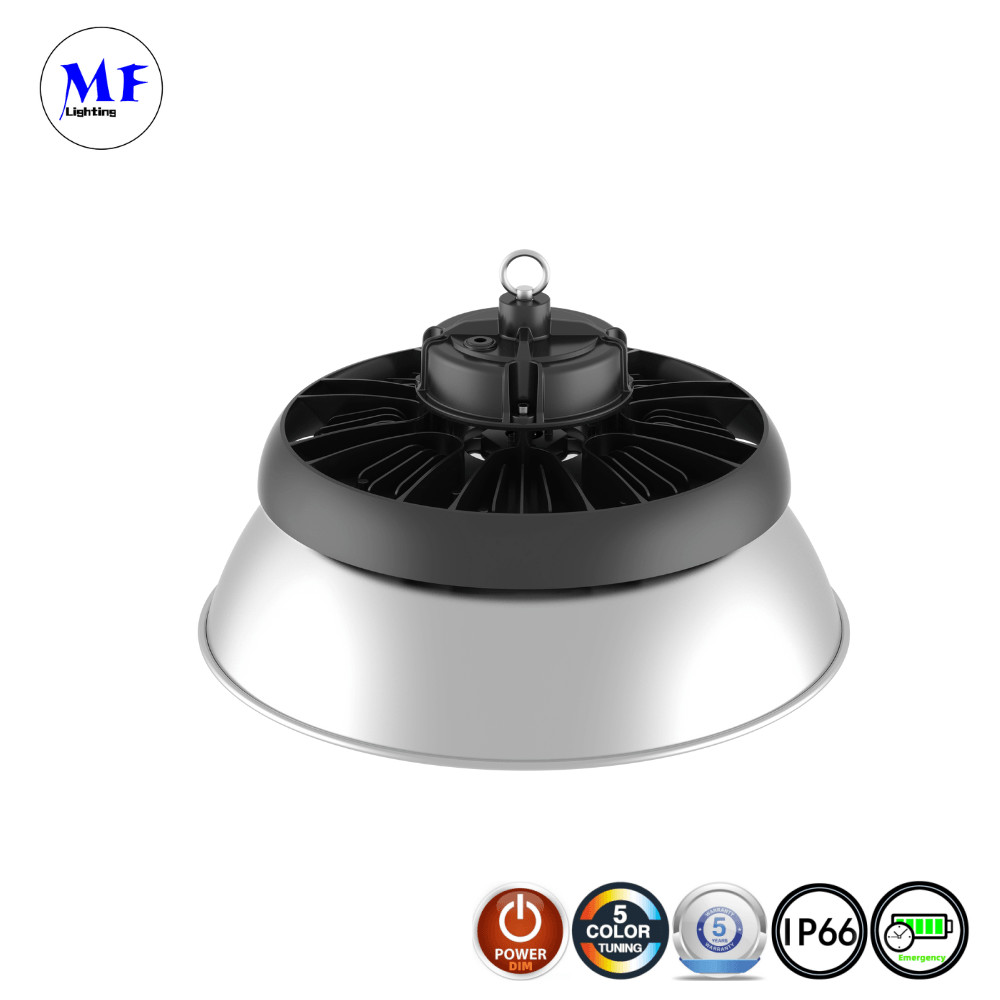

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 5

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 6

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 8

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 9

100W 150W

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 10

200W 240W

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 12

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 14

Warehouses and Storage Facilities/Manufacturing Plants/Gymnasiums and Sports Facilities/Retail Stores/Parking Garages and Outdoor Areas/Exhibition Halls and Event Spaces...

1-10V /Dali Dimming UFO Highbay Light 150W 200W 240W 300W IP66 150lm/W 15
