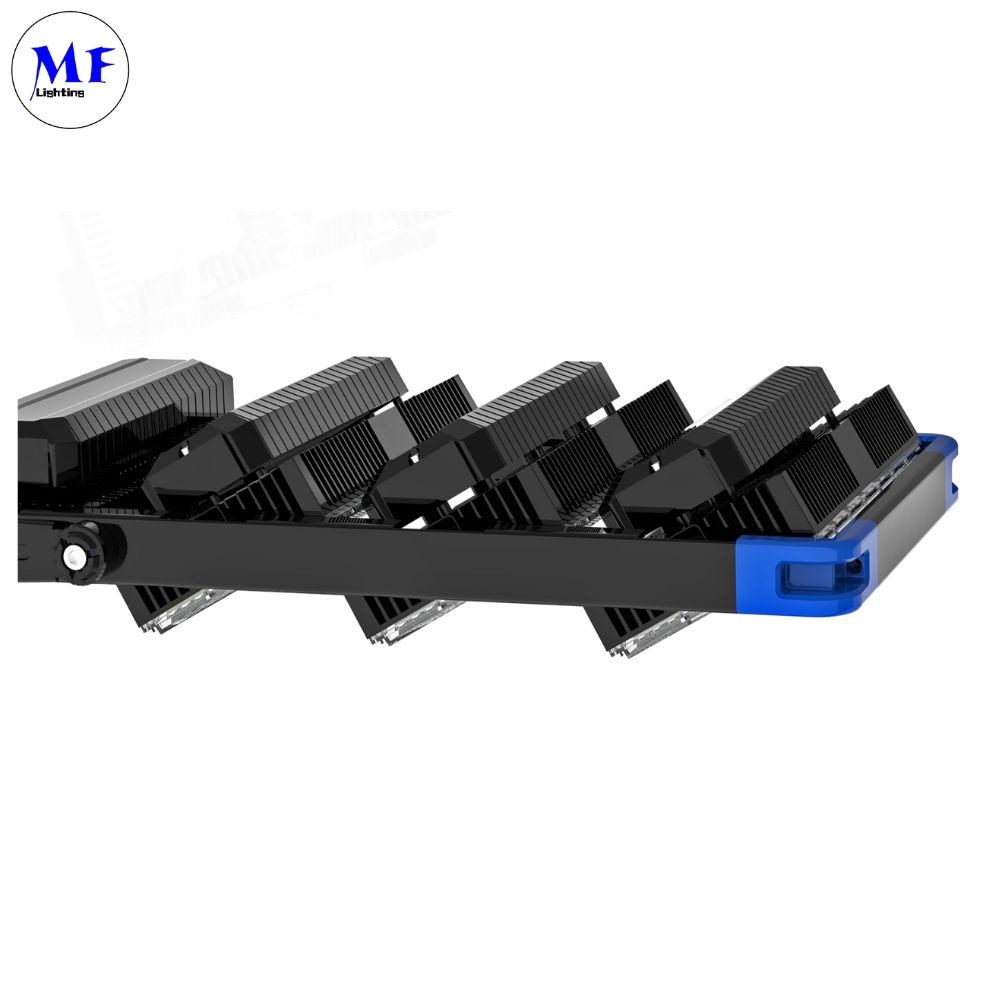

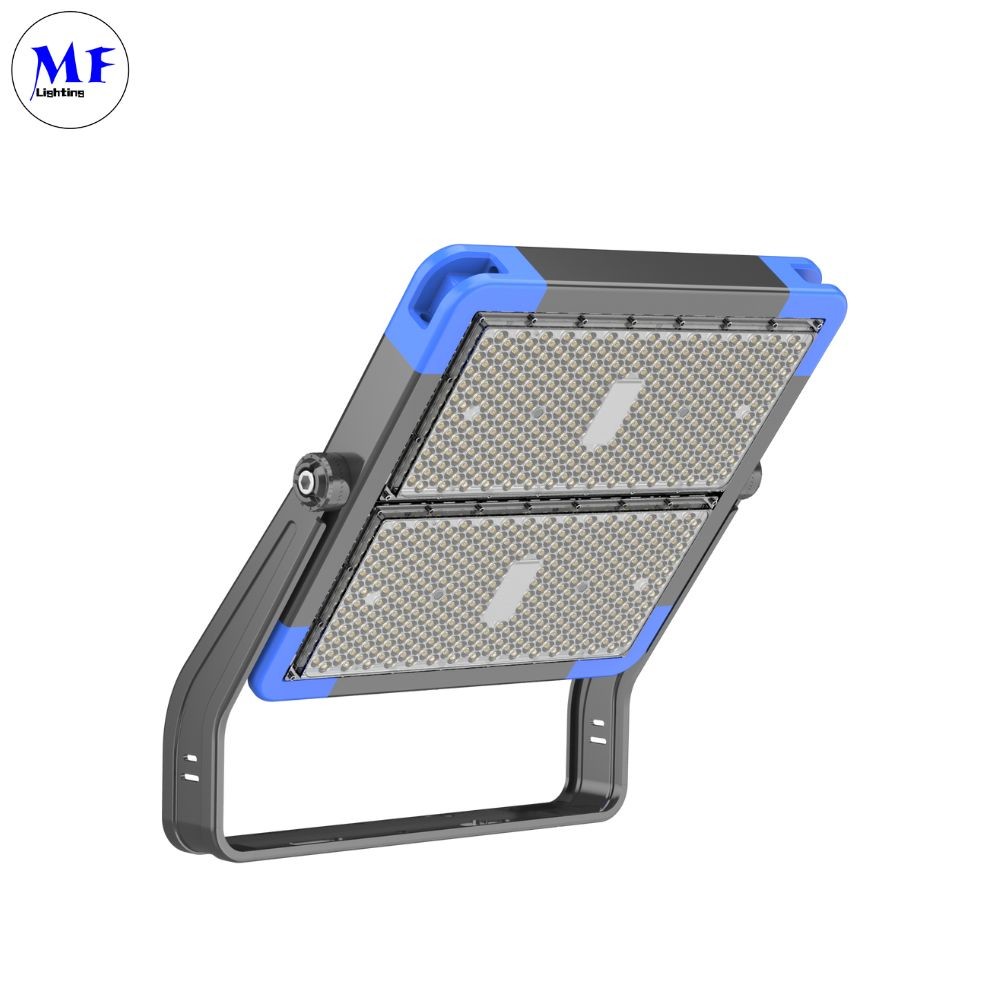

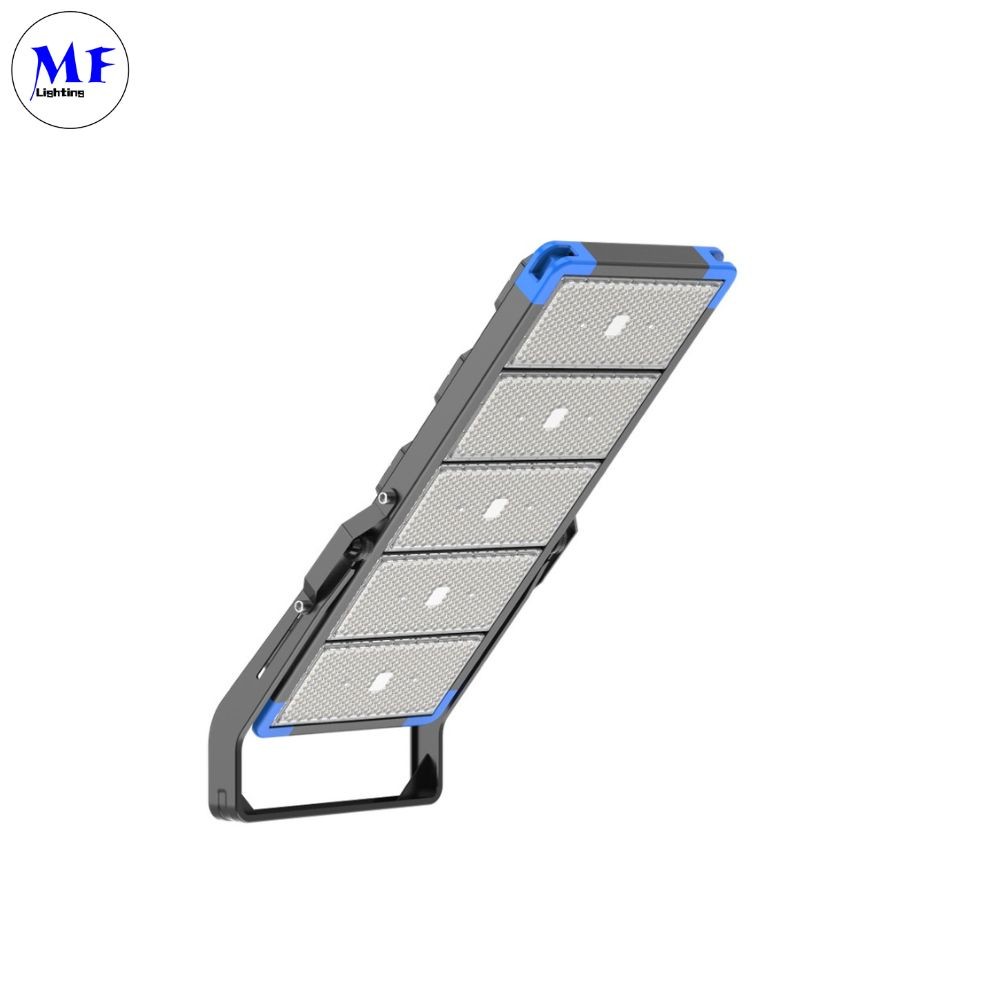

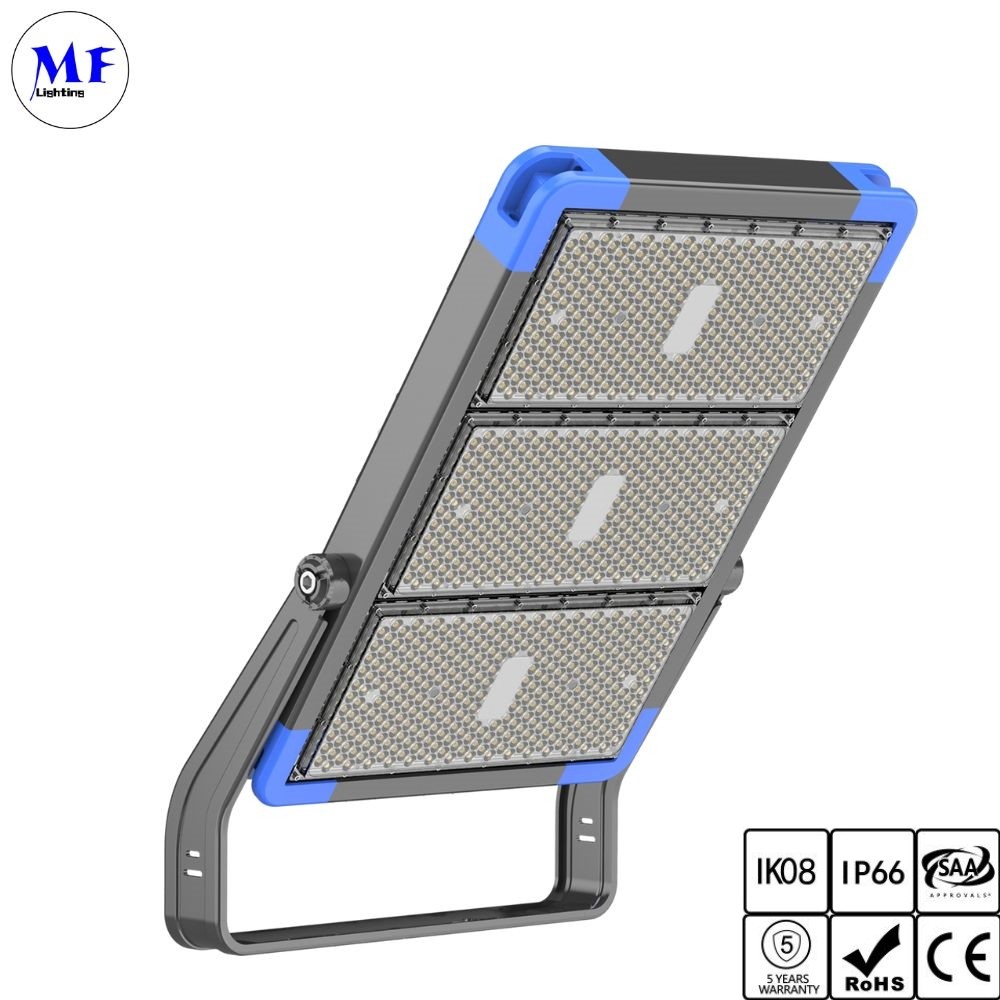

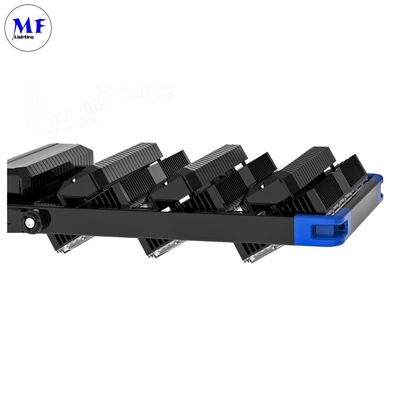

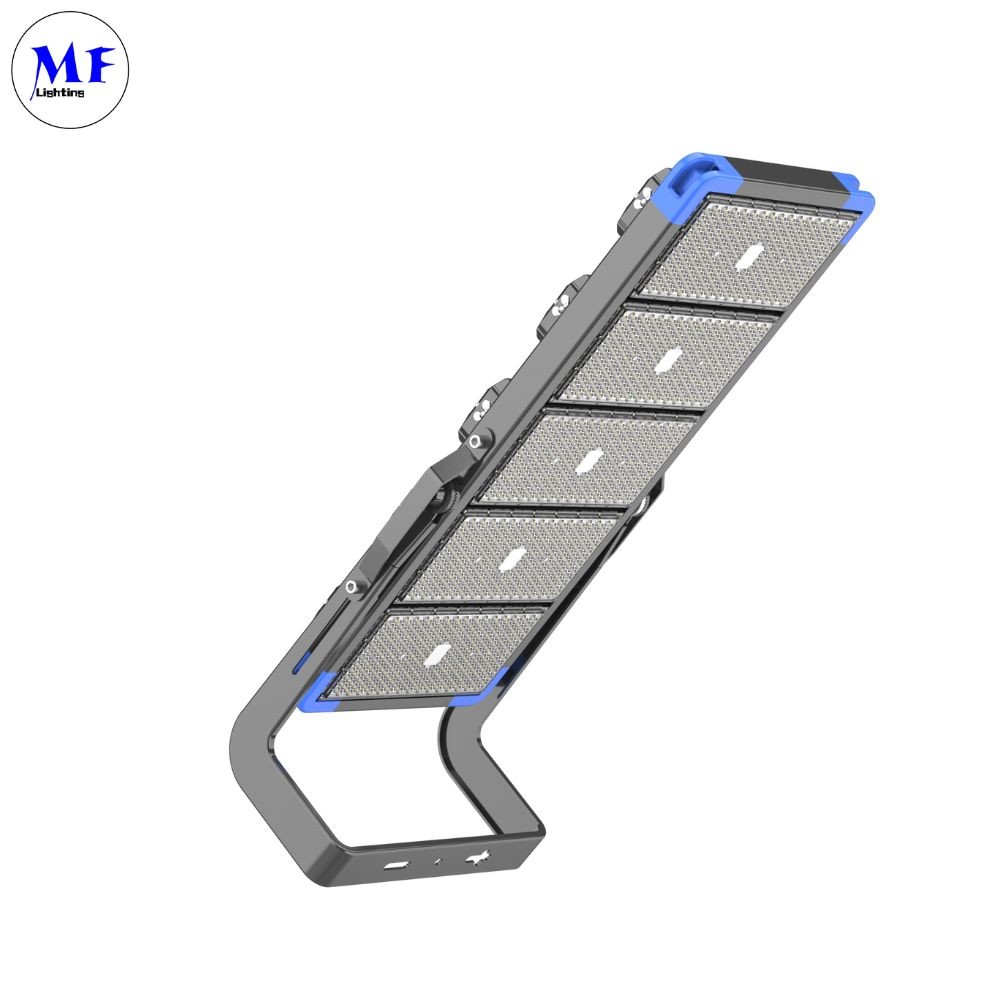

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Model Number: MF-Iron man

Detail Information

Certification: CCC/CE/ROHS/SAA/CB/ATEX/EX/TUV CCT: 3000K-6500K
Material: ADC12 Aluminum Die-Casting Fixture Housing Input: 100-227V
Power: 250W/500W/750W/1000W/1250W IP Rate: IP66
Warranty: 5years Lifespan: >50,000hours
Luminous Flux: 140lm/W Ik Rate: Ik10
Chip Brand: LuMileds/OSram Power Frequency: 50-60Hz
LED Driver: IEC Certified Working Temp: -20°C~+60°C
Application: Stadium/Wharf/Airport/Aproan/Stadium/Highway/etc Other Application: Basketball Soccer Volleyball Badminton Football Tennis Court Field/Stadium Concert/Music Festival Event/Sport Facility
Beam Angle: 10/25/45/60/90/130*30*60° Installation: Vertical/Wall/Hanging Mounting
Lens Material: Polycarbonate
High Light:

IP66 Ik08 LED Flood Light

,

High Mast Stadium Lighting 250W

,

Ik08 High Mast Stadium Lighting

Product Description

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field
IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 0



1.Lumileds chips, high brightness, low light decay & long life-time

2.International driver brand, overheat protection, high convert efficiency, high PF & surge protection, (1-10V,DALI2.0)

3.Die-casting technology with ADC12, excellent thermal management and balance the internal & external temperature, reduce chip Tj and light
decay.

4.Optical UV resistant PC lens with 94% light transmitance, IK08. Light Distribution: 10°/25°/45°/60°/90°/130*30*60°/65*25*60°

5.Bracket Installation, operation temperature: -35C- +50C



IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 1



1.Energy Efficiency: LED High Mast Lights utilize efficient LED light sources, which result in higher energy utilization compared to traditional lighting methods, thereby saving power consumption. LED technology also offers long lifespan and lower maintenance costs, reducing the frequency and expenses associated with replacing the fixtures.
2.High Brightness: LED High Mast Lights deliver outstanding brightness output, providing wide illumination coverage. The high brightness of LED light sources ensures uniform and bright lighting in large areas, enhancing visibility and safety during nighttime.
3.Adjustable: LED High Mast Lights often come with adjustable lamp heads, allowing for the adjustment of light angles and illumination directions as per requirements. This adjustability enables the fixtures to better cater to the lighting needs of specific locations, such as parking lots, highways, ports, and more.
4.Durability: LED High Mast Lights are constructed using high-quality materials, ensuring durability and resistance to vibrations. They can operate in harsh weather conditions and withstand high wind speeds and other environmental pressures, ensuring long-term stable lighting performance.
5.Environmentally Friendly and Energy Saving: LED High Mast Lights do not contain harmful substances such as mercury and lead, making them more environmentally friendly. The high energy efficiency of LED technology reduces energy consumption, helping to reduce carbon emissions and making them a sustainable lighting choice.






IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 2

Model No. MF-1RF-250w MF-1RF-500w MF-1RF-750w MF-IRF-1000w MF-IRF-1200w
Itrput Voltage AC100-277v 50/6Hz AC100-277v 50/6Hz AC100-277v 50/6Hz AC100-277v 50/6Hz AC100-277v 50/6Hz
Output Voltage Dc42v DC42v DC42v DC42v oC42v
Rated Power 240W 480W 720W 960W 1200W
Qty of LED 343PCS*3030 686PCS*3030 1029PCS*3030 1372PCS*3030 1715PCS*3030
PF >0.95 >0.95 >0.95 >0.95 >0.95
LED BRAND Lumileds
Luminous Flux 33600lm±5% 67200lm±5% 100800lm±5% 134400lm±5% 168000lm±5%
CRI Ra>70,80,90 Ra>70,80,90 Ra>70,80,90 Ra>70,80,90 Ra>70,80,9o
CCT 3000-6500K 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Beam angle 10°/25°/45°/60°/90°/130*30*60°
Driver Brand MeanWell/SoSen
THD <10%
IK RATE IK08
IP RATE IP66
Life span 50000Hrs
U-L/ETL/DLC/TuV/CB/ENEC/CE/SAA/FCC/RoHS/coc



IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 3

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 4





Light Distribution:



IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 5




Installation:

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 6

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 7



IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 8



LED high mast lights are extensively used in various applications that require powerful and efficient lighting solutions. Here is a paragraph describing the applications of LED high mast lights:
LED high mast lights find widespread application in large outdoor areas that demand high-intensity illumination. These lights are commonly used in sports stadiums, providing exceptional brightness and uniform lighting for sporting events and nighttime matches. They are also utilized in airports and transportation hubs to illuminate runways, taxiways, and apron areas, ensuring safe and efficient operations during low-light conditions. Additionally, LED high mast lights are employed in industrial facilities, warehouses, and logistics centers, where they provide bright and reliable lighting for loading docks, storage yards, and parking areas, enhancing safety and productivity. Furthermore, these lights are commonly used in seaports to illuminate container yards, docking areas, and cranes, enabling efficient cargo handling and enhancing overall security. Their applications also extend to large parking lots, highways, and intersections, where they provide excellent visibility, reducing the risk of accidents and ensuring smooth traffic flow. Overall, LED high mast lights serve as indispensable lighting solutions for a wide range of outdoor environments that require powerful and energy-efficient illumination.



Stadium,Wharf,Airport, Dock, Tower Crane, Large Outdoor Parking
Lot, Football Field, Basketball Court, Tennis Court, Golf Course etc.





IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 9
LED high power flood stadium lights are widely used in various applications where powerful, focused, and energy-efficient lighting is required. Here is a paragraph describing the applications of LED high power flood stadium lights:
LED high power flood stadium lights are extensively employed in outdoor sports stadiums and arenas to provide exceptional lighting for sporting events. These lights offer high-intensity illumination and excellent beam control, ensuring uniform coverage of the playing field, enabling athletes to perform at their best, and enhancing the viewing experience for spectators. Additionally, these lights find application in large outdoor concert venues and music festivals, where they create a vibrant and visually appealing atmosphere for performers and audiences alike. Their ability to produce bright and focused lighting makes them suitable for illuminating stages, outdoor sets, and event spaces during film and television productions. Moreover, LED high power flood stadium lights are used in architectural lighting projects, highlighting the facades of buildings, monuments, and landmarks, enhancing their aesthetics, and creating dramatic visual effects. These lights are also deployed in industrial facilities, warehouses, and construction sites, providing ample lighting for improved safety, productivity, and overall operational efficiency. Overall, LED high power flood stadium lights are versatile lighting solutions that find application in various outdoor environments, ranging from sports and entertainment venues to industrial and architectural settings.

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 10

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 11

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 12

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 13

Packing and Production:

Product Size(M/M)
carton Size(M/M)
L462xW222xH111/
550*440*190MM
L462xW399xH111/
613*536*175MM
L462xW584xH111/
680"550"240MM
L462xW761xH111/
860*550*240MM
L502xW1072xH307/
1060*600*280MM
N.w/G.w 8KG/9.35KG 15KG/17.1KG 20KG/22.75KG 26KG 128.9KG 36KG/37KG

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 14



IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 15

IP66 Ik08 LED Flood Light High Power High Mast Stadium Lighting 250W-1200W For Outdoor Sport Field 16

About us:





Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
