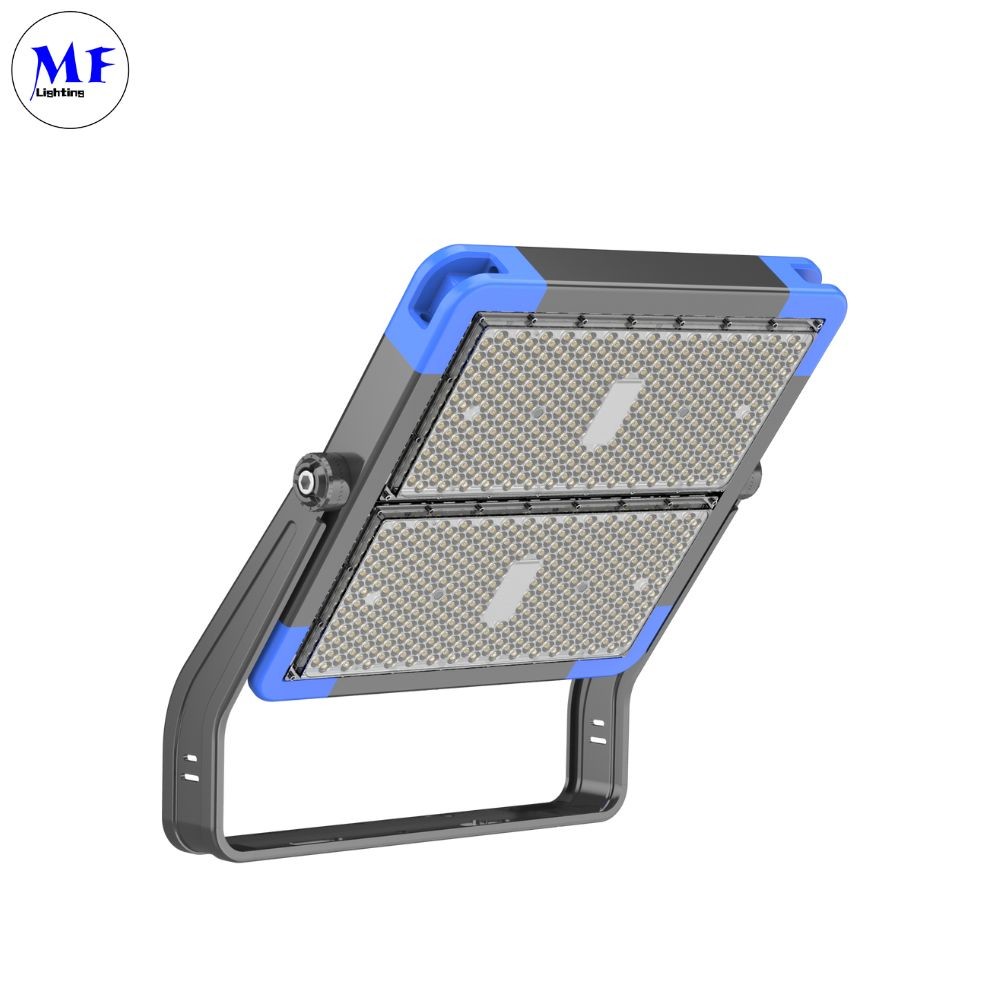

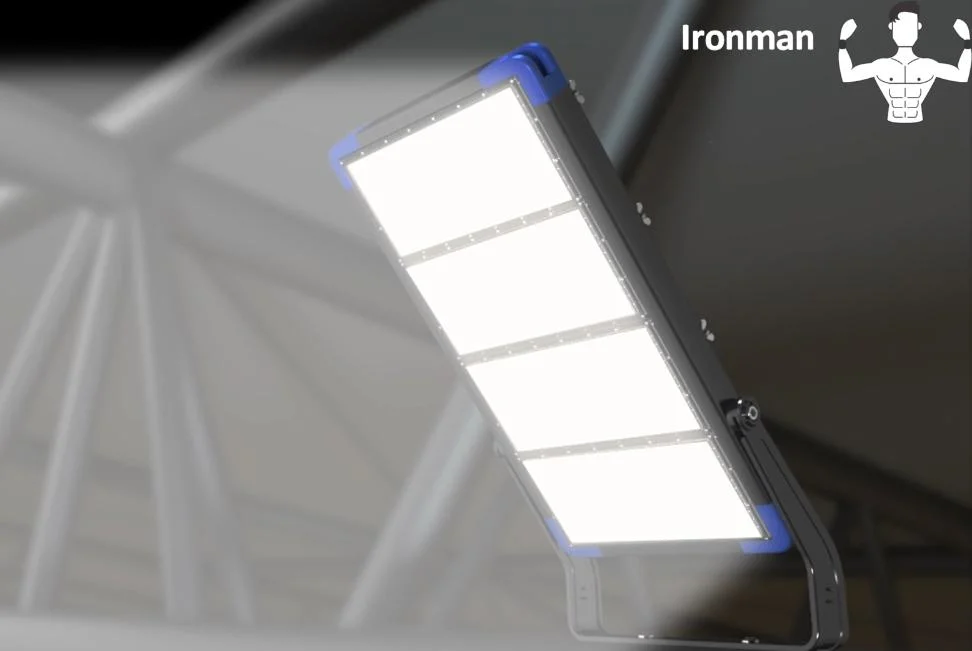

240W-1800W IP67 Waterproof Stadium Flood light 200LM/W Laser Aiming Assembly
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Model Number: | MF-Iron man |
Detail Information |
|||
Certification: | CCC/CE/ROHS/SAA/CB/ATEX/EX/TUV | CCT: | 3000K-6500K |
---|---|---|---|
Material: | ADC12 Aluminum Die-Casting Fixture Housing | Input: | 100-227V |

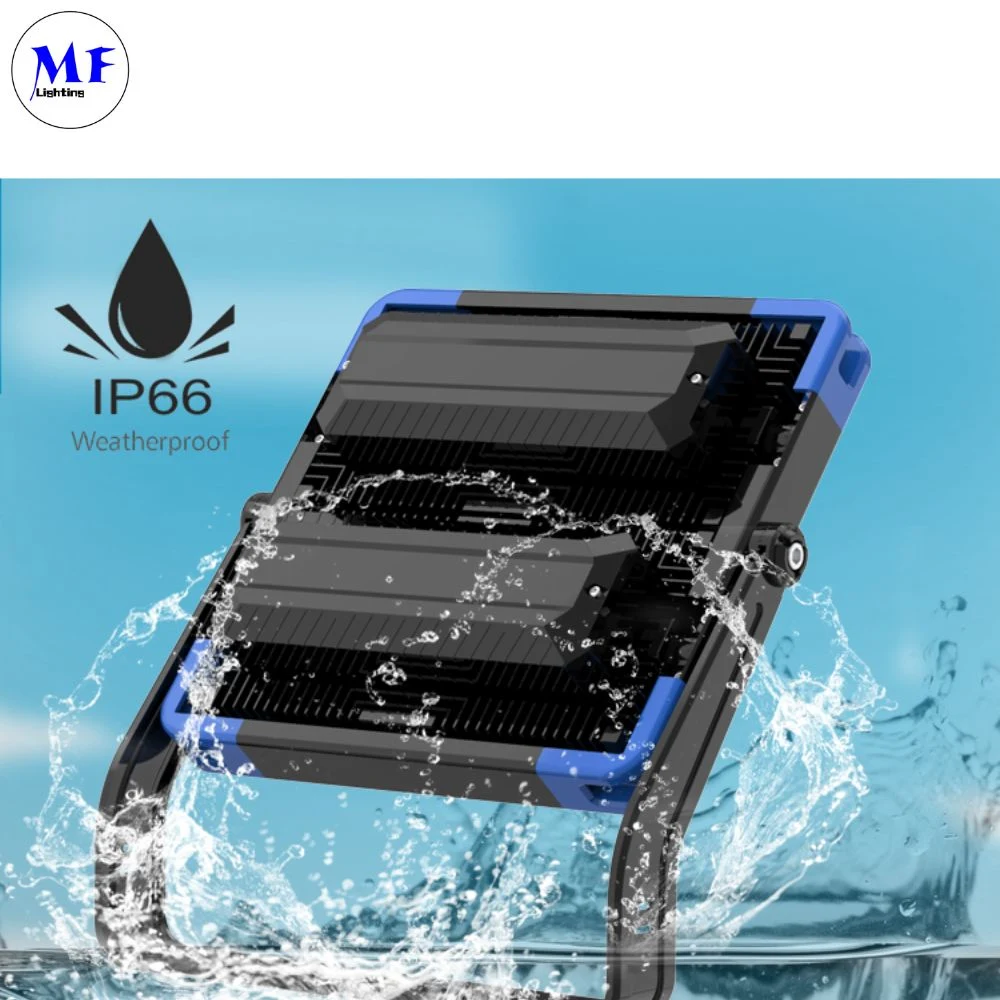

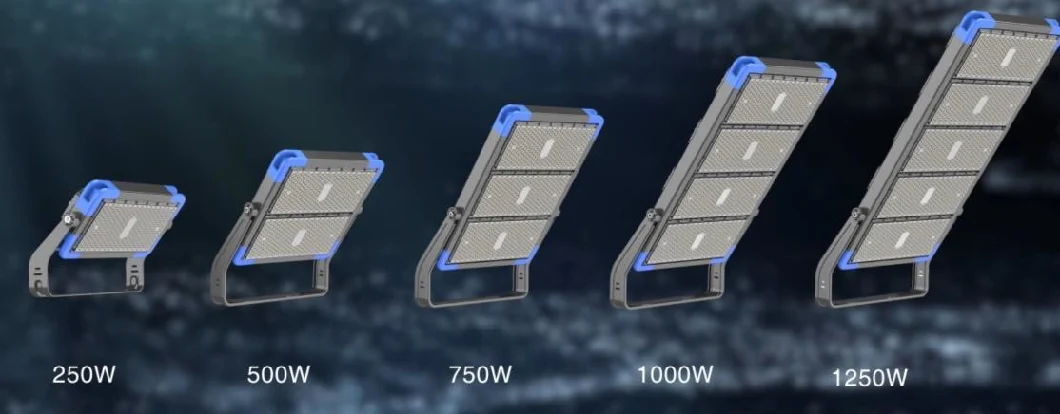

Power: | 250W/500W/750W/1000W/1250W | IP Rate: | IP66 |
Warranty: | 5years | Lifespan: | >50,000hours |
Luminous Flux: | 140lm/W | Ik Rate: | Ik10 |
Chip Brand: | LuMileds/OSram | Power Frequency: | 50-60Hz |
LED Driver: | IEC Certified | Working Temp: | -20°C~+60°C |

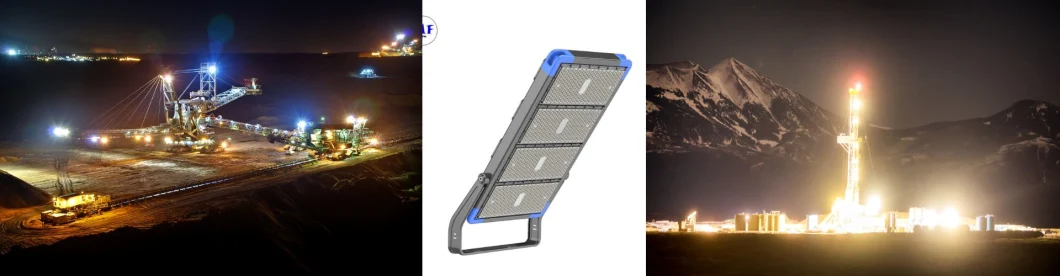

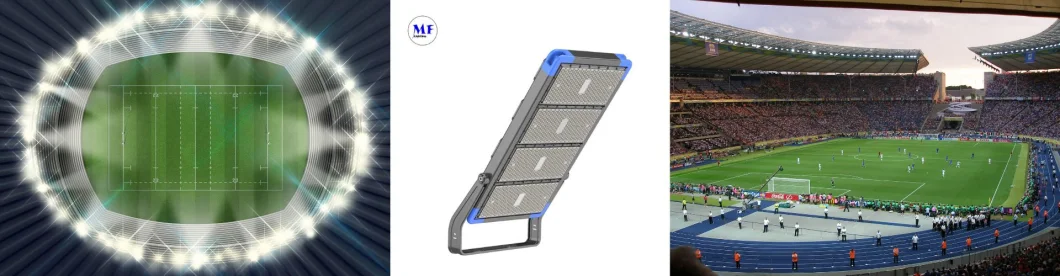

Application: | Stadium/Wharf/Airport/Aproan/Stadium/Highway/etc | Other Application: | Basketball Soccer Volleyball Badminton Football Tennis Court Field/Stadium Concert/Music Festival Event/Sport Facility |

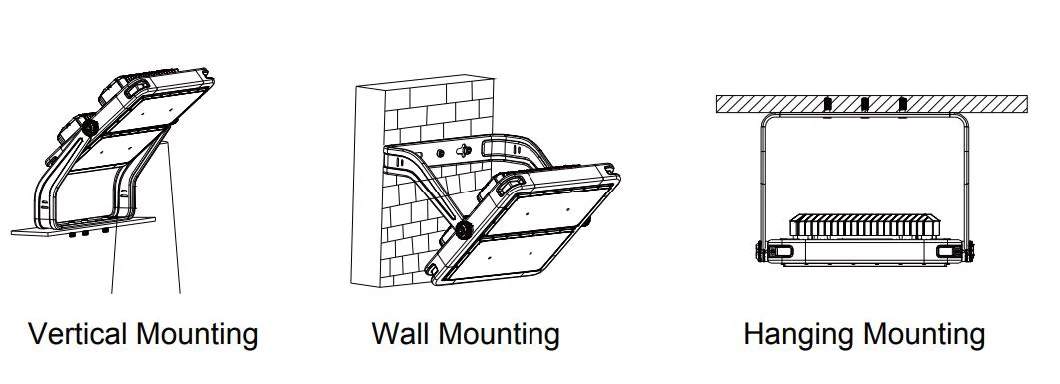

Beam Angle: | 10/25/45/60/90/130*30*60° | Installation: | Vertical/Wall/Hanging Mounting |
Lens Material: | Polycarbonate | ||
High Light: | 750w Adjustable Angle LED Flood Light,6500K LED Sports stadiums Light,Die-Casting LED stadiums Light |
Product Description

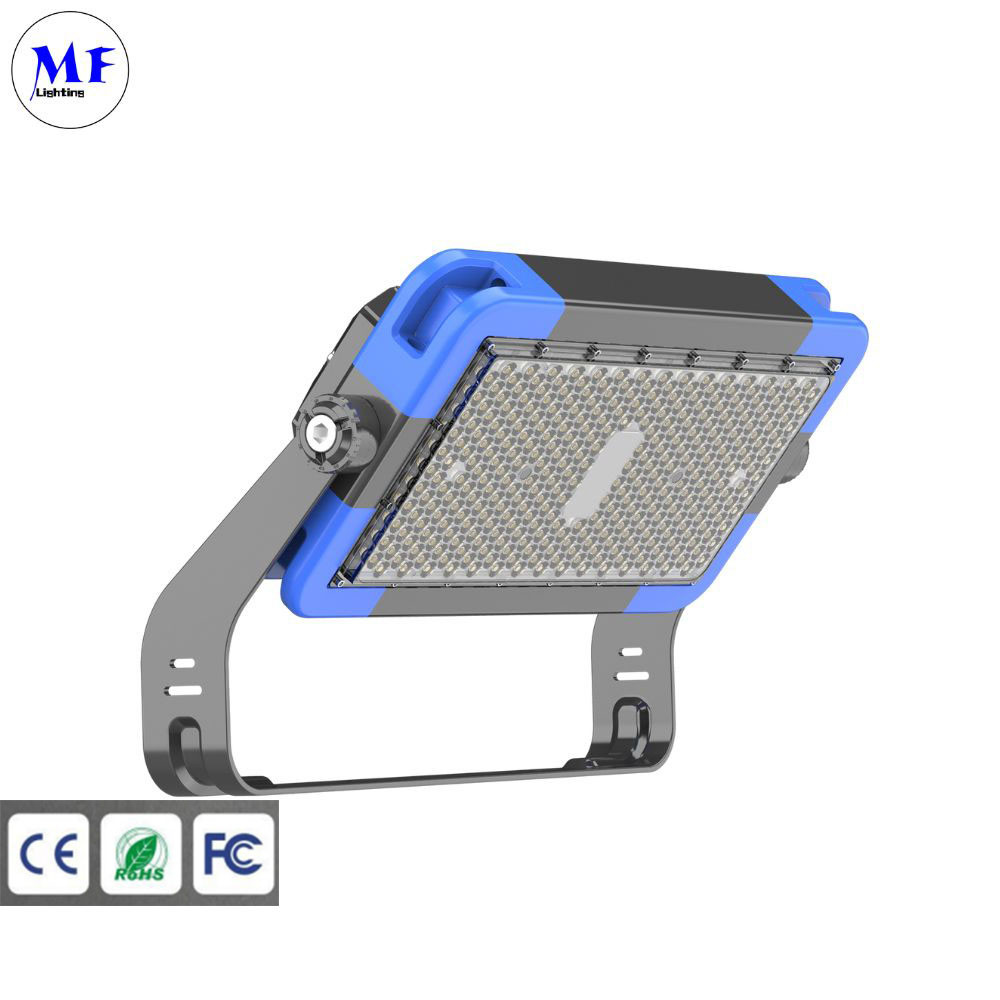

Factory Price Adjustable Angle 5 Year warranty 750w Sports stadiums Football Basketball Sport Field Court Projector High Mast Light
Product details

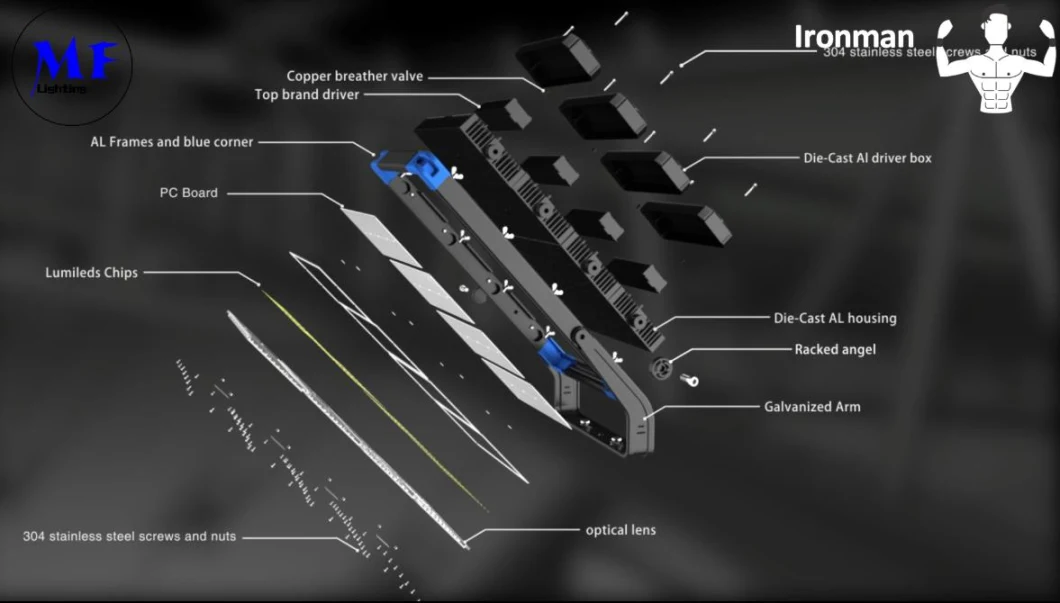

Lumileds chips, high brightness, low light decay & long life-time
International driver brand, overheat protection, high convert efficiency, high PF & surge protection, (1-10V,DALI2.0)

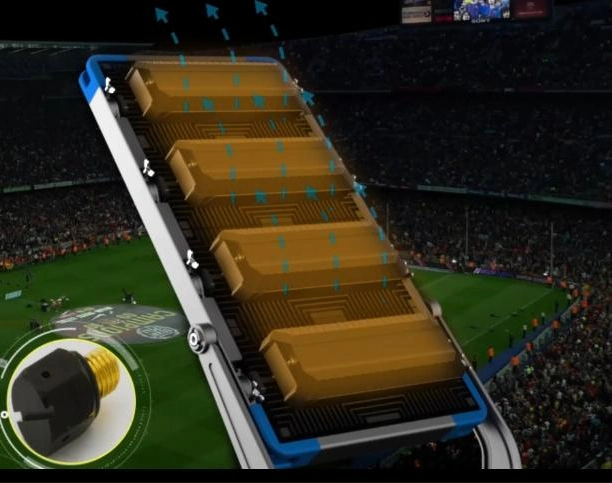

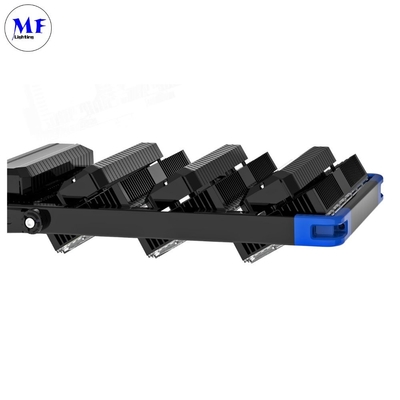

Die-casting technology with ADC12, excellent thermal management and balance the internal & external temperature, reduce chip Tj and light decay. Optical UV resistant PC lens with 94% light transmitance, IK08.

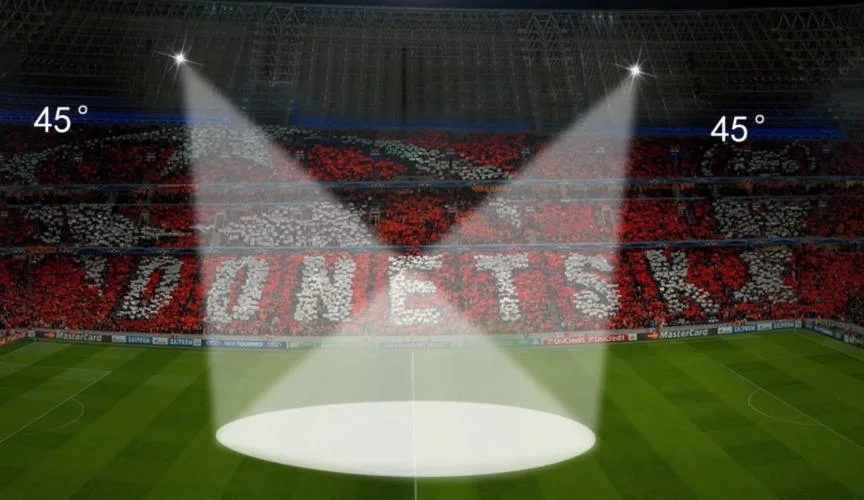

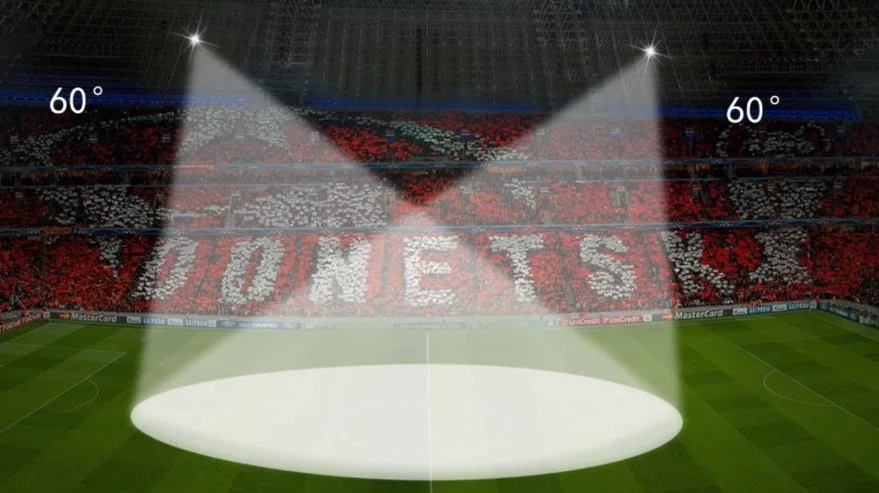

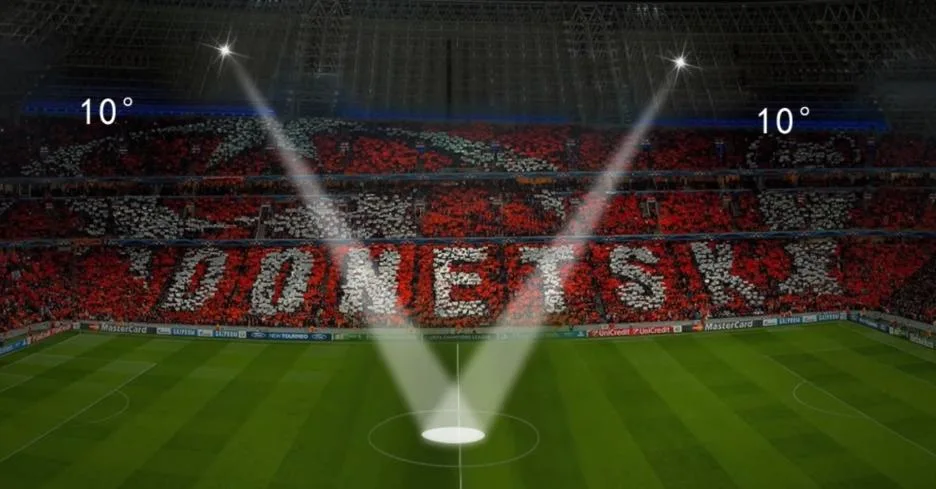

Light Distribution: 10°/25°/45°/60°/90°/130*30*60°/65*25*60° Bracket Installation, operation temperature: : -35C- +50C

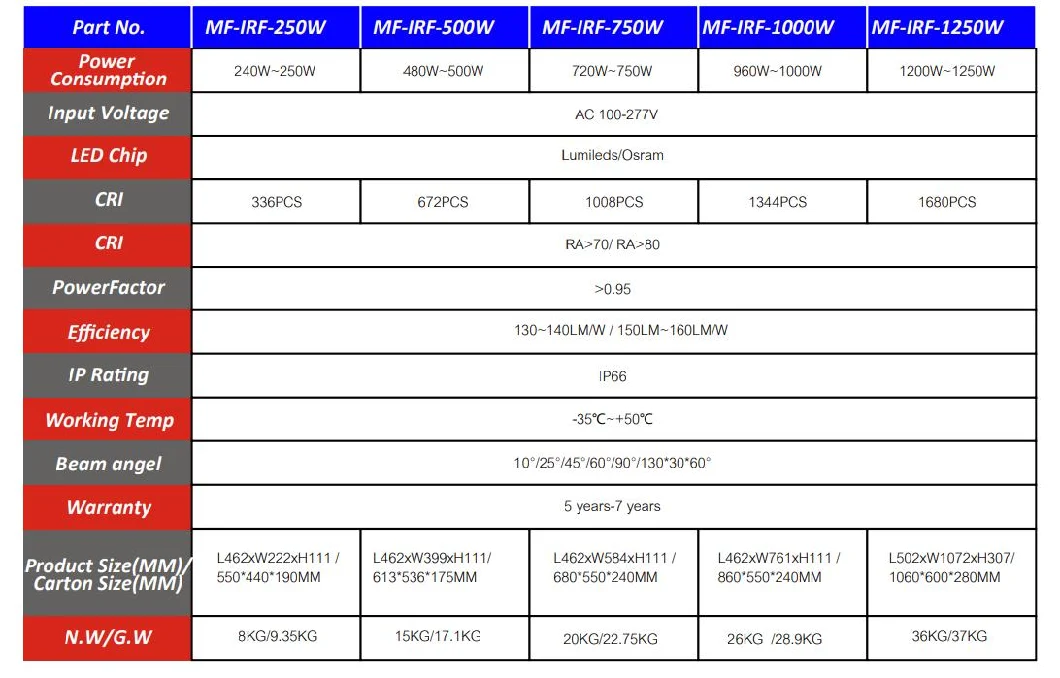

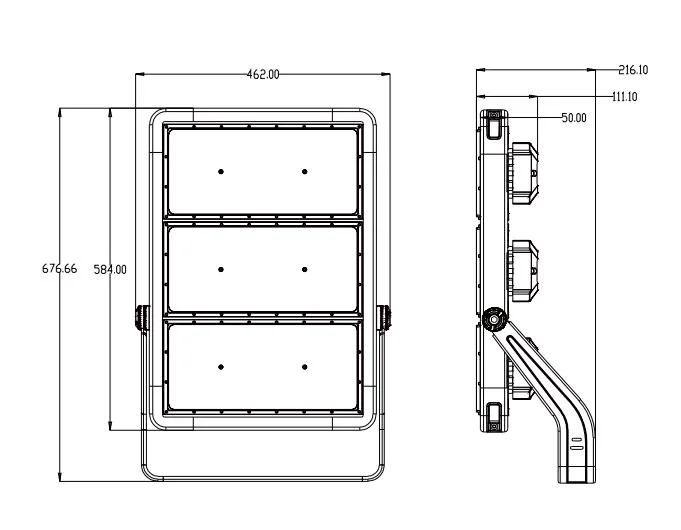

Product dimension:

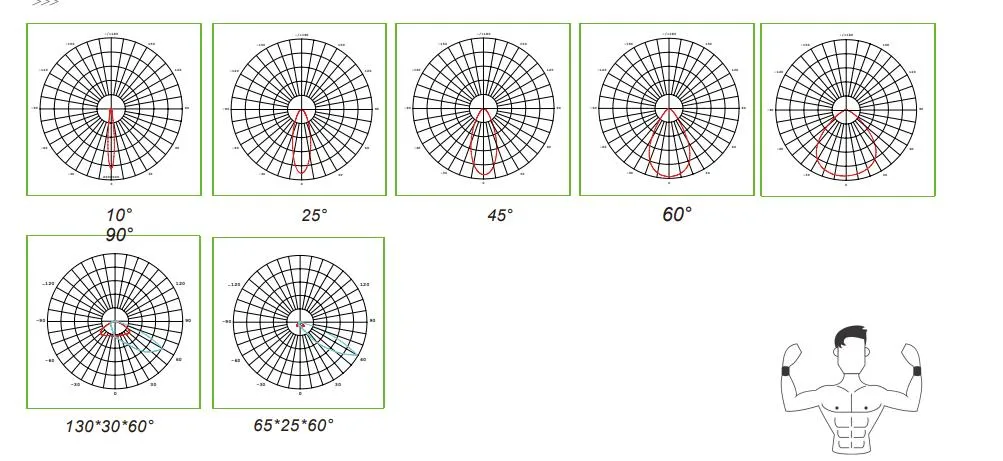

Photometry
To install a high mast light, the following steps and precautions should be taken:
1.Choose the right installation location: The high mast light should be installed above the area that needs illumination, taking into account factors such as the light projection range and surrounding environment. Also, the foundation conditions and nearby structures should be considered for potential impact.
2.Prepare equipment and tools: Confirm the type and quantity of high mast lights needed and prepare the necessary tools and equipment, such as cranes, welding machines, bolts, and angle irons.
3.Install the foundation: Select a suitable reinforced concrete foundation based on the size and weight of the high mast light and install an iron plate "socket" on the foundation for later installation of the high mast light.
4.Install the high mast light: Connect the base of the high mast light to the socket and secure it with bolts. Then, use a crane to lift the high mast light onto the socket and secure it with bolts.
5.Connect the power supply: Connect the cable of the high mast light to the power line and ensure the wiring is correct, secure, and well-insulated.
6.Test and adjust: After installation, test and adjust the high mast light to ensure it operates normally and has even light distribution.
Becareful!
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
Attention
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
