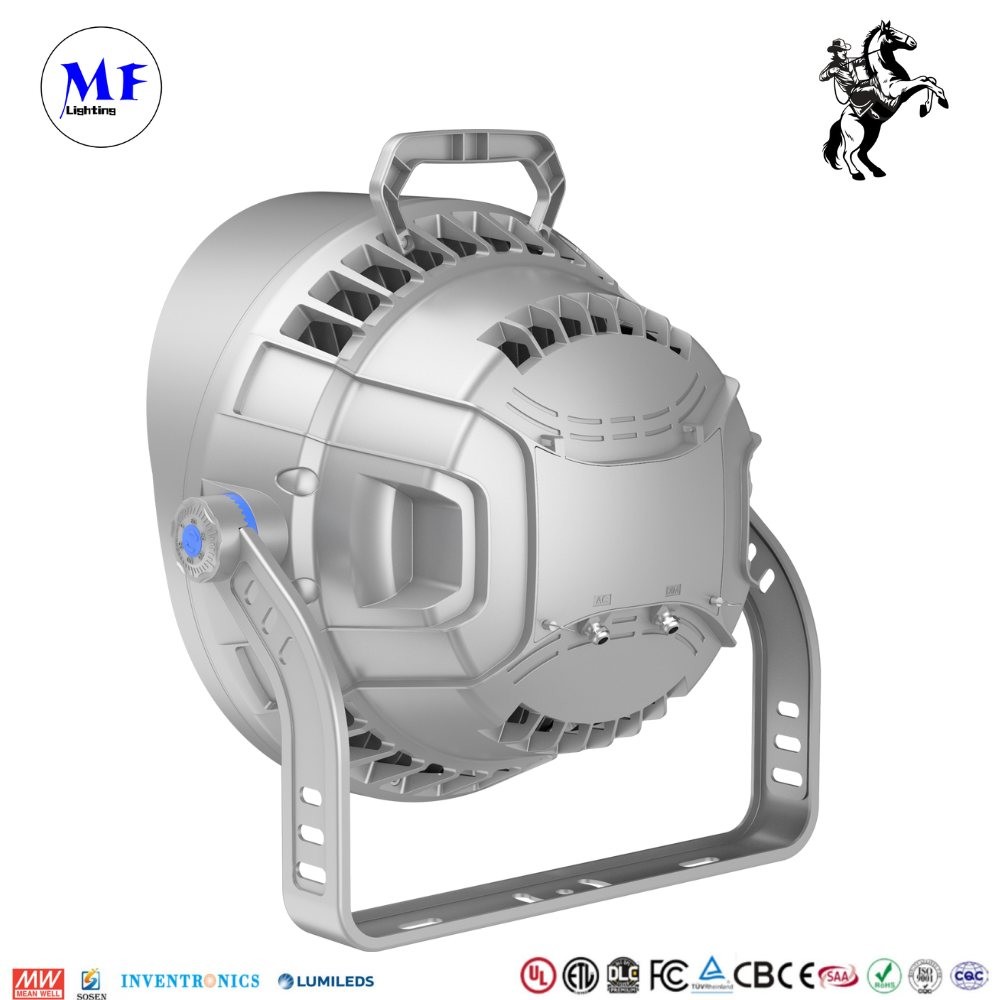

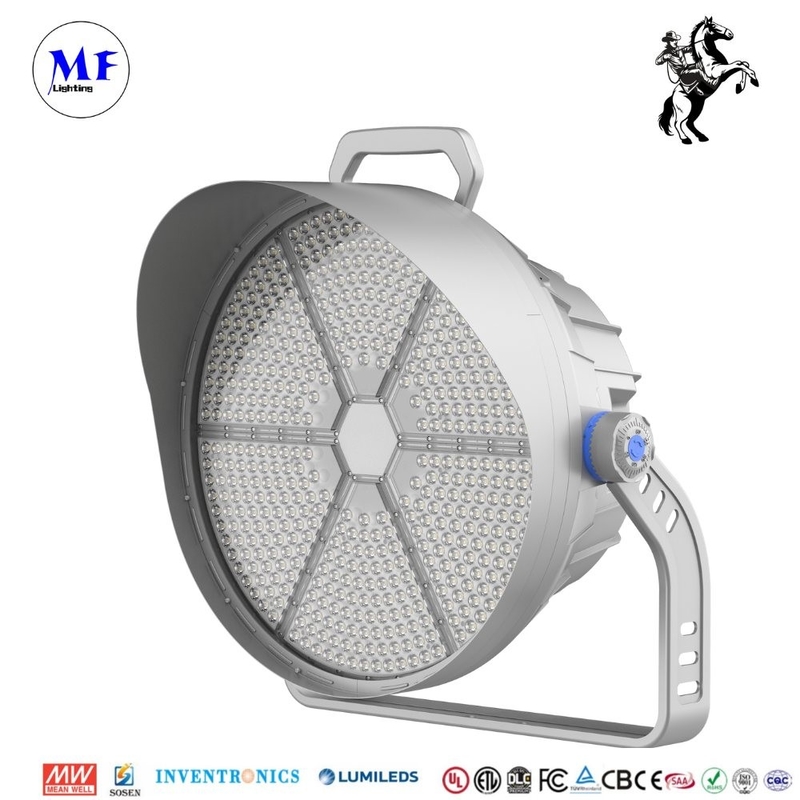

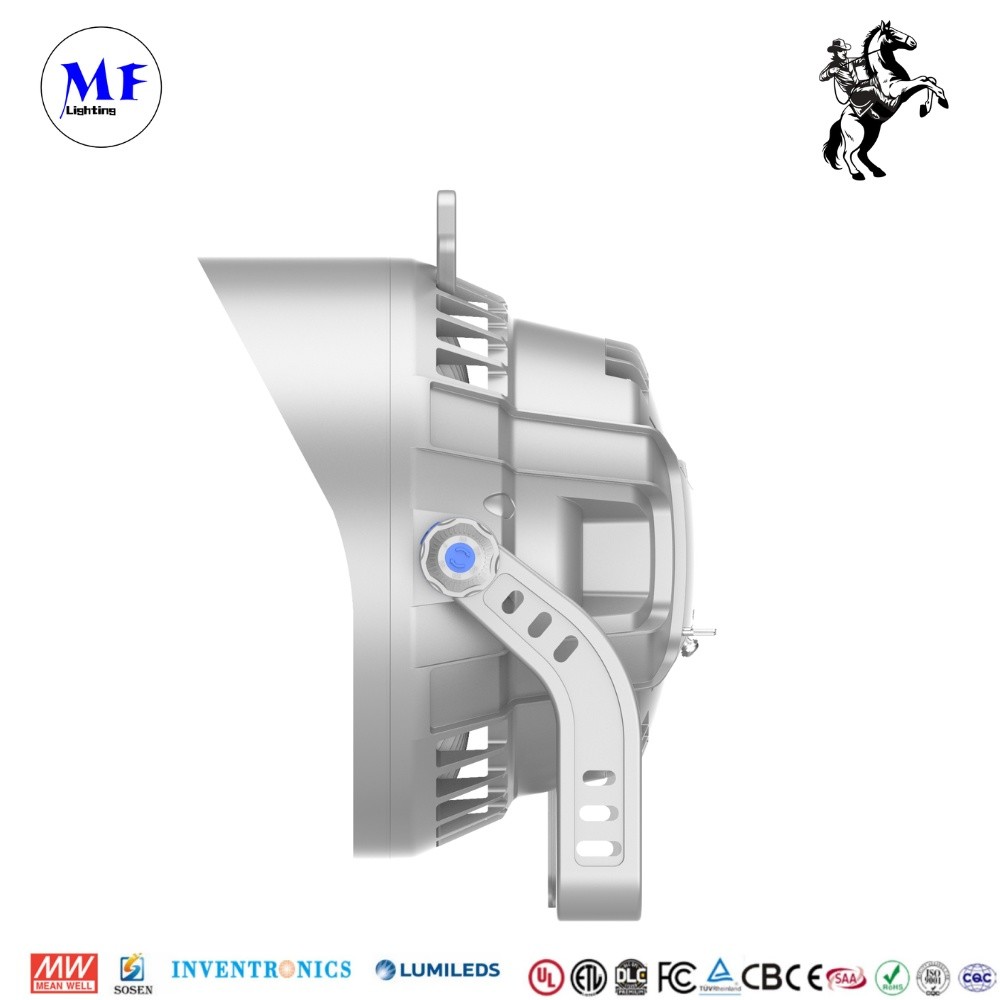

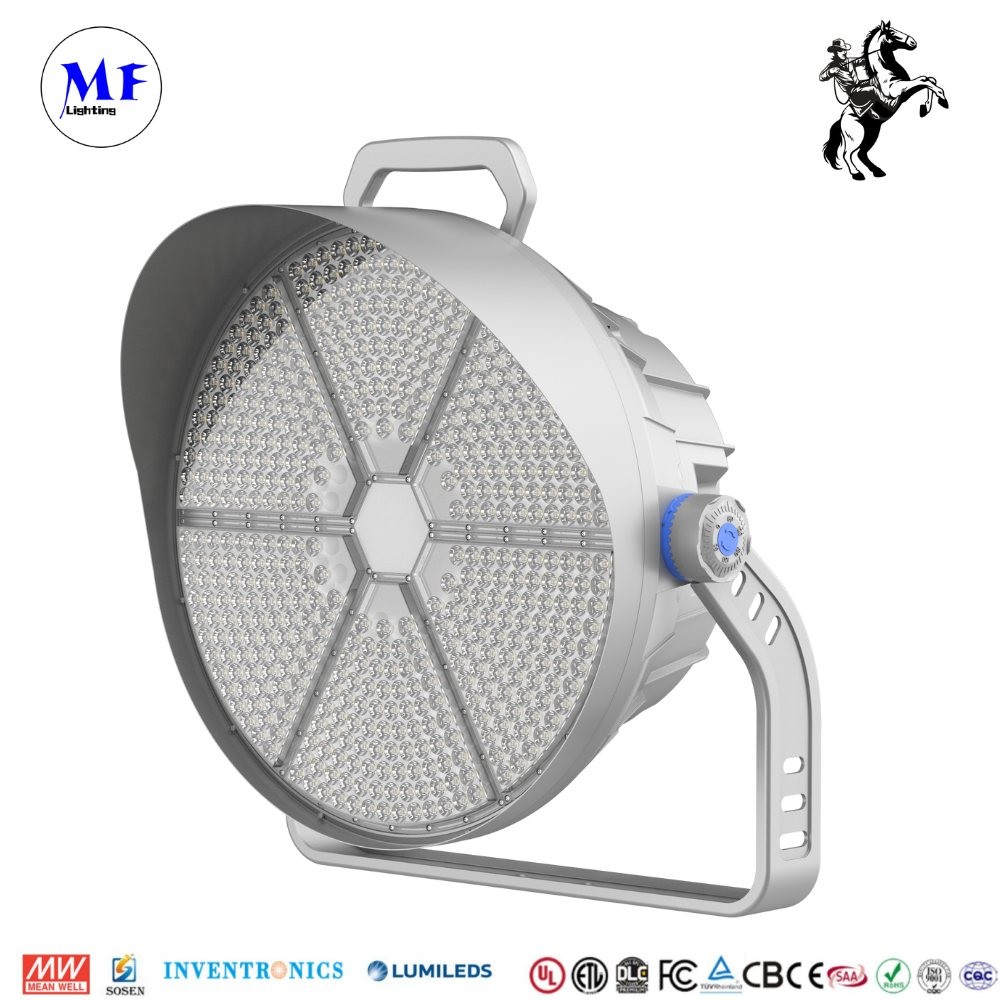

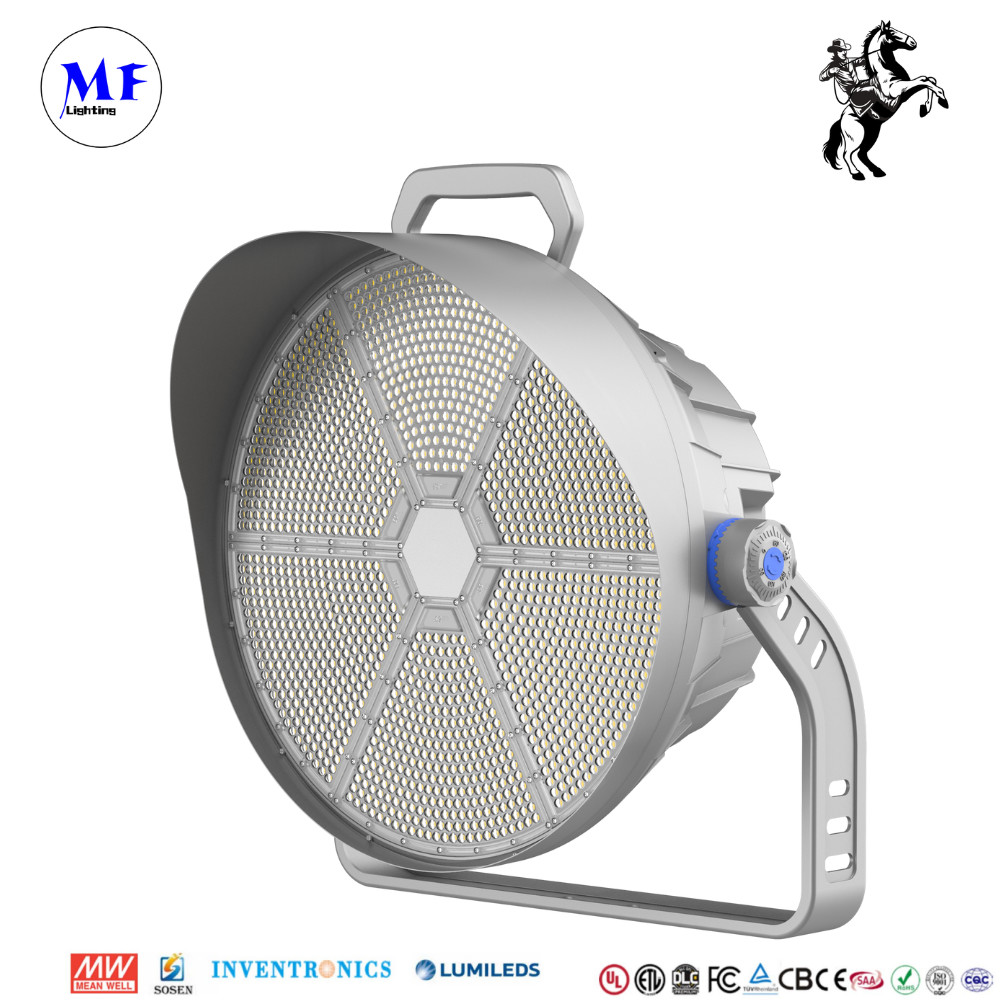

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Model Number: MF-COW BOY

Detail Information

Certification: CCC/CE/ROHS/SAA/CB/ATEX/EX/TUV CCT: 2700K-6500K
Material: ADC12 Aluminum Die-Casting Fixture Housing Input: 100-227V
Power: 400W/500W/600W/800W/1000W/1200W IP Rate: IP66
Warranty: 5years Lifespan: >60, 000hrs
Luminous Flux: 150lm/W Ik Rate: Ik10
Chip Brand: LuMileds/OSram Power Frequency: 50-60Hz
LED Driver: MeanWell/SoSen//InvenTronics Working Temp: -20°C~+60°C
Application: Stadium/Wharf/Airport/Aproan/Stadium/Highway/etc Other Application: Basketball Soccer Volleyball Badminton Football Tennis Court Field/Stadium Concert/Music Festival Event/Sport Facility
Beam Angle: 10/15/25/45/60/90°
High Light:

1200W High Power light

,

High Mast Spotlight

,

High Mast IP66 LED Flood Light

Product Description

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 0



1.Lumileds Chips: Our LED Tri Proof Light utilizes Lumileds chips, renowned for their high brightness, low light decay, and long life-time. These chips deliver exceptional illumination, ensuring a bright and consistent light output that lasts for an extended period.

2.International Driver Brand: The LED Tri Proof Light features a driver from a well-established international brand. With built-in overheat protection, high conversion efficiency, high power factor (PF), and surge protection, it offers reliable and efficient operation. It also supports dimming options such as 1-10V and DALI2.0, providing versatility and control over the lighting output.

3.Die-Casting Technology with ADC12: Our LED Tri Proof Light is constructed using die-casting technology with ADC12, a high-quality aluminum alloy. This manufacturing technique provides excellent thermal management, effectively dissipating heat and maintaining a balanced internal and external temperature. By reducing chip junction temperature (Tj) and minimizing light decay, it ensures optimal performance and longevity.

4.Optical UV Resistant PC Lens: Equipped with an optical UV resistant PC lens, our LED Tri Proof Light achieves an impressive light transmittance of 94%. This high-quality lens ensures maximum light output and distribution while being resistant to UV degradation. With a range of selectable beam angles including 10°, 15°, 25°, 45°, 60°, and 90°, it offers flexibility in meeting specific lighting requirements.

5.Bracket Installation and Wide Operating Temperature Range: Our LED Tri Proof Light is designed for easy bracket installation, providing convenience and flexibility during setup. It operates reliably in a wide temperature range, from -35°C to +50°C, making it suitable for various indoor and outdoor applications, even in extreme weather conditions.





400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 1

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 2






400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 3

Model No. MF-QCD-C400w MF-QCD-C500w MF-QCD-C600w MF-QCD-C800w MF-QCD-c1000w MF-QCD-C1200W
Input Voltage AC100-277 50/60Hz AC100-277 50/60Hz AC100-277 50/60Hz AC100-277 50/60Hz AC100-277 50/60Hz AC100-277 50/60Hz
output Votage DC42v DC42v DC42v DC42v DC42V DC42V
Rated Power 400w 500w 600w 800w 1000w 1200w
Qty ofLED 864PCS*3030 864PCS*3030 864PCS*3030 1632PCS*3030 1632PCS*3030 1632PCS*3030
PF >0.95 >0.95 >0.95 >0.95 >0.95 >0.95
LED Brand Lumileds Lumileds Lumileds Lumileds Lumileds Lumileds
luminous Flux 60000lm卤5% 75000lm卤5% 90000lm卤5% 120000lm卤5% 150000Im卤5% 180000lm卤5%
CR Ra>70,80,90 Ra>70,80,90 Ra>70,80,90 Ra>70,80,90 Ra>70,80,90 Ra>70,80,90
CC 3000-6500K 3000-6500K 3000-6500K 3000-6500K 3000-6500K 3000-6500K
BeamArgle 10/15/25/45/60/90 10/15/25/45/60/90 10/15/25/45/60/90 10/15/25/45/60/90 10/15/25/45/6o/9o 10/15/25/45/60/90
DrierBrand MW/SOSEN MW/SOSEN MW/SOSEN Mw/sOSEN Mw/soSEN Mw/SOSEN
THD <10% <10% <10% <10% <10% <10%
lKRatng IK08 IK08 IK08 IK08 IK08 IK08
IPRating IP66 IP66 IP66 IP66 IP66 IP66
uife Span 50000Hrs 50000Hrs 50000Hrs 50000Hrs 50000Hrs 50000Hrs
size 522*509*389mm 522*509*389mm 522*509*389mm 681*660*497mm 681*660*497mm 681*660*497mm
Nw 16.90kg 17.40kg 17.90kg 33.00kg 34.00kg 35.00kg
c.w 18.90kg 19.40kg 19.90kg 37.00kg 38.00kg 39.00kg
Certification U-L/ETL/DLC/ruv/CB/ENEC/CE/SAA/FCC/RoHS/cac



400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 4

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 5





Light Distribution:



400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 6




Installation:

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 7

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 8



LED high mast lights are extensively used in various applications that require powerful and efficient lighting solutions. Here is a paragraph describing the applications of LED high mast lights:
LED high mast lights find widespread application in large outdoor areas that demand high-intensity illumination. These lights are commonly used in sports stadiums, providing exceptional brightness and uniform lighting for sporting events and nighttime matches. They are also utilized in airports and transportation hubs to illuminate runways, taxiways, and apron areas, ensuring safe and efficient operations during low-light conditions. Additionally, LED high mast lights are employed in industrial facilities, warehouses, and logistics centers, where they provide bright and reliable lighting for loading docks, storage yards, and parking areas, enhancing safety and productivity. Furthermore, these lights are commonly used in seaports to illuminate container yards, docking areas, and cranes, enabling efficient cargo handling and enhancing overall security. Their applications also extend to large parking lots, highways, and intersections, where they provide excellent visibility, reducing the risk of accidents and ensuring smooth traffic flow. Overall, LED high mast lights serve as indispensable lighting solutions for a wide range of outdoor environments that require powerful and energy-efficient illumination.



  1. Any Sport Court
  2. Golf Course
  3. Large Parking Lot
  4. Wharf
  5. Airport
  6. Construction Site
  7. Any Large Outdoor Are,etc
400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 9
LED high power flood stadium lights are widely used in various applications where powerful, focused, and energy-efficient lighting is required. Here is a paragraph describing the applications of LED high power flood stadium lights:
LED high power flood stadium lights are extensively employed in outdoor sports stadiums and arenas to provide exceptional lighting for sporting events. These lights offer high-intensity illumination and excellent beam control, ensuring uniform coverage of the playing field, enabling athletes to perform at their best, and enhancing the viewing experience for spectators. Additionally, these lights find application in large outdoor concert venues and music festivals, where they create a vibrant and visually appealing atmosphere for performers and audiences alike. Their ability to produce bright and focused lighting makes them suitable for illuminating stages, outdoor sets, and event spaces during film and television productions. Moreover, LED high power flood stadium lights are used in architectural lighting projects, highlighting the facades of buildings, monuments, and landmarks, enhancing their aesthetics, and creating dramatic visual effects. These lights are also deployed in industrial facilities, warehouses, and construction sites, providing ample lighting for improved safety, productivity, and overall operational efficiency. Overall, LED high power flood stadium lights are versatile lighting solutions that find application in various outdoor environments, ranging from sports and entertainment venues to industrial and architectural settings.



400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 10

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 11

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 12

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 13

Packing and Production:





400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 14

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 15

400W-1200W High Power IP66 LED Flood Light High Mast Spotlight For Sports Field Tennis Stadium 16

About us:





Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
