2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas

Contact Now

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas

Minimum Order Quantity :	100PCS	Price :	Negotiable
Packaging Details :	8pcs (13kg/CTN) 45.545.532cm	Delivery Time :	Depends on orders
Payment Terms :	T/T, Western Union, Paypal, L/C	Supply Ability :	10,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CCC, CE, CQC, ETL, RoHS, SAA	Model Number:	MF-TH229-20W

Detail Information
Power:	10W / 12W / 15W / 20W / 30W / 40W	Luminous Flux:	100lm/W
Beam Angle:	24° 36 °45 °50 °60 °	CRI:	>80Ra Or 90Ra
Warranty:	3 Years Optional	LED Brand:	Cree Or Epistar COB LED
Application:	Engineering, Home Furnishing, Residential Gardens, Commercial Buildings, And Pub	Nominal Current:	350,000mA
Protection Class:	II	Operating Mode:	Electronic Control Gear
Luminous Flux (Lm):	640-800lm	Lifespan:	≥35000hrs
Highlight:	100lm/W Recessed Spotlight , Recessed Spotlight For Home Furnishing , 12W Ceiling Mounted Down Light

Product Description

Factory Price 2in3in4in5in6in Alu. PC anti glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas

− High luminous efficacy

− Direct replacement for compact fluorescent lamp downlights

− Energy savings up to 60 % (compared to luminaires that use CFL lamps)

− Very homogenous light

− Functional design

− Easy installation with fast connection

− 3 years guarantee

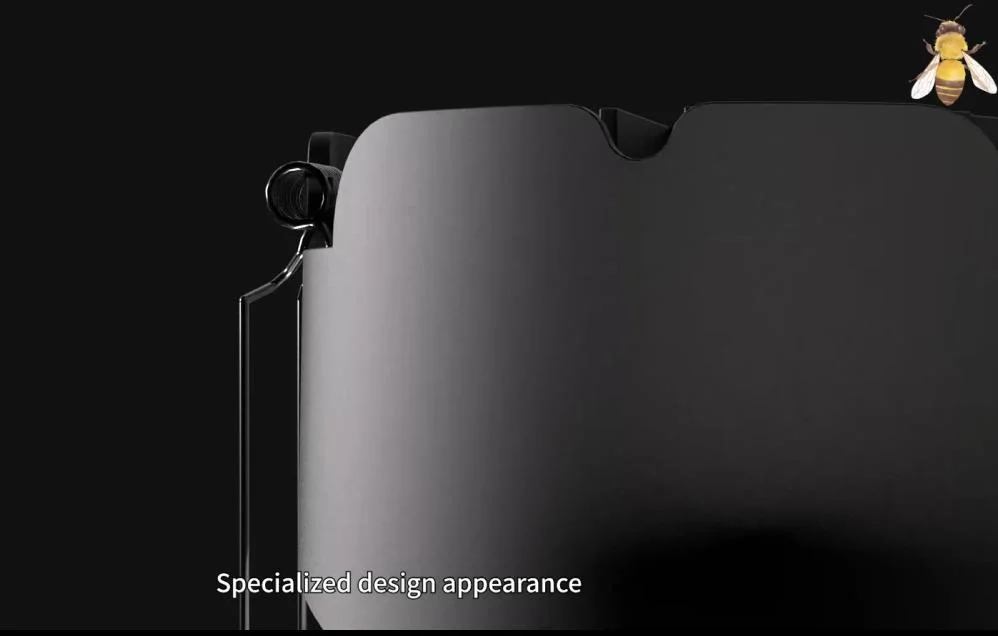

Specialized design apperance

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 0

108 processes

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 1

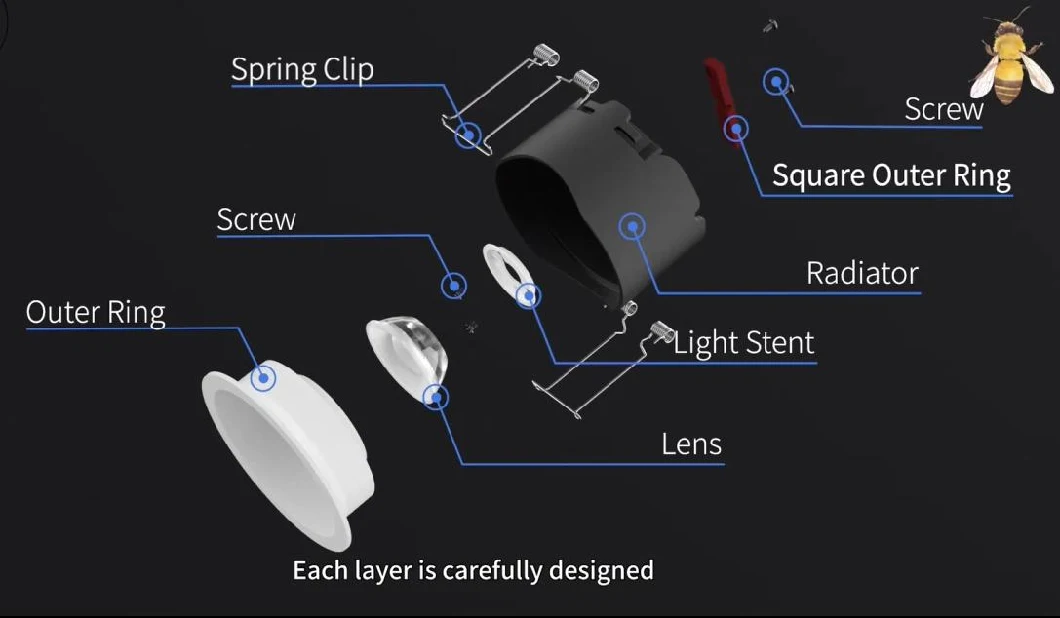

Each layer is carefully design

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 2

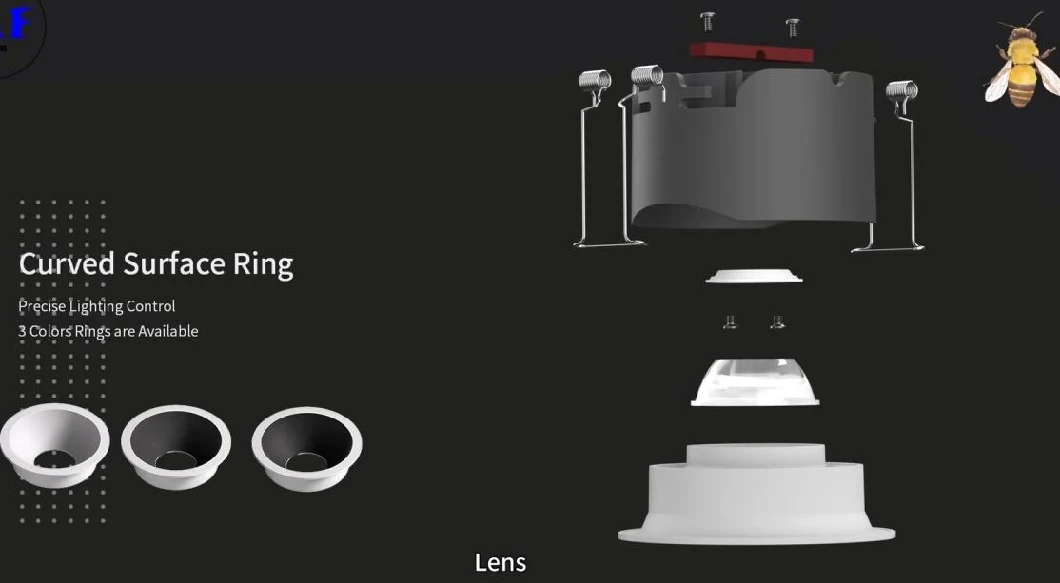

Len

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 3

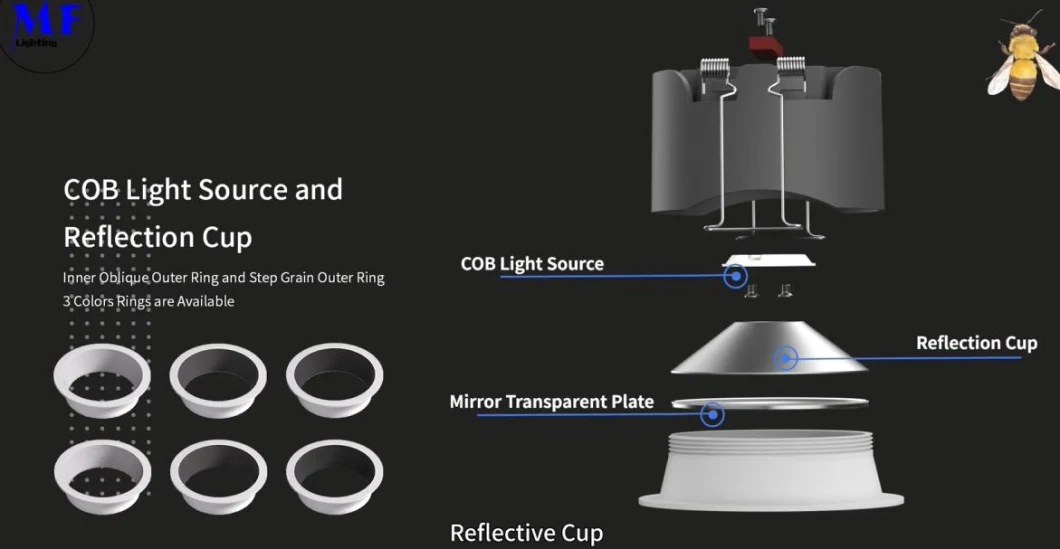

Reflective cup

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 4

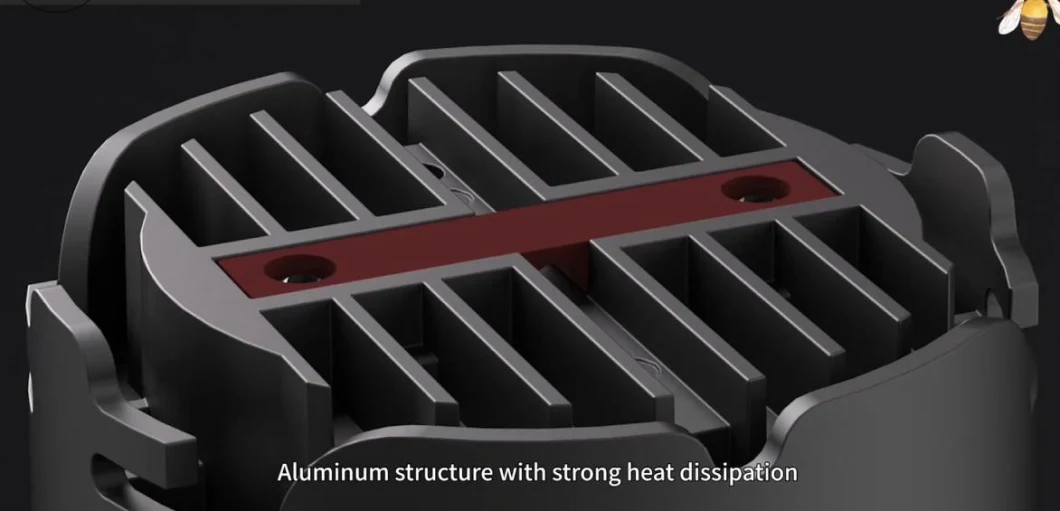

Aluminum structure with strong heat dissipation

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 5

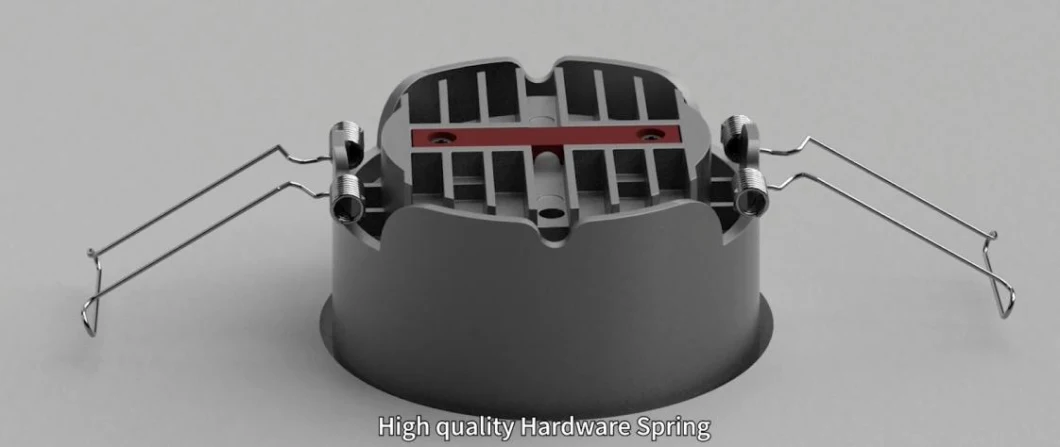

High quality Hardware Spring

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 6

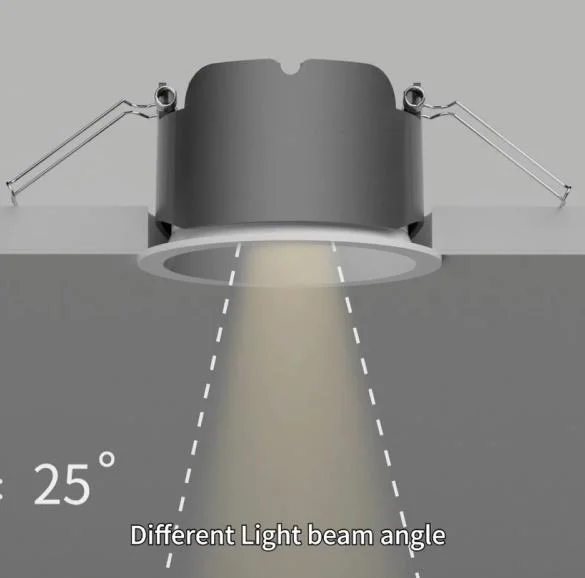

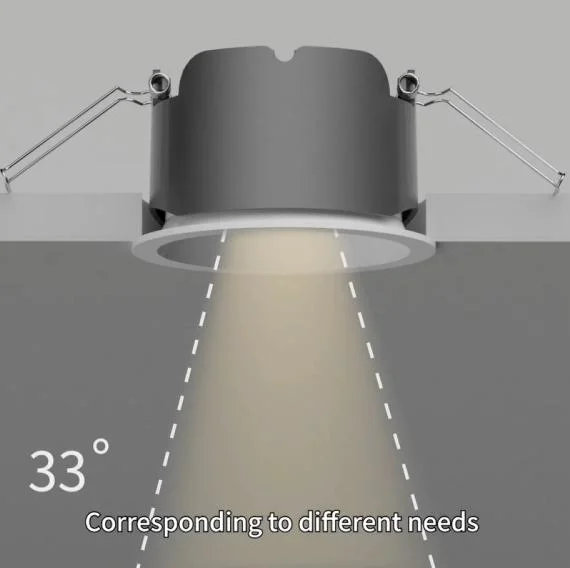

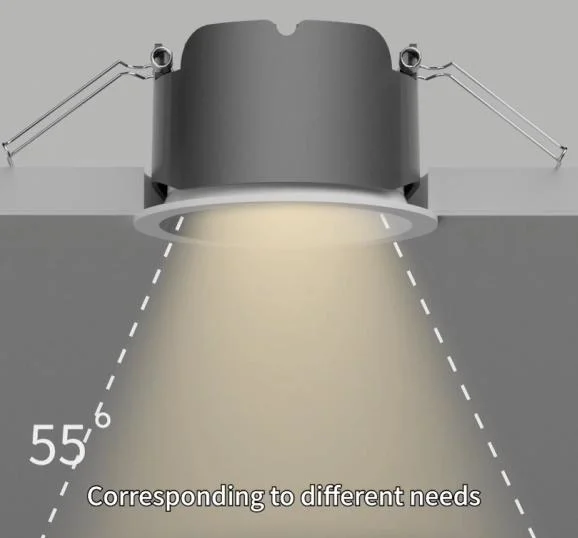

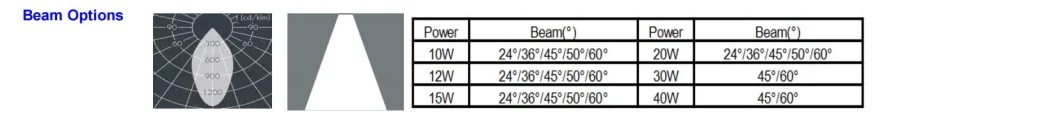

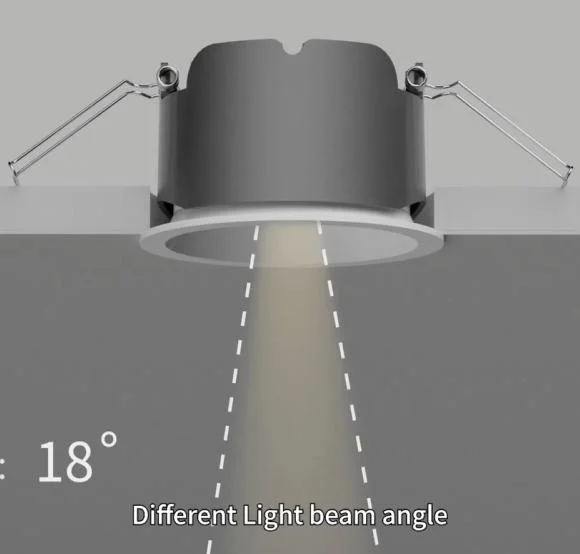

Beam angle:

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 7

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 8

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 9

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 10

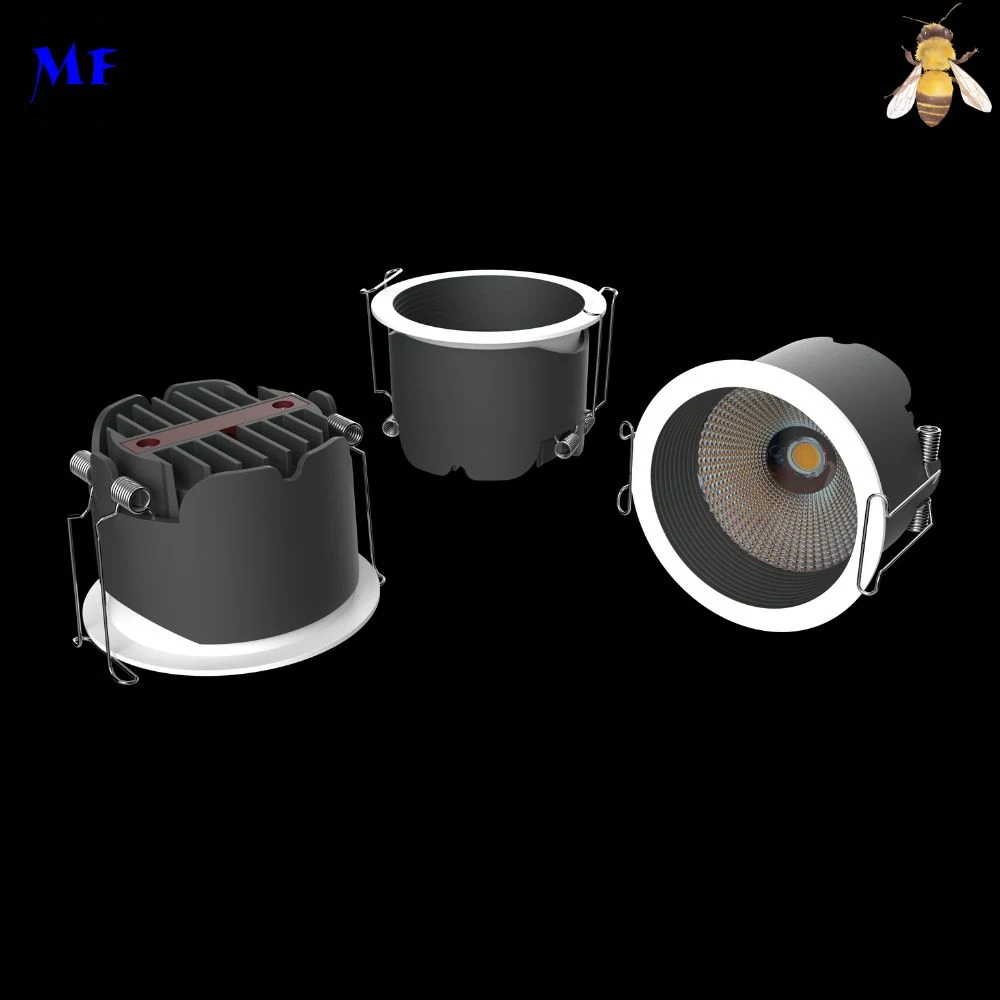

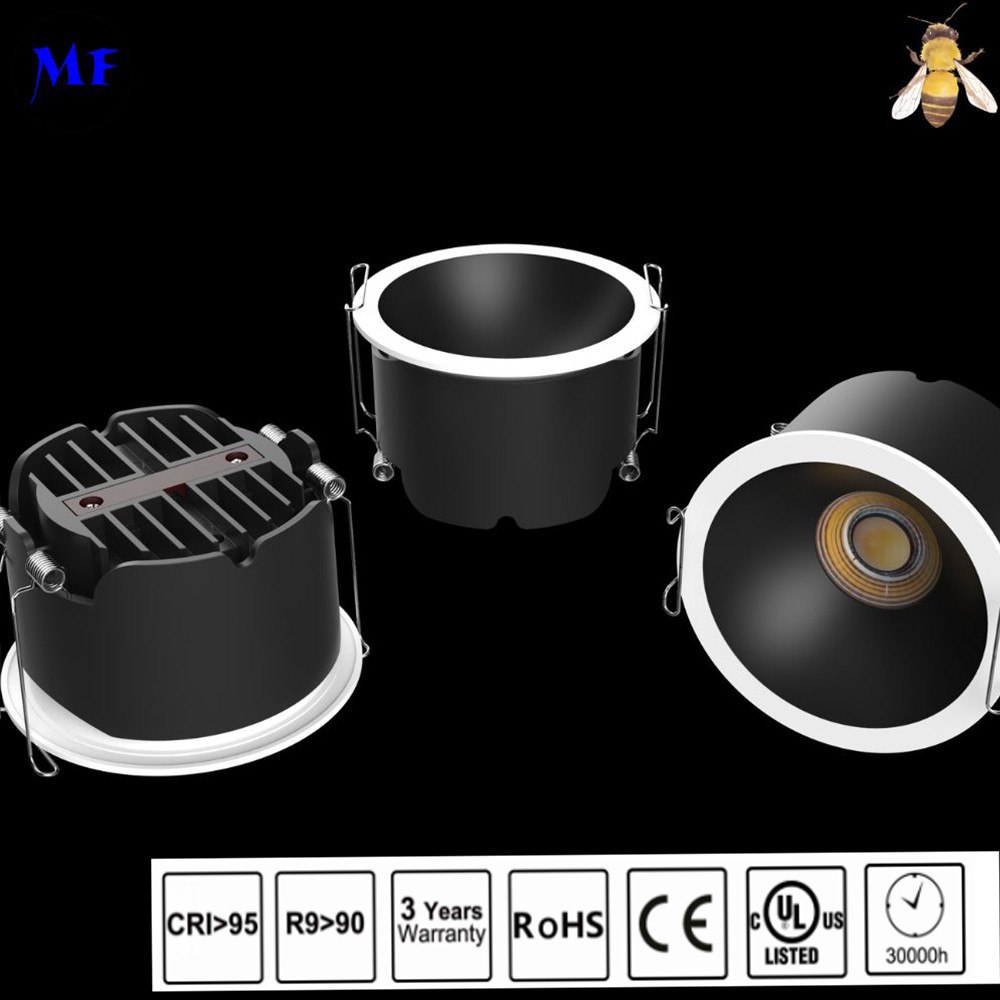

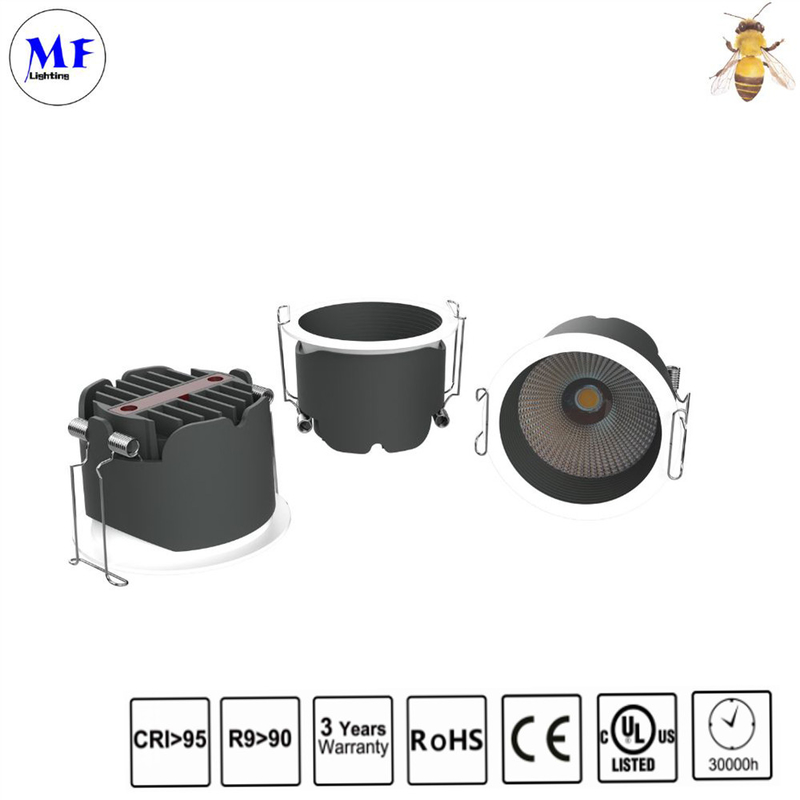

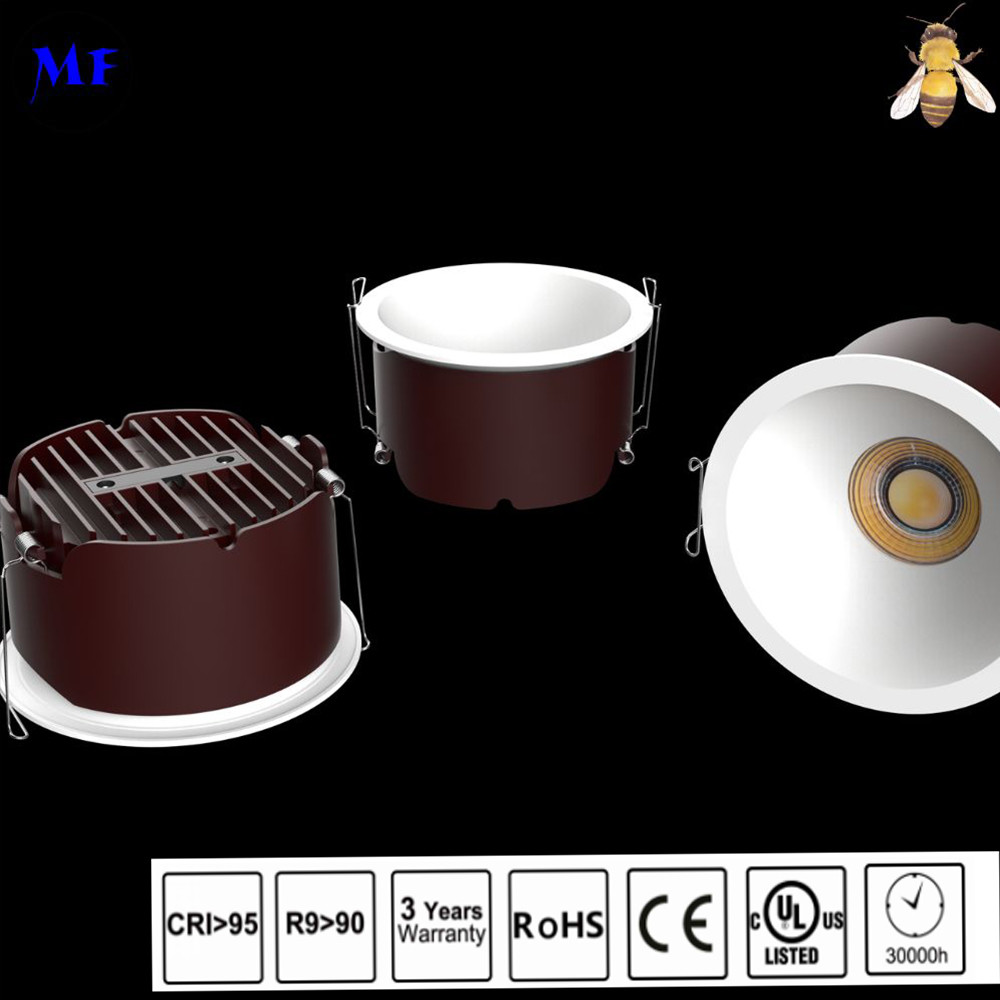

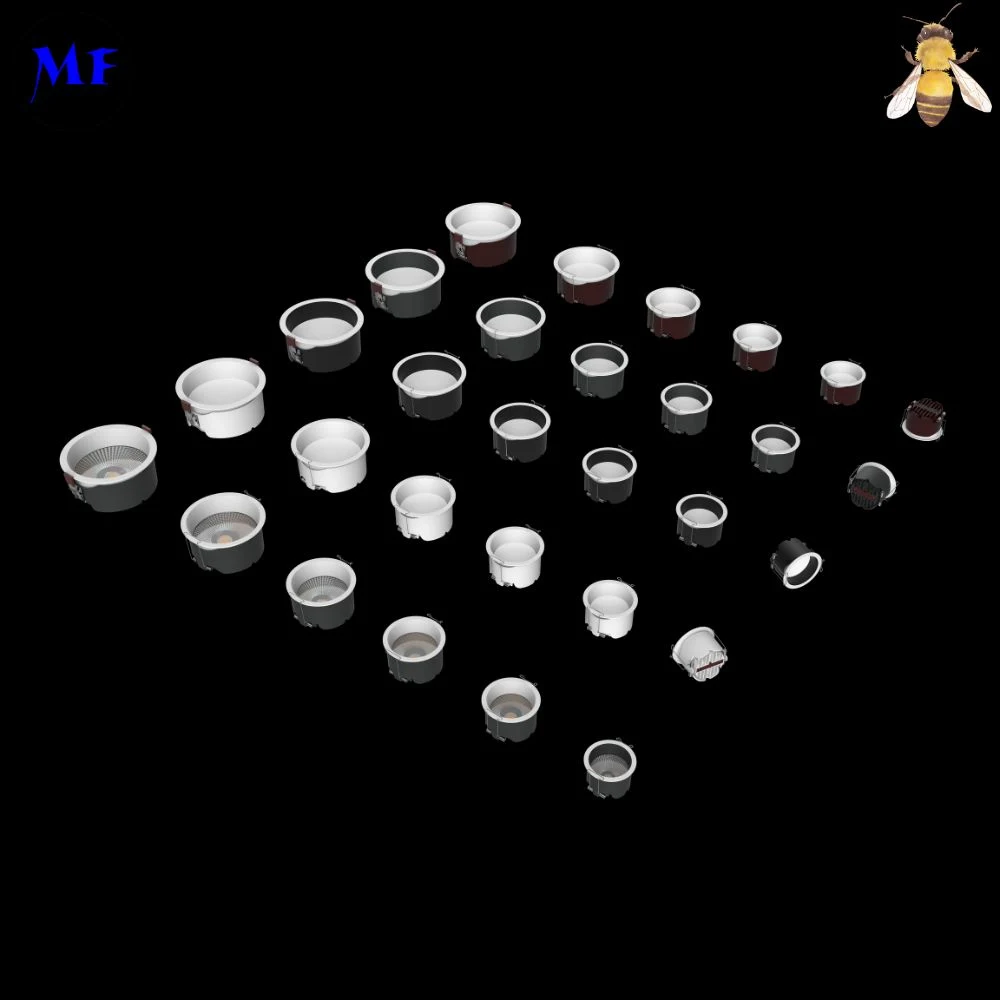

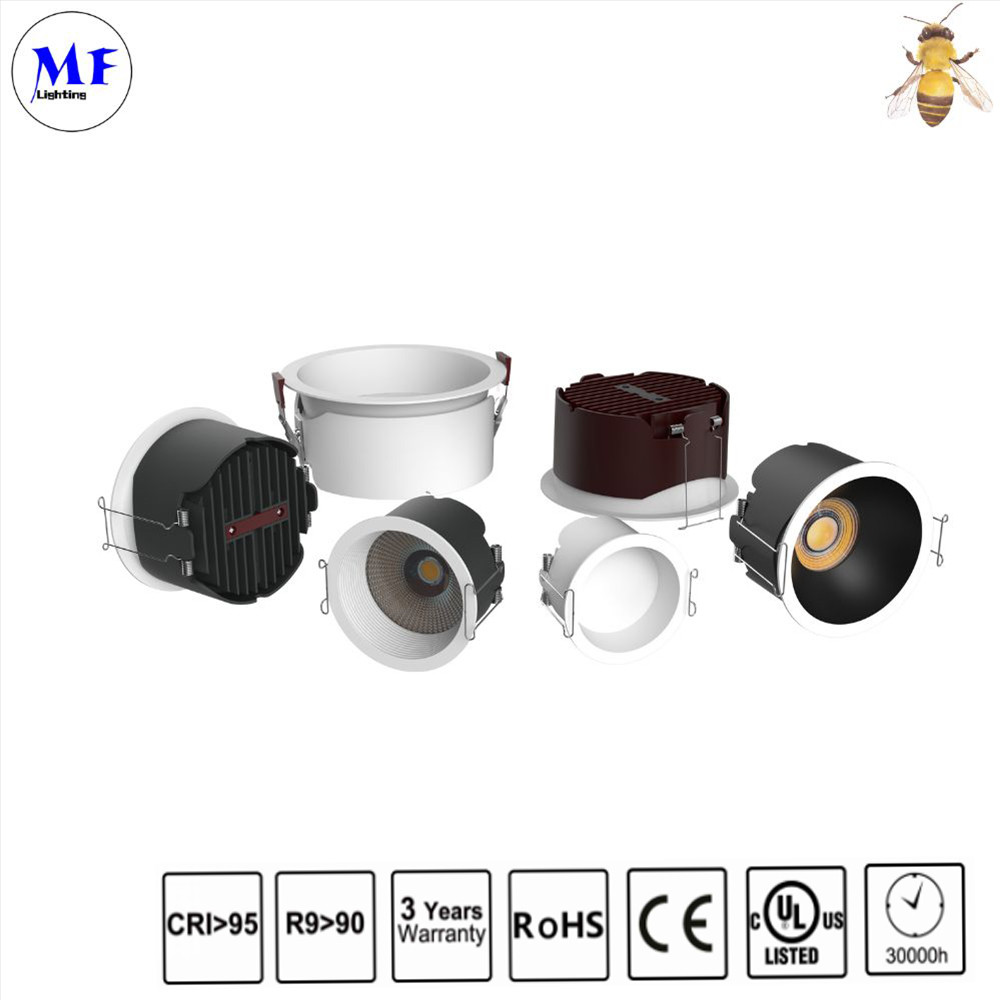

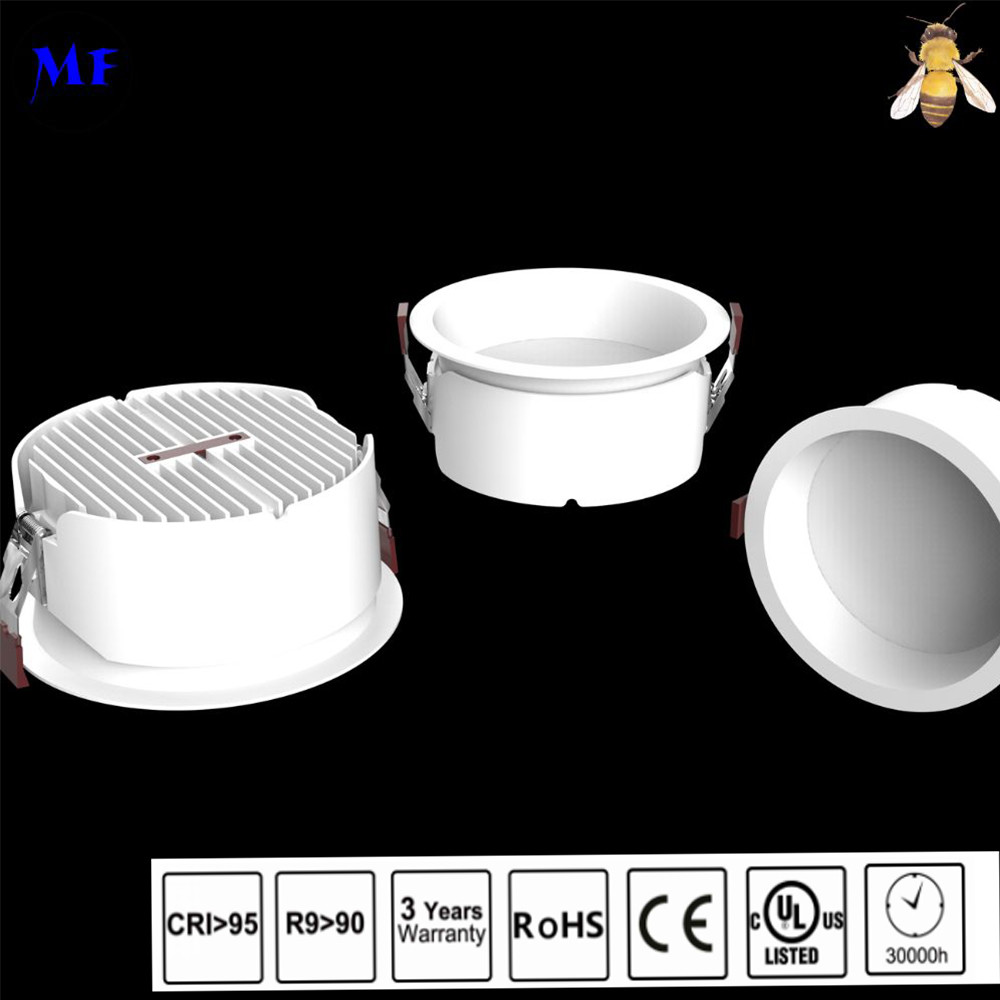

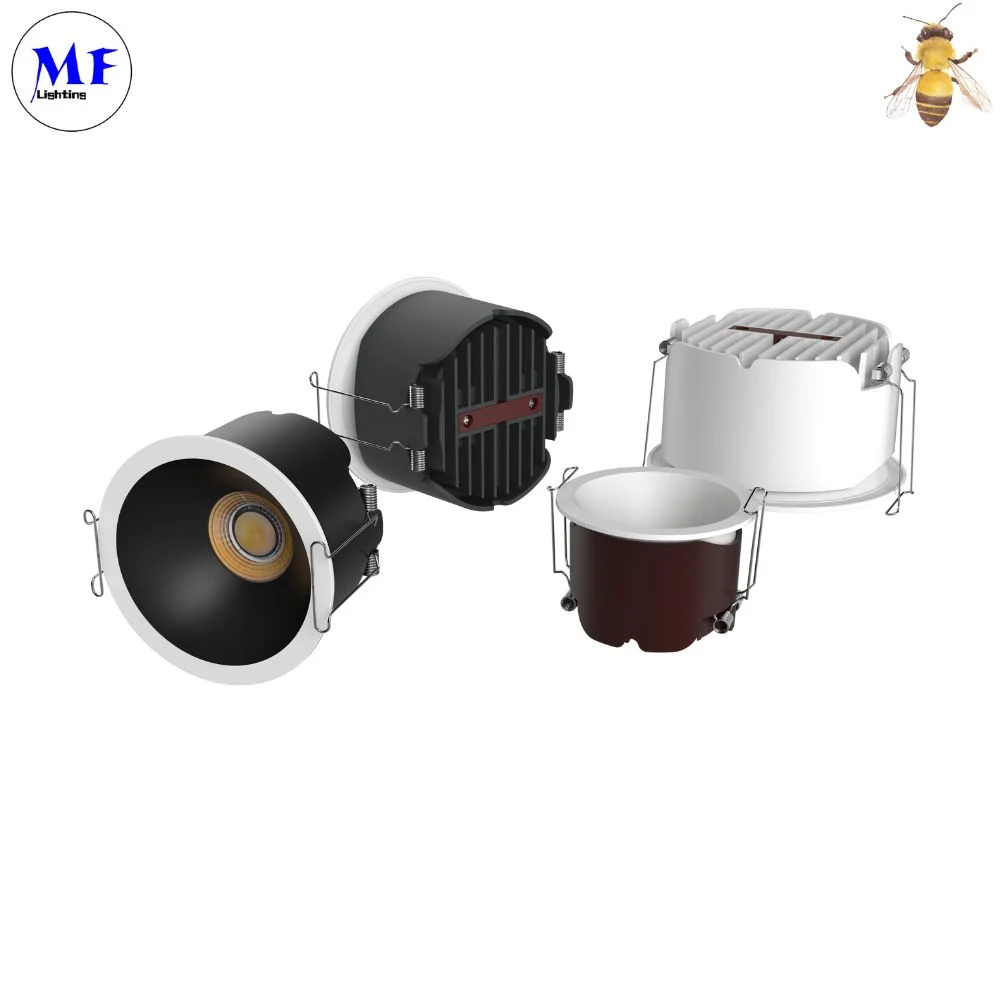

Product pictures:

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 12

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 13

Parameters
Electrical Data:

Nominal Wattage	10W/12W/15W/20W/30W/40W
Nominal Voltage	100-240V
Mains Frequency	50-60Hz
Nominal Current	350,000mA
Power Factor λ	0.9
Protection Class	II
Operating Mode	Electronic Control Gear (ECG)

Application & Mounting:

Ambient Temperature Range	-20 °C~ 40°C
Type of Connection	Terminal, 2-pin
Type of Protection	IP40
Dimmable	No
Mounting Type	Recessed
Mounting Location	Ceiling
Application Environment	Indoor
Mounting Diameter	10W 75mm,12W 90mm,15W 100mm,20W 115mm,30W 145mm,40W 170mm
LED module Replaceable	Not replaceable
Lifespan L70/B50 at 25 °C	30000 h1)
Number of Switching Cycles	15000

Material & Color:

Product Color	White Black
Housing Color	White Black Grey Red
Body Material	Aluminum
Mercury Content	0.0mg

Diameter	10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm
Length	10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm
Height	60.00 mm
Product Weight	610.00g

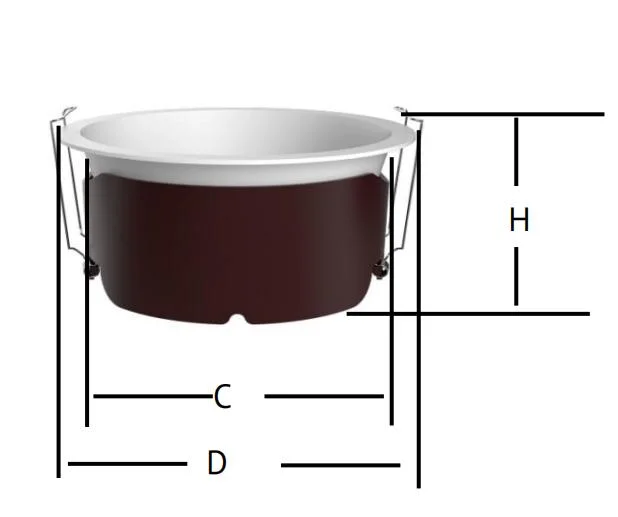

Power	D(mm)	H(mm)	C(mm)
10W	82	53	75
12W	96	58	90
15W	106	63	100
20W	123	68	115
30W	155	76	145
40W	185	83	170

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 14

Luminous Flux	10W 1000lm/12W 1200lm/15W 1500lm/20W 2000lm/30W 3000lm/40W 4000lm
Luminous Efficacy	100 lm/W
Color Temperature	3000K 4000K 6000K
Light Color (designation)	Warm White
CRI	≥80
Beam Angle	24°36 °45 °50 °60 °

2in3in4in5in6in Recessed Light Spotlight Ceiling Mounted Down Light For Home Furnishing Corridor Public Areas 15

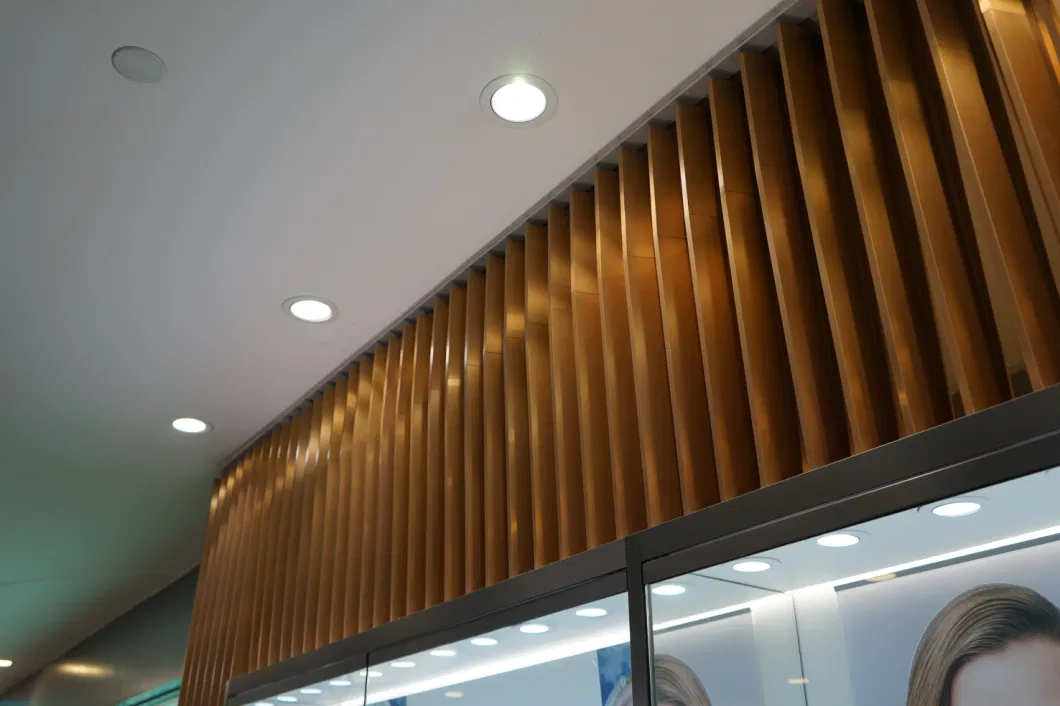

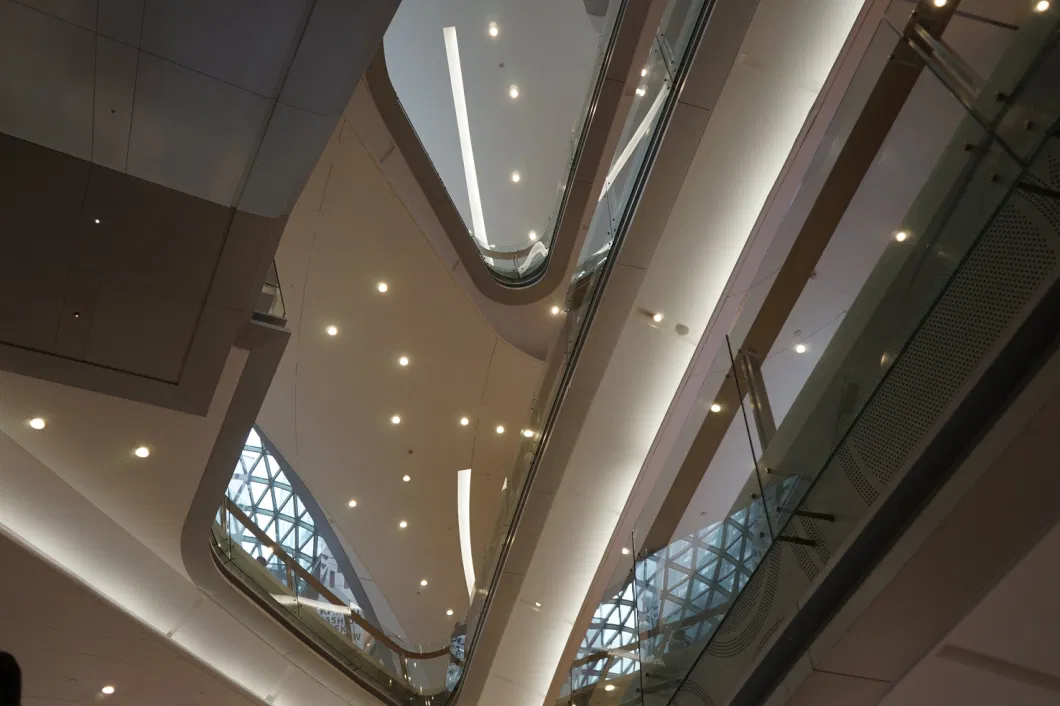

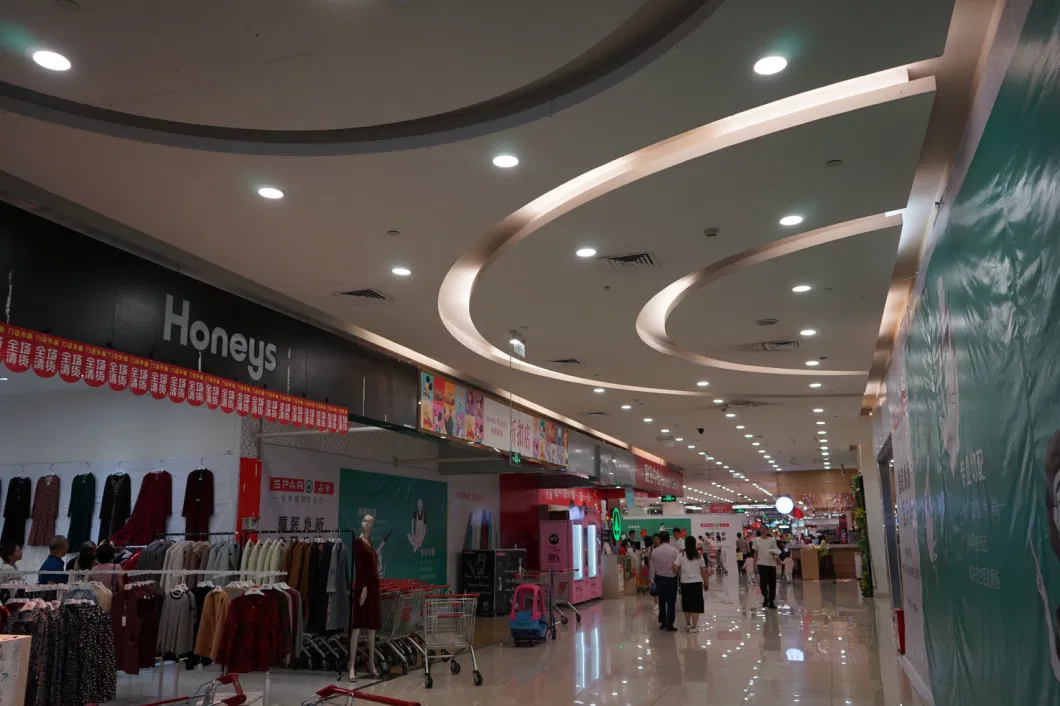

LED downlights are commonly used indoors in residential, commercial, public, and industrial spaces. They provide efficient and effective lighting for living areas, bedrooms, kitchens, offices, retail stores, restaurants, hotels, schools, libraries, hospitals, warehouses, and factories. LED downlights are popular due to their energy efficiency, long lifespan, and versatility, and can be customized to provide different light color, brightness, and beam angles to meet different needs.
