Product Description
Factory Price 2in3in4in5in6in Alu. PC anti glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
− High luminous efficacy
− Direct replacement for compact fluorescent lamp downlights
− Energy savings up to 60 % (compared to luminaires that use CFL lamps)
− Very homogenous light
− Functional design
− Easy installation with fast connection
− 3 years guarantee
Specialized design apperance
108 processes
Each layer is carefully design
Len
Reflective cup
Aluminum structure with strong heat dissipation
High quality Hardware Spring
Beam angle:

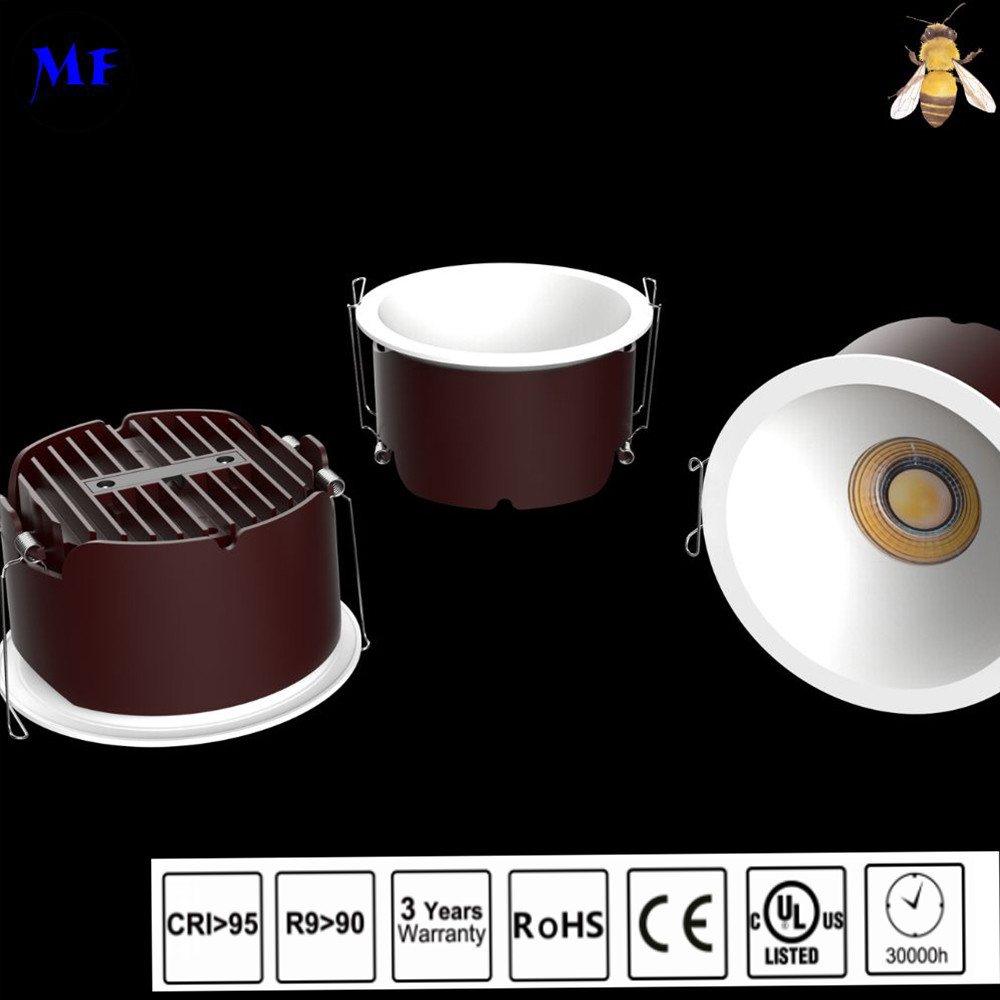

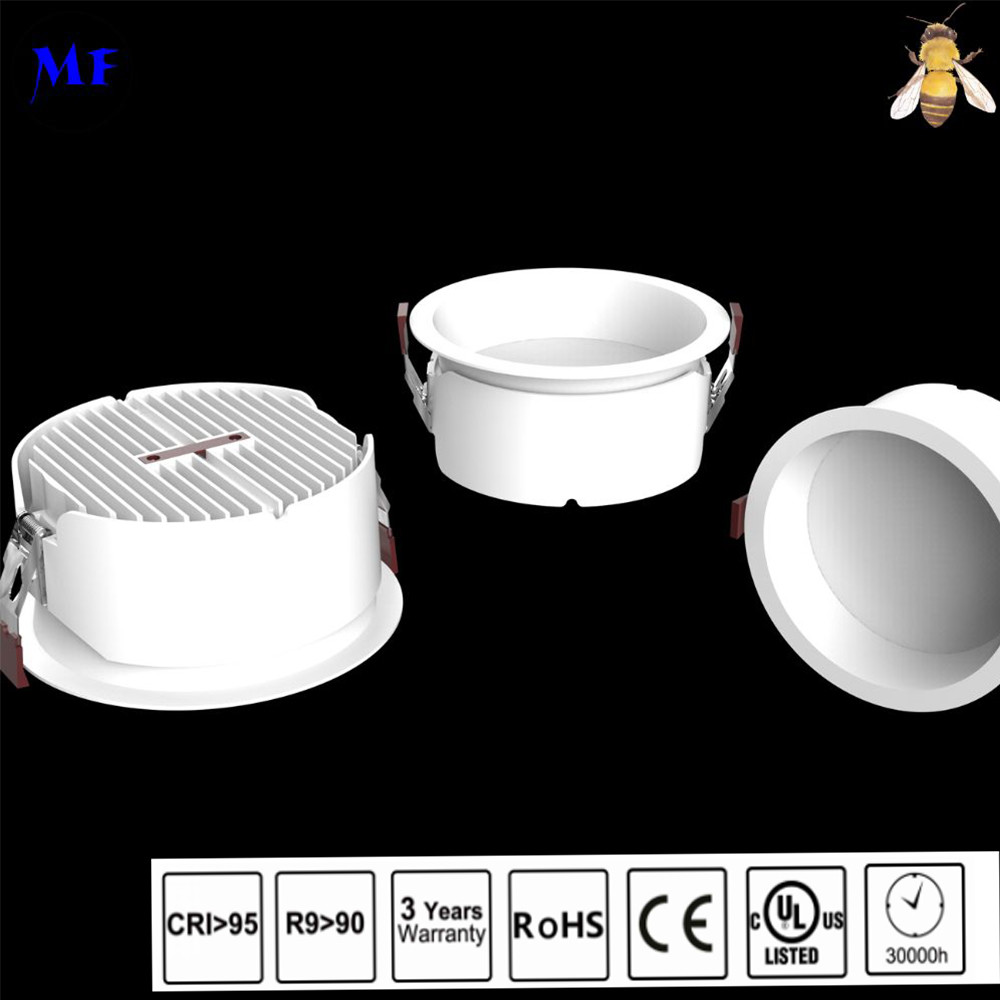

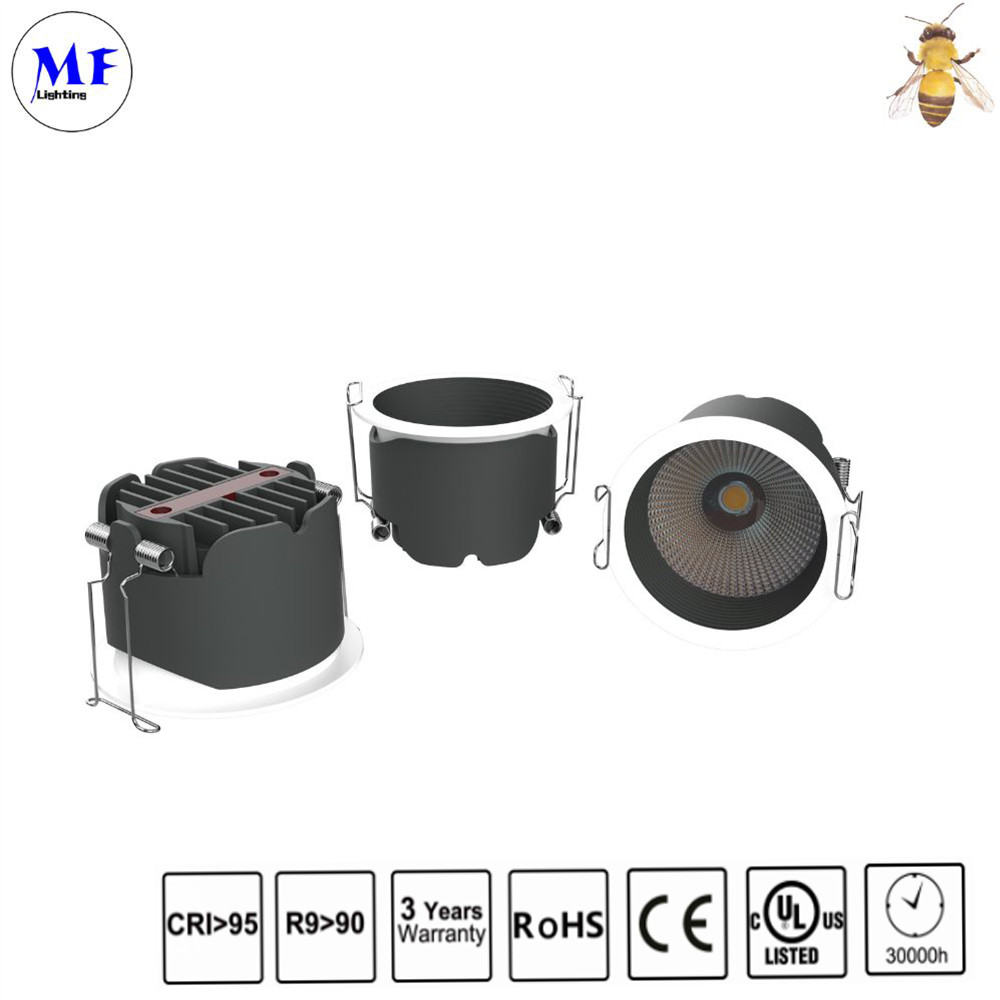

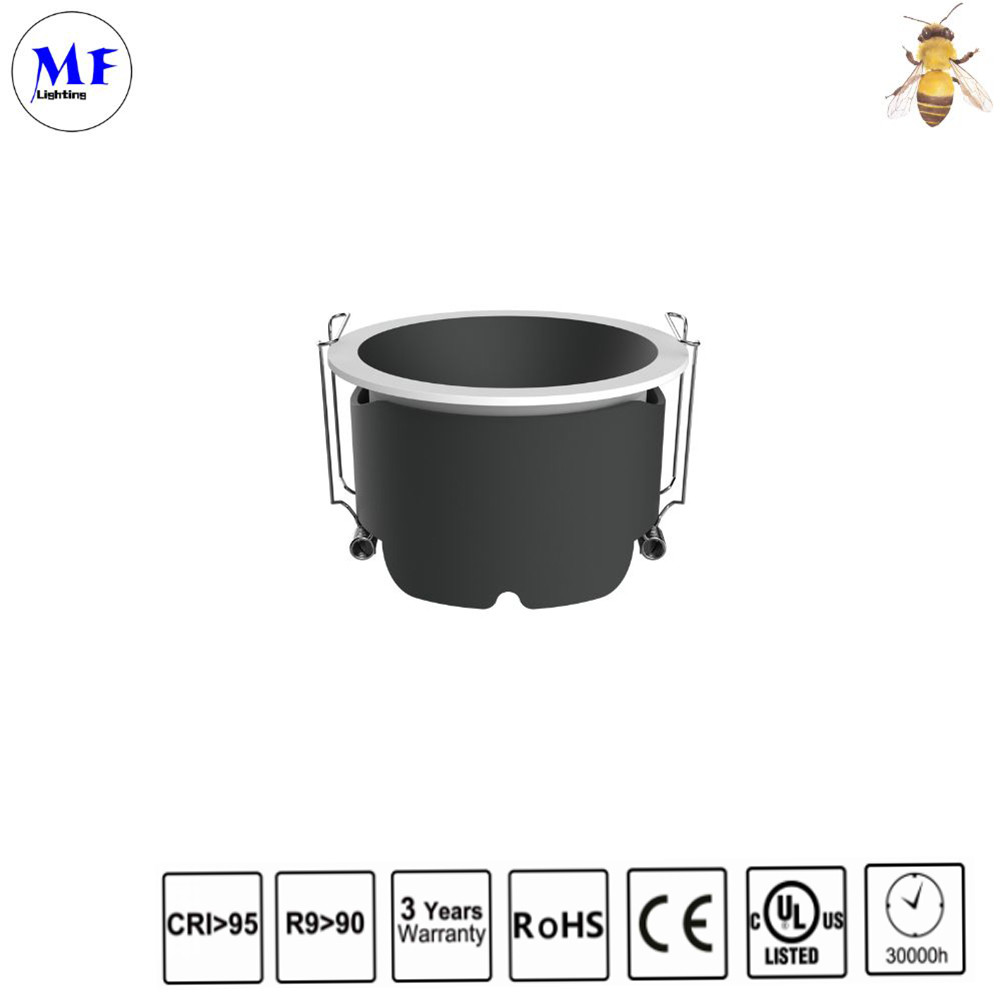

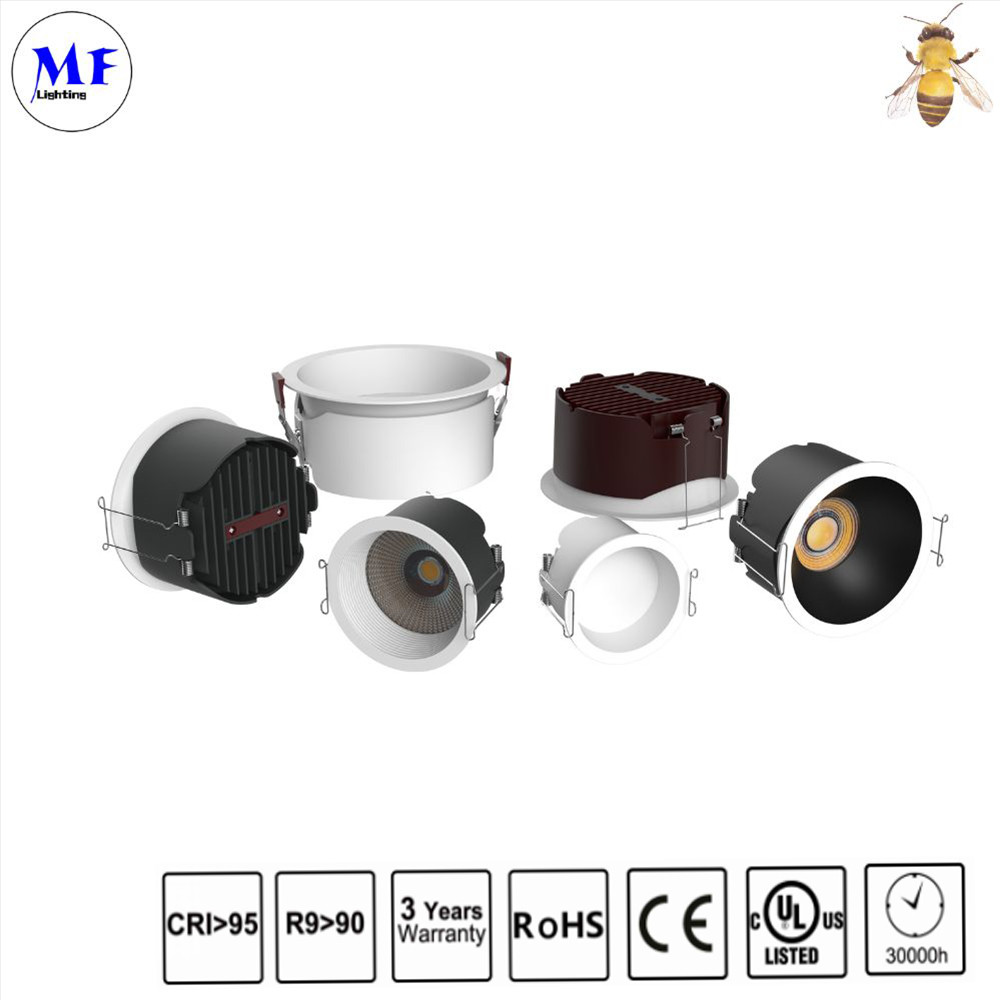

Product pictures:
Parameters
Electrical Data:
| Nominal Wattage |
10W/12W/15W/20W/30W/40W |
| Nominal Voltage |
100-240V |
| Mains Frequency |
50-60Hz |
| Nominal Current |
350,000mA |
| Power Factor λ |
0.9 |
| Protection Class |
II |
| Operating Mode |
Electronic Control Gear (ECG) |
Application & Mounting:
| Ambient Temperature Range |
-20 °C~ 40°C |
| Type of Connection |
Terminal, 2-pin |
| Type of Protection |
IP40 |
| Dimmable |
No |
| Mounting Type |
Recessed |
| Mounting Location |
Ceiling |
| Application Environment |
Indoor |
| Mounting Diameter |
10W 75mm,12W 90mm,15W 100mm,20W 115mm,30W 145mm,40W 170mm |
| LED module Replaceable |
Not replaceable |
| Lifespan L70/B50 at 25 °C |
30000 h1) |
| Number of Switching Cycles |
15000 |
Material & Color:
| Product Color |
White Black |
| Housing Color |
White Black Grey Red |
| Body Material |
Aluminum |
| Mercury Content |
0.0mg |
| Diameter |
10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
| Length |
10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
| Height |
60.00 mm |
| Product Weight |
610.00g |
| Power |
D(mm) |
H(mm) |
C(mm) |
| 10W |
82 |
53 |
75 |
| 12W |
96 |
58 |
90 |
| 15W |
106 |
63 |
100 |
| 20W |
123 |
68 |
115 |
| 30W |
155 |
76 |
145 |
| 40W |
185 |
83 |
170 |
| Luminous Flux |
10W 1000lm/12W 1200lm/15W 1500lm/20W 2000lm/30W 3000lm/40W 4000lm |
| Luminous Efficacy |
100 lm/W |
| Color Temperature |
3000K 4000K 6000K |
| Light Color (designation) |
Warm White |
| CRI |
≥80 |
| Beam Angle |
24°36 °45 °50 °60 ° |
Residential Lighting: LED downlights are widely used in homes for general lighting, task lighting, and accent lighting in various areas such as living rooms, bedrooms, kitchens, and bathrooms.
Commercial Spaces: LED downlights are commonly used in commercial spaces such as offices, conference rooms, lobbies, hallways, retail stores, restaurants, and hotels to provide efficient and visually appealing lighting.
Hospitality Industry: LED downlights are popular in the hospitality industry, including hotels, resorts, and guesthouses, as they offer an inviting ambiance and energy-saving benefits.
Retail Lighting: LED downlights are utilized in retail environments to highlight products, create focal points, and enhance the overall shopping experience by providing bright and focused illumination.
Museums and Galleries: LED downlights are preferred in museums and art galleries for their ability to accurately render colors and create dramatic lighting effects on exhibits and artwork.
Healthcare Facilities: LED downlights find application in hospitals, clinics, and medical facilities due to their long lifespan, low maintenance requirements, and ability to provide consistent and high-quality lighting for examination rooms, corridors, and waiting areas.
Educational Institutions: LED downlights are used in schools, colleges, and universities for classrooms, libraries, study areas, and other educational spaces, offering energy-efficient lighting solutions and creating a conducive learning environment.
Outdoor Lighting: LED downlights designed for outdoor use are commonly used for illuminating building facades, pathways, gardens, and outdoor recreational areas, providing both safety and aesthetic appeal.
